Plan 4272MJ
Grand Mediterranean
Heated S.F.
4,057
Beds
4
Baths
5
Stories
2
Cars
3
Floor Plan

Plan 4272MJ

Main Level
slide image 0
2nd Floor
slide image 1

Plan 4272MJ

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
2nd Floor
floor plan image 2nd Floor
Plan Details

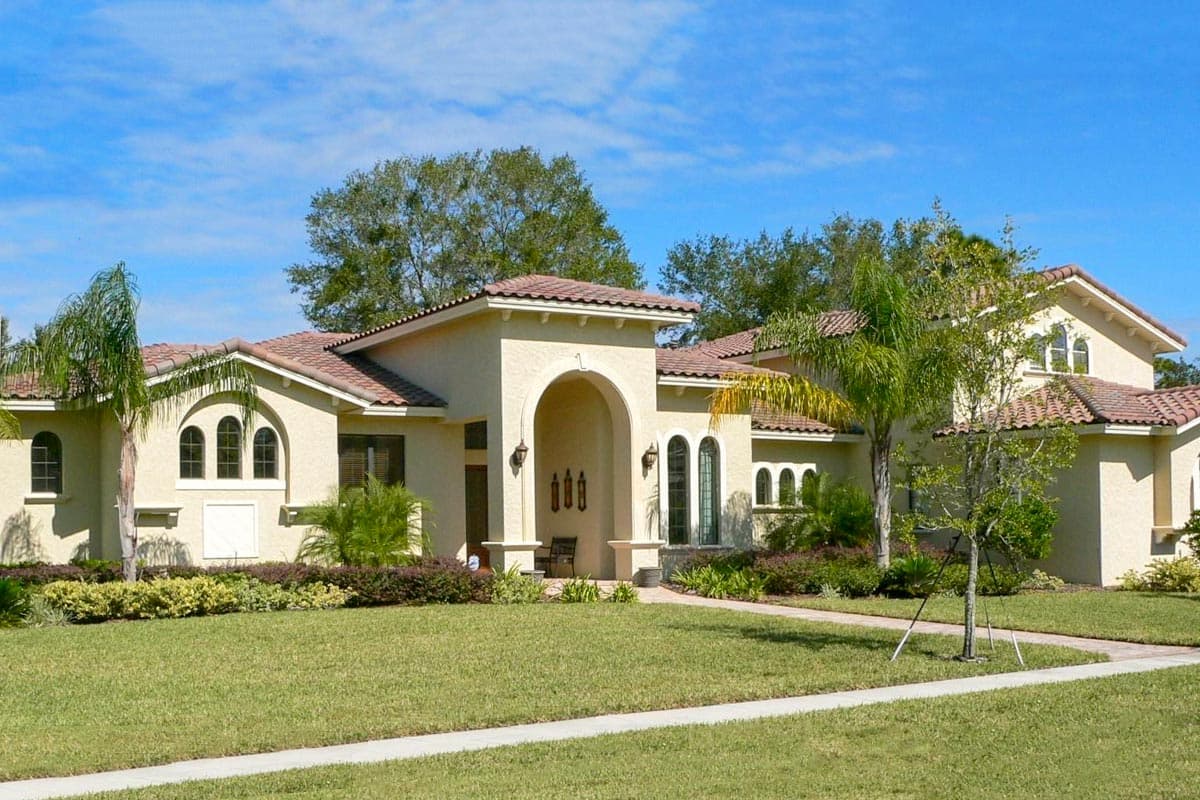

  • Double doors and a majestic entry welcome you home. The trademark angle views of this home plan make it a visual delight.
  • The master suite is a study in completeness. His and Hers amenities abound.
  • The family spaces of this home are perfect for the large family with the kitchen, nook, family room, and the much welcomed game room.
  • Two bedrooms each have their own baths for privacy.
  • The design also has a bonus room and a bedroom on the second floor.
  • FLORIDA RESIDENTS: We can coordinate engineering for you. Contact us for pricing.
What's Included
  • Cover Sheet
  • Floor Plans
  • Slab Foundation Plan (plumbing layout)
  • Elevations
  • Sections
  • Stair Sections if applicable
  • Electrical Layout
  • Basic Details Sheet
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Some plans may not include sections. Please contact us for availability.
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

4,057 sq. ft.

1st Floor

3,707 sq. ft.

2nd Floor

502 sq. ft.

Bonus

322 sq. ft.

Entry

116 sq. ft.

Covered Patio

629 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

5

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Dimensions

Width

88' 8"

Depth

87' 0"

Max Ridge Height

24' 9"

Garage

Type

Attached

Area

816 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

12'

Second Floor

9'

Roof Details

Primary Pitch

4 on 12

Framing Type

Stick

Architectural Style

Florida

Mediterranean

Special Features

Bedrooms - Split

Bonus Room

Breakfast Nook

Butler Walk-in Pantry

Game/Rec Room

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Plan Collections
