Plan 42041MJ

Grand Mediterranean Home Plan

Heated S.F.

4,270

Beds

4

Baths

3.5

Stories

1

Cars

3

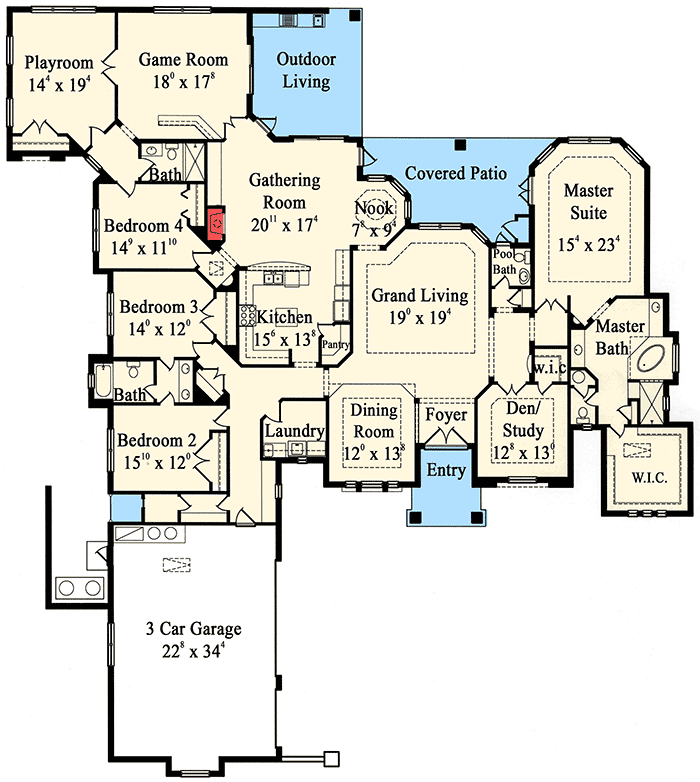

Floor Plan

Main Level

floor plan image Main Level

Plan Details

This grand Mediterranean home plan has plenty of space for your family to spread out comfortably.
The dining and living rooms are open to the foyer and each has a tray ceiling.
The elegance continues in the huge master suite with its luxurious spa bathroom and huge walk-in closet.
Double doors lead from the master suite to the covered rear patio.
All the other bedrooms are on the opposite side of the house for quiet and privacy.
The gourmet kitchen enjoys views of the gathering room and the outdoor living space beyond.
Entertain in your huge game room or send the kids to play in the bright and airy playroom.
This is simply a home your family will love.
FLORIDA RESIDENTS: We can coordinate engineering for you. Contact us for pricing.

What's Included

Cover Sheet
Floor Plans
Slab Foundation Plan (plumbing layout)

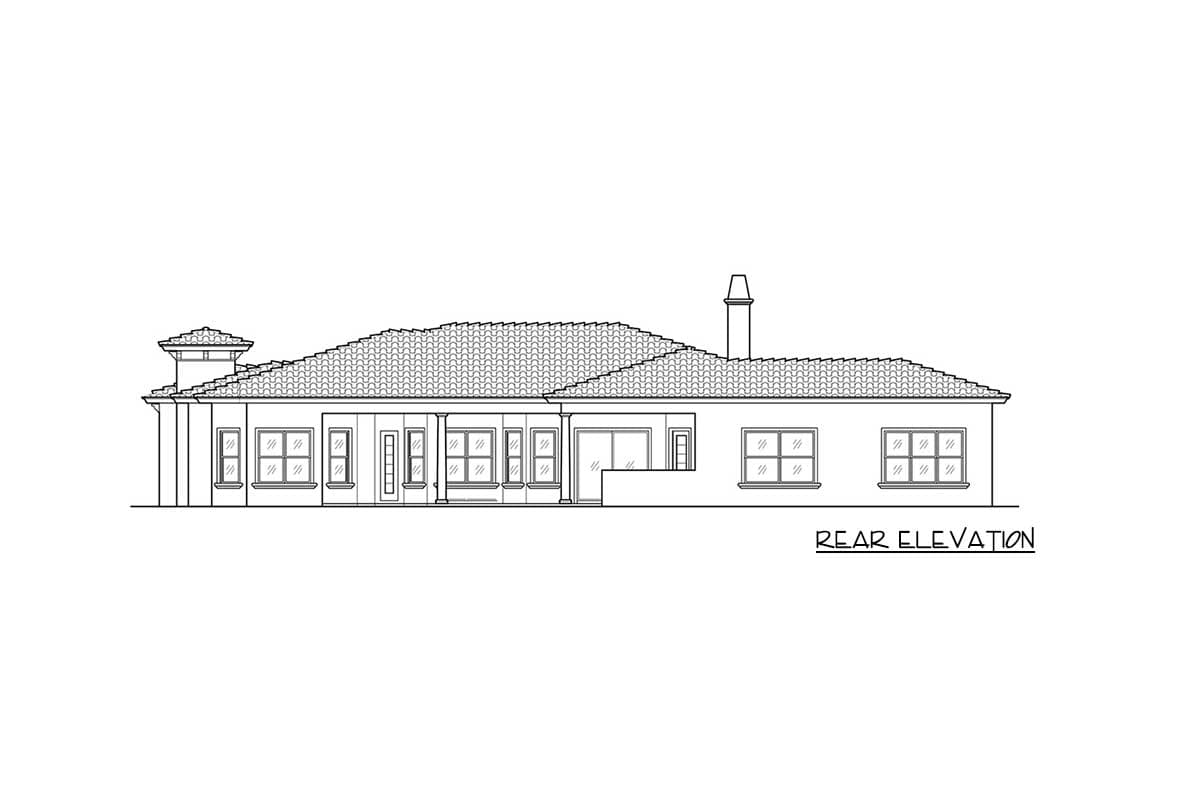

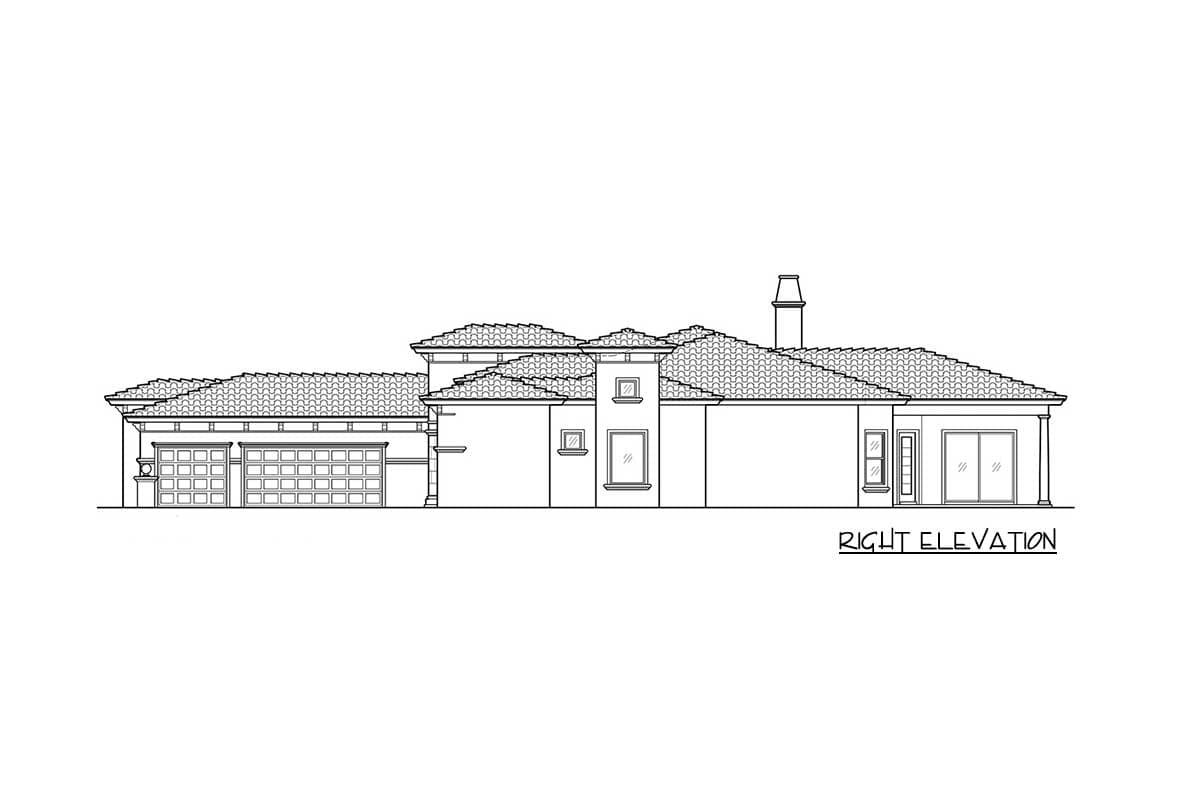

Elevations
Sections
Stair Sections if applicable
Electrical Layout
Basic Details Sheet

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Some plans may not include sections. Please contact us for availability.

Modify This Plan

Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

4,270 sq. ft.

1st Floor

4,270 sq. ft.

Entry

96 sq. ft.

Covered Patio

535 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Dimensions

Width

85' 4"

Depth

107' 0"

Max Ridge Height

20' 9"

Garage

Type

Attached

Area

810 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

4 on 12

Framing Type

Truss

Architectural Style

Special Features

Bedrooms - Split

Jack & Jill Bath

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections
