Plan 59240ND
Grand Southern Style
Heated S.F.
2,676
Beds
4
Baths
2.5
Stories
2
Cars
2
Floor Plan

Plan 59240ND

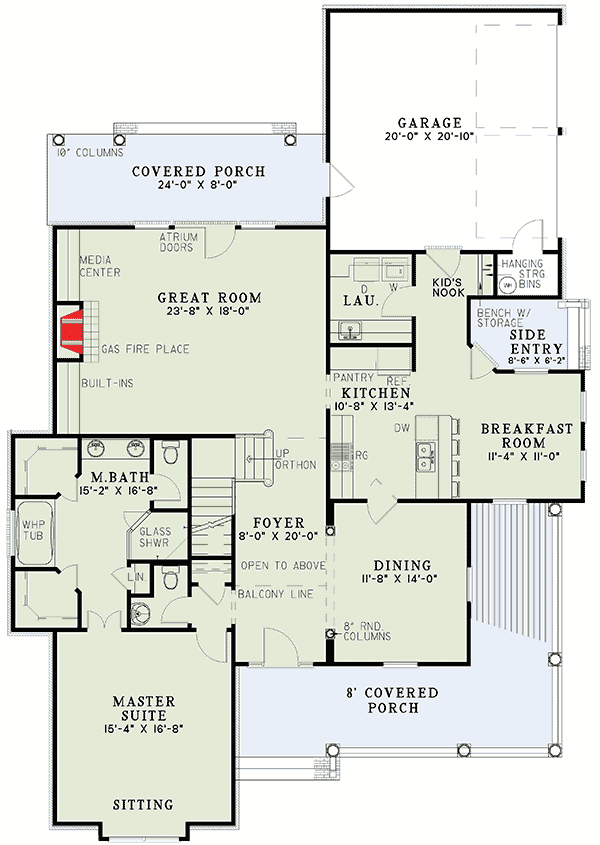

Main Level
slide image 0

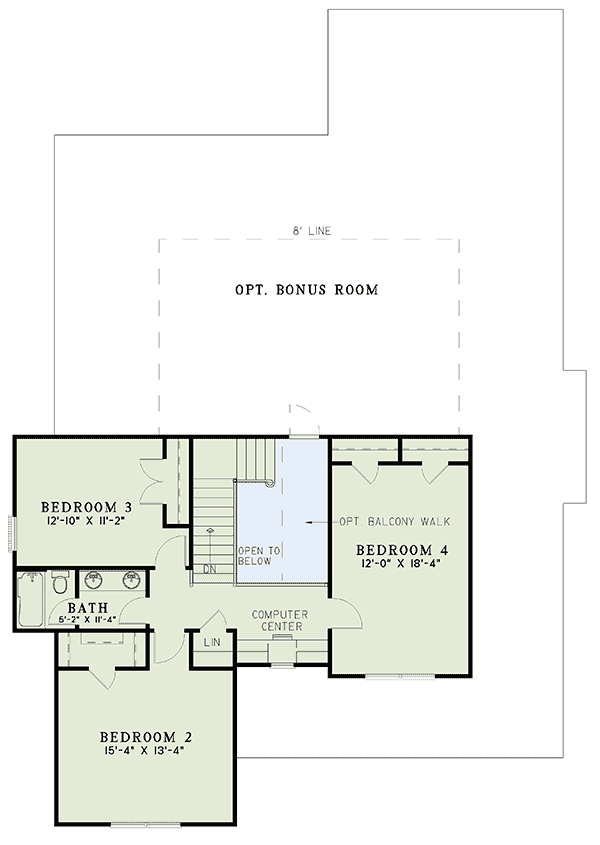

2nd Floor
slide image 1

Plan 59240ND

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
2nd Floor
floor plan image 2nd Floor
Plan Details

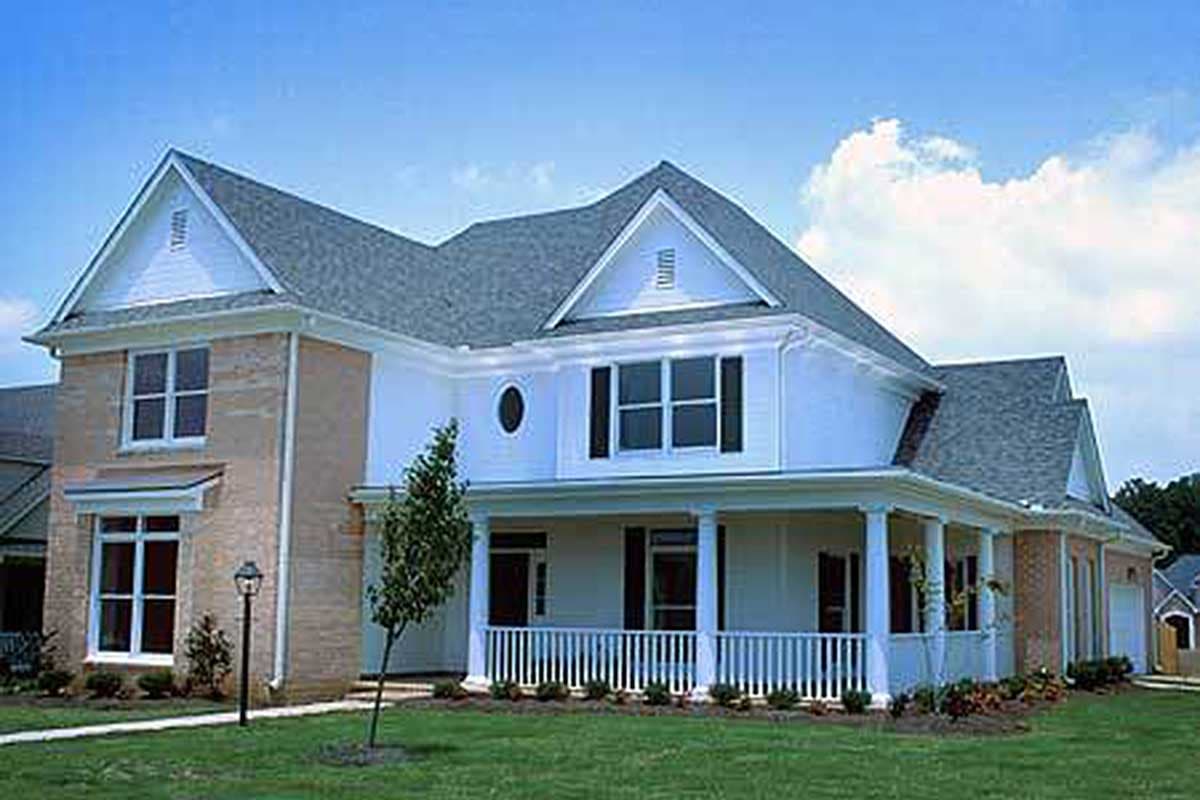

  • This spacious, four bedroom, two and a half bath home design is the definition of grand southern style.
  • A traditional wrap-around covered porch welcomes you inside a gorgeous foyer with open ceiling to the upper floor.
  • Continuing, you'll enter the heart of the design - the great room. Here, enjoy countless hours of excitement and relaxation with family and friends.
  • Convenient atrium doors open from the great room to a rear covered porch with ten inch columns for romantic nights under the stars.
  • A secluded master suite and bath, enhanced by an elegant sitting room, provides all the privacy you need.
  • Traveling up an open stairway you'll find ample bedroom space for the kids, a perfect guest quarters or playroom complete with computer center and balcony walk opening over the foyer below.
What's Included
  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a bird's-eye view of rooms with lights, fans to switches
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,676 sq. ft.

1st Floor

1,797 sq. ft.

2nd Floor

879 sq. ft.

Porch, Combined

581 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement, Crawl, Daylight, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

50' 4"

Depth

73' 0"

Max Ridge Height

30' 6"

Garage

Type

Attached

Area

461 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

14 on 12

Framing Type

Stick

Architectural Style

Country

Southern

Traditional

Special Features

Master Suite - 1st Floor

Master Suite - Sitting Area

Playroom

Plan Collections

Photo Gallery
