Plan 23294JD
Great Craftsman Detailing
Heated S.F.
1,884
Beds
3
Baths
2.5
Stories
2
Cars
2
Floor Plan

Plan 23294JD

Main Level
slide image 0
2nd Floor
slide image 1

Plan 23294JD

1-800-854-7852

1-262-521-4596

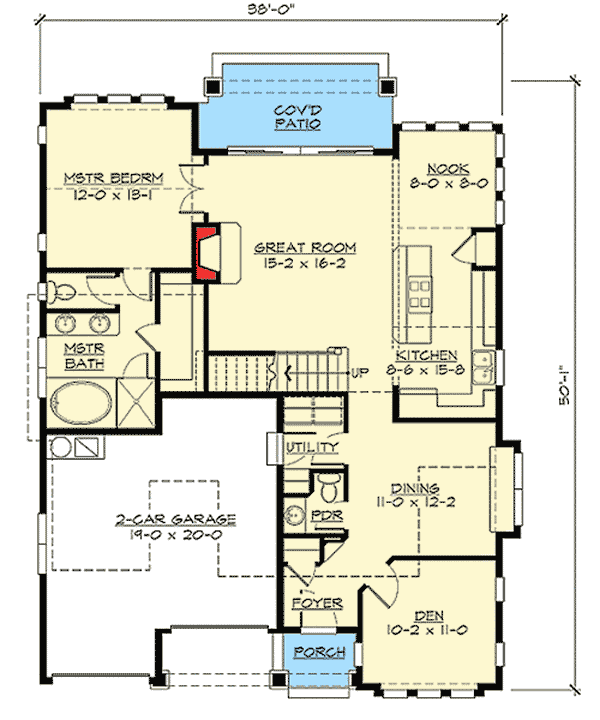

Main Level
floor plan image Main Level

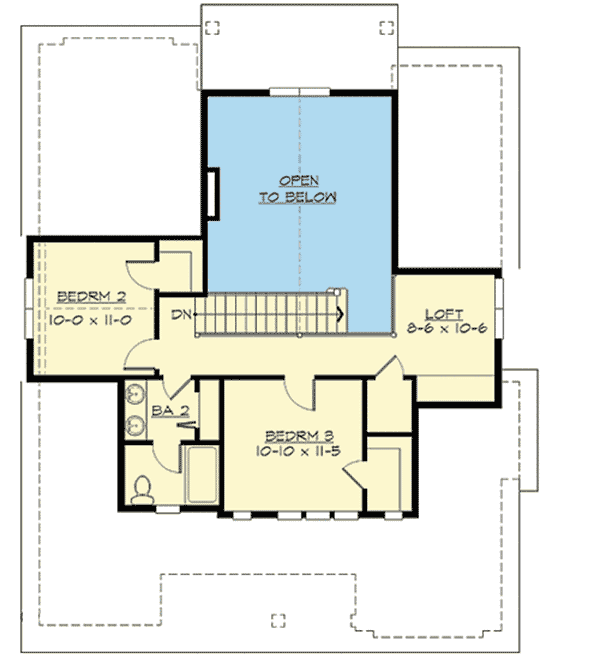

2nd Floor
floor plan image 2nd Floor
Plan Details
  • At only 1,884 square feet, this Craftsman house plan doesn't waste an inch of space. Three bedrooms plus a loft make this a great family home plan.
  • The great room is vaulted and the loft upstairs has views to this great space below. A fireplace anchors the room and sliders grant access to the covered patio making the room feel even larger.
  • An open floor plan gives you sightlines from the kitchen across the great room and out the nook which is lined with windows on two walls,
  • The dining room bumps out 18" and could be used as a window seat or for built-ins.
  • The master suite is on the main floor and is privately located. The vaulted ceiling is a nice touch and the three windows on the back wall give you great views.
  • Related Plans: Get a bigger version with house plan 23818JD (2,208 sq. ft.).
  • NOTE: Additional fees apply when building in the State of Washington. Contact us for more information.
What's Included
This plan has 8 sheets as follows:
  • Cover sheet
  • Schedules
  • Details
  • Foundation
  • First floor plan
  • Second floor plan

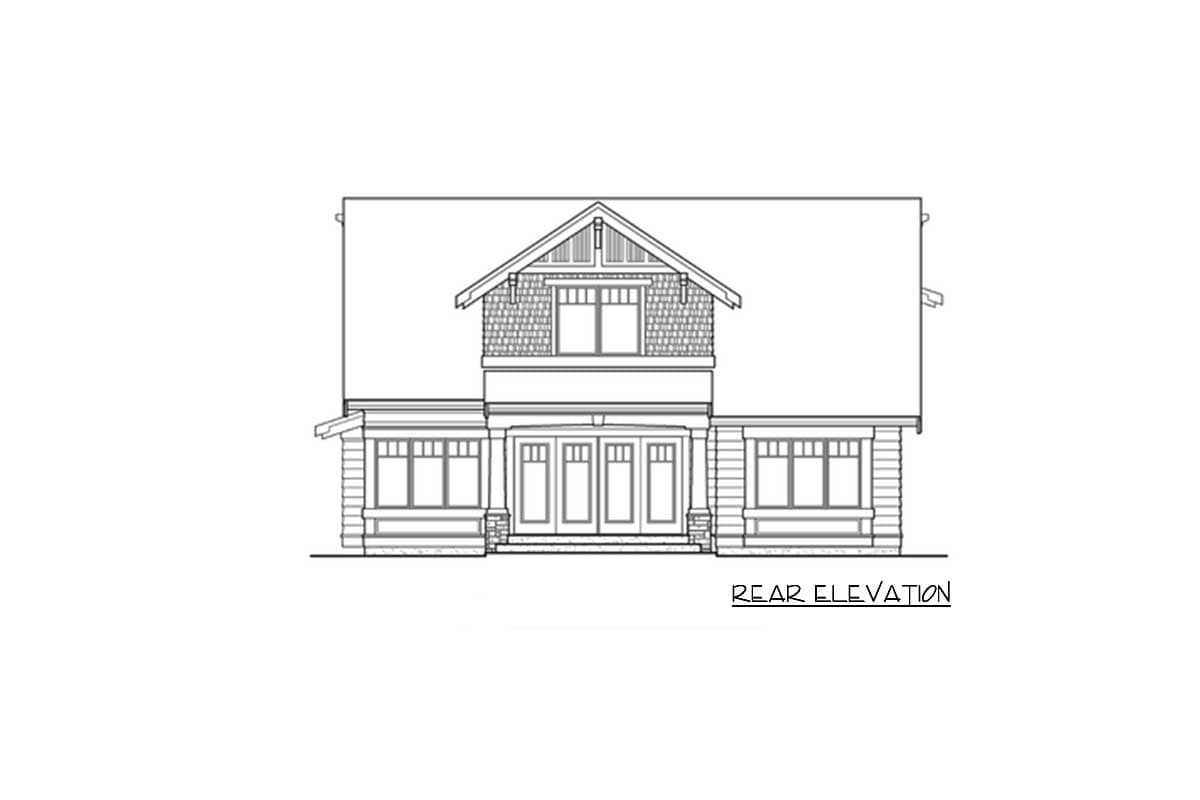

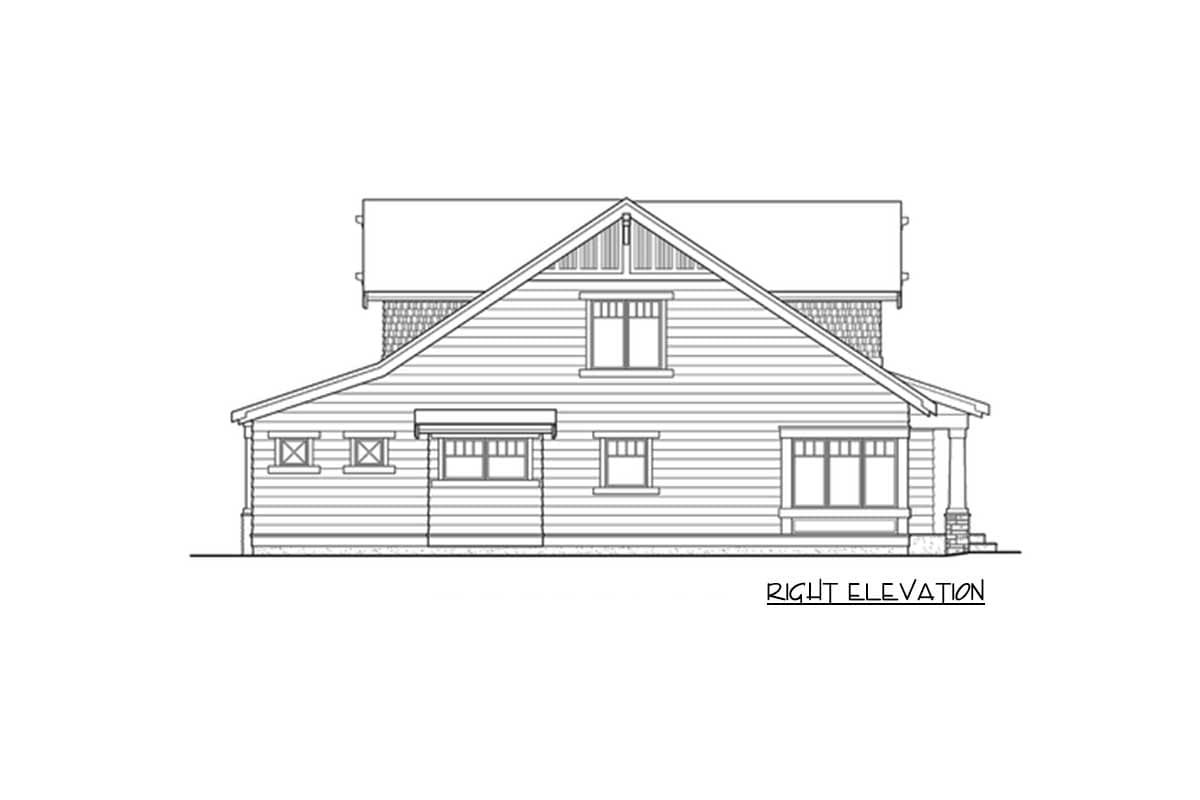

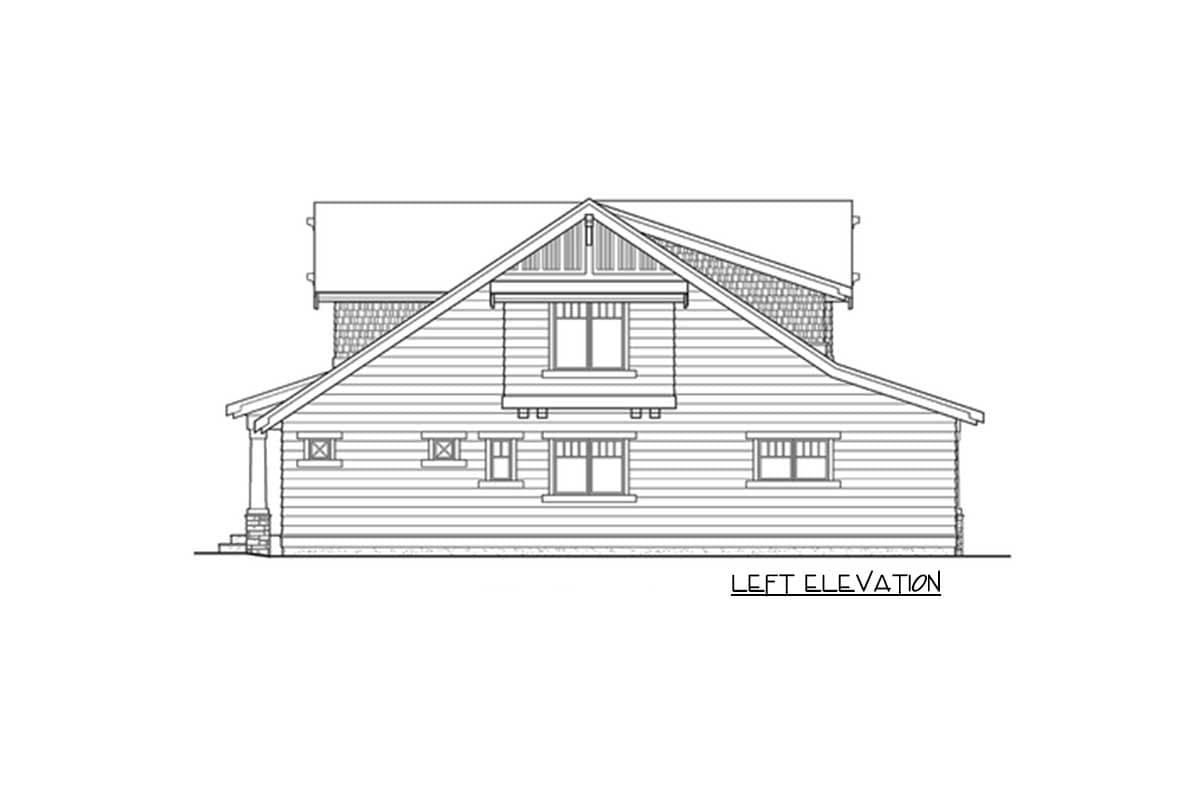

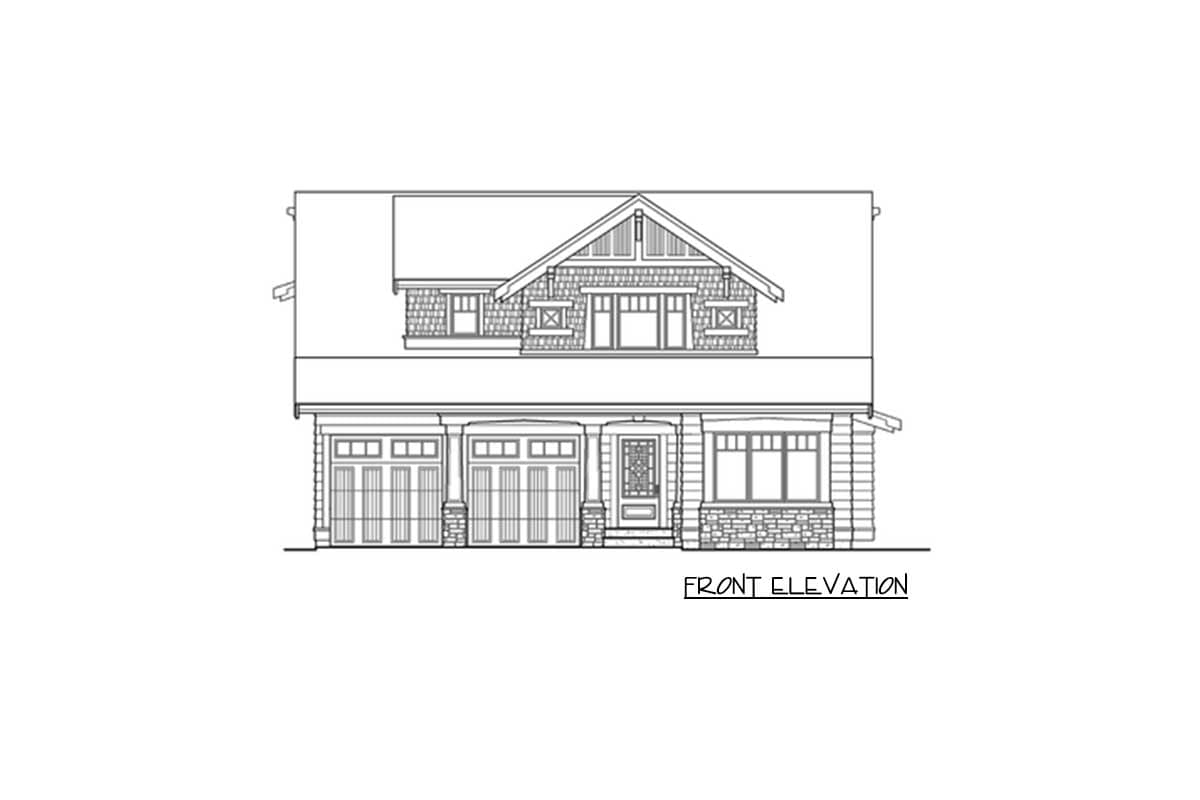

  • Elevations
  • Sections

What's Not Included
  • Electrical Plan - handled by your subcontractor to match your individual needs
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,884 sq. ft.

1st Floor

1,279 sq. ft.

2nd Floor

605 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

38' 0"

Depth

51' 0"

Max Ridge Height

24' 0"

Garage

Type

Attached

Area

410 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

4 on 12

Framing Type

Truss

Architectural Style

Bungalow

Cottage

Craftsman

Northwest

Special Features

Breakfast Nook

Laundry - Main Level

Loft

Master Suite - 1st Floor

Mudroom

Two Story Great Room
