Plan 29833RL
Great Escape With Alternate Plan
Heated S.F.
1,954
Beds
3 - 4
Baths
2.5 - 3.5
Stories
2
Cars
2
Floor Plan

Plan 29833RL

Main Level
slide image 0

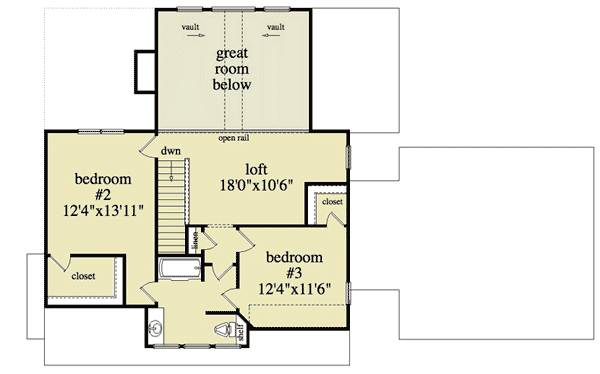

2nd Floor
slide image 1

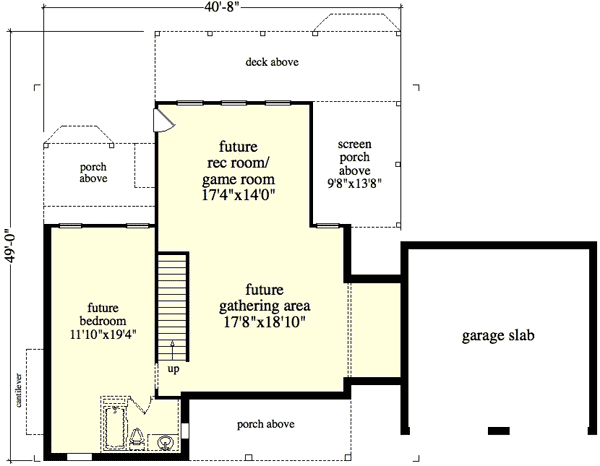

Basement
slide image 2

Plan 29833RL

1-800-854-7852

1-262-521-4596

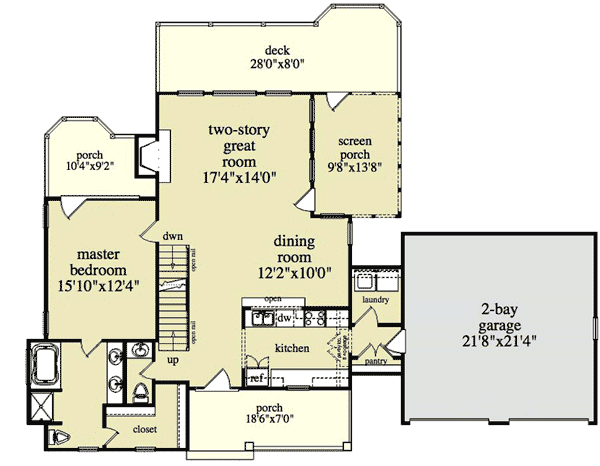

Main Level
floor plan image Main Level
2nd Floor
floor plan image 2nd Floor
Basement
floor plan image Basement
Plan Details

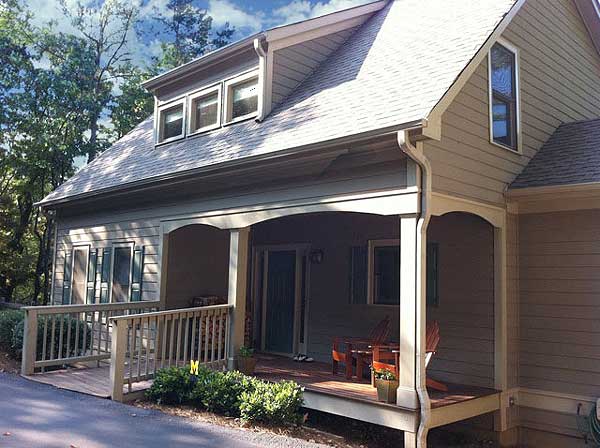

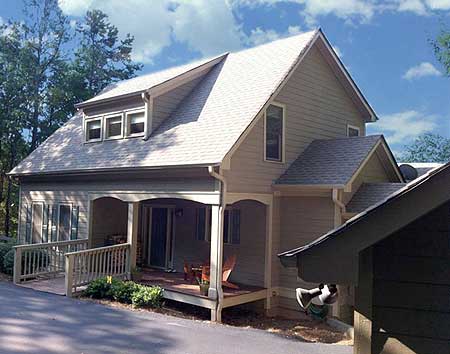

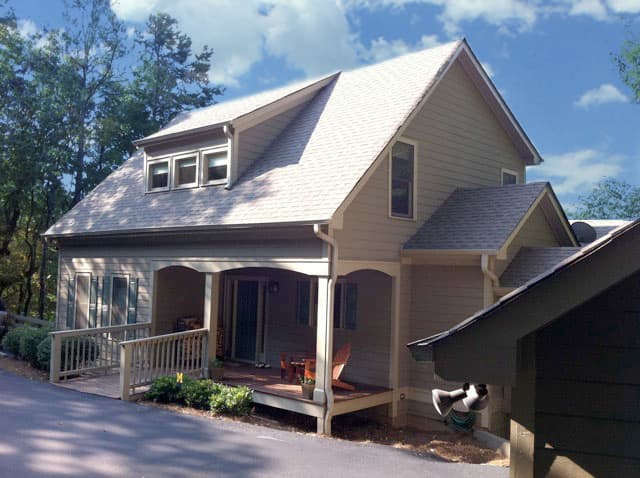

  • This great mountain cottage home plan - year-round or as a vacation home - blends perfectly with the outdoors and has a covered front and rear porch, decks and a detached garage with a covered walkway.
  • The main level showcases an open and inviting floor plan.

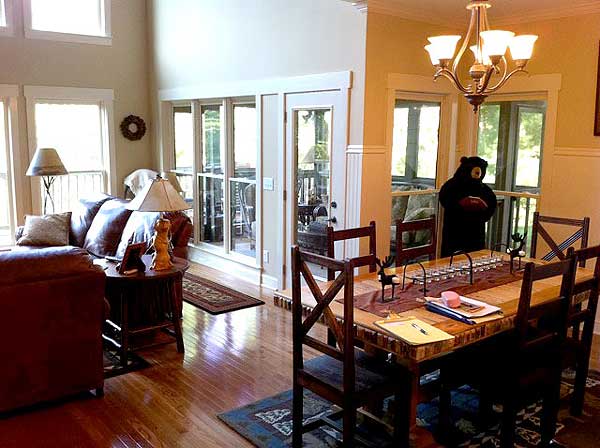

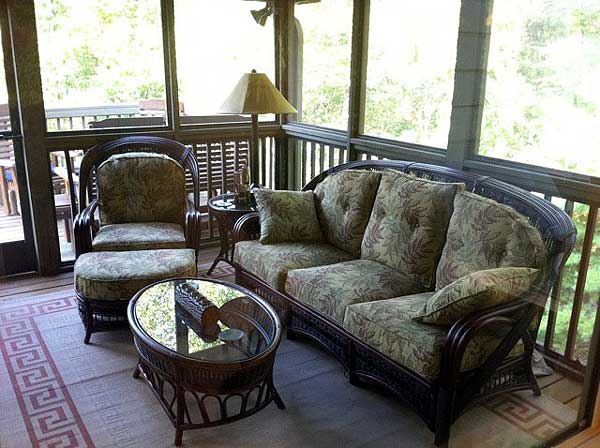

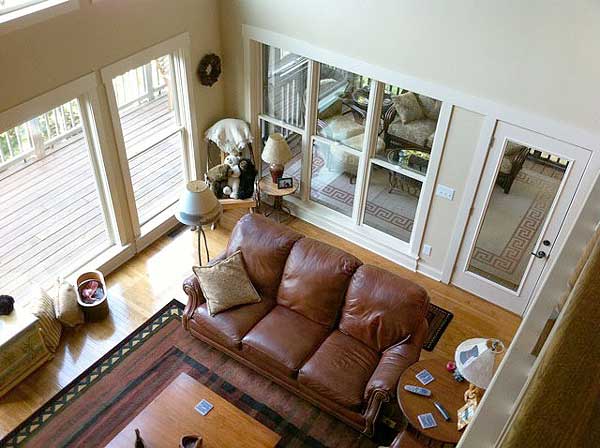

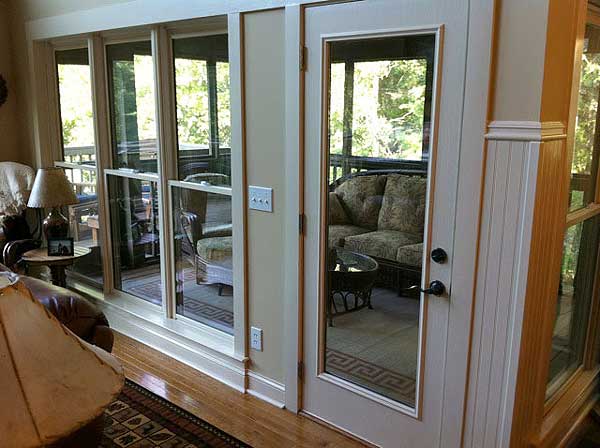

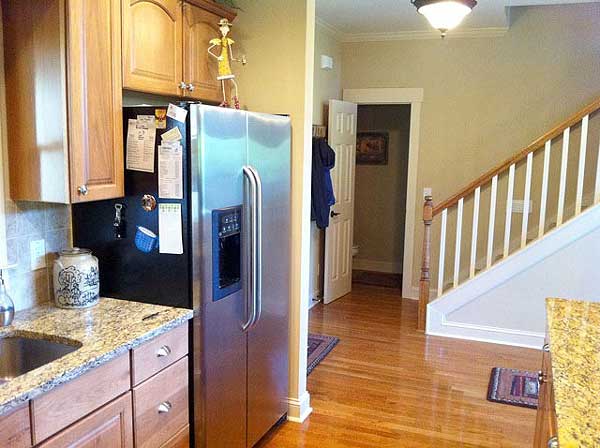

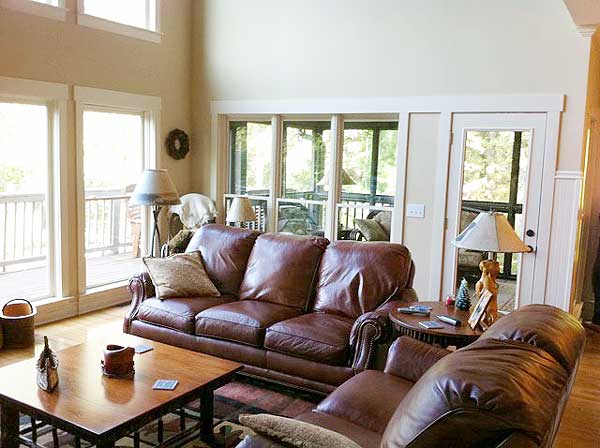

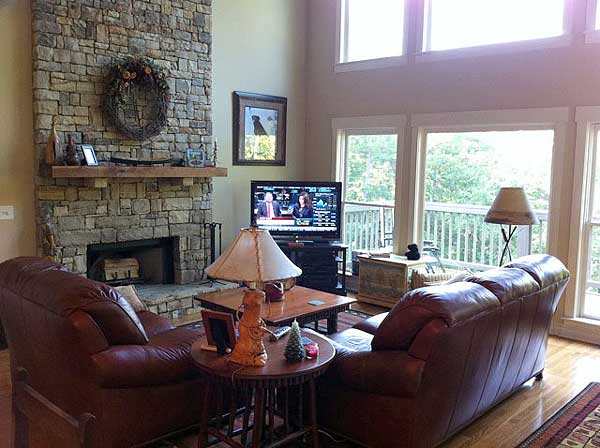

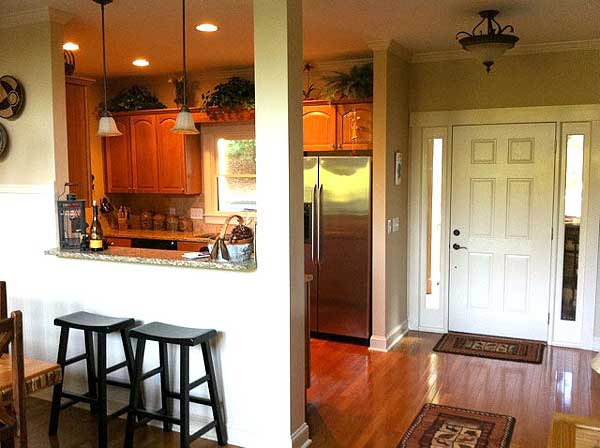

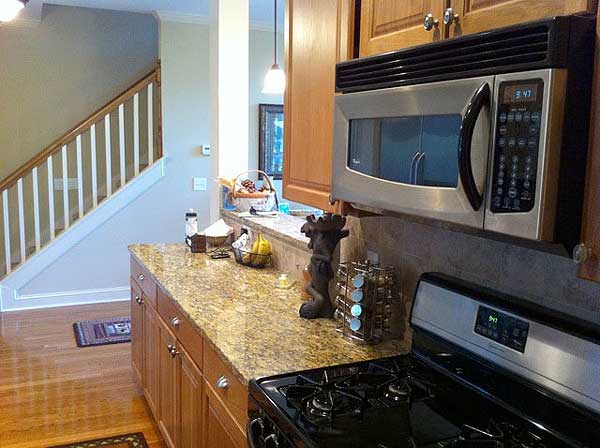

  • The kitchen is at the front of the house and has an open window to the dining room and 2-story great room. A screen porch and lots of windows make the great room bright and inviting.

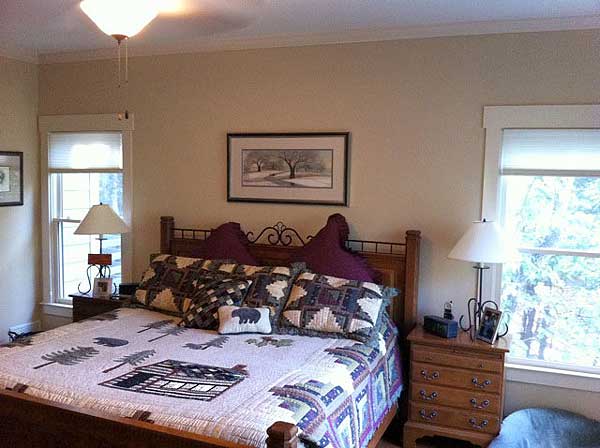

  • The master suite is a comfortable size and has an adjoining porch to enjoy the outdoors. The master bath has a double vanity, separate garden tub and shower and walk-in closet.
  • Upstairs, there is a loft overlooking the great room below, as well as two bedrooms and a shared bath.
  • The unfinished basement offers the possibility of a future bedroom, rec room and gathering area.

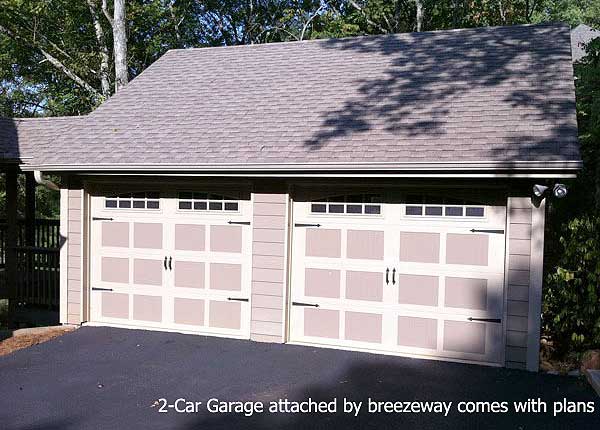

  • A 2-car garage - connected by a breezeway - comes with the plans and gives you 474 sq. ft. of space for vehicles and storage.
  • Related Plan: See house plan 29834RL (2,098 sq. ft.) for an alternate version featuring a larger kitchen and dining room plus wraparound deck on the main level plus a deck and screened porch.
What's Included

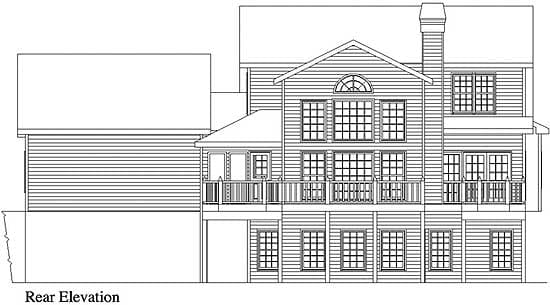

  • All 4 elevations (front, rear, left, right)
  • 2D Roof overview
  • 3D Roof overview
  • Main Level Layout
  • Basement Level Layout
  • Cross-Section (Typical Wall, Stairs (if applicable))
  • Typical Details

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,954 sq. ft.

1st Floor

1,200 sq. ft.

2nd Floor

754 sq. ft.

Basement Unfinished

990 sq. ft.

Porch, Front

130 sq. ft.

Screened Porch

132 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

2 or 3

Half bathrooms

1

Foundation Type

Standard Foundations

Basement, Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

40' 8"

Depth

49' 0"

Max Ridge Height

25' 0"

Garage

Type

Attached

Area

474 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Cottage

Country

Mountain

Special Features

Game/Rec Room

Jack & Jill Bath

Laundry - Main Level

Loft

Master Suite - 1st Floor

Mudroom

Two Story Great Room
