Plan 81621AB

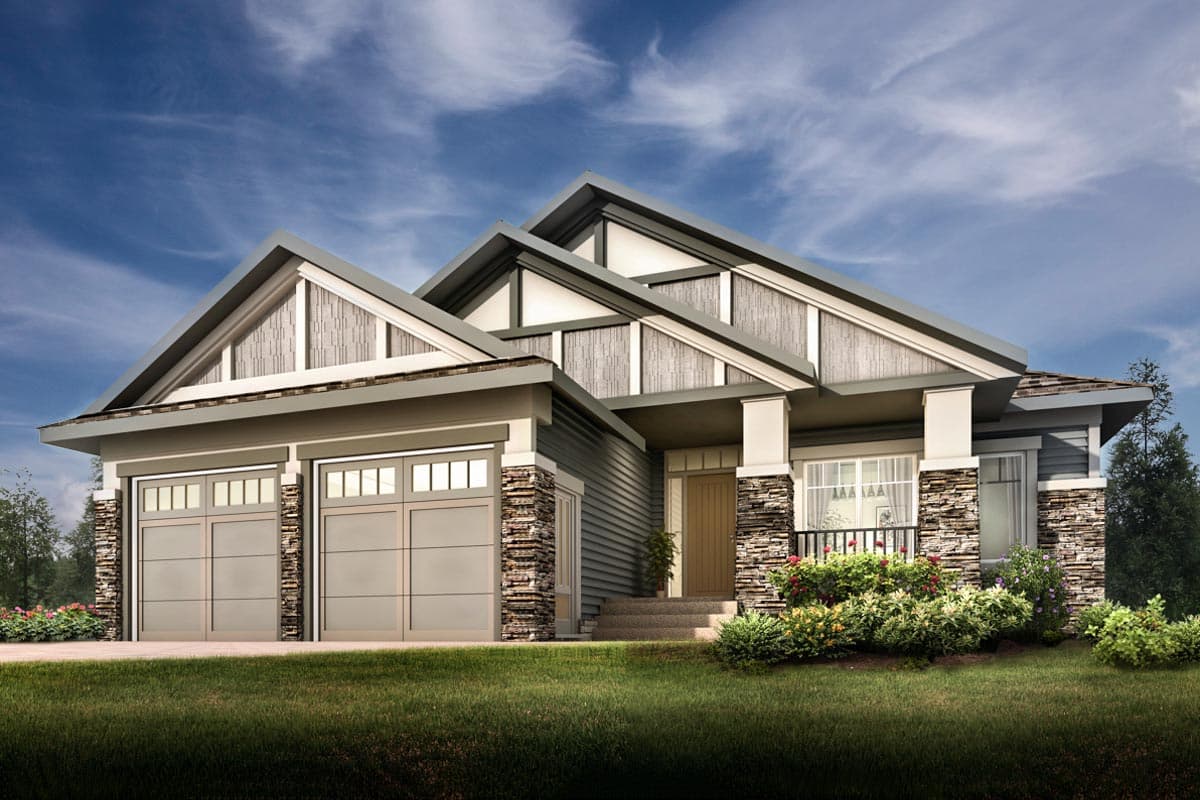

Great From the Front and Back

Heated S.F.

3,410

Beds

2

Baths

2.5+

Stories

1

Cars

2

Floor Plan

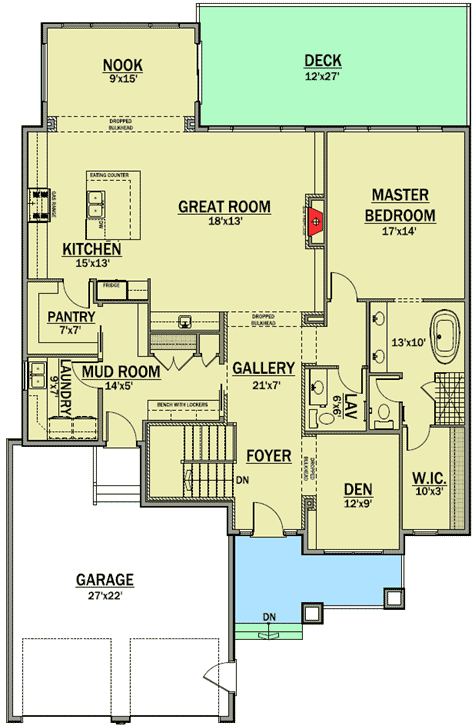

Main Level

floor plan image Main Level

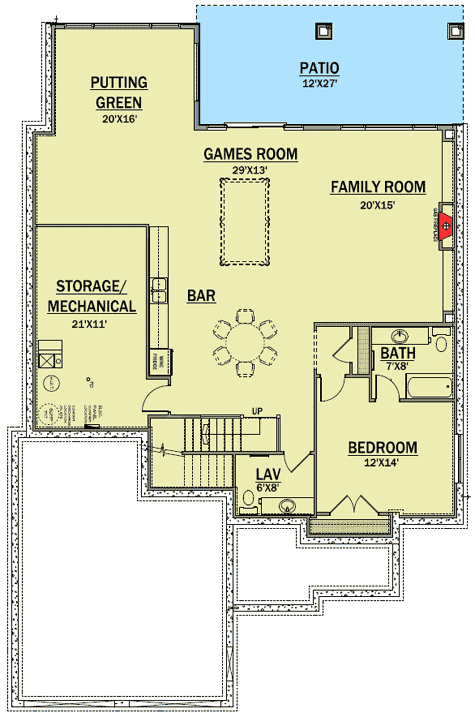

Finished Lower Level

floor plan image Finished Lower Level

Plan Details

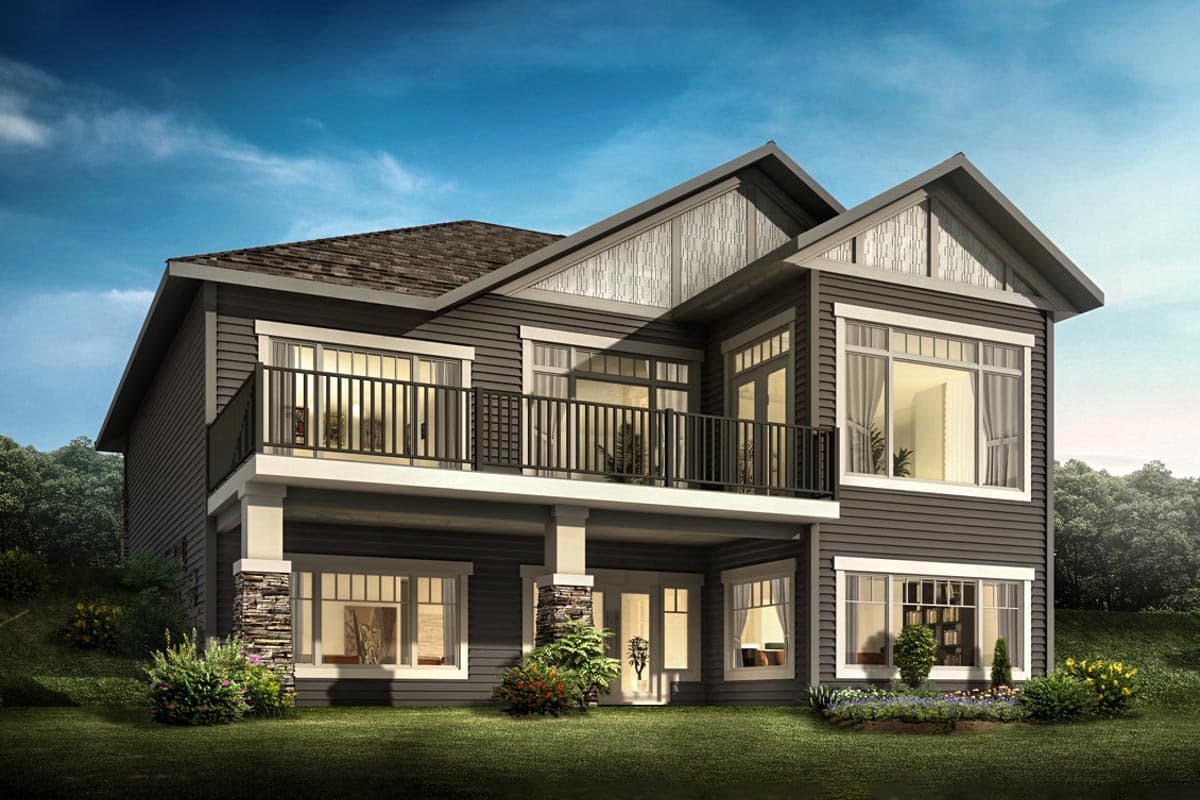

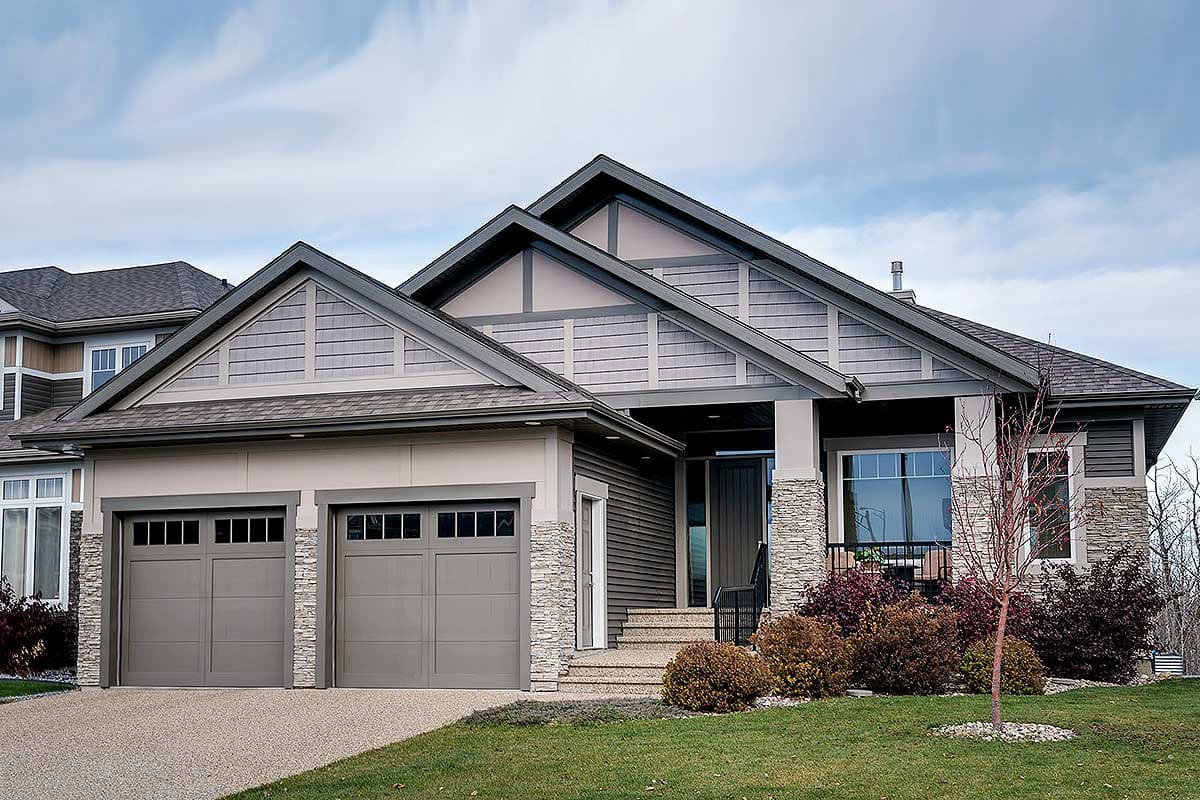

Every now and then you get a house plan that you aren't sure which looks better: the front or the back. This plan fits that bill.
This home gives you two bedrooms: the master on the main level and a guest or kids room on the lower level.
From the foyer you get views straight through to the great room and open deck beyond. A den off the foyer gives you a semi-private space.
The great room is spacious and open to the kitchen, nook - all under 12'1"-high ceilings - and deck. The kitchen benefits from a 7' by 7' pantry, and the nook gives access to the deck making al fresco dining a must.
The lower level is made for fun. We labeled part of it a putting green, which you certainly can create or reconfigure space below and get a media room or home theater.

What's Included

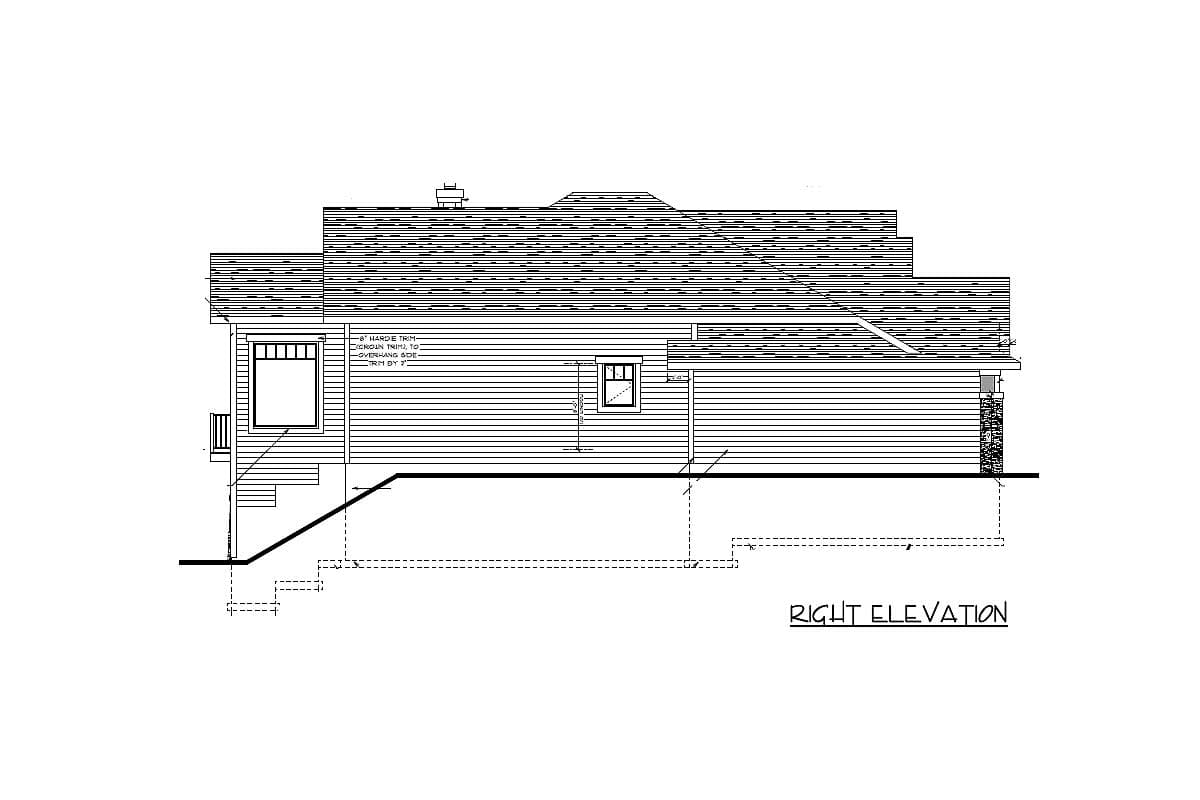

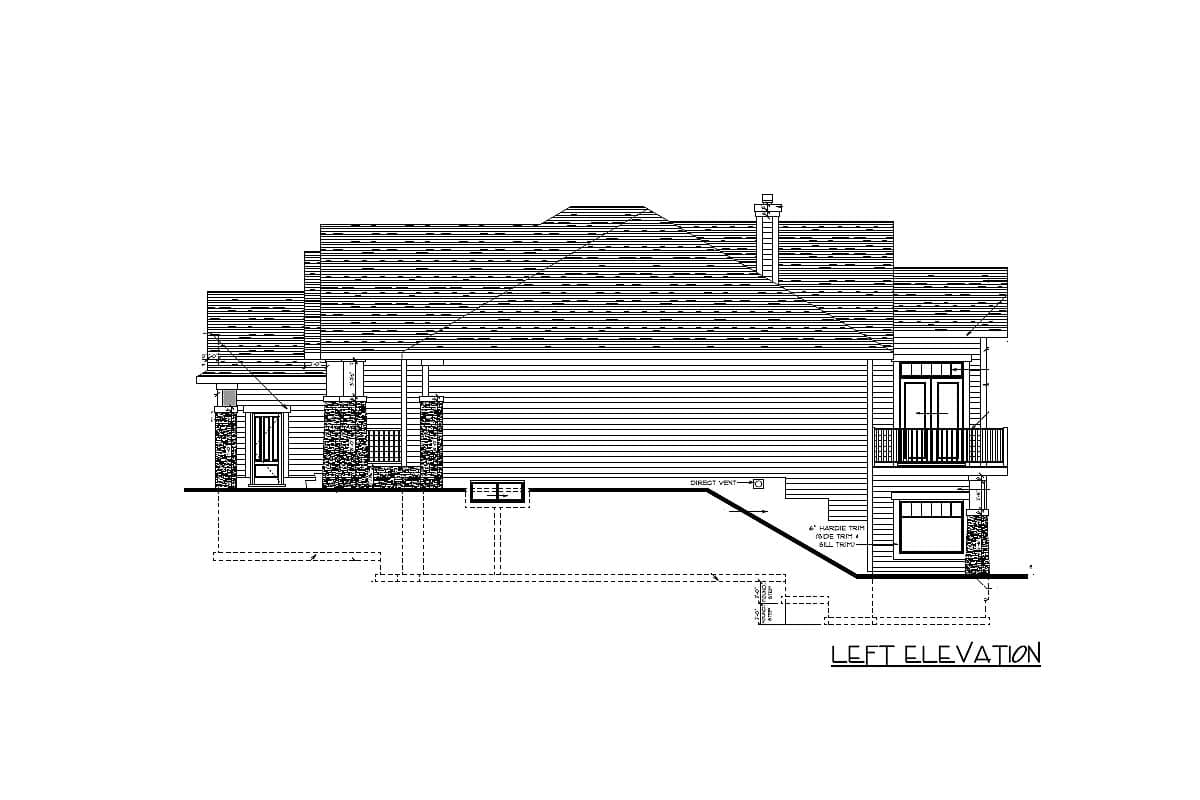

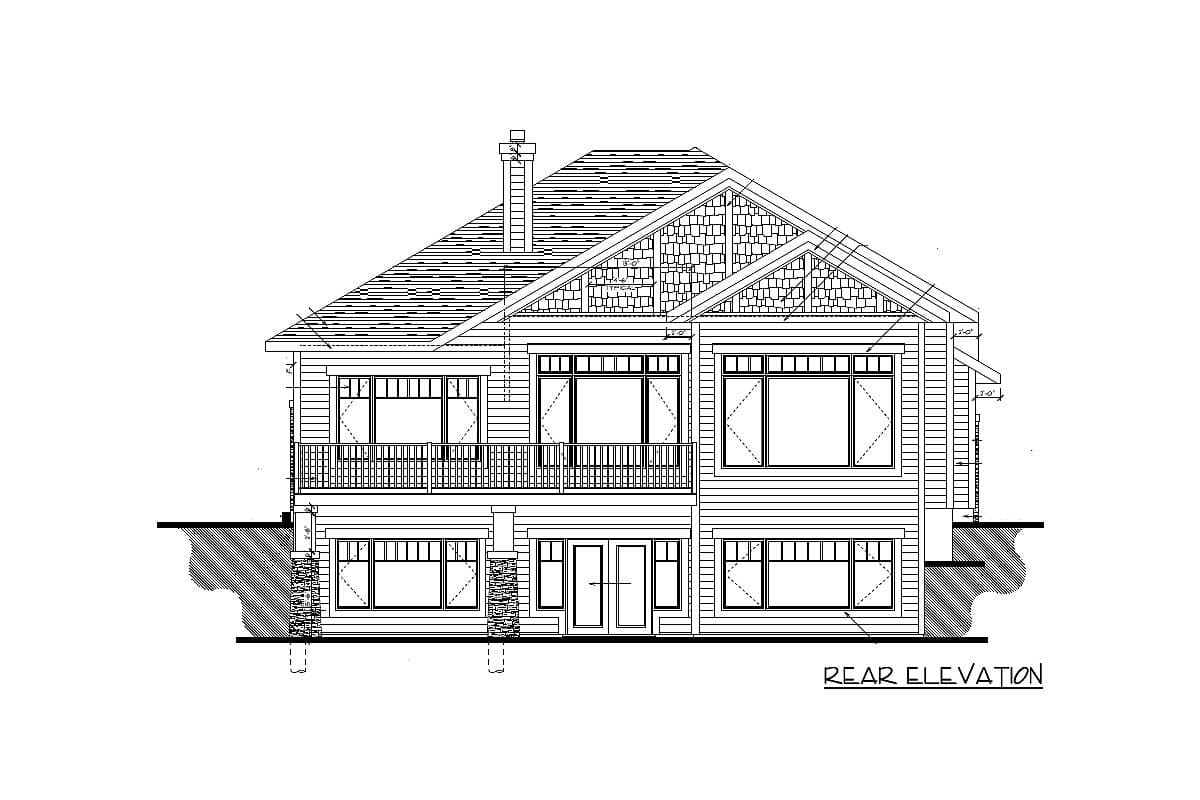

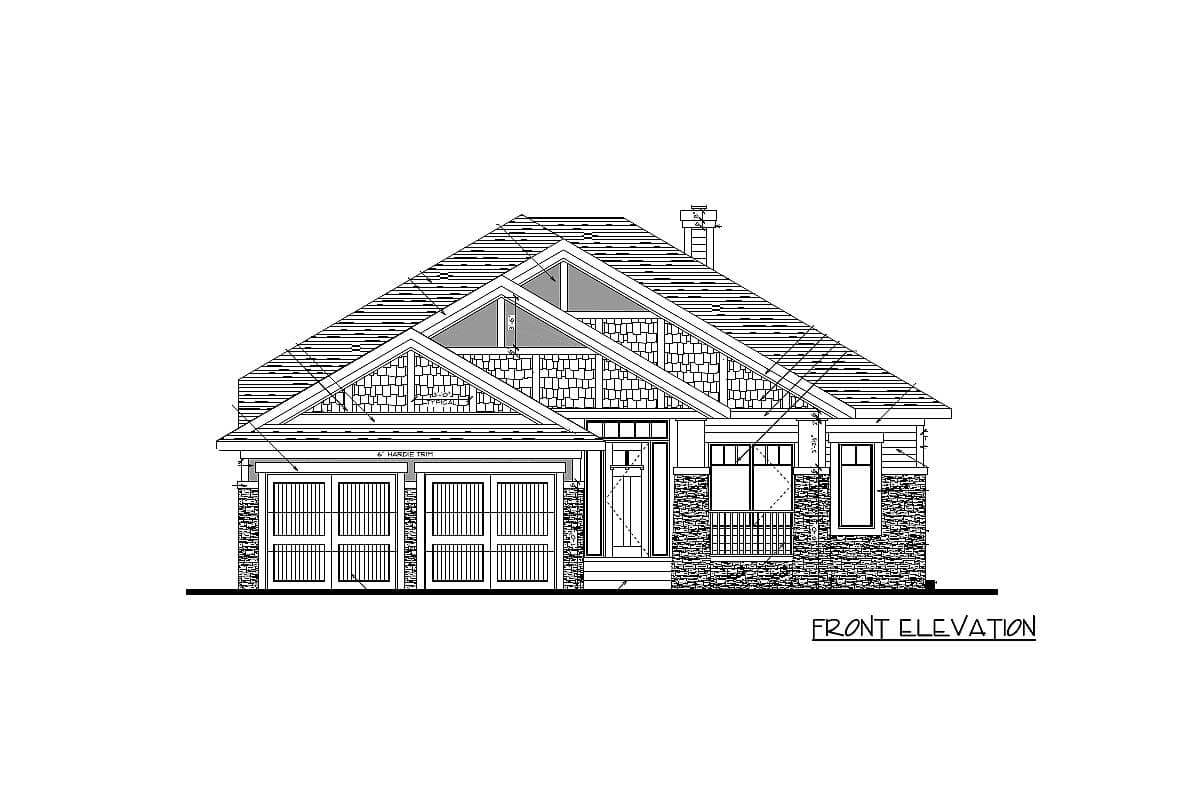

Elevations (Front, Rear, Left and Right)
Floor plans
Foundation plan
Cross section
Roof plan

We also include a list of building specifications, and notes for each page, with any important info the builder may need.

View Sample Plan

What's Not Included

Electrical plan
Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Modify This Plan

Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

3,410 sq. ft.

Lower Level

1,466 sq. ft.

1st Floor

1,944 sq. ft.

Deck

344 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Half bathrooms

2

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

48' 0"

Depth

73' 0"

Max Ridge Height

25' 11"

Garage

Type

Attached

Area

586 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

10' 1"

Room

Ceiling Type

Height

Foyer

Flat

12' 0''

Great Room

Flat

12' 0''

Kitchen

Flat

12' 0''

Roof Details

Framing Type

Truss

Architectural Style

Special Features

Butler Walk-in Pantry

Master Suite - 1st Floor
