Name: Plan 80689PM: Great Lower Level Plus
SKU: 80689PM
Price: 1240.0 USD
Availability: InStock

Plan 80689PM

Great Lower Level Plus

Heated S.F.

5,432

Beds

Baths

3.5+

Stories

Cars

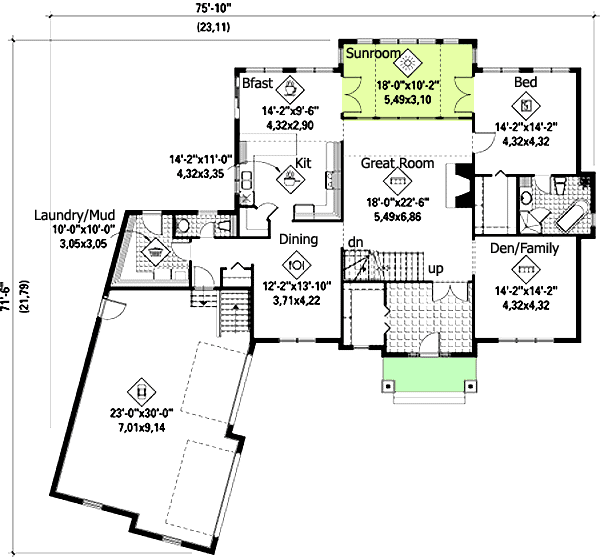

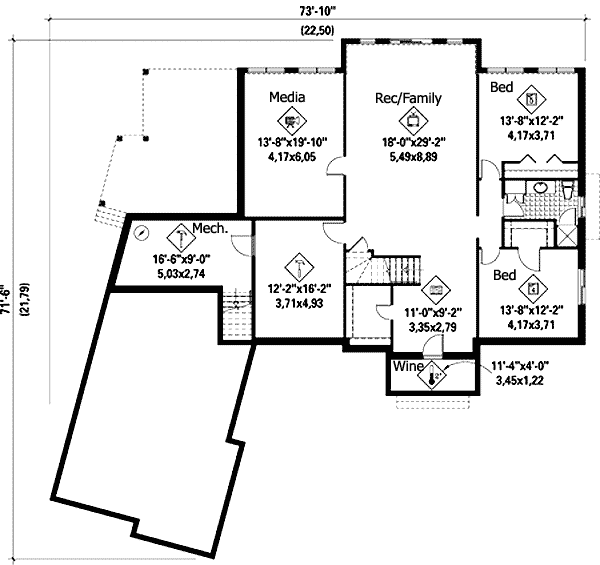

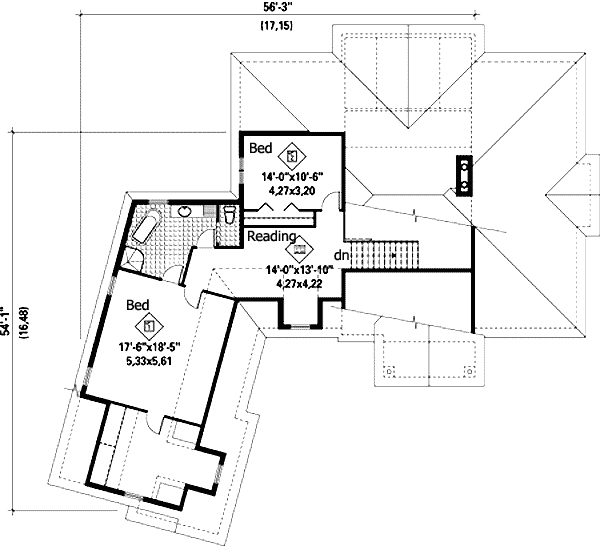

Floor Plan

Basement

Main Level

2nd Floor

Plan Details

This five bedroom house plan comes with a fully-loaded lower level with two bedrooms that share a bath, a huge rec room, a media room, workshop, mechanical space and wine storage.
On the main floor, a main attraction is the large great room that you step into from the airlock entry with huge clutter-reducing closet. The great room enjoys a fireplace plus views to the sunroom in back.
The kitchen has an L-shaped counter with seating, views to the breakfast area and french doors that lead to the sunroom. Laundry is steps away.
The bedroom has sunroom access and a walk-in closet. A den or family room completes the main floor.
Two bedrooms are upstairs including a spacious master with huge walk-in closet.
The garage has room for 3 vehicles and has stairs leading to the basement.

What's Included

Please note this plan is designed to the National Building Code of Canada.

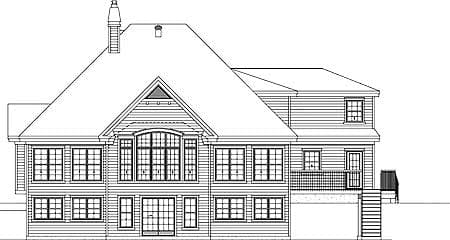

Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
