Plan 65603BS
Great Outdoor Spaces
Heated S.F.
4,746
Beds
6
Baths
5.5
Stories
2
Cars
3
Floor Plan

Plan 65603BS

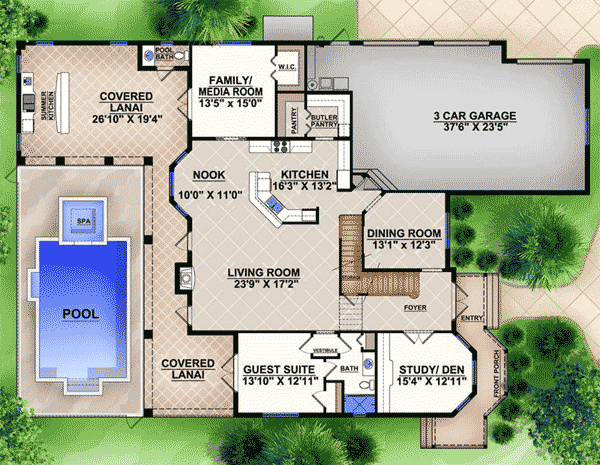

Main Level
slide image 0

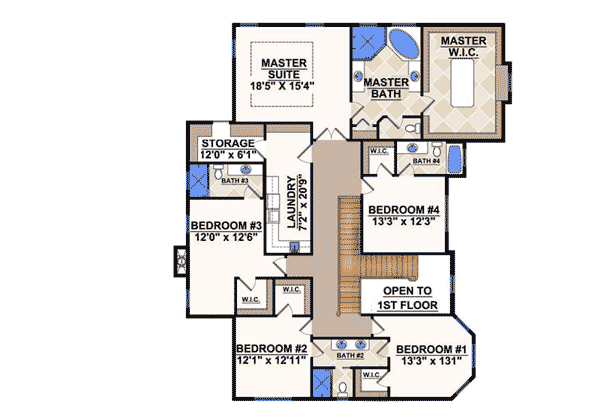

2nd Floor
slide image 1

Plan 65603BS

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
2nd Floor
floor plan image 2nd Floor
Plan Details
  • This 5 bedroom house plan deliver great outdoor spaces with a covered lanai spanning the entire back of the home.
  • From the foyer you can catch a glimpse of the pool (not included with plans; shown as concept only).
  • The living room is wide open to the nook and kitchen. A fireplace is flanked by doors leading to the lanai.
  • Enjoy the outdoor kitchen in the expanded portion of the lanai. The main kitchen has a great island with seating plus two pantries and views to the bayed eating nook. And the dining room is steps away.
  • All bedrooms are upstairs, including the large master with five fixture bath and enormous walk-in closet.
  • BUILDING RESTRICTION: Restrictions may apply if building in Lee and Collier Counties, Florida as well as Sarasota, Florida.
What's Included
Elevations: - Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:
  • Material Labels
  • Floor-To-Floor Heights
  • Roof Slope Indicators

Floor Plans: - Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:
  • Door and Window Sizes
  • Completely Dimensioned Floor Plan
  • Room Labels and Interior Room Sizes

Electrical Layouts:
  • Building Section Markers
  • All Electrical Outlets, Fixtures and Switching

Foundation or Slab Plan: - Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:
  • Floor and Deck Joist Sizes, Spacing and Direction
  • Electrical Locations

Roof Design Plan: - Drawn to 1/8″ to 1/4″ = 1’0″ Scale and Includes:
  • All Beam and Header Heights and Locations
  • All Hips, Gables, Ridges and Valley
  • Building Section Markers

Building Sections: - Drawn to 1/8″ to 1/4″ = 1’0″ Scale and Includes:
  • Floor-To-Floor Heights
  • Non-Typical Plate Heights Indicated

Typical Wall Sections: - Drawn at 1/8″ to 1/2″ = 1’0″ Scale and Includes:
  • All Labels Indicating Wall Construction
  • Foundation Wall Thickness
  • Insulation Type and Thickness

Miscellaneous Notes and Details:
  • Miscellaneous General Notes
  • Stairway Details (if applicable)
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
IMPORTANT NOTE: Structural drawings, as well as heating and plumbing details, will not be included in your plan sets due to a variety of factors which include local codes, installation methods, personal preference, etc. Your building professional (contractor/builder/supplier) can, without difficulty, supply these details and specifications on your behalf.
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

4,746 sq. ft.

1st Floor

2,151 sq. ft.

2nd Floor

2,595 sq. ft.

Entry

188 sq. ft.

Lanai

869 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

5

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Optional Type(s)

2x6

Dimensions

Width

60' 7"

Depth

92' 2"

Max Ridge Height

32' 5"

Garage

Type

Attached

Area

944 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

10'

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Southern

Special Features

Breakfast Nook

Butler Walk-in Pantry

Den

Formal Dining

Game/Rec Room

Home Office

Jack & Jill Bath

Laundry - Upstairs

Library/Study

Master Suite - 2nd Floor

Media Room

Outdoor Kitchen

Square Footage Breakdown

Total Heated Area

4,746 sq. ft.

1st Floor

2,151 sq. ft.

2nd Floor

2,595 sq. ft.

Entry

188 sq. ft.

Lanai

869 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

5

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Optional Type(s)

2x6

Dimensions

Width

60' 7"

Depth

92' 2"

Max Ridge Height

32' 5"

Garage

Type

Attached

Area

944 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

10'

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Southern

Special Features

Breakfast Nook

Butler Walk-in Pantry

Den

Formal Dining

Game/Rec Room

Home Office

Jack & Jill Bath

Laundry - Upstairs

Library/Study

Master Suite - 2nd Floor

Media Room

Outdoor Kitchen
