Plan 35445GH
Guest Quarters or Rental Income
Heated S.F.
1,092
Beds
1 - 2
Baths
1 - 2
Stories
2
Cars
2
Floor Plan

Plan 35445GH

Main Level
slide image 0
2nd Floor
slide image 1

Plan 35445GH

1-800-854-7852

1-262-521-4596

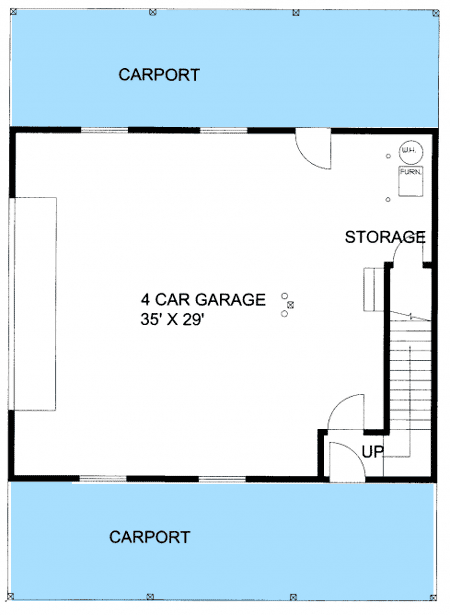

Main Level
floor plan image Main Level

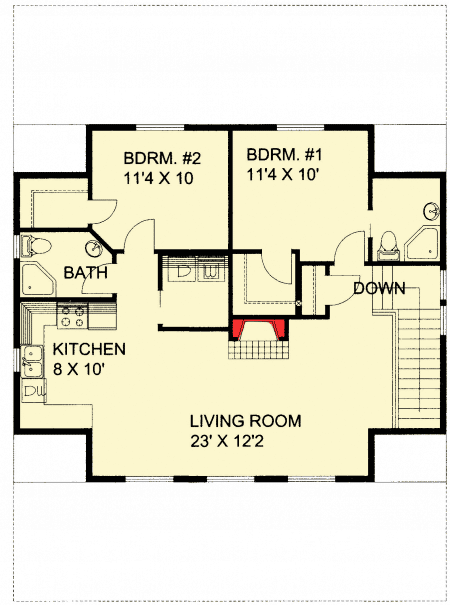

2nd Floor
floor plan image 2nd Floor
Plan Details
  • This attractive garage apartment has a two car garage and two carports that can accommodate a total of 4 cars.
  • The spacious upper level give you two bedrooms, each with a walk-in closet and two bathrooms.
  • The living area is huge and has a fireplace and views of the kitchen.
  • A laundry room closes off with pocket doors and a coat closet lies near the top of the stairs.
  • This plan gives you a wonderful place for overnight guests or to use as rental income or as your main home.
What's Included

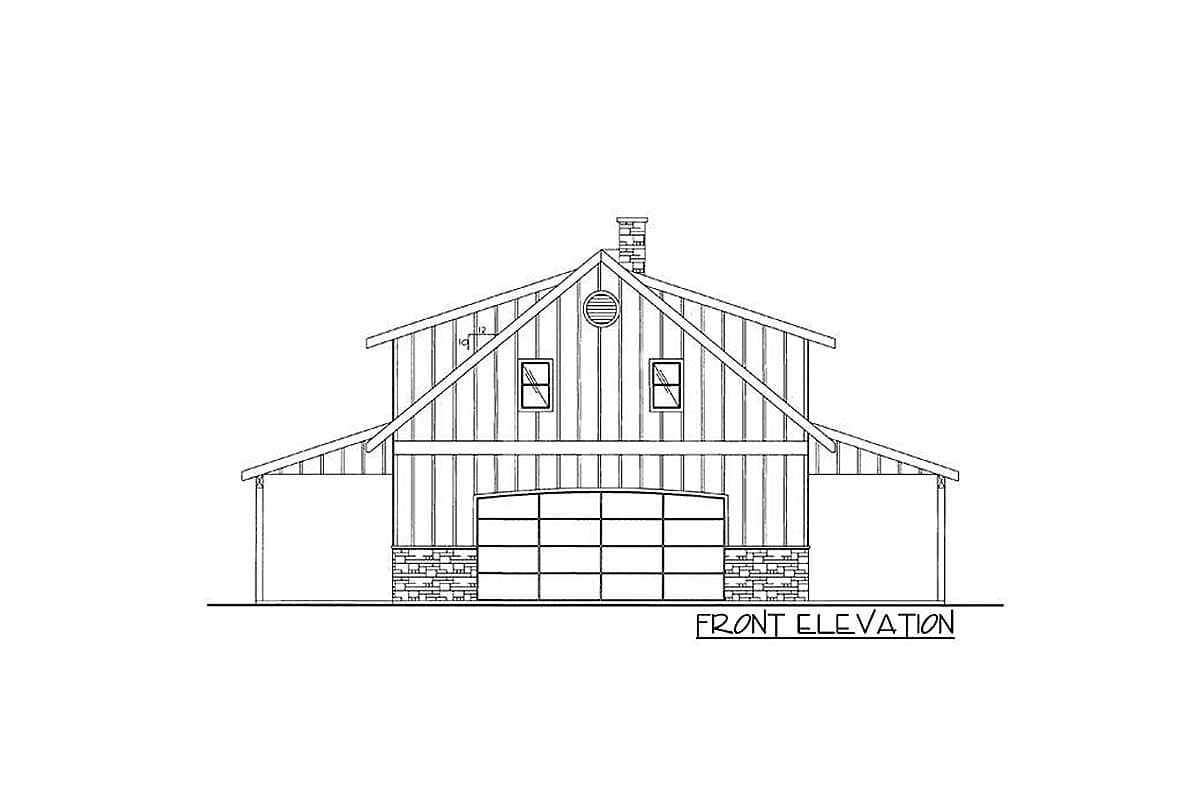

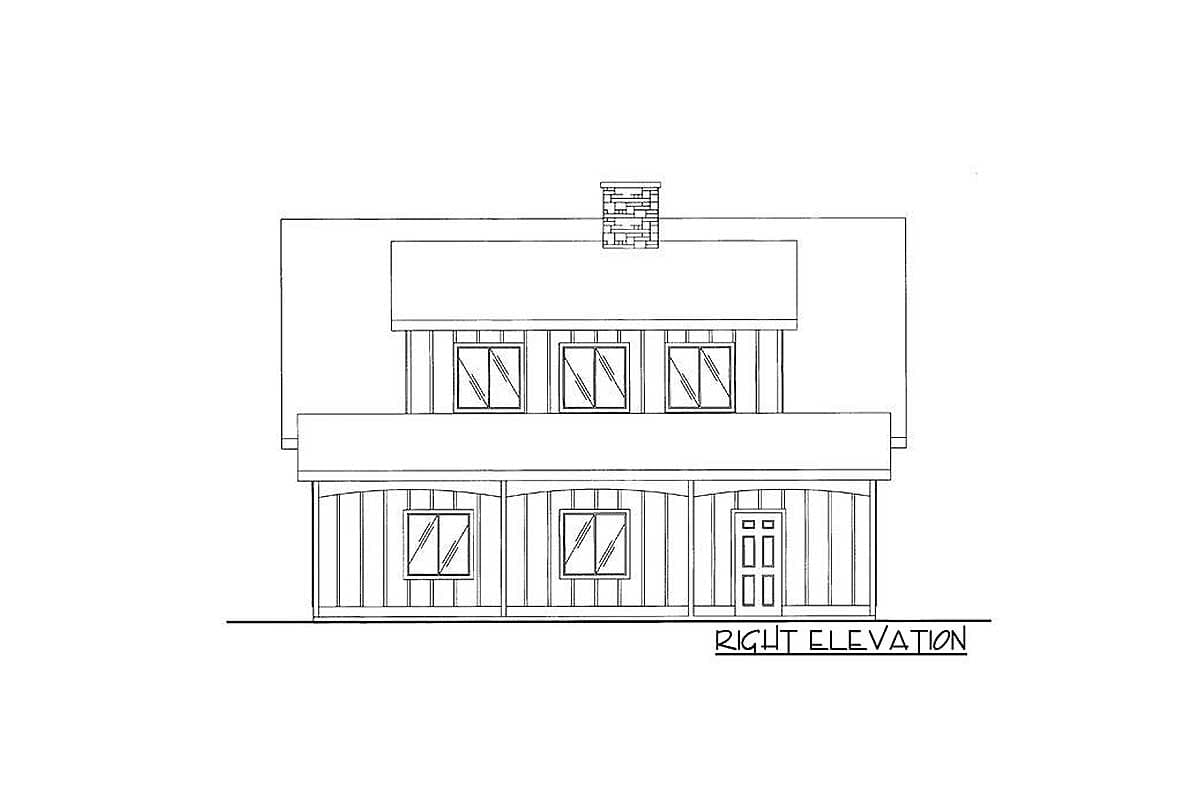

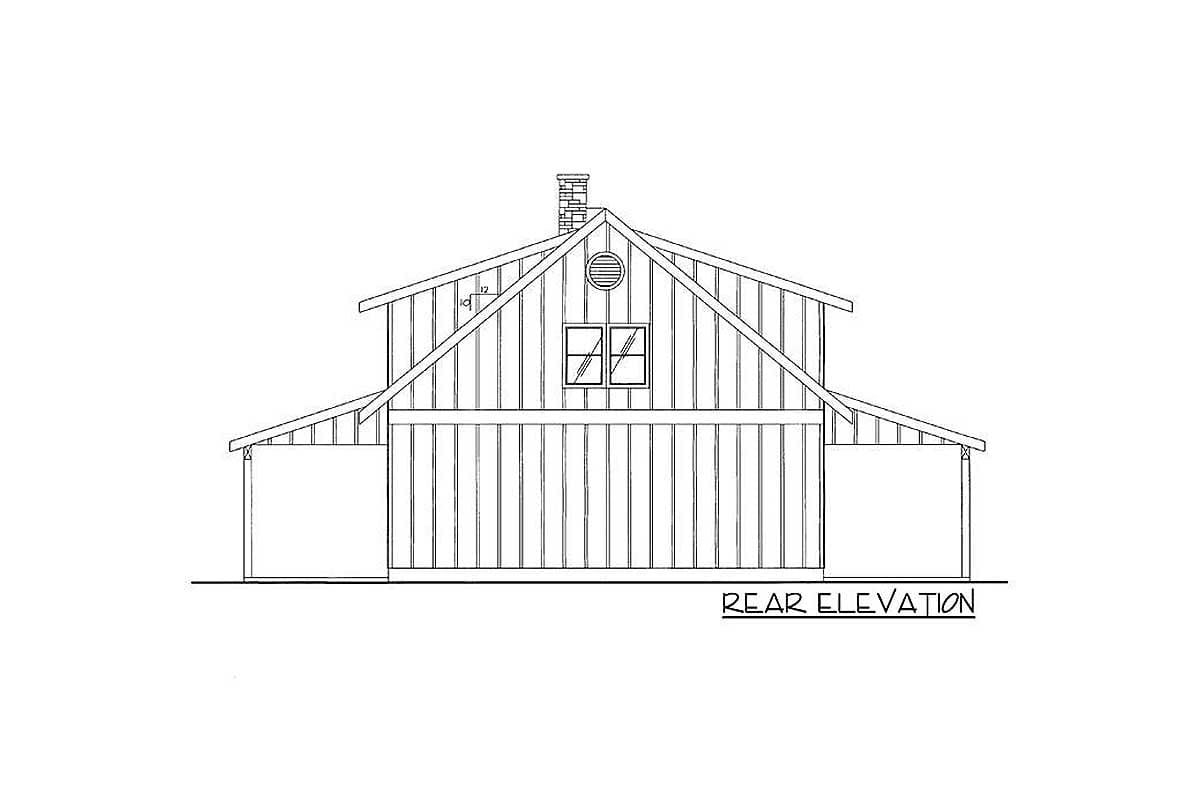

  • Exterior Elevations:  The exterior elevations provide exterior views of the house and call out the exterior finish materials, such as siding, stucco, brick, stone, etc. This page also shows roof pitches and materials, and decorative elements, such as columns and window shutters. Sometimes window and door sizes are also shown here.
  • Floor Plans:  The floor plan shows how each room is laid out on each floor of the house. In most cases, the floor plan will include wall sizes, room dimensions, notes about ceiling design, window and door locations and sizes, and other structural layout notes and details.
  • Foundation Plan: This page provides a detailed foundation drawing, including the thickness of the foundation walls, how the foundation is built, footing and wall placement, Rebar schedule, as well as other construction notes and details. This page may also include a floor framing plan.
  • Cross Sections: Cross sections are views from the top to the bottom of the house plan showing structural details related to the construction of the home. They will show the composition of the foundation, interior and exterior walls, roof, floor and stair details. They also show rooflines, ceiling heights, and the relationships between floors. Cross sections may be on a separate page or on various pages throughout the home plan.
  • Basic Electric: This page shows the locations of outlets, switches, and fixtures. It may be on a separate page, or located on the floor plan page.
  • Simple Plumbing: This page shows the locations of the bathtubs, showers, toilets, and sinks. This may be found on the floor plan, or it might be on a separate page.
  • Details: This page includes the structural details for the construction of the house.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,092 sq. ft.

1st Floor

108 sq. ft.

2nd Floor

984 sq. ft.

Beds/Baths

Bedrooms

1 or 2

Full bathrooms

1 or 2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

36' 0"

Depth

50' 0"

Max Ridge Height

26' 0"

Garage

Type

Detached

Area

1015 sq. ft.

Count

2 Cars

Entry Location

Front, Side

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

4 on 12

Secondary Pitch

9 on 12

Framing Type

Stick

Architectural Style

Carriage

Country

Rustic

Vacation

Special Features

Master Suite - 2nd Floor

Plan Collections
