Plan 790043GLV

Exclusive

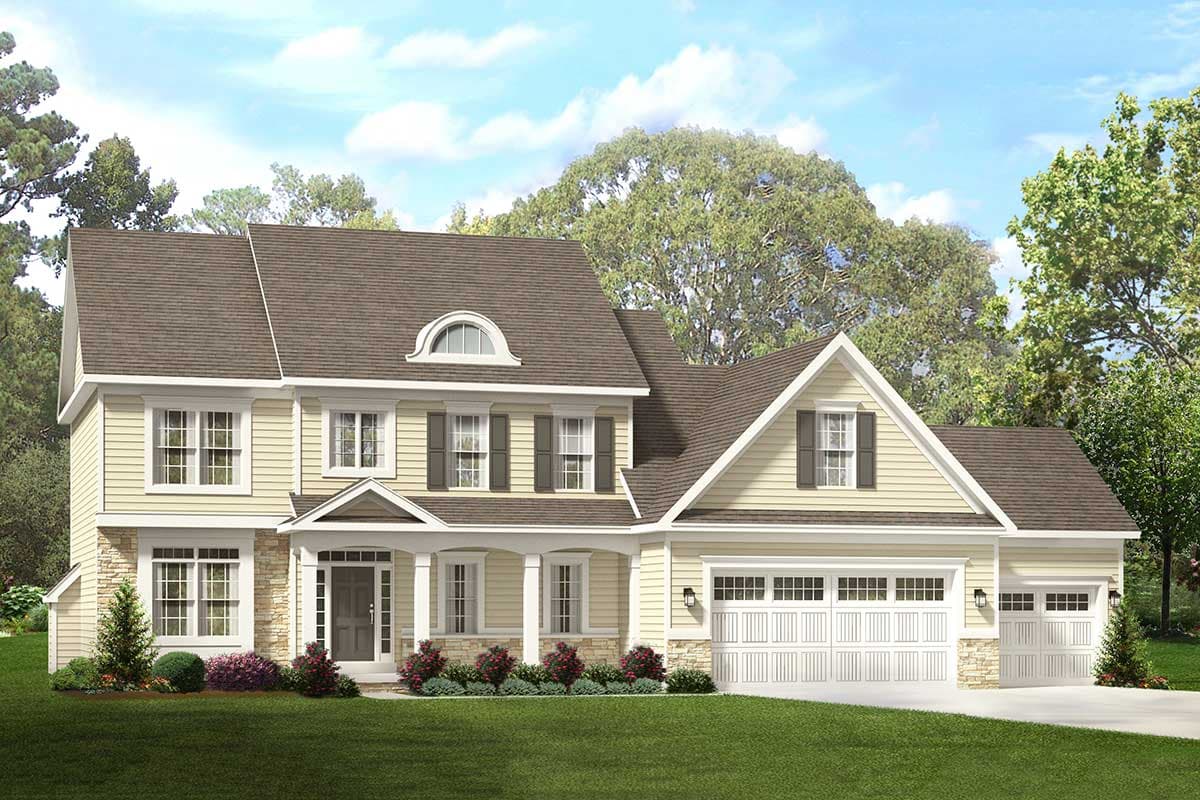

Handsome Colonial House Plan with 3-Car Garage
Heated S.F.
2,637
Beds
4
Baths
2.5
Stories
2
Cars
3
Floor Plan

Plan 790043GLV

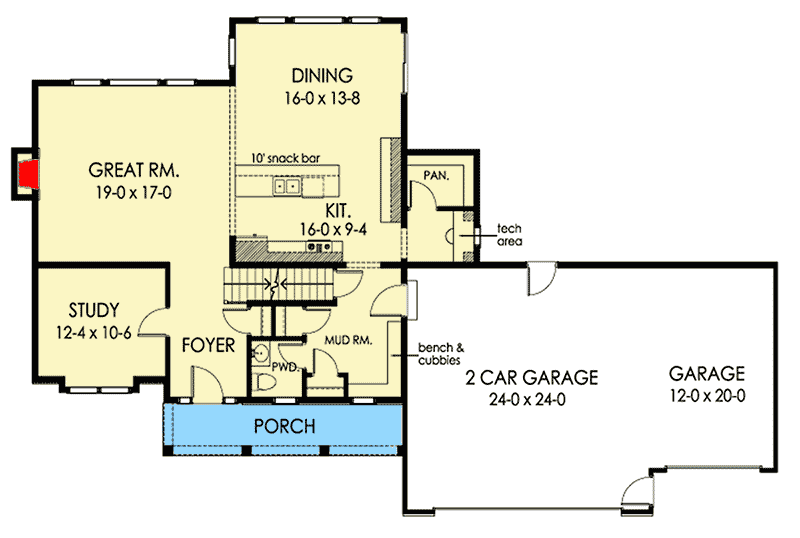

Main Level
slide image 0

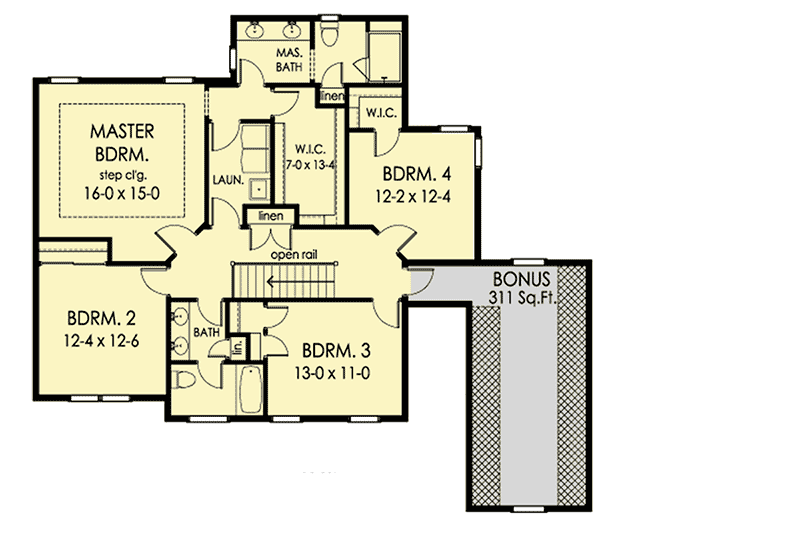

2nd Floor
slide image 1

Plan 790043GLV

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
2nd Floor
floor plan image 2nd Floor
Plan Details
  • A beautiful eyebrow dormer sits atop the gable roof of this handsome Colonial house plan.
  • The home comes with a private study and a big, open great room area where the whole family can spend time together.
  • Extras include a tech area with built-in desk, a nice big wak-in food pantry and a very well organized mud room with bench and cubbies for storage.
  • On the upper floor, the master suite features a lovely tray ceiling and there's a handy second floor laundry room too.
  • Bonus space can be finished when you are ready and it adds an extra 311 square feet.
  • Related Plan: Get a 2-car garage with house plan 790019GLV.
What's Included
  • Cover sheet with notes
  • Elevations
  • Basement and foundation plan and typical wall section
  • Detailed floor plans
  • Sections
  • Roof plan
  • Details
  • Reinforcing notes
What's Not Included
  • Electrical Plans
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,637 sq. ft.

1st Floor

1,279 sq. ft.

2nd Floor

1,358 sq. ft.

Optional Lower Level

1,279 sq. ft.

Bonus

311 sq. ft.

Porch, Front

115 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

71' 8"

Depth

47' 8"

Max Ridge Height

34' 0"

Garage

Type

Attached

Area

814 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

9 on 12

Secondary Pitch

12 on 12

Framing Type

Truss

Architectural Style

Colonial

Traditional

Special Features

Bonus Room

Butler Walk-in Pantry

Laundry - Upstairs

Library/Study

Master Suite - 2nd Floor

Mudroom

Plan Collections

Exclusive
