Plan 9523RW
Handsome Traditional Home Plan with Sunroom
Heated S.F.
6,403
Beds
5
Baths
4.5+
Stories
2
Cars
4
Floor Plan

Plan 9523RW

Main Level
slide image 0
2nd Floor
slide image 1
Basement
slide image 2

Plan 9523RW

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
2nd Floor
floor plan image 2nd Floor
Basement
floor plan image Basement
Plan Details

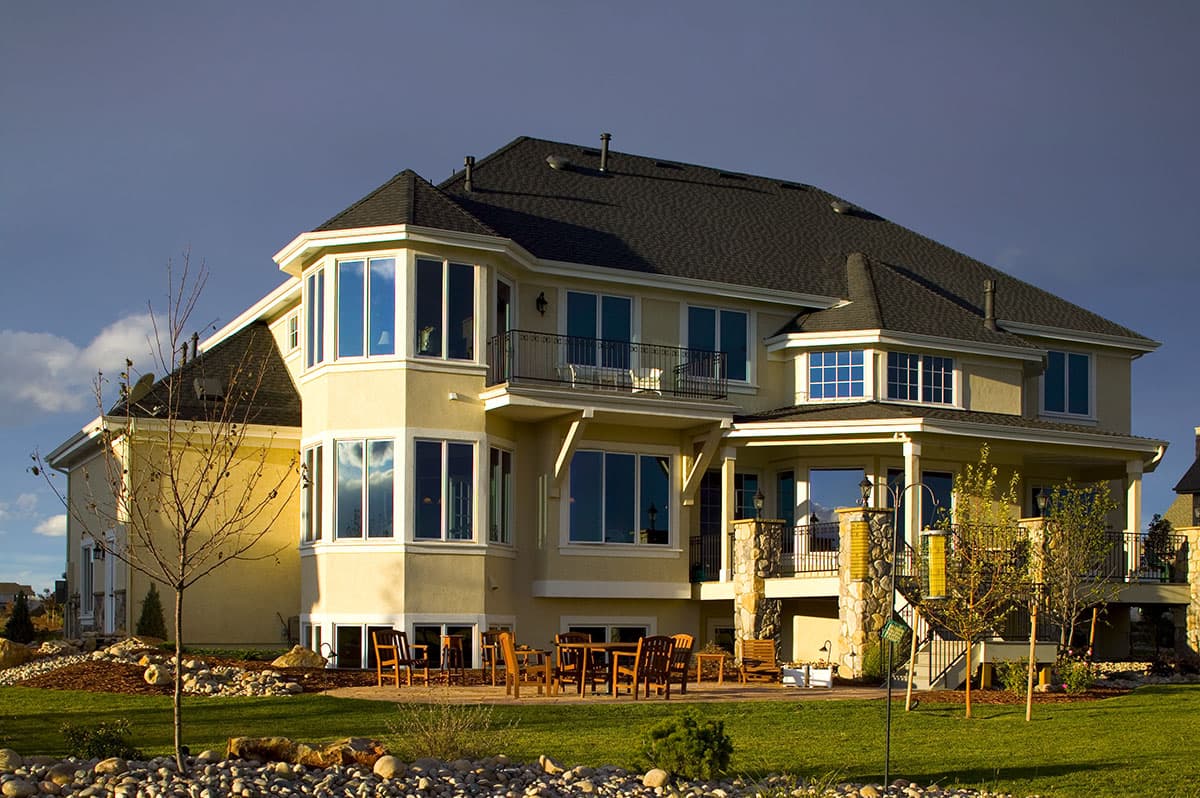

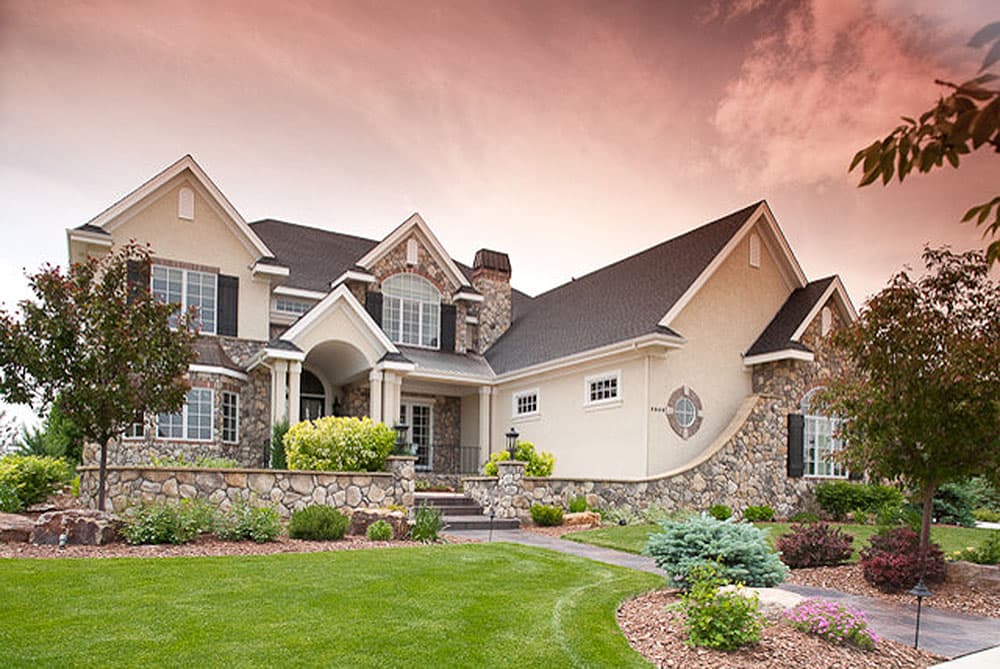

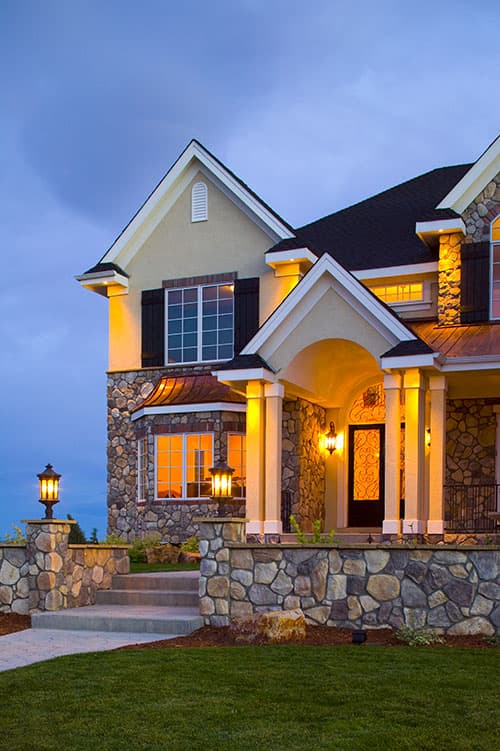

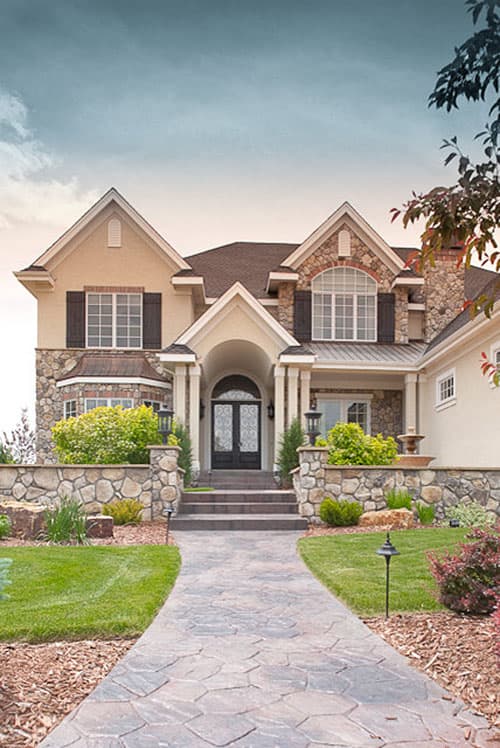

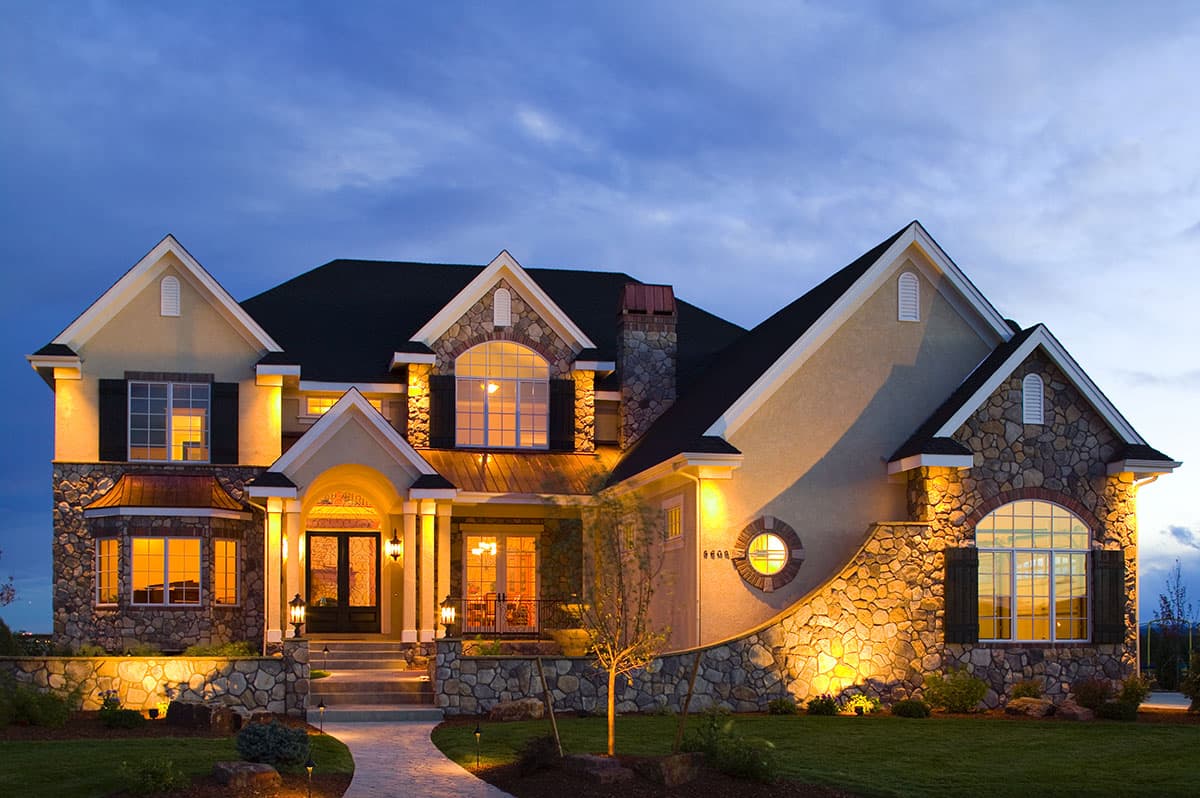

  • An attractive blend of stone and stucco highlights this handsome Traditional home plan.
  • Inside, three levels of living space give your family room to spread out.

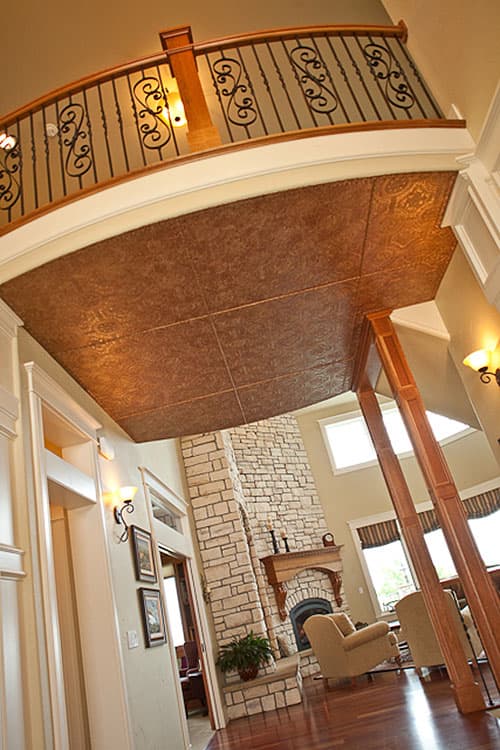

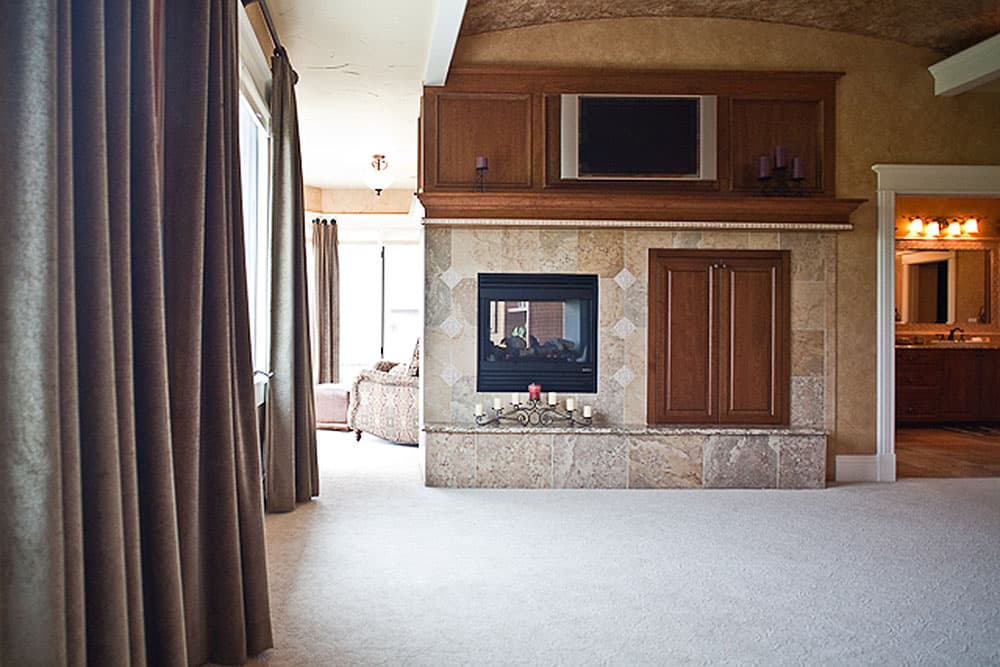

  • This home is filled with special features such as tray and coffered ceilings, a master sitting area with fireplace and a dedicated exercise room on the ground level.
  • Divided into three levels, the first floor is your main living area, the second level is for luxurious sleeping quarters and the ground level is entertainment central.

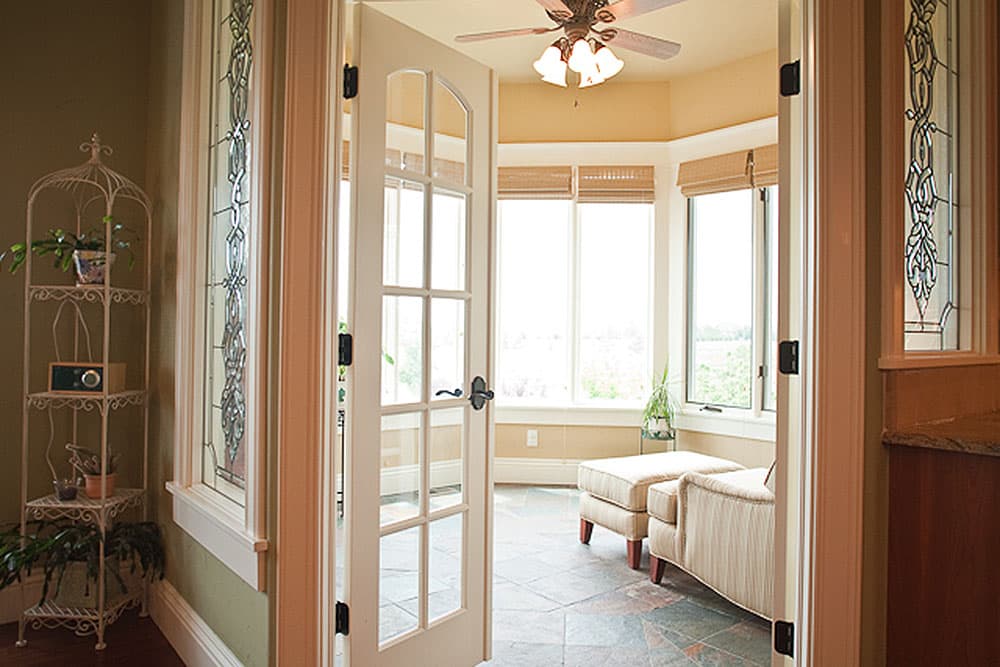

  • The warm and cozy sun room is mirrored by a master sitting area above and a toy chest room below.

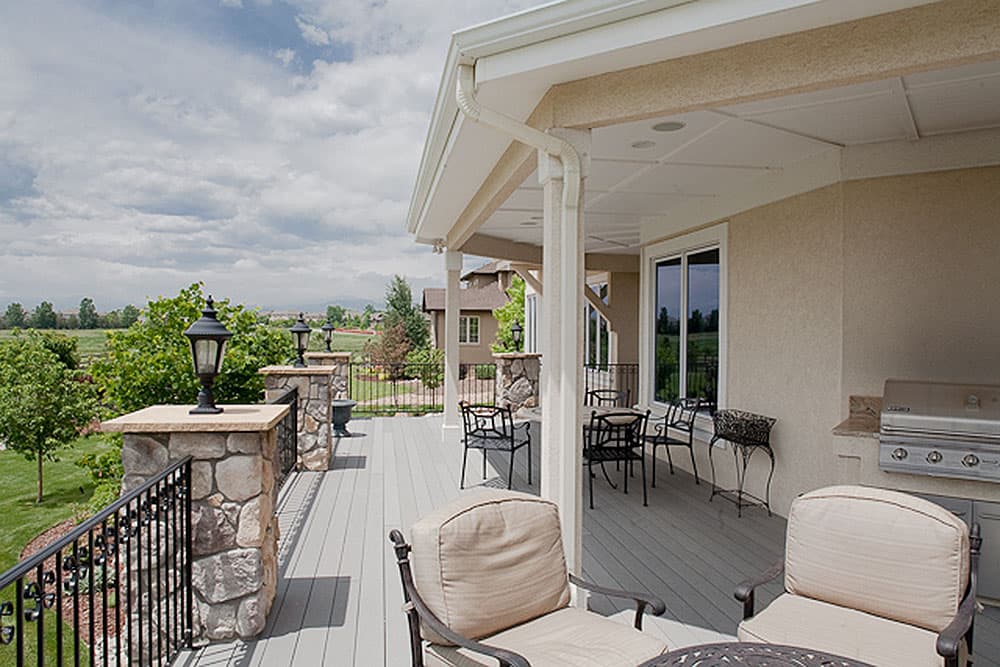

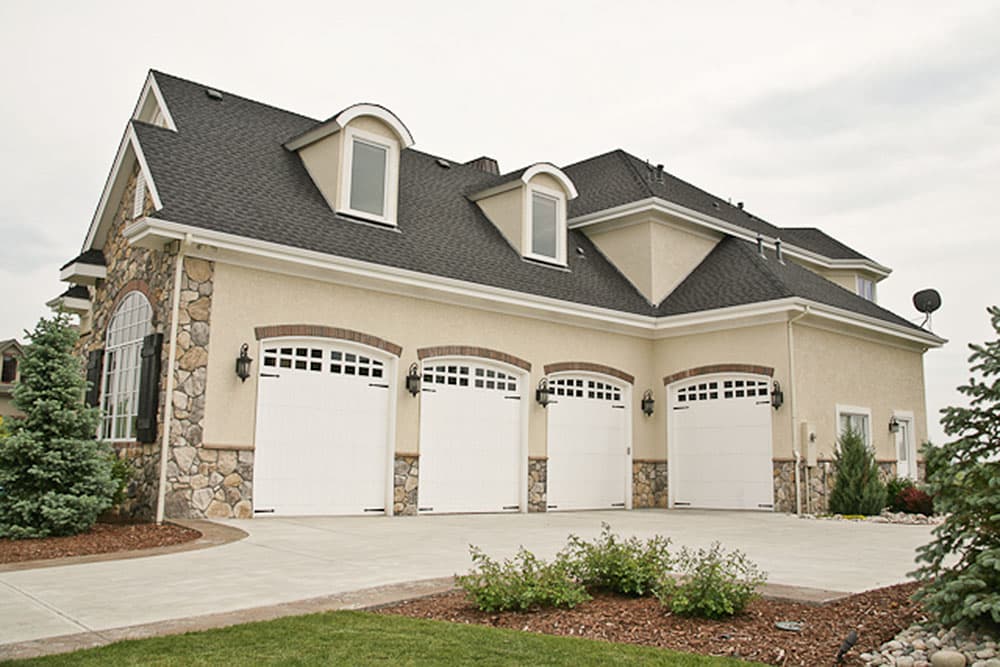

  • Decks, porches and a four car garage make this the perfect family home.
What's Included

  • Cover Page
  • 4 Elevations
  • Floorplans
  • Foundation plan (with no specifications of structural elements)
  • Roof plan (with no specifications of structural elements)
  • Typical wall sections
  • Electrical plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may requires
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

6,403 sq. ft.

Lower Level

1,815 sq. ft.

1st Floor

2,578 sq. ft.

2nd Floor

2,010 sq. ft.

Deck

703 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Daylight

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

78' 0"

Depth

95' 0"

Max Ridge Height

36' 9"

Garage

Type

Attached

Area

2696 sq. ft.

Count

4 Cars

Entry Location

Front, Side

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

9 on 12

Secondary Pitch

12 on 12

Framing Type

Truss

Architectural Style

European

Rustic

Traditional

Special Features

Bonus Room

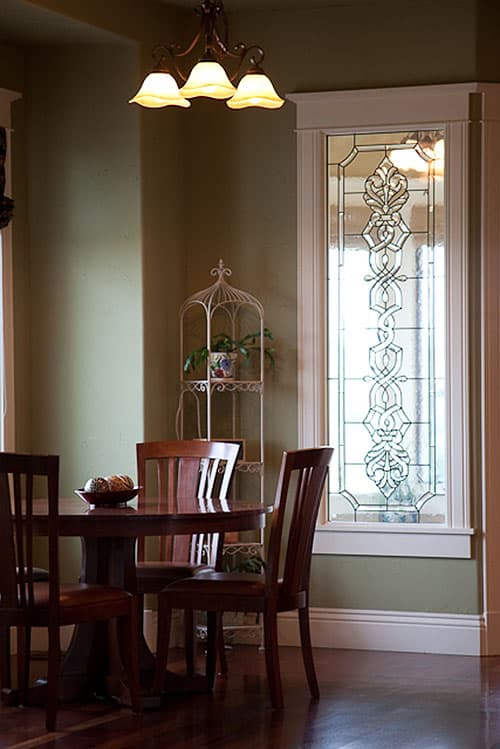

Breakfast Nook

Butler Walk-in Pantry

Den

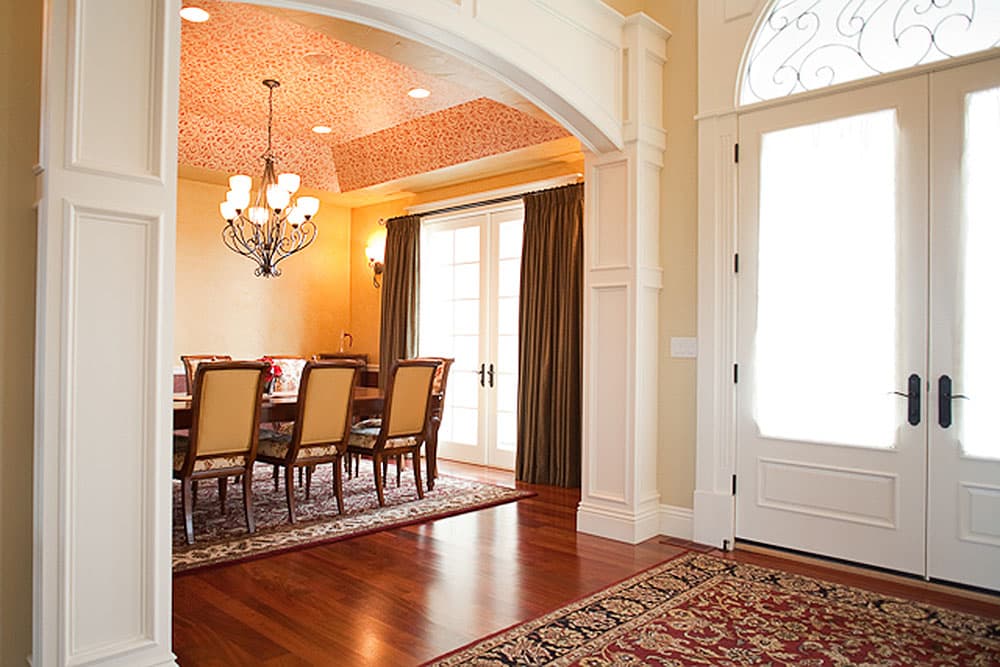

Formal Dining

Game/Rec Room

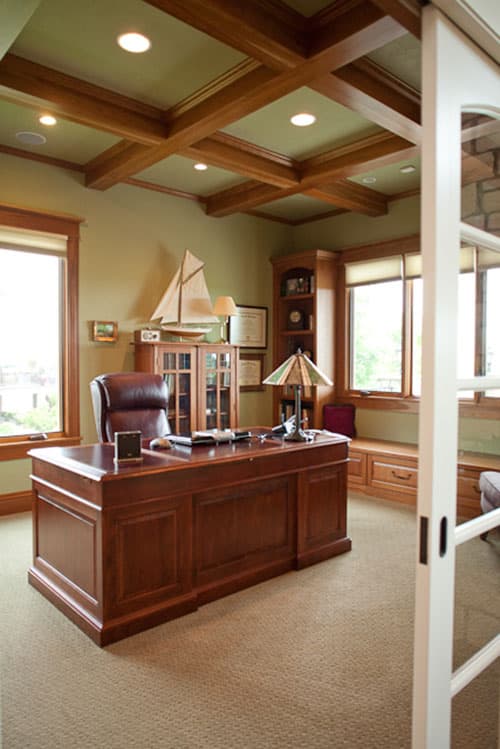

Home Office

Jack & Jill Bath

Laundry - Lower Level

Laundry - Main Level

Laundry - Upstairs

Library/Study

Master Suite - 2nd Floor

Master Suite - Sitting Area

Mudroom

Multiple Stairs

Playroom

Sunroom

Two Kitchen Islands

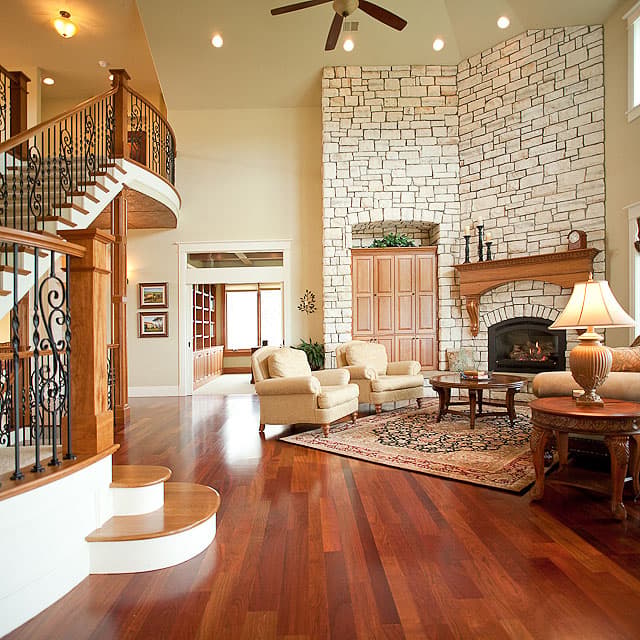

Two Story Great Room

Wet Bar
