Plan 39269ST
Handsome Traditional House Plan
Heated S.F.
2,601
Beds
4
Baths
2.5
Stories
2
Cars
2
Floor Plan

Plan 39269ST

Main Level
slide image 0
2nd Floor
slide image 1
Basement Unfinished
slide image 2

Plan 39269ST

1-800-854-7852

1-262-521-4596

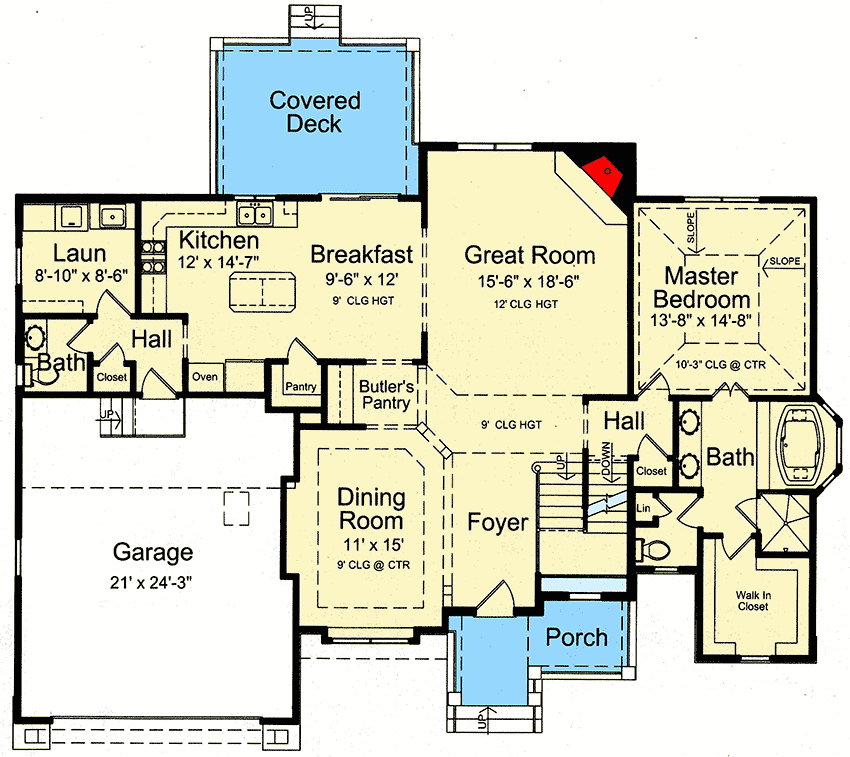

Main Level
floor plan image Main Level

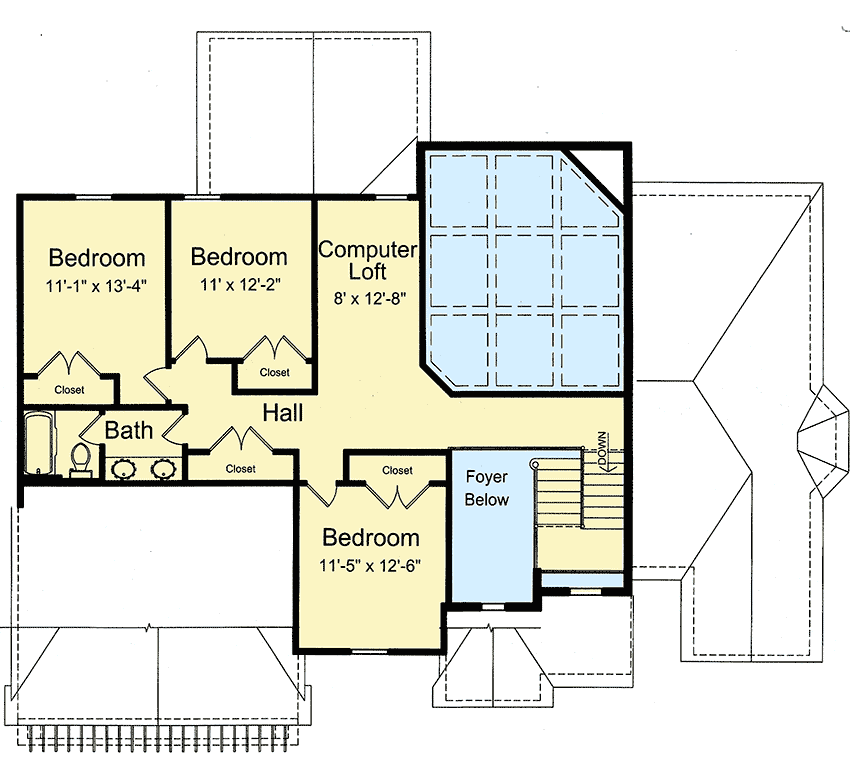

2nd Floor
floor plan image 2nd Floor

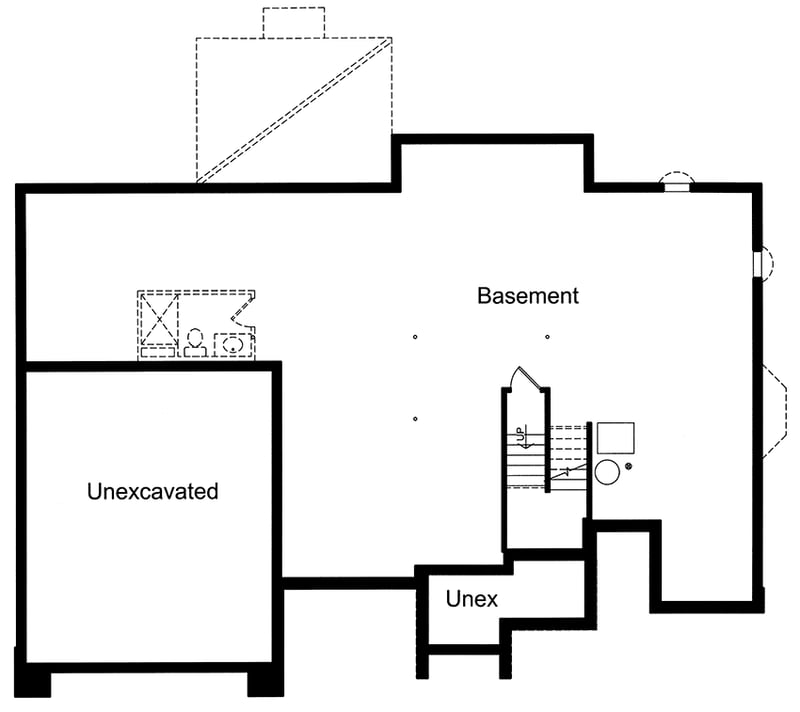

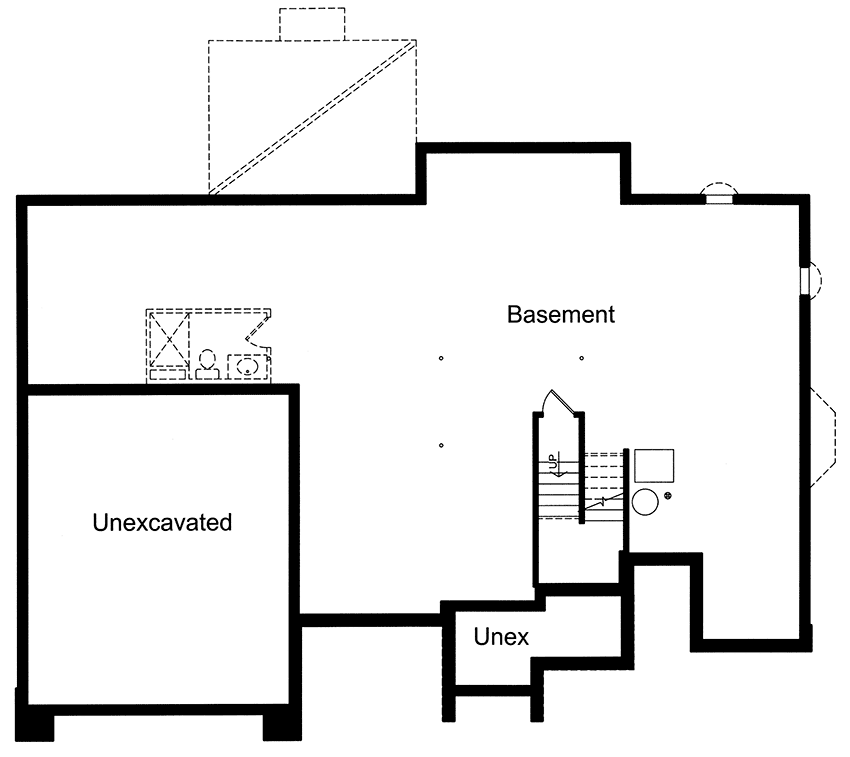

Basement Unfinished
floor plan image Basement Unfinished
Plan Details
  • A beautiful siding exterior with stone trim and a covered porch sets the stage for a warm and inviting home.
  • The great room enjoys a 12’ ceiling height and gas fireplace.
  • The grand opening to the breakfast room and front entry visually expands the great room creating a large gathering place.
  • A butler’s pantry tucked between the breakfast room and dining room helps with storing your fine linens and glassware and offers ease of serving your formal occasions.
  • The fully equipped kitchen is complemented by a wall oven, walk-in pantry and large island.
  • The first floor master suite with raised ceiling, whirlpool tub, shower, commode room and double bowl vanity pampers the homeowner.
  • Turned stairs lead to a balcony with loft and 3 additional bedrooms.
What's Included
  • General notes and specifications

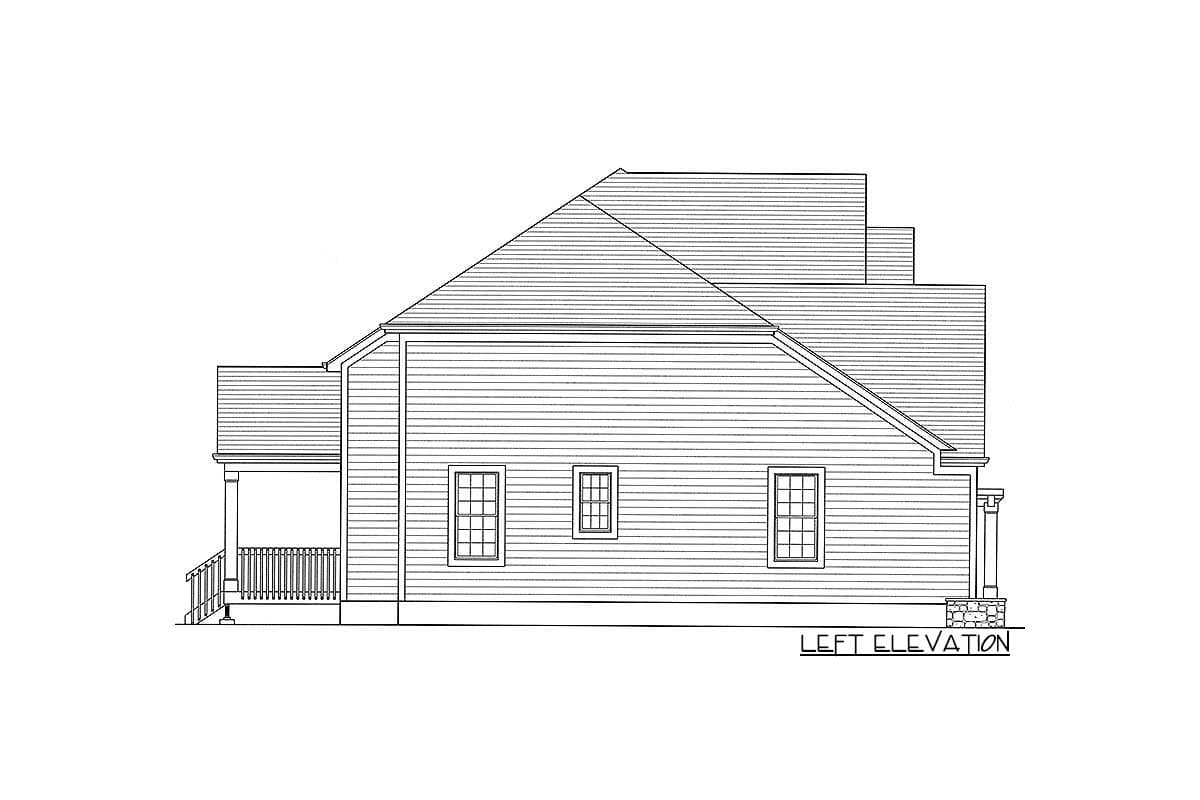

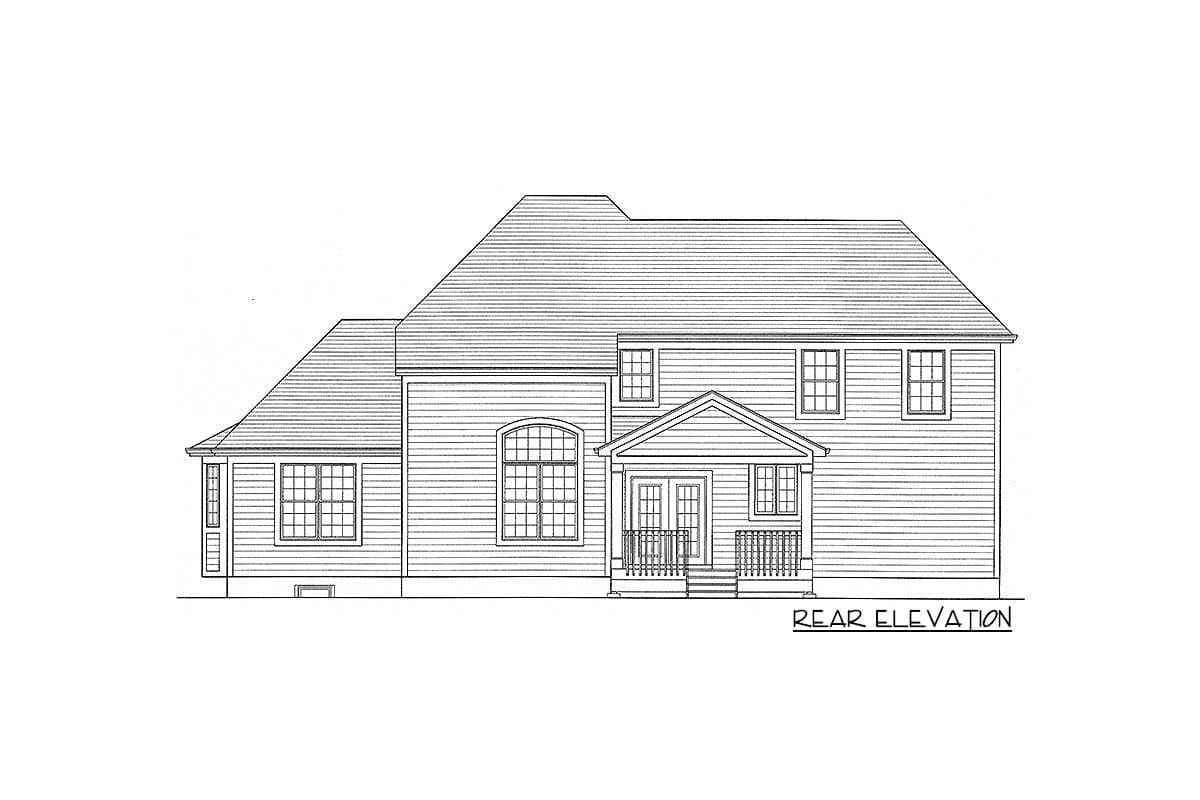

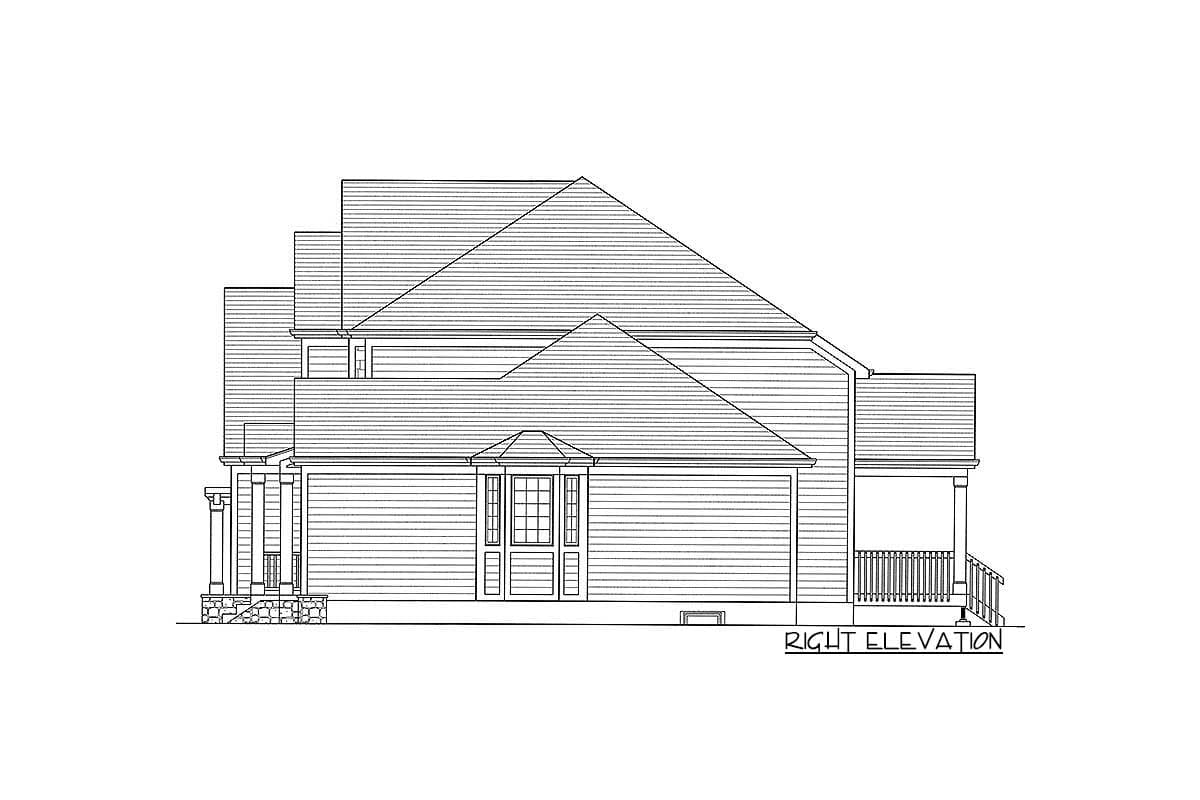

  • Front, rear and side elevations at (1/4" scale)
  • Foundation plan (1/4" scale) indicating beam and column sizes along with lower level framing
  • Reinforced foundation and footing details
  • First floor plan (1/4" scale) includes all necessary framing information, window rough openings, beam sizes and framing details for specialized areas
  • Stairs, sections, cabinet layouts, window flashing and miscellaneous details necessary for understanding of construction methods
  • Roof plan (1/8" scale) indicating pitches and wall height as well as truss profiles indicating heel heights and raised ceiling areas
  • Wall section indicating standard materials and detailing for typical wall construction
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,601 sq. ft.

1st Floor

1,682 sq. ft.

2nd Floor

919 sq. ft.

Basement Unfinished

1,682 sq. ft.

Porch, Combined

93 sq. ft.

Deck

193 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

63' 2"

Depth

45' 10"

Max Ridge Height

31' 6"

Garage

Type

Attached

Area

497 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Framing Type

Truss

Architectural Style

Southern

Traditional

Special Features

Butler Walk-in Pantry

Formal Dining

Laundry - Main Level

Loft

Master Suite - 1st Floor

Two Story Great Room
