Plan 77610FB

Exclusive

Handsome Traditional House Plan
Heated S.F.
1,950
Beds
3
Baths
2.5
Stories
2
Cars
2
Floor Plan

Plan 77610FB

Main Level
slide image 0
2nd Floor
slide image 1
Lower Level
slide image 2

Plan 77610FB

1-800-854-7852

1-262-521-4596

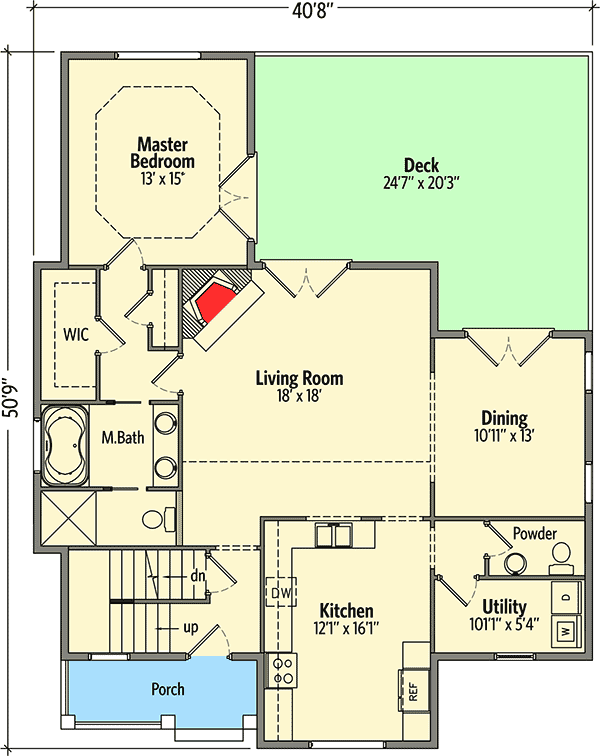

Main Level
floor plan image Main Level

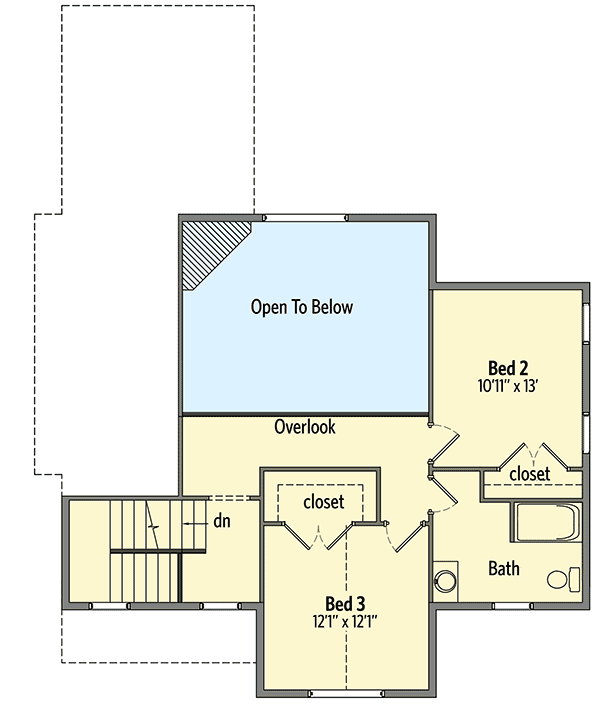

2nd Floor
floor plan image 2nd Floor

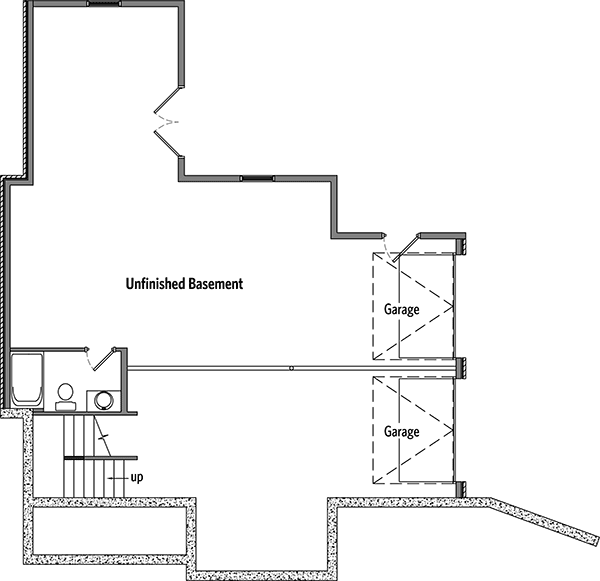

Lower Level
floor plan image Lower Level
Plan Details

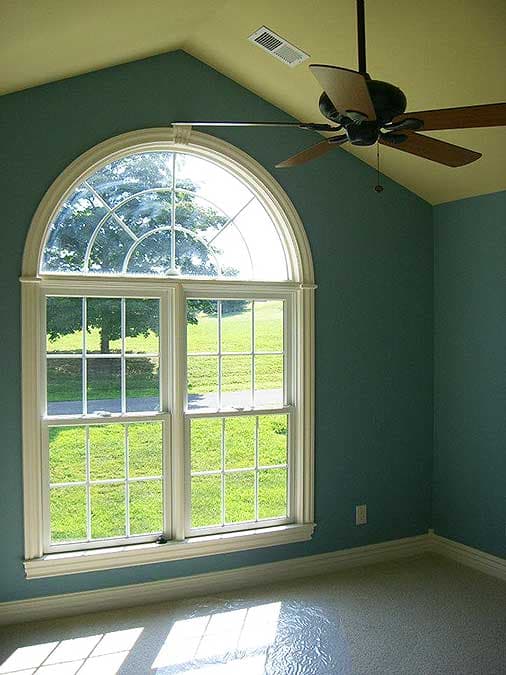

  • A big circle-top window in vaulted bedroom 3 immediately grabs your attention as you enter this Traditional house plan.

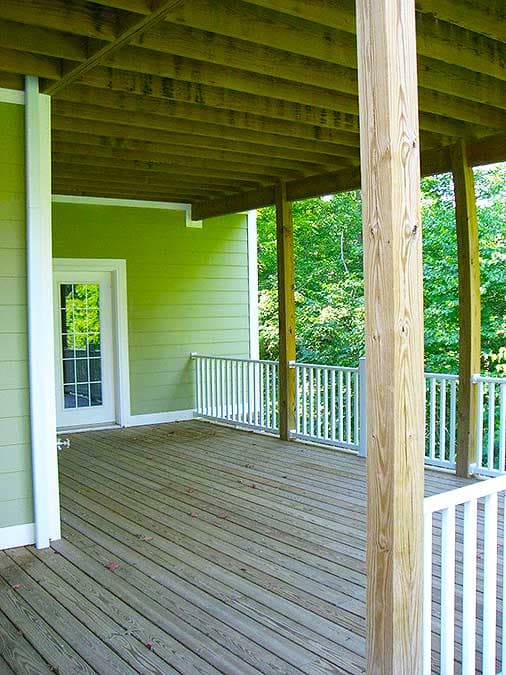

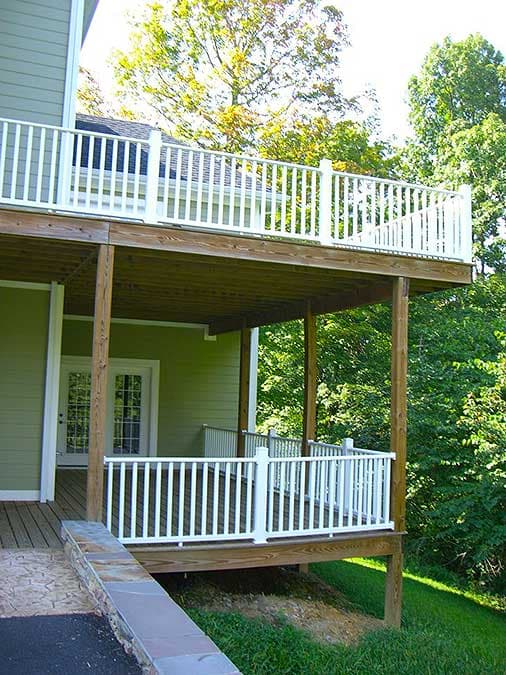

  • The home offers a first floor master suite with elegant tray ceiling and a huge deck out back for your family to enjoy.

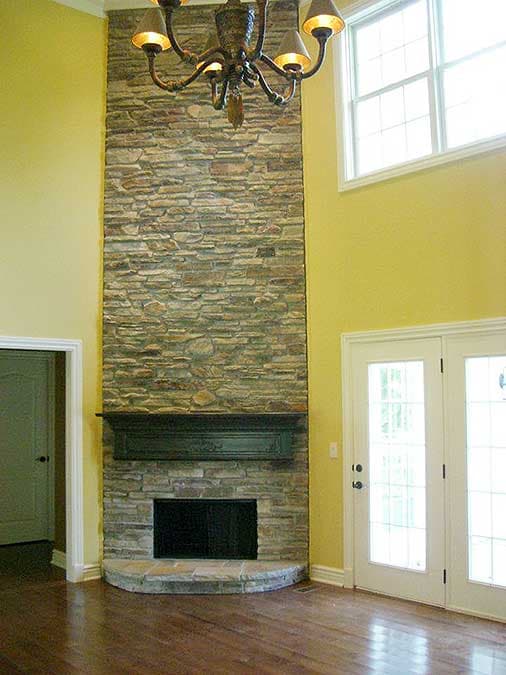

  • The living room rises up for two stories and has a corner fireplace and double doors to the deck.

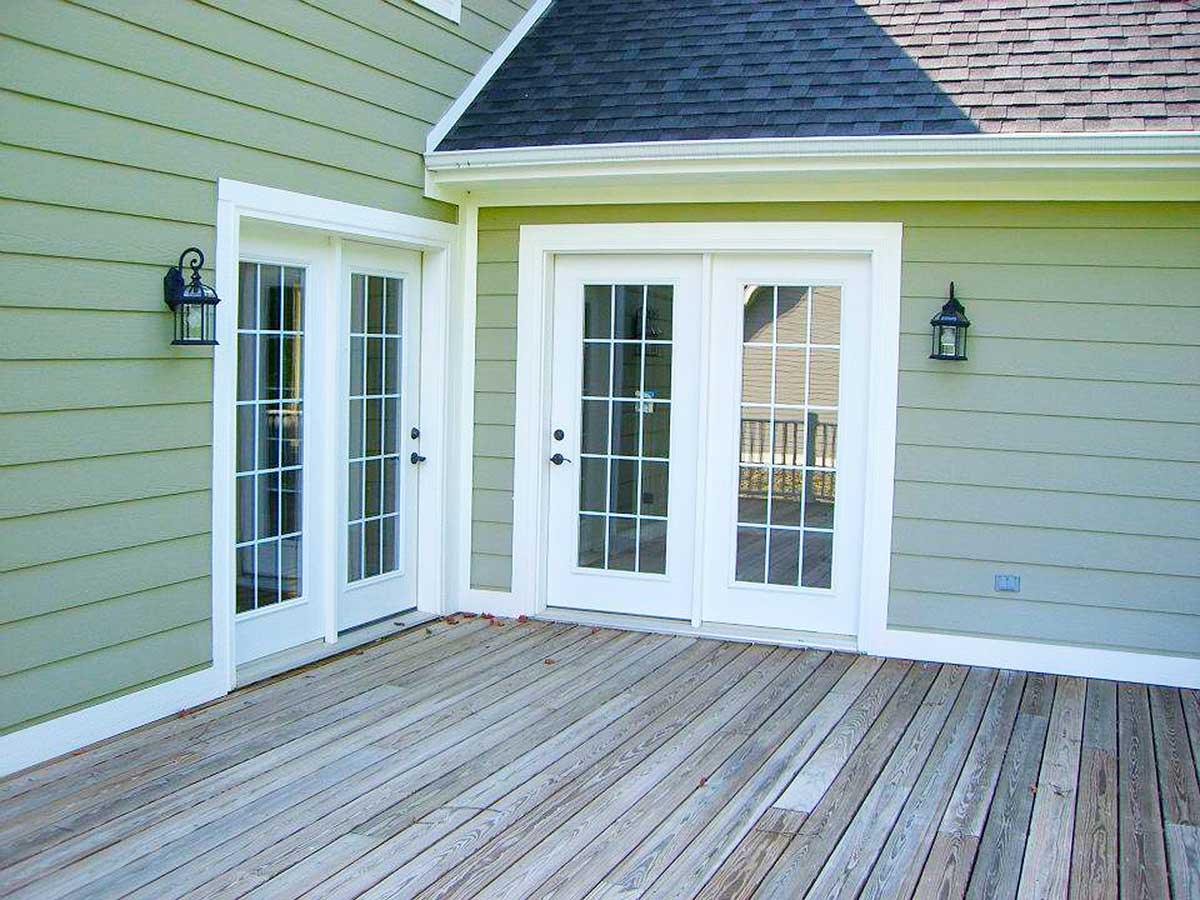

  • The dining room also enjoys double doors that get you outside quickly.

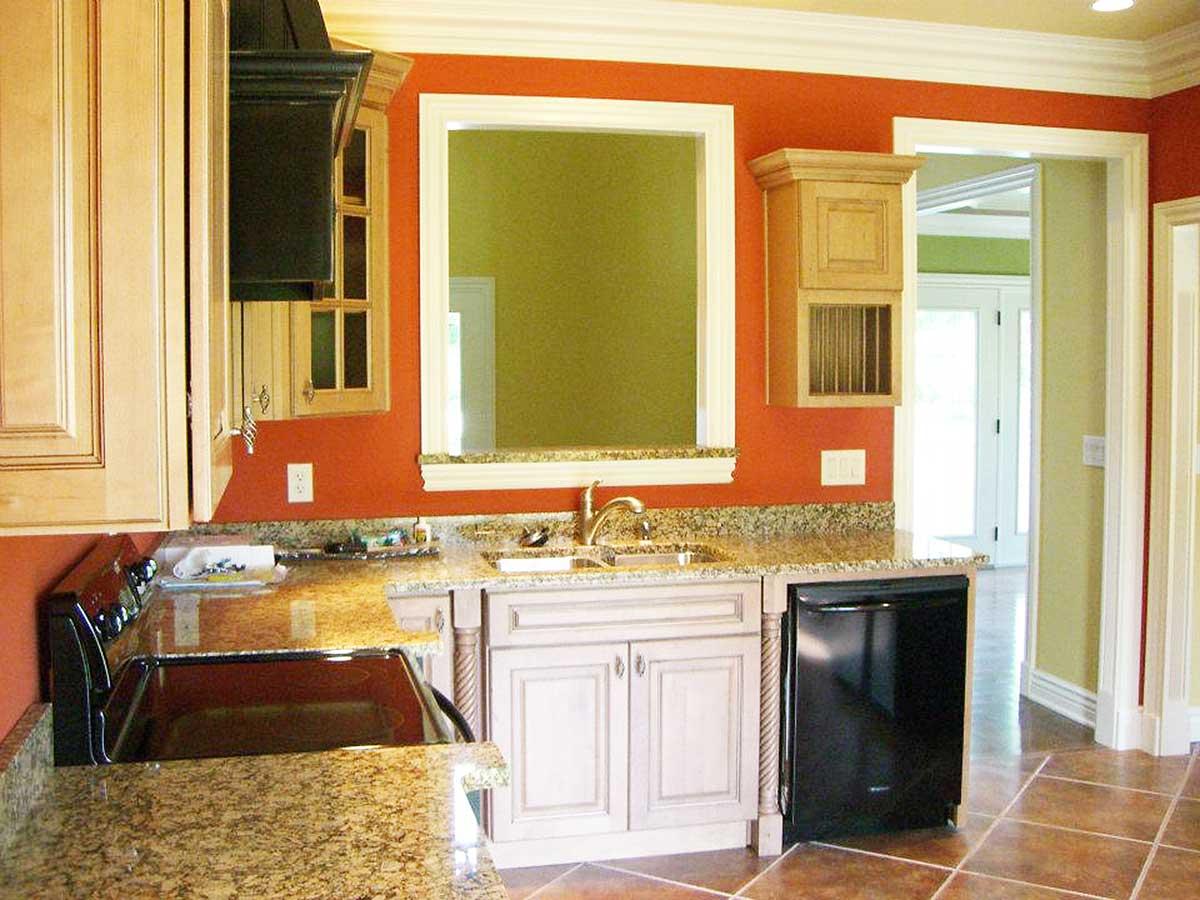

  • A half wall by the kitchen sink lets you keep an eye on those in the living room while cooking.

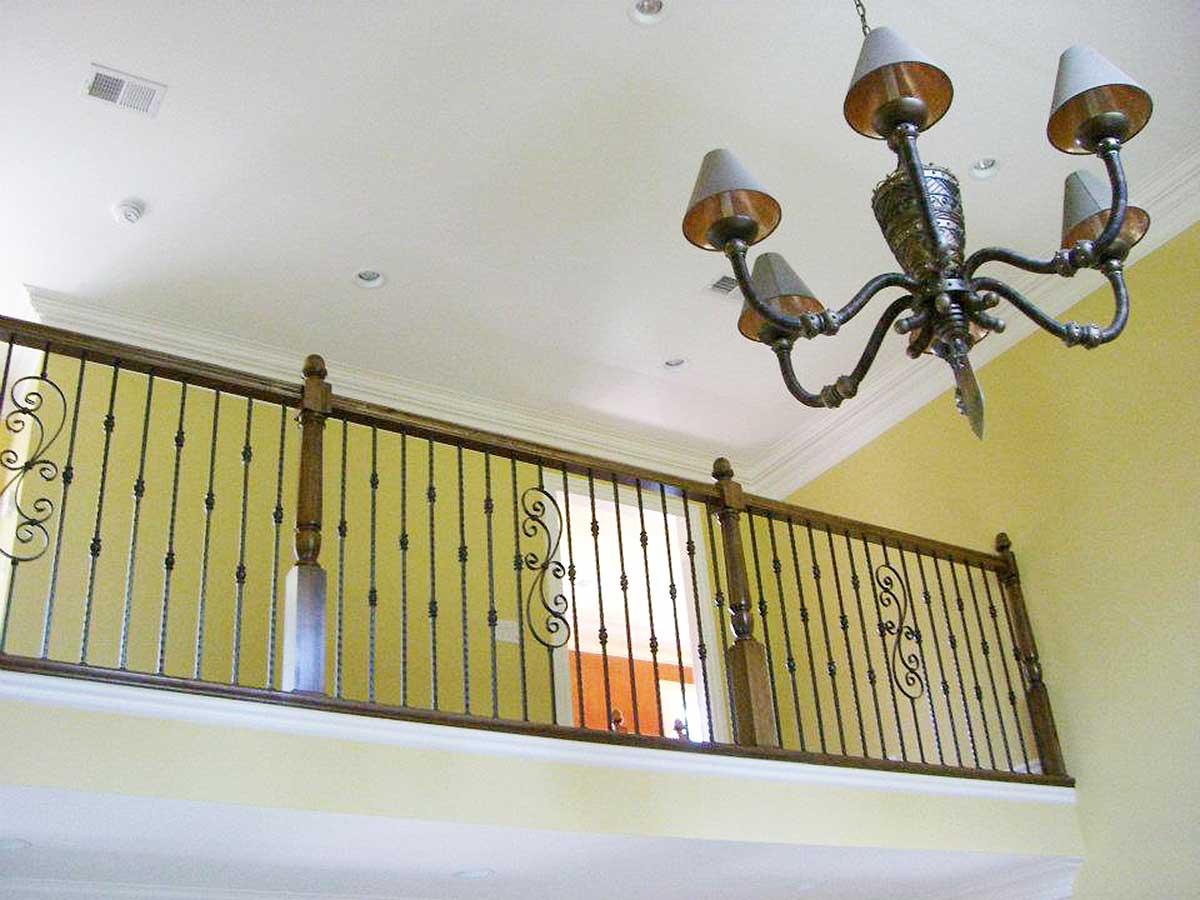

  • On the upper floor, an open rail hallway lets you look down into the living room below.
What's Included

  • Cover page
  • Foundation plan
  • Floor Plan
  • Elevations
  • Section View
  • Construction details
  • Electrical Layout
  • Roof Plan (if needed)
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,950 sq. ft.

1st Floor

1,309 sq. ft.

2nd Floor

641 sq. ft.

Basement Unfinished

1,309 sq. ft.

Porch, Front

71 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement, Daylight, Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

40' 8"

Depth

50' 9"

Max Ridge Height

30' 3"

Garage

Type

Drive Under

Area

540 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Second Floor

8'

Room

Ceiling Type

Height

Living Room

Vaulted

0' 0''

Master Bedroom

Tray

0' 0''

Bedroom 2

Vaulted

0' 0''

Roof Details

Primary Pitch

10 on 12

Framing Type

Stick And Truss

Architectural Style

Traditional

Special Features

Master Suite - 1st Floor

Plan Collections

Exclusive

Photo Gallery

Sloping Lot
