Plan 66354WE
High End Florida House Plan
Heated S.F.
4,846
Beds
4 - 5
Baths
5.5
Stories
2
Cars
2
Floor Plan

Plan 66354WE

Main Level
slide image 0
2nd Floor
slide image 1

Plan 66354WE

1-800-854-7852

1-262-521-4596

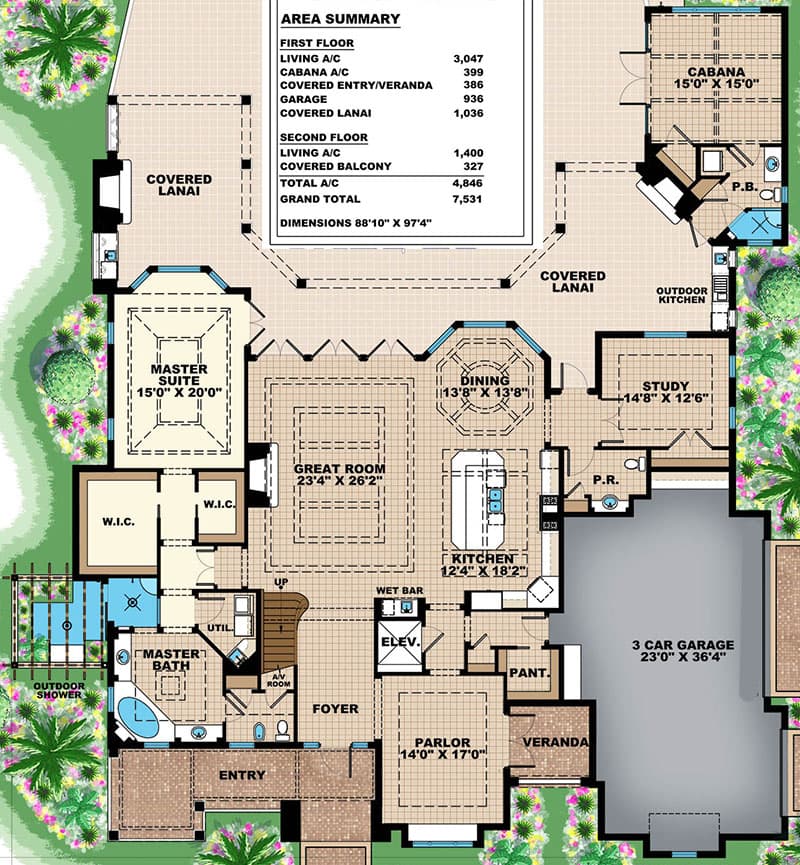

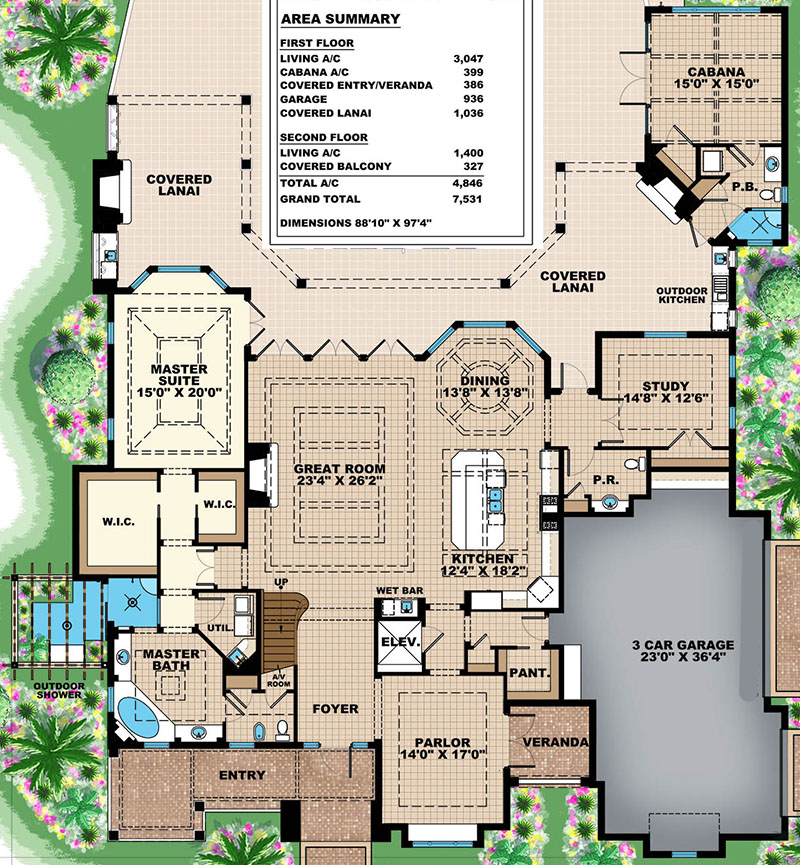

Main Level
floor plan image Main Level

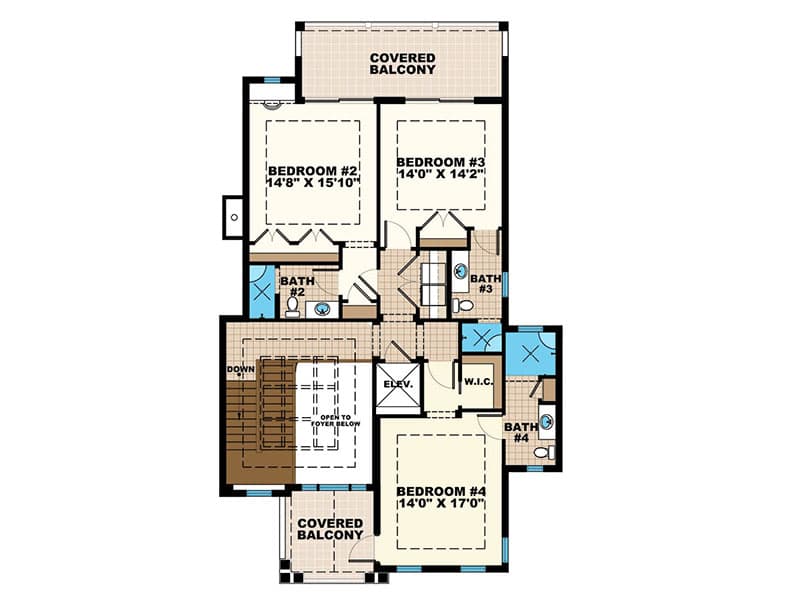

2nd Floor
floor plan image 2nd Floor
Plan Details
  • Enjoy the good life in this high end Florida house plan that has a cabana at the far end.
  • A nice, wide foyer gives you views of the parlor to the right, with its tray ceiling and private veranda.
  • The main living area is one massive space that combines the great room, kitchen and dining room - all with beautiful ceilings.
  • There's a wet bar for entertaining and when you're ready for fresh air, step through one of three double doors to the enormous outdoor space.
  • Here you have another wet bar, two outdoor fireplaces and a summer kitchen for all your grilling.
  • Use the cabana as a casita guest suite, if you want.
  • A big bay window in the master suite not only brings in light, it serves as a sitting area too.
  • Homneowners get their own washer/dryer too!
  • Two balconies on the second floor mean each bedroom has outdoor space.
  • Use the residential elevator to get from floor to floor or use the elevator space as a big walk-in closet.
What's Included
Elevations - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  • Material Labels
  • Floor-to-Floor Heights
  • Roof Slope Indicators
Floor Plans - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  • Door and Window Sizes
  • Completely Dimensioned Floor Plan
  • Room Labels and Interior Room Sizes
Electrical Layouts
  • Building Section Markers
  • All Electrical Outlets, Fixtures, and Switching
Foundation Plan - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  • Floor and Deck Joist Size and Spacing
  • Electrical Locations (if applicable)

Roof Design Plan - Drawn at 1/8″ to 1/4″ = 1′-0″scale, and Includes:
  • All Beam and Header Heights and Locations
  • All Hips, Gables, Ridges, and Valleys
  • Building Section Markers
Building Sections - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  • Floor Joist Size and Spacing
  • Floor-to-Floor Heights
  • Non-Typical Plate Heights Indicated
Typical Wall Sections - Drawn at 1/8″ to 1/2″ = 1′-0″ Scale, and Includes:
  • All Labels Indicating Wall Construction
  • Foundation Wall Thickness and Reinforcing
  • Insulation Type and Thickness
Miscellaneous Notes and Details
  • Miscellaneous General Notes
  • Stairway details (if applicable)
We do provide a slab plan, however, the structural foundation plan is to be provided by the structural engineer selected by your builder or yourself. This is done because our slab plan cannot anticipate the variations in soil, footings and other conditions per your specific site. We provide the design of the roof as well, however, the truss layouts need to be provided by a truss engineer or your lumber company. Your builder can provide these contacts for you.  Please keep in mind that these are additional expenses outside of the cost of the original plan that you purchase from us.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

4,846 sq. ft.

1st Floor

3,446 sq. ft.

2nd Floor

1,400 sq. ft.

Porch, Front

386 sq. ft.

Balcony / Veranda

327 sq. ft.

Lanai

1,036 sq. ft.

Beds/Baths

Bedrooms

4 or 5

Full bathrooms

5

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Optional Type(s)

2x6

Dimensions

Width

88' 10"

Depth

97' 4"

Max Ridge Height

30' 0"

Garage

Type

Attached

Area

936 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

10'

Roof Details

Primary Pitch

7 on 12

Secondary Pitch

8 on 12

Framing Type

Truss

Architectural Style

European

Florida

Special Features

Butler Walk-in Pantry

Elevator

In-Law Suite

Laundry - Main Level

Master Suite - 1st Floor

Master Suite - Sitting Area

Wet Bar

Plan Collections

Luxury

Square Footage Breakdown

Total Heated Area

4,846 sq. ft.

1st Floor

3,446 sq. ft.

2nd Floor

1,400 sq. ft.

Porch, Front

386 sq. ft.

Balcony / Veranda

327 sq. ft.

Lanai

1,036 sq. ft.

Beds/Baths

Bedrooms

4 or 5

Full bathrooms

5

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Optional Type(s)

2x6

Dimensions

Width

88' 10"

Depth

97' 4"

Max Ridge Height

30' 0"

Garage

Type

Attached

Area

936 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

10'

Roof Details

Primary Pitch

7 on 12

Secondary Pitch

8 on 12

Framing Type

Truss

Architectural Style

European

Florida

Special Features

Butler Walk-in Pantry

Elevator

In-Law Suite

Laundry - Main Level

Master Suite - 1st Floor

Master Suite - Sitting Area

Wet Bar

Plan Collections

Luxury
