Plan 59871ND
Hill Country Duplex House Plan - 2 Bed Units - 1897 Sq Ft
Heated S.F.
3,794
Units
2
Width
Depth
Floor Plan

Plan 59871ND

Main Level
slide image 0
2nd Floor
slide image 1

Plan 59871ND

1-800-854-7852

1-262-521-4596

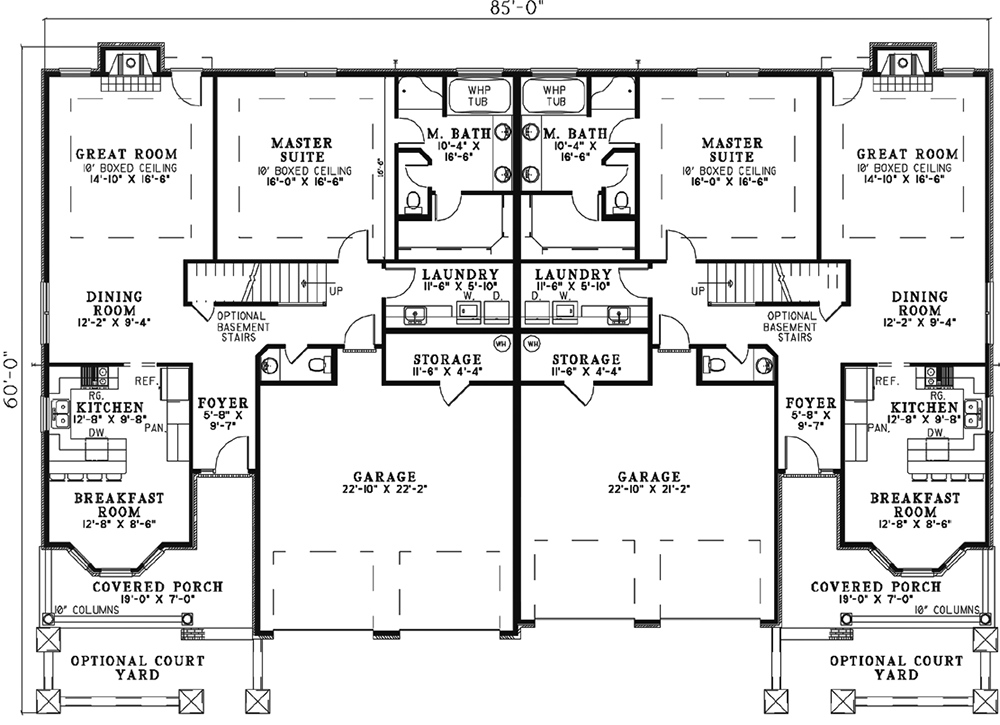

Main Level
floor plan image Main Level

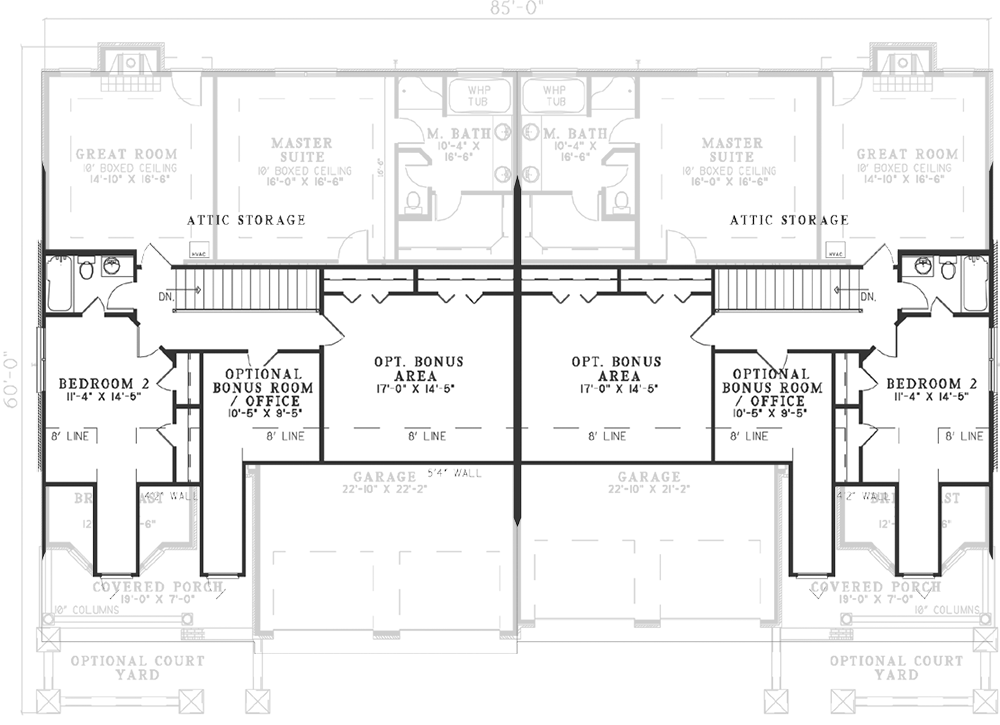

2nd Floor
floor plan image 2nd Floor
Plan Details
  • This hill country duplex house plan gives you side-by-side 2-bed units each with 1,897 square feet of heated living (1,39 sq. ft. on the main floor and 502 sq. ft. on the second floor).
  • Two-car garages are slightly staggered and give you 596 square feet of parking.
  • Upstairs, a flex room can be put to multiple uses as can the bonus room.
Unit A
1,897Sq. Ft.
1395 Sq. Ft.
1st Floor
502 Sq. Ft.
2nd Floor
2Beds
2Full Baths
1Half Bath
2Vehicle
Attached
596 Sq. Ft.
42' 6"width
60'depth
28'height
Unit B
1,897Sq. Ft.
1395 Sq. Ft.
1st Floor
502 Sq. Ft.
2nd Floor
2Beds
2Full Baths
1Half Bath
2Vehicle
Attached
596 Sq. Ft.
42' 6"width
60'depth
28'height
What's Included
  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a bird's-eye view of rooms with lights, fans to switches
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

3,794 sq. ft.

1st Floor

2,790 sq. ft.

2nd Floor

1,004 sq. ft.

Bonus

606 sq. ft.

Porch, Front

338 sq. ft.

Beds/Baths

Bedrooms

5 or 6

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Slab, Crawl

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

85' 0"

Depth

60' 0"

Max Ridge Height

28' 0"

Garage

Type

Attached

Area

1192 sq. ft.

Count

4 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Country

Hill Country

Traditional

Special Features

Bedrooms - Split

Bonus Room

Breakfast Nook

Home Office

Jack & Jill Bath

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Square Footage Breakdown

Total Heated Area

3,794 sq. ft.

1st Floor

2,790 sq. ft.

2nd Floor

1,004 sq. ft.

Bonus

606 sq. ft.

Porch, Front

338 sq. ft.

Beds/Baths

Bedrooms

5 or 6

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Slab, Crawl

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

85' 0"

Depth

60' 0"

Max Ridge Height

28' 0"

Garage

Type

Attached

Area

1192 sq. ft.

Count

4 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Country

Hill Country

Traditional

Special Features

Bedrooms - Split

Bonus Room

Breakfast Nook

Home Office

Jack & Jill Bath

Laundry - Main Level

Master Suite - 1st Floor

Mudroom
