Plan 3000D
Hill Country Farmhouse Under 1900 Square Feet with 8-Foot-Deep Wraparound Porch
Heated S.F.
1,846
Beds
3
Baths
2.5
Stories
2
Cars
2
Photos
Floor Plan

Plan 3000D

Main Level
slide image 0
2nd Floor
slide image 1
3rd Floor
slide image 2

Plan 3000D

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
2nd Floor
floor plan image 2nd Floor
3rd Floor
floor plan image 3rd Floor
Plan Details

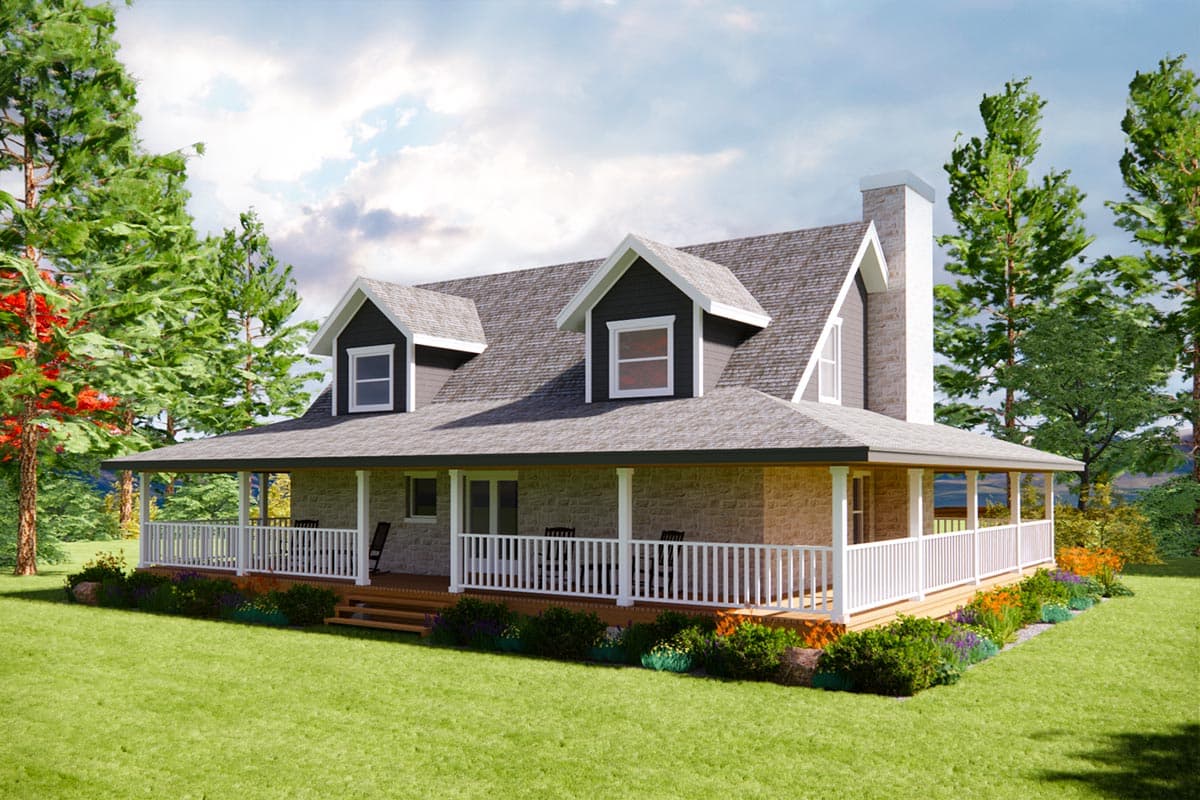

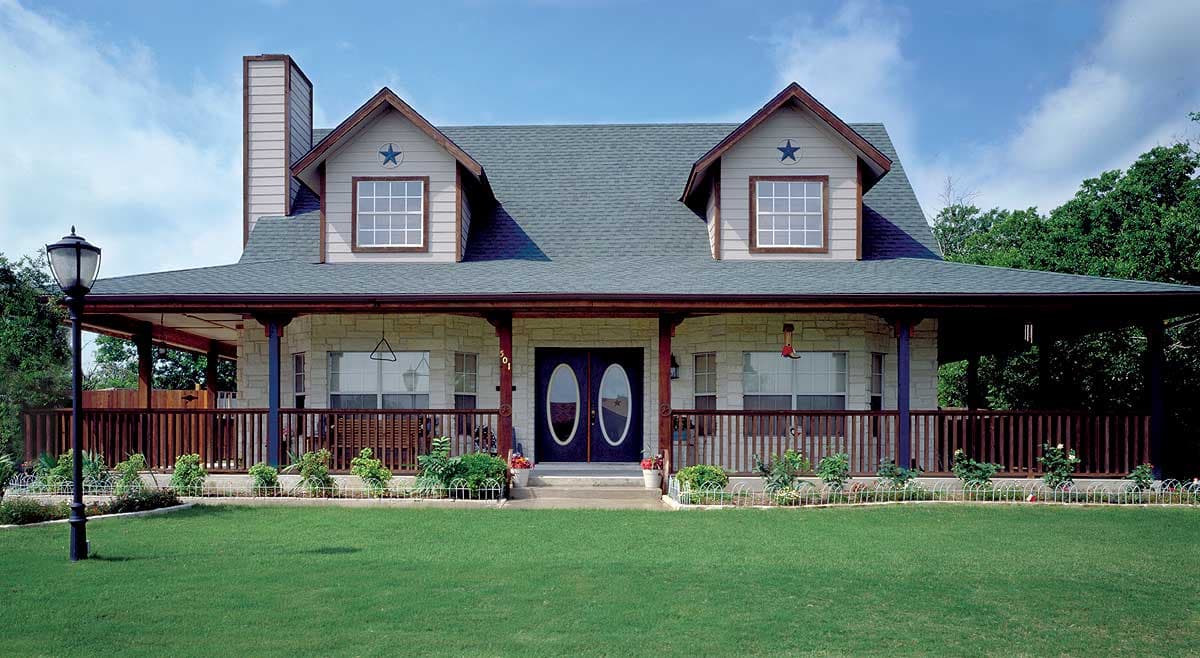

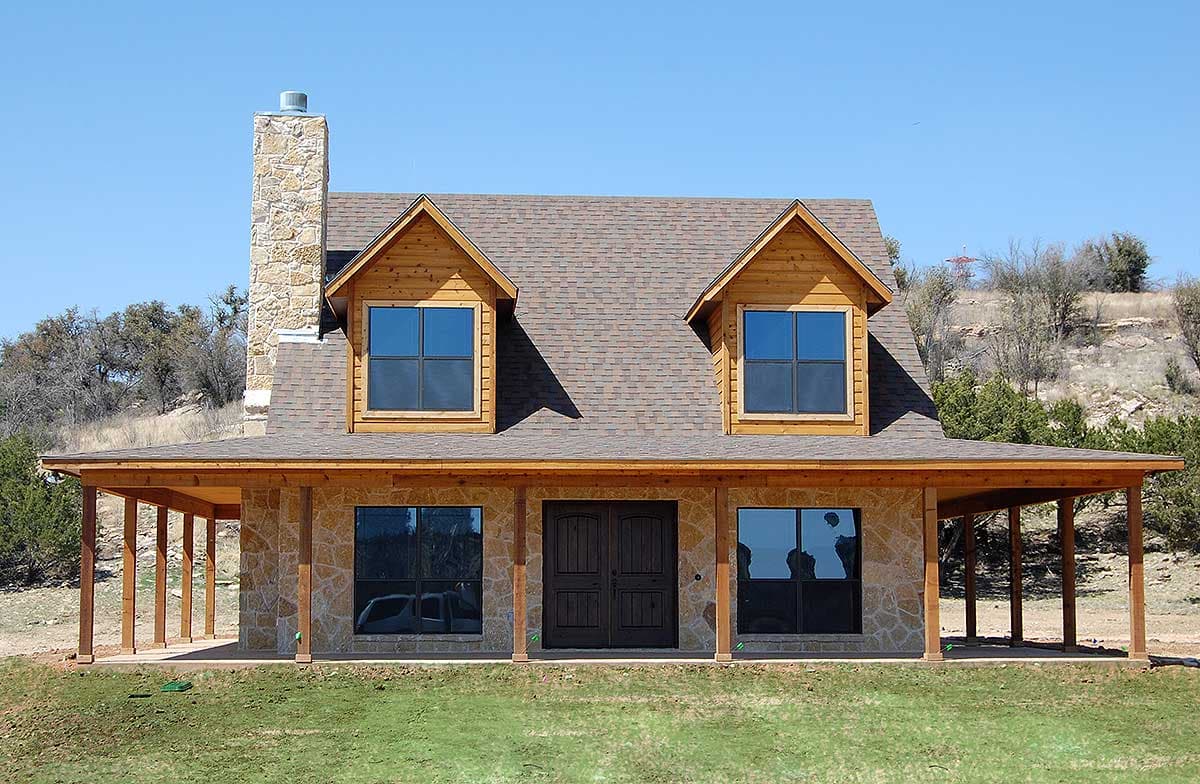

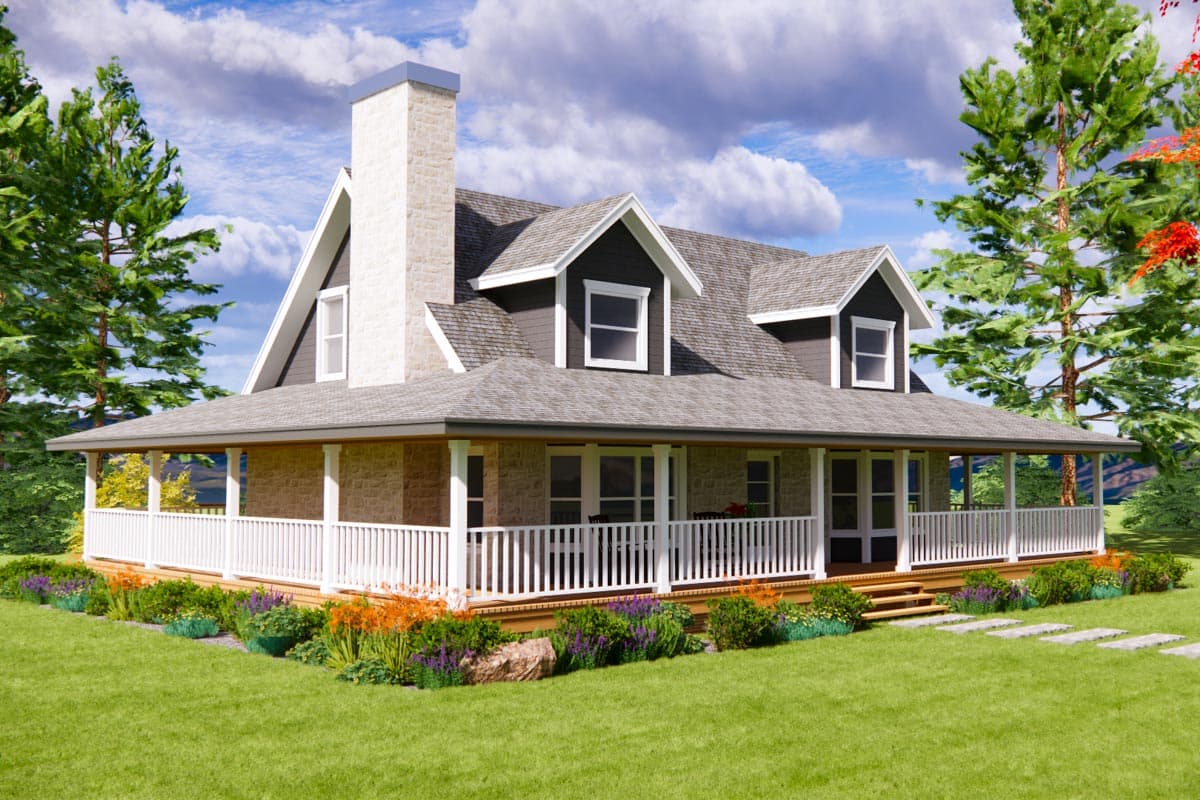

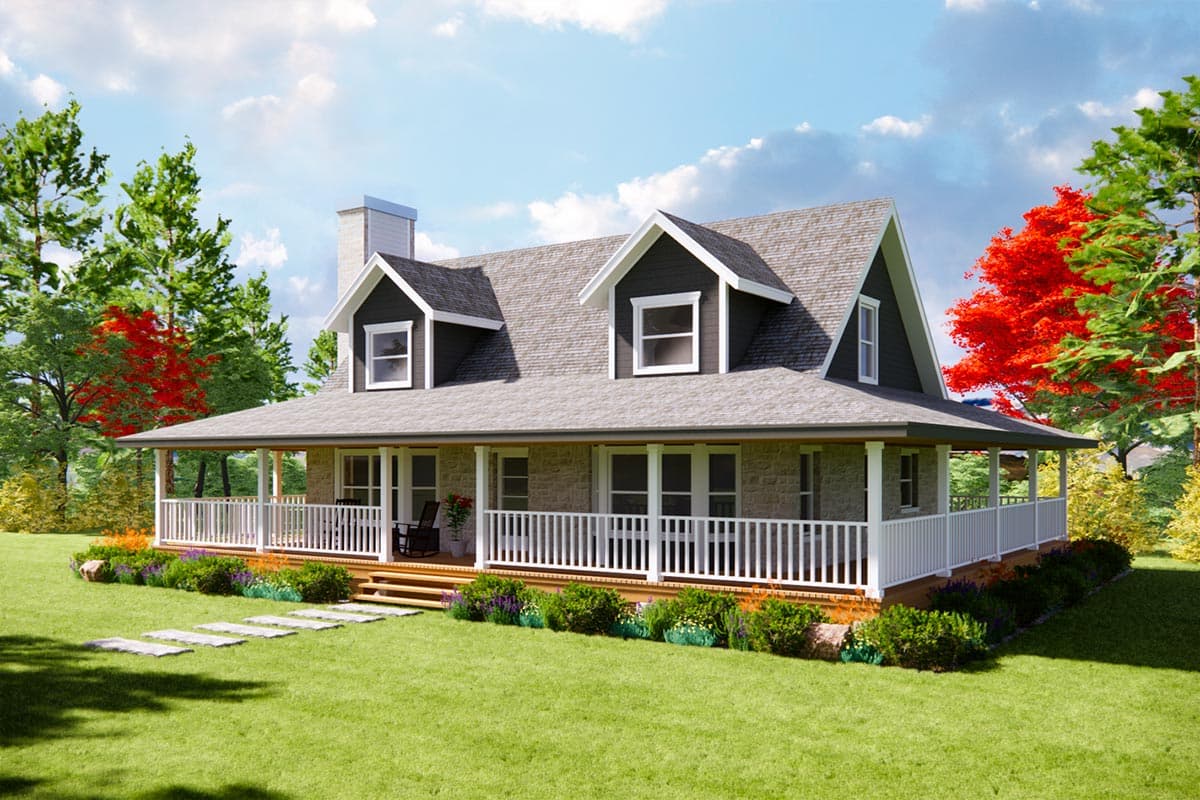

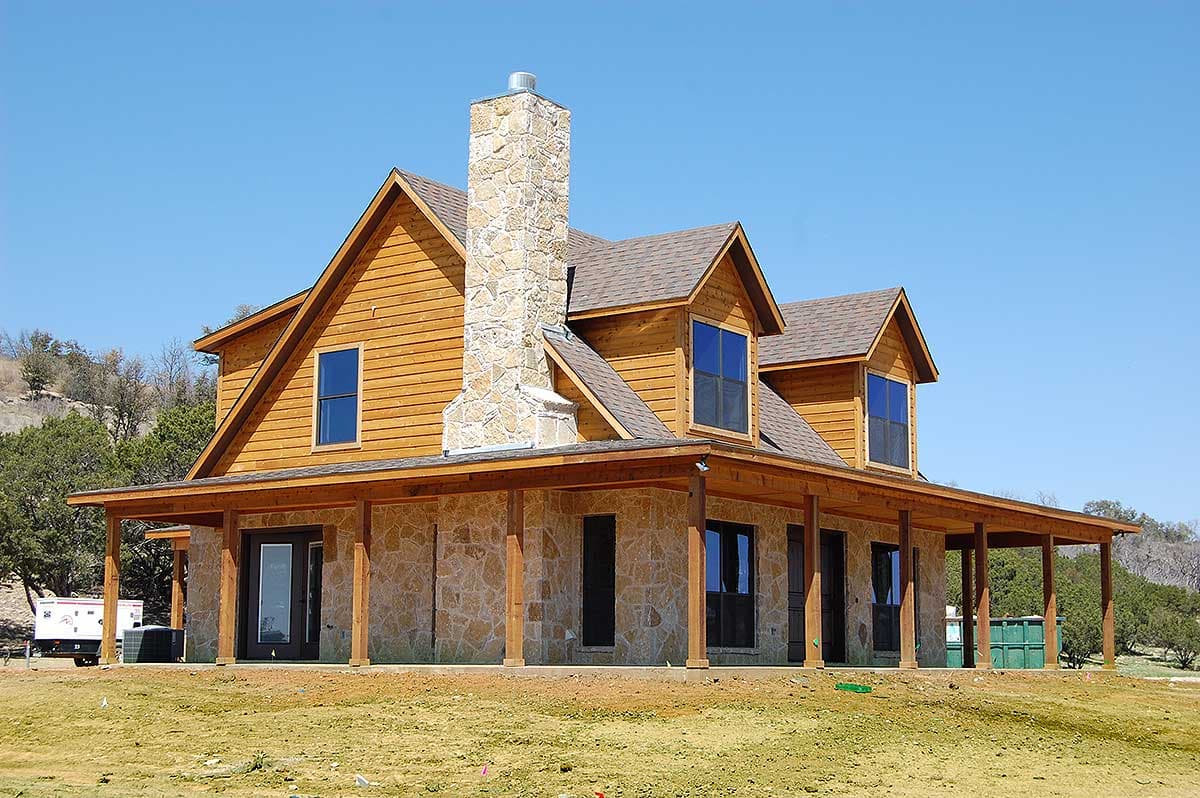

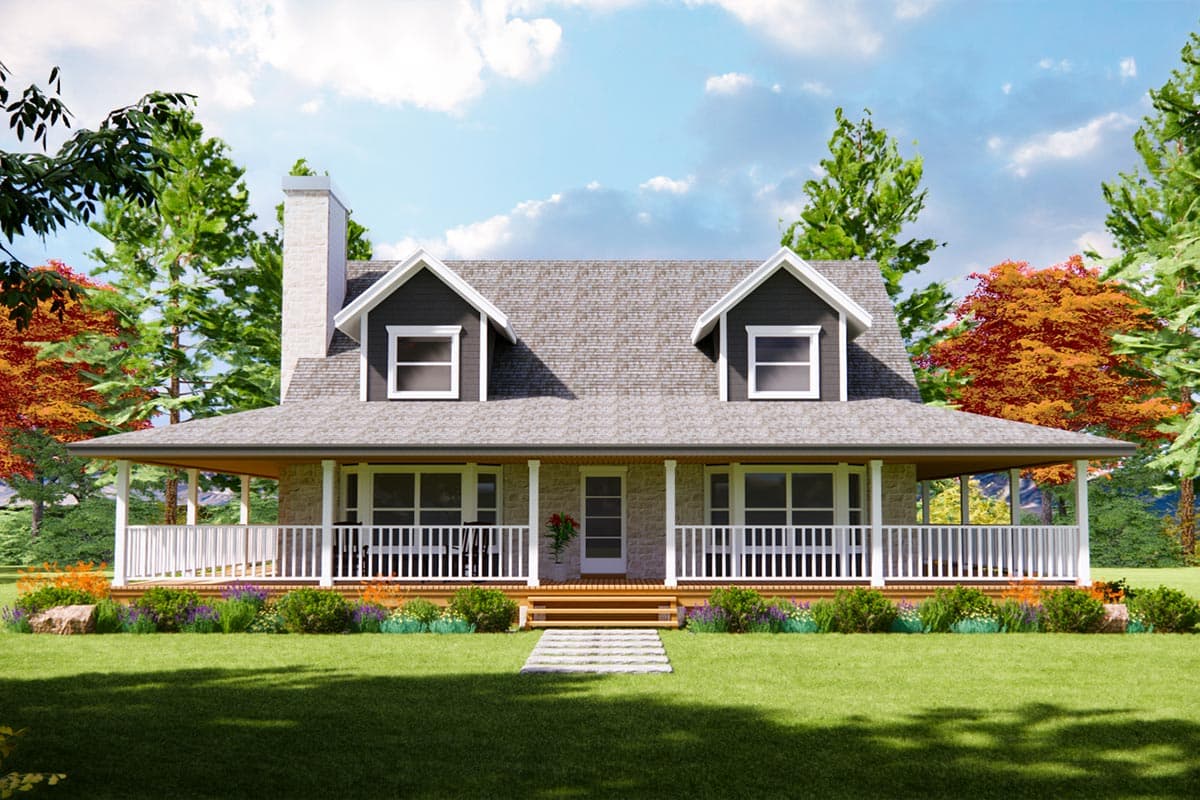

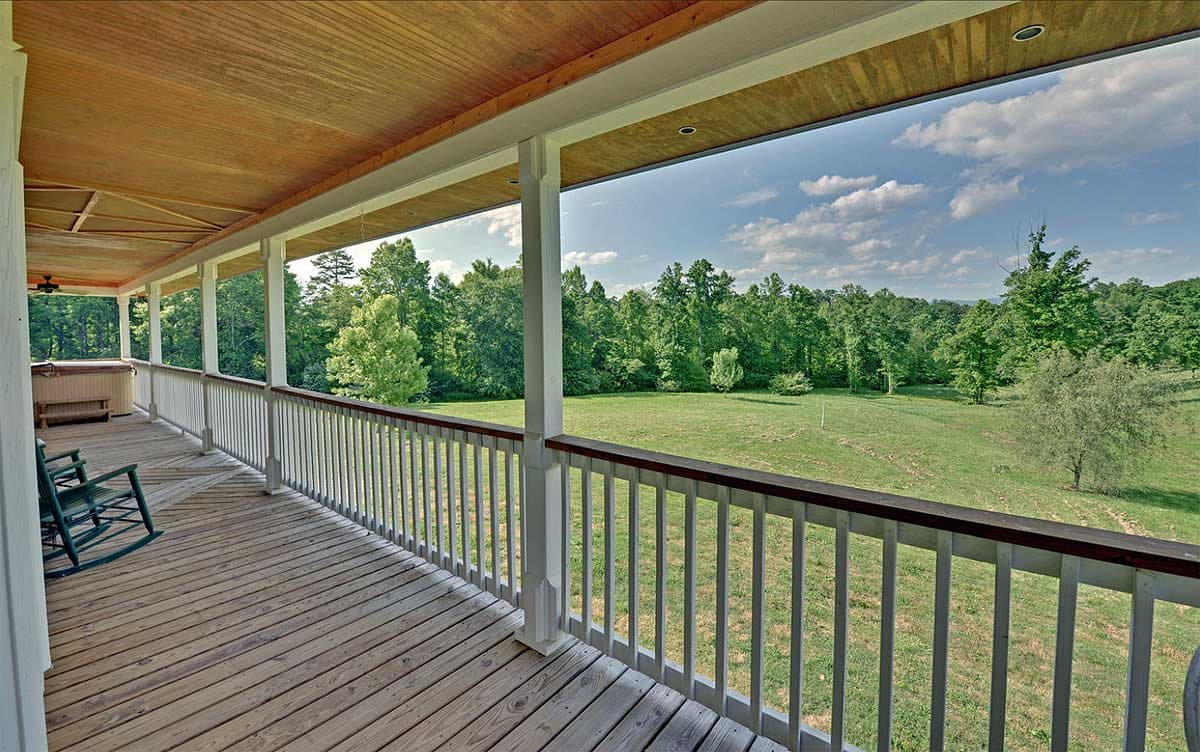

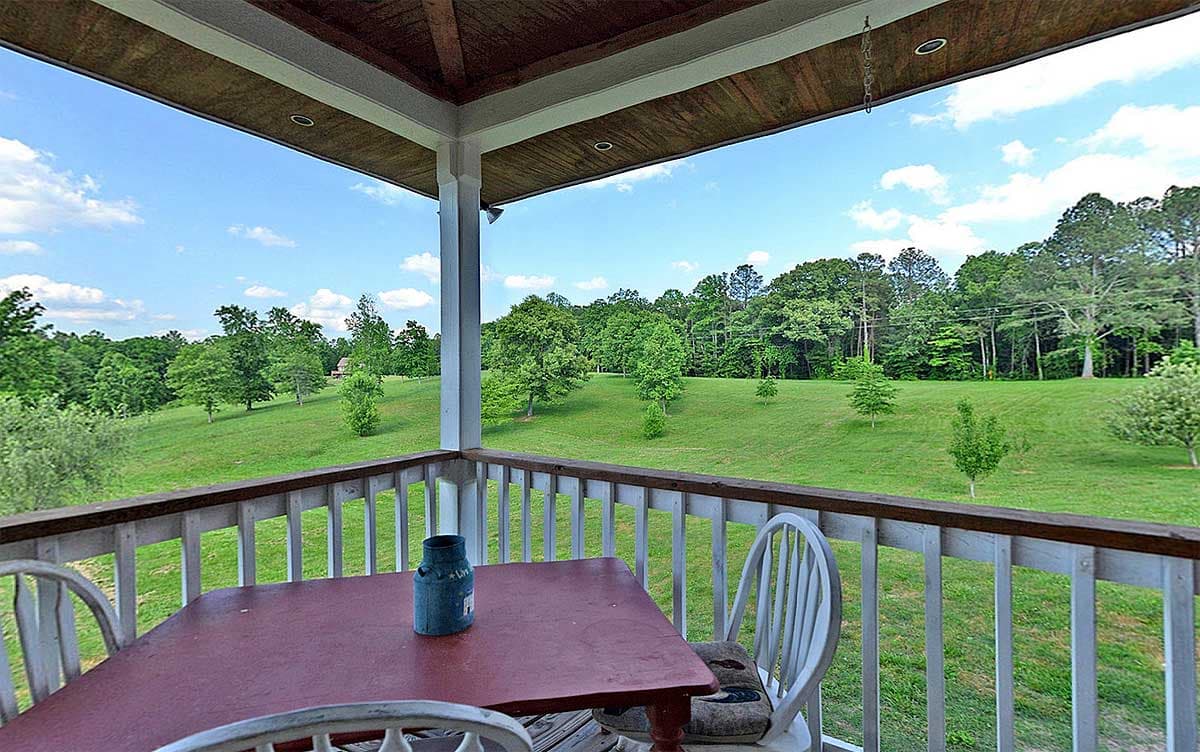

  • A covered porch - 8' deep and 6' deep by the front bay windows - wraps entirely around this hill country home plan, providing effortless outdoor extension of indoor activities. Two oversized dormers and a substantial stone chimney add character.

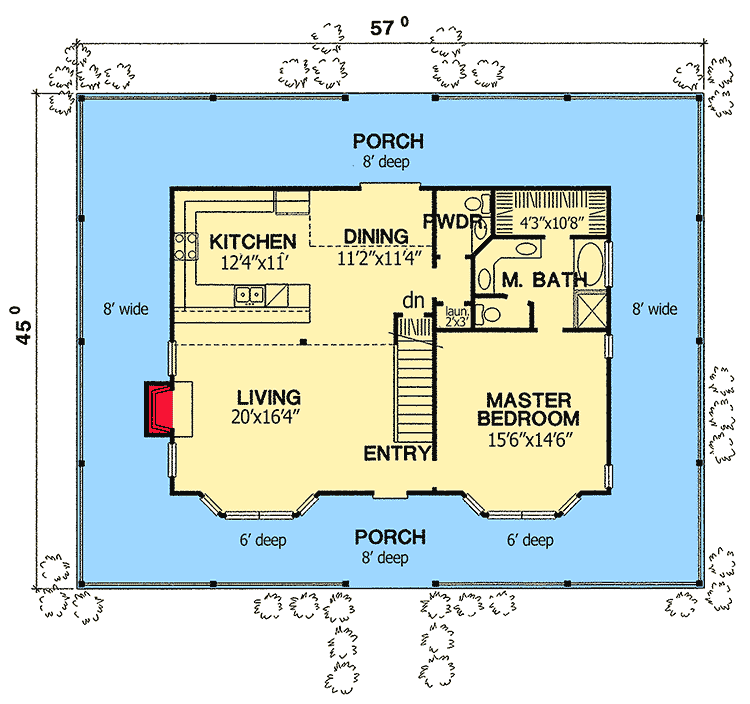

  • The entry leads into the two-story living room with its fireplace and bay window. The open plan at the living and dining rooms and the kitchen add further appeal.
  • A peninsula eating bar separates the living room from the U-shaped kitchen. The adjacent dining room includes a second entrance to the porch.

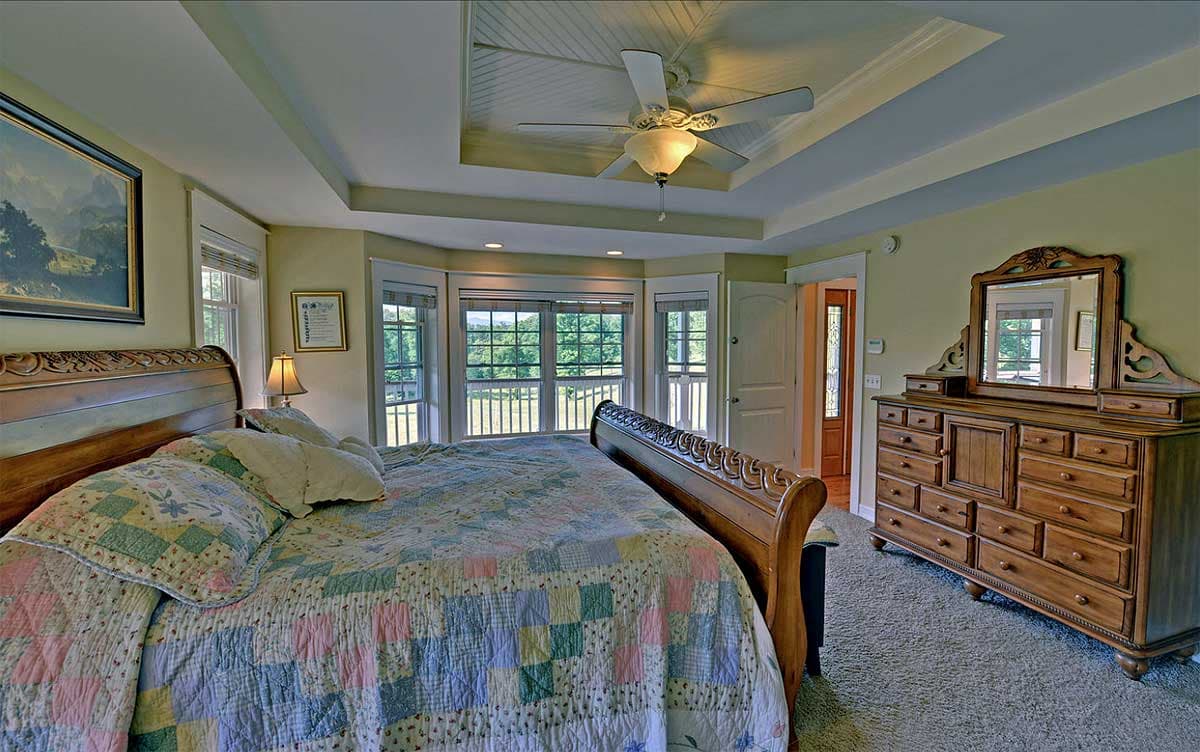

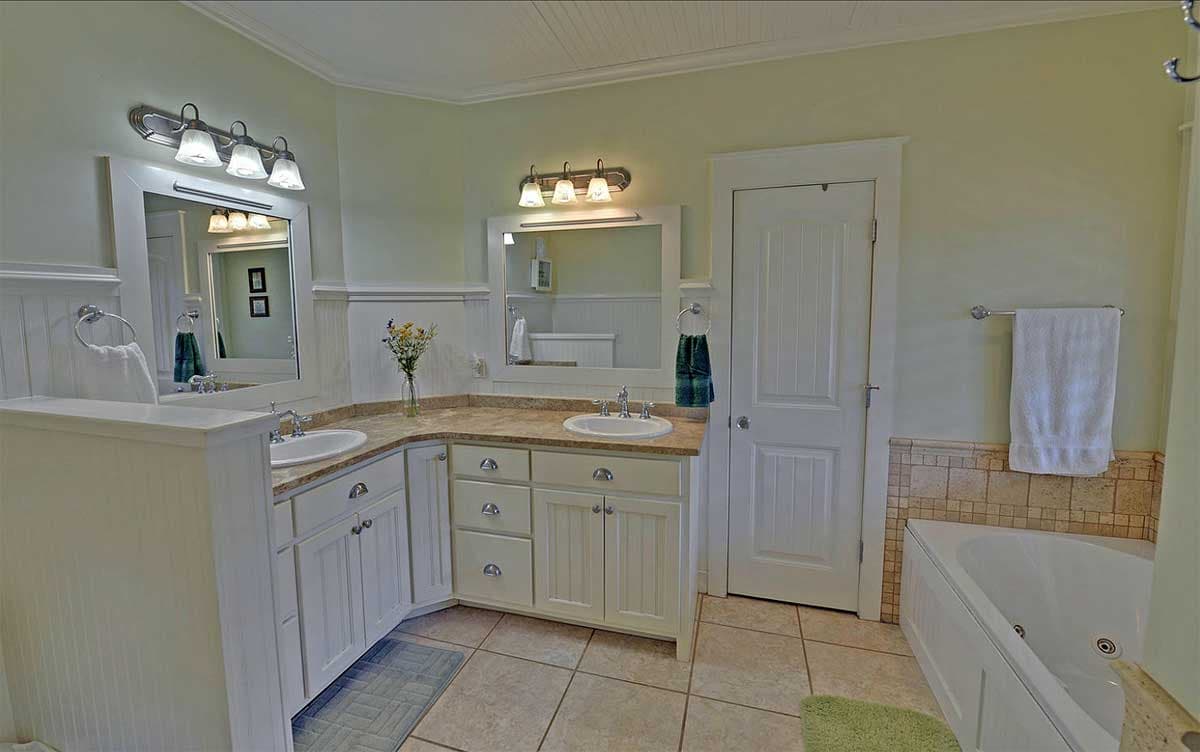

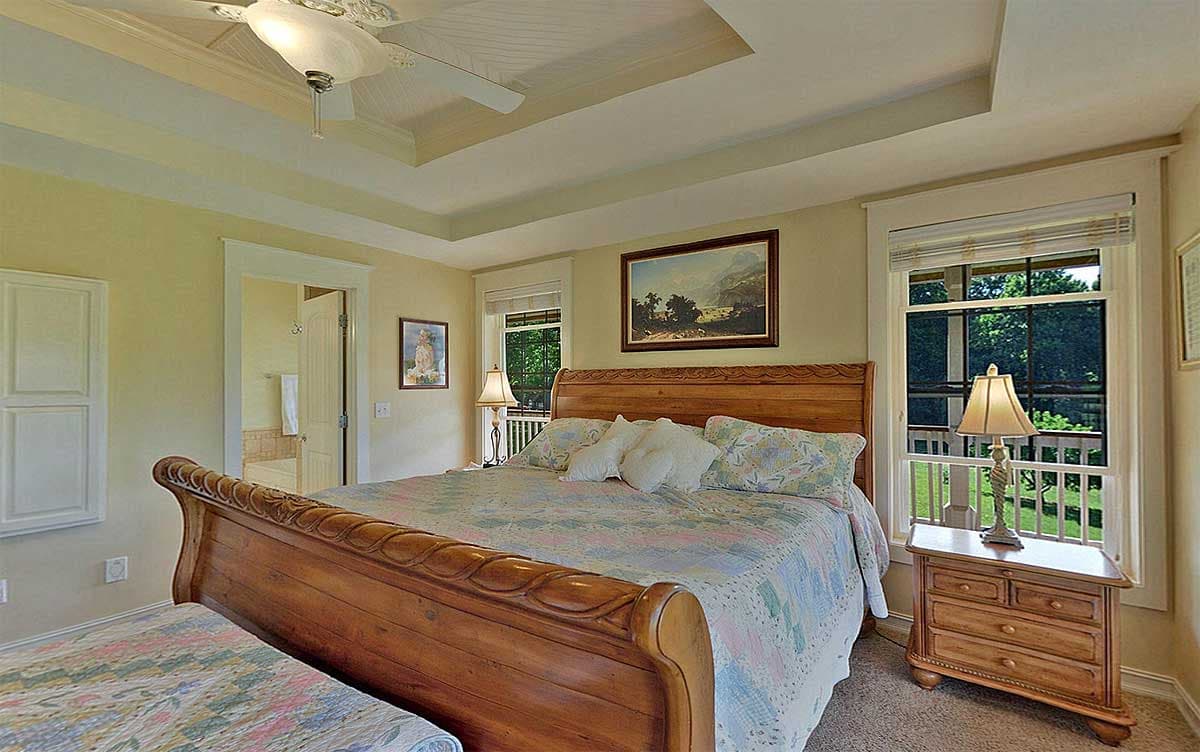

  • In the first-floor master suite, the bay window in the bedroom is the twin of the one in the living room. The compartmented master bath includes twin sinks, separate shower, tub and a walk-in closet.

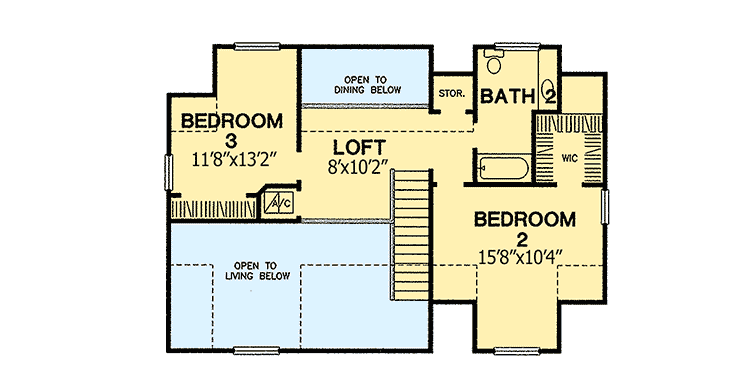

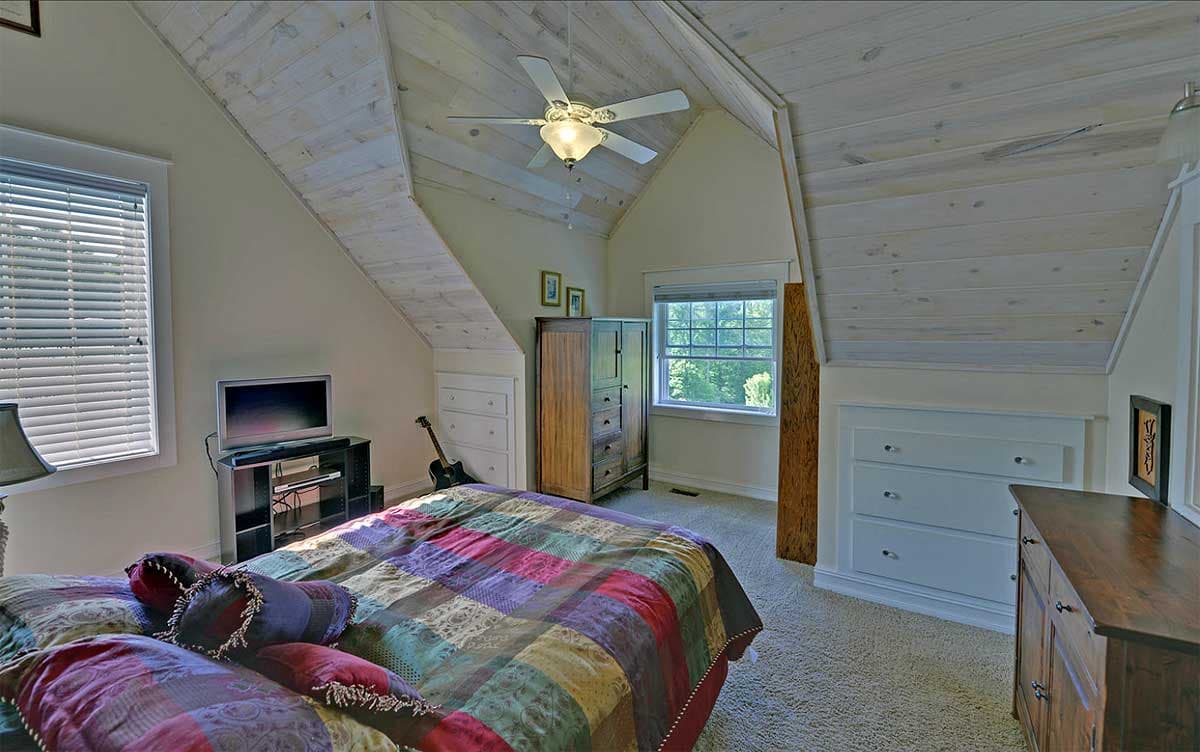

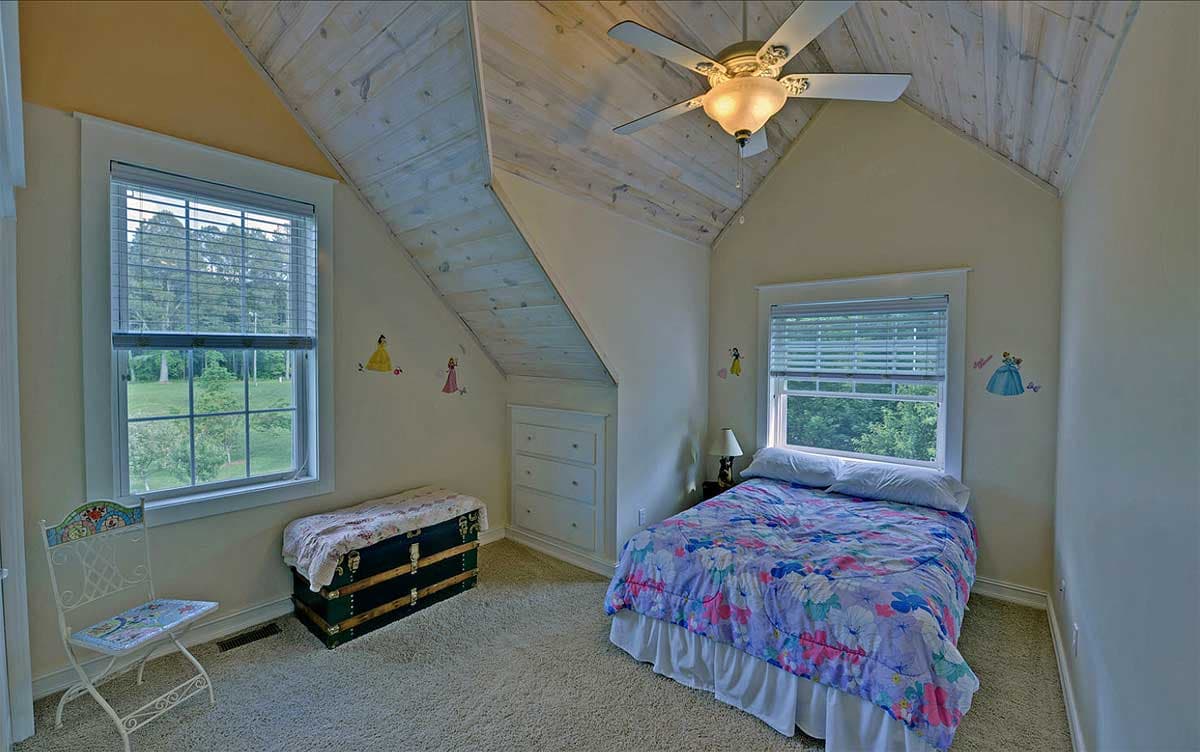

  • Upstairs, a loft overlooks the living room on one side and the dining room on the other. A second full bath and two bedrooms, one with a walk-in closet, complete this floor.
  • In the slab and crawlspace versions the laundry is stacked in the closet across from the powder room. In the basement version, you gain a closet when the laundry is in the basement.

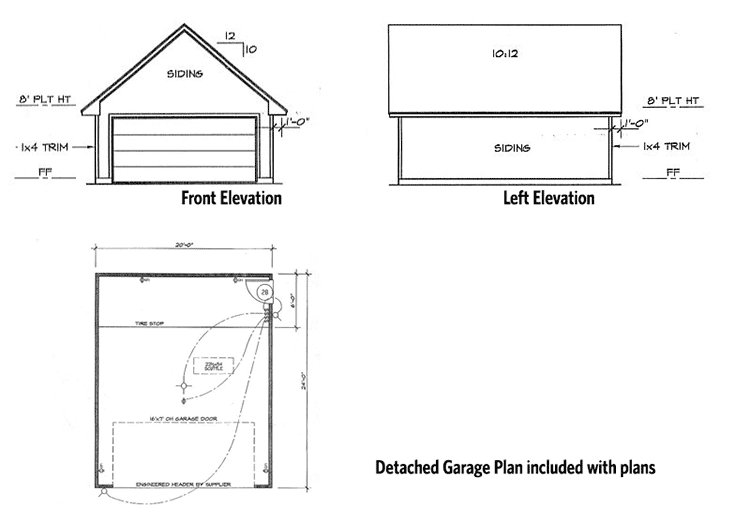

  • Added Bonus: This house plan comes with plans for a detached 2-car garage.
  • Related Plan: Get a version with three dormers with house plan 3027D.
  • IMPORTANT NOTE: Due to state regulations, the CAD version may not be sold to residents of Alabama, Louisiana, New Mexico, Tennessee and Texas.  If residing in any of the aforementioned states, the PDF version does not come with a release to make plan modifications. Please contact us for more information.
Build Gallery
See and hear from existing customers with real photos, videos, and reviews.
build gallery item - House Plan 3000D comes to life in Alabama!

House Plan 3000D comes to life in Alabama!

5

Photos

build gallery item - House Plan 3000D comes to life in Kentucky!

House Plan 3000D comes to life in Kentucky!

49

Photos

What's Included
The plan set includes:
  • Foundation plan
  • Fully dimensioned floor plan

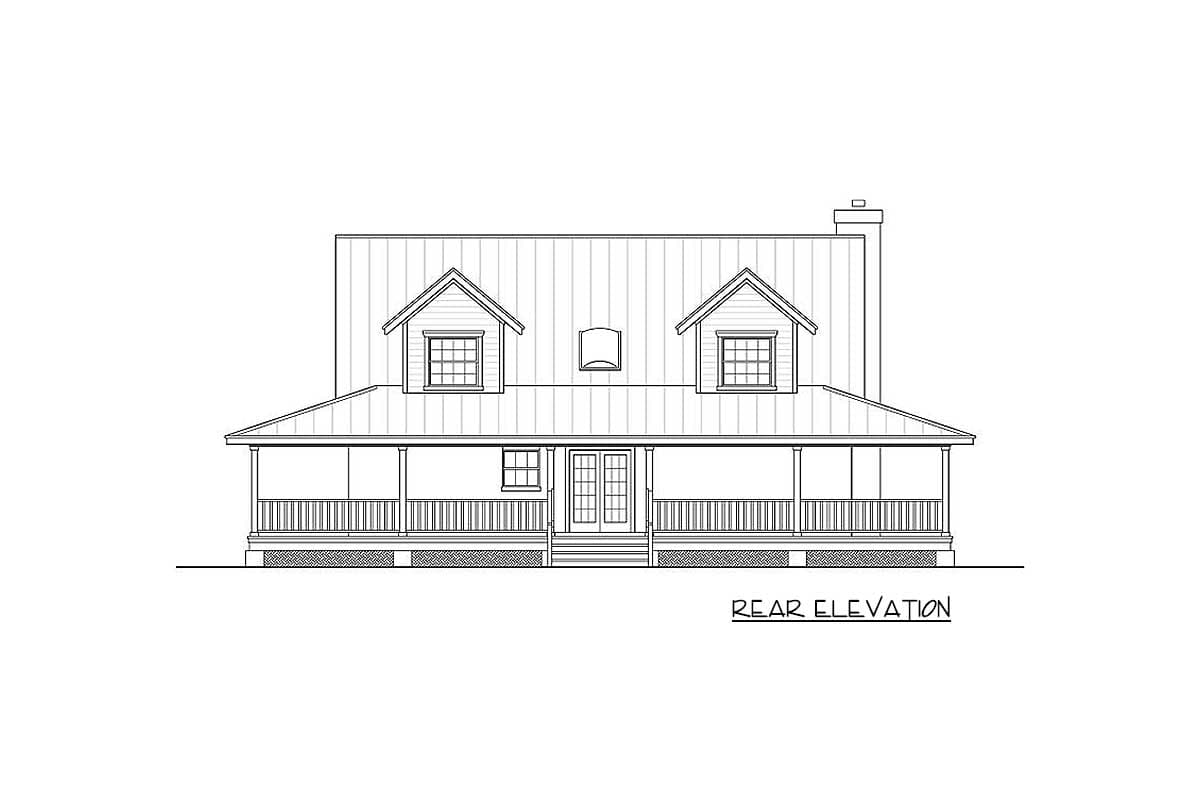

  • Four elevations (front, rear, left & right)
  • Electrical plan
  • Building cross section
  • Roof framing
  • Ceiling framing
  • Cabinet elevations


These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Framing plans
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,846 sq. ft.

1st Floor

1,156 sq. ft.

2nd Floor

690 sq. ft.

Porch, Combined

1,400 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

57' 0"

Depth

45' 0"

Max Ridge Height

25' 0"

Garage

Type

Detached

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Second Floor

8'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

4 on 12

Framing Type

Stick

Architectural Style

Cottage

Country

Farmhouse

Hill Country

Southern

Special Features

Loft

Master Suite - 1st Floor

Two Story Great Room

Wrap Around Porch
