Plan 430059LY
Hill Country House Plan with 12' Ceilings
Heated S.F.
2,283
Beds
3
Baths
3
Stories
1
Floor Plan

Plan 430059LY

Main Level
slide image 0

Plan 430059LY

1-800-854-7852

1-262-521-4596

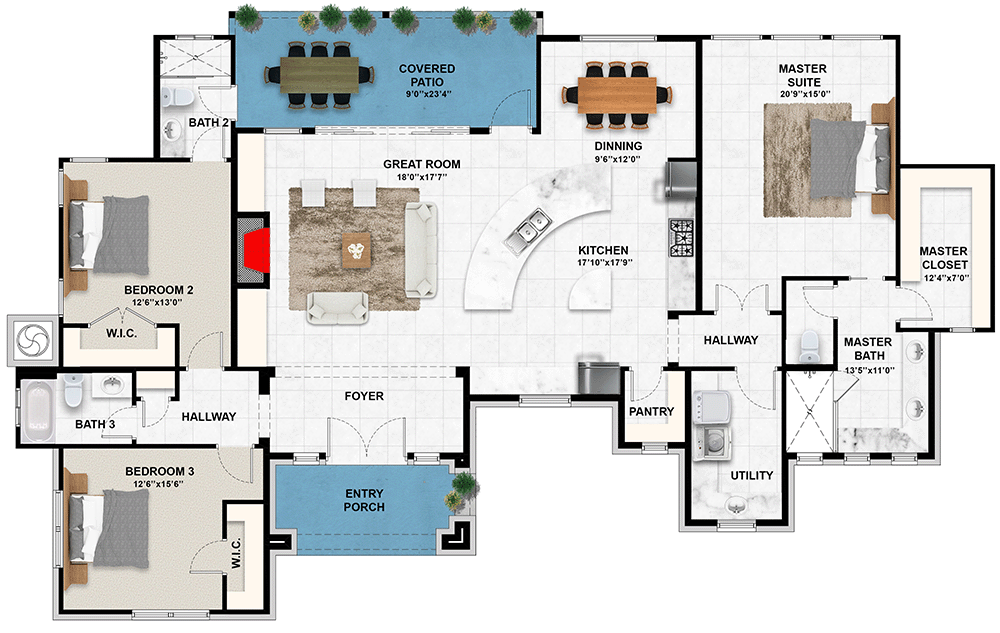

Main Level
floor plan image Main Level
Plan Details
  • Stone and stucco wrap the exterior of this hill country house plan, exclusive to Architectural Designs. A ribbed metal roof completes the design.
  • A grand front porch welcomes you inside, where a light and airy living space is presented just past the foyer. A curved island anchors the open-concept living space, and 12' ceilings overhead make the space feel even larger.
  • Oversized sliding doors part to grant access to the back patio, protected from the elements, and ideal for grilling and dining outdoors.
  • The master suite is privately situated on the right side of the home, and features a toilet room in the 4-fixture bath and a walk-in closet. Across the hall, discover the laundry room, which includes a utility sink.
  • Bedrooms 2 and 3 are on the opposite side of the home; one includes a full bath and access to the rear patio.
What's Included
  • Cover sheet
  • Plot Plan (survey must be provided)
  • Roof plan
  • Floor plan

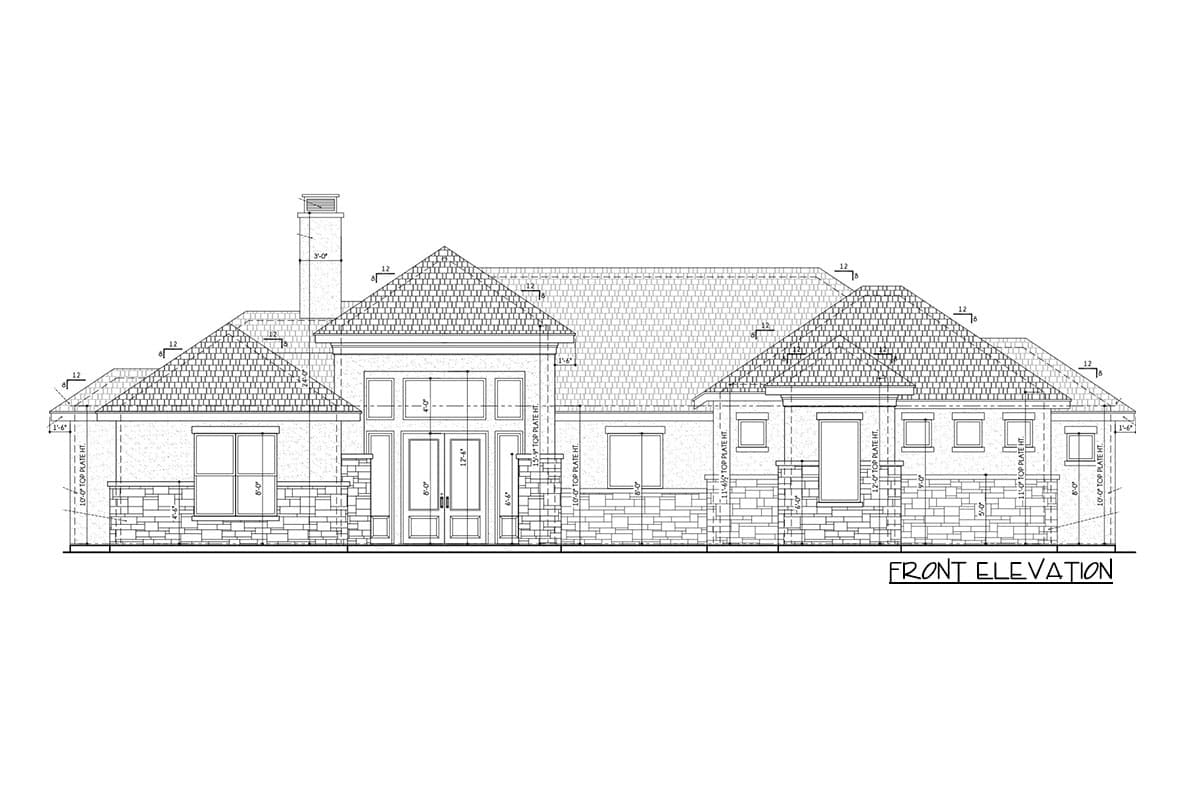

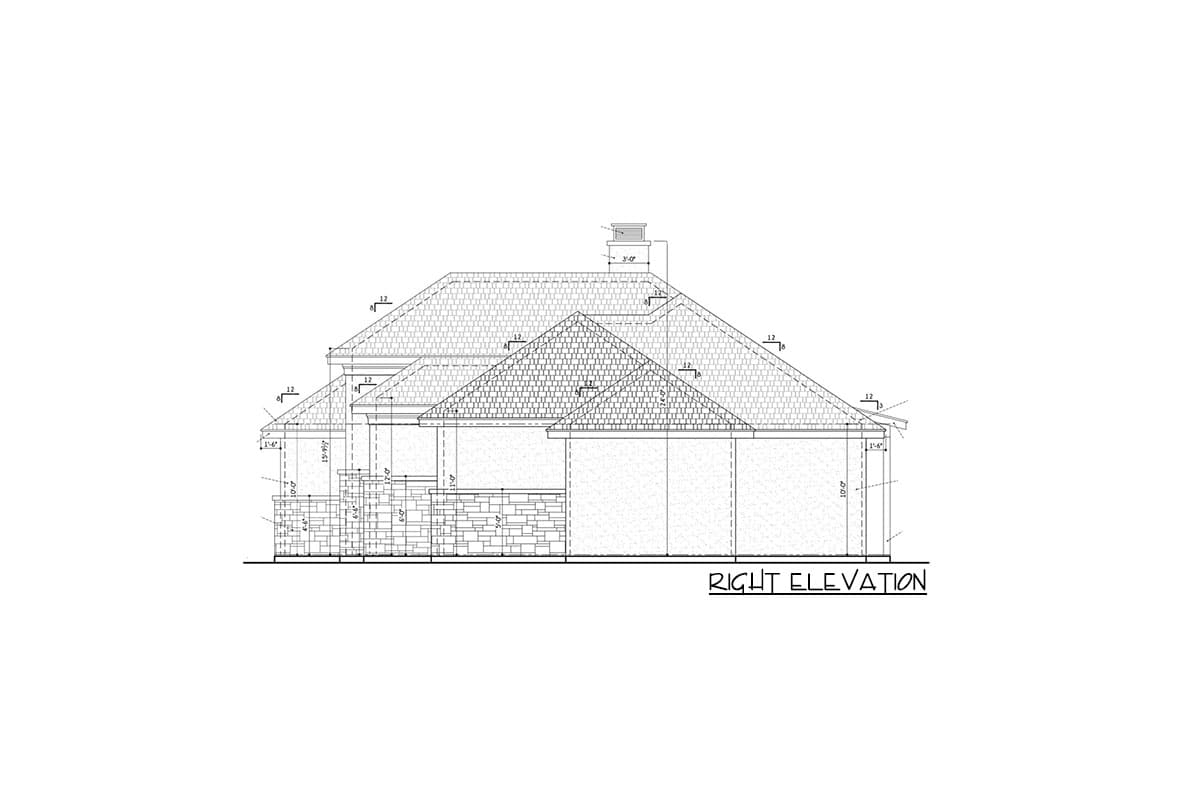

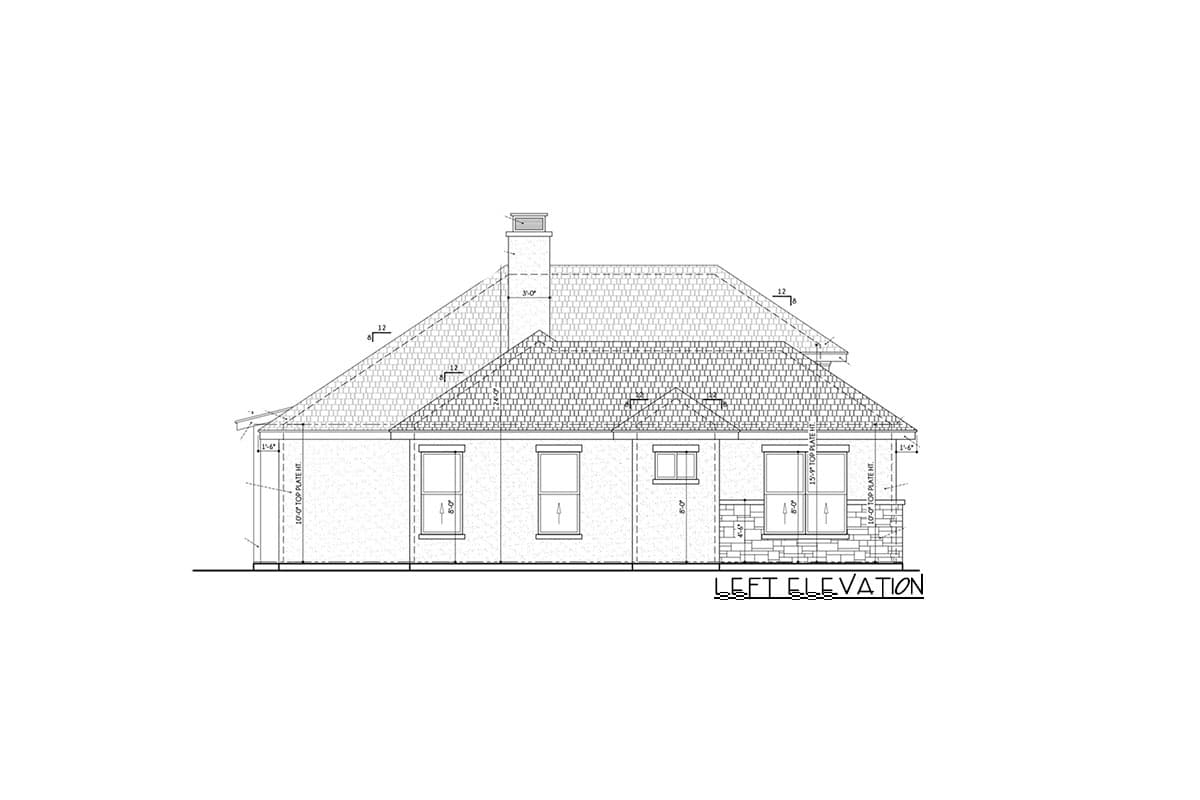

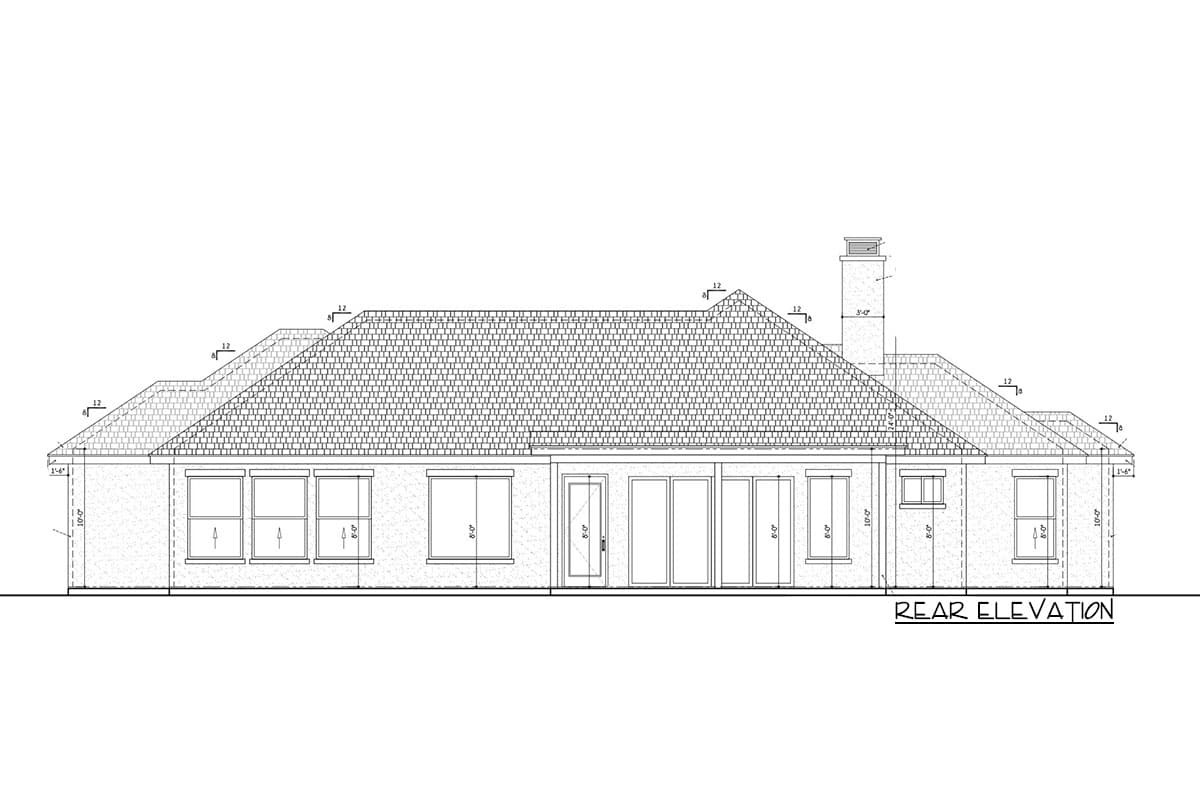

  • Exterior elevations
  • Typical wall sections
  • Ceiling treatment plans
  • Electrical floor plans
  • Interior elevations
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Foundations are engineered locally based on soil samples which is why a “typical” foundation plan is not provided.
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

2,283 sq. ft.

1st Floor

2,283 sq. ft.

Porch, Front

108 sq. ft.

Porch, Rear

212 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

75' 10"

Depth

47' 0"

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

8 on 12

Framing Type

Stick And Truss

Architectural Style

European

Hill Country

Ranch

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

2,283 sq. ft.

1st Floor

2,283 sq. ft.

Porch, Front

108 sq. ft.

Porch, Rear

212 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

75' 10"

Depth

47' 0"

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

8 on 12

Framing Type

Stick And Truss

Architectural Style

European

Hill Country

Ranch

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - 1st Floor
