Plan 68531VR
Hill Country House Plan with Second Floor Options - 2850 Sq Ft
Heated S.F.
2,850
Beds
3
Baths
2.5+
Stories
2
Cars
2
Floor Plan

Plan 68531VR

Main Level
slide image 0
2nd Floor
slide image 1
Optional 2nd Floor Plan
slide image 2

Plan 68531VR

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
2nd Floor
floor plan image 2nd Floor

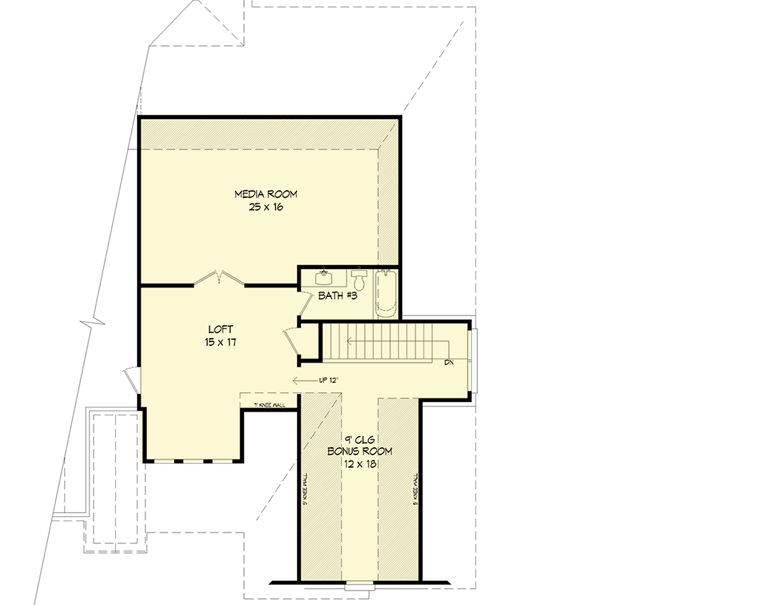

Optional 2nd Floor Plan
floor plan image Optional 2nd Floor Plan
Plan Details
  • The big, open floor plan of this Hill Country home is a delight to live in.
  • You can easily see from room to room and be with the family while cooking.
  • Want some alone time? Head to the large keeping room that can easily serve as a study, media room or lady cave.
  • Bonus space on the second floor is included in the total living area and gives you even more options.
  • All the bedrooms are on the main floor with the split bedroom configuration acting as a buffer to give privacy to homeowners.
  • The plans come with an optional second floor layout with space for a media room  and a loft plus another full bath. This changes the second floor square footage to 735 square feet.
What's Included

  • Floor Plans: House plan drawings indicating dimensions for construction
  • Roof Plan: Drawings indicating roof slopes and unique conditions

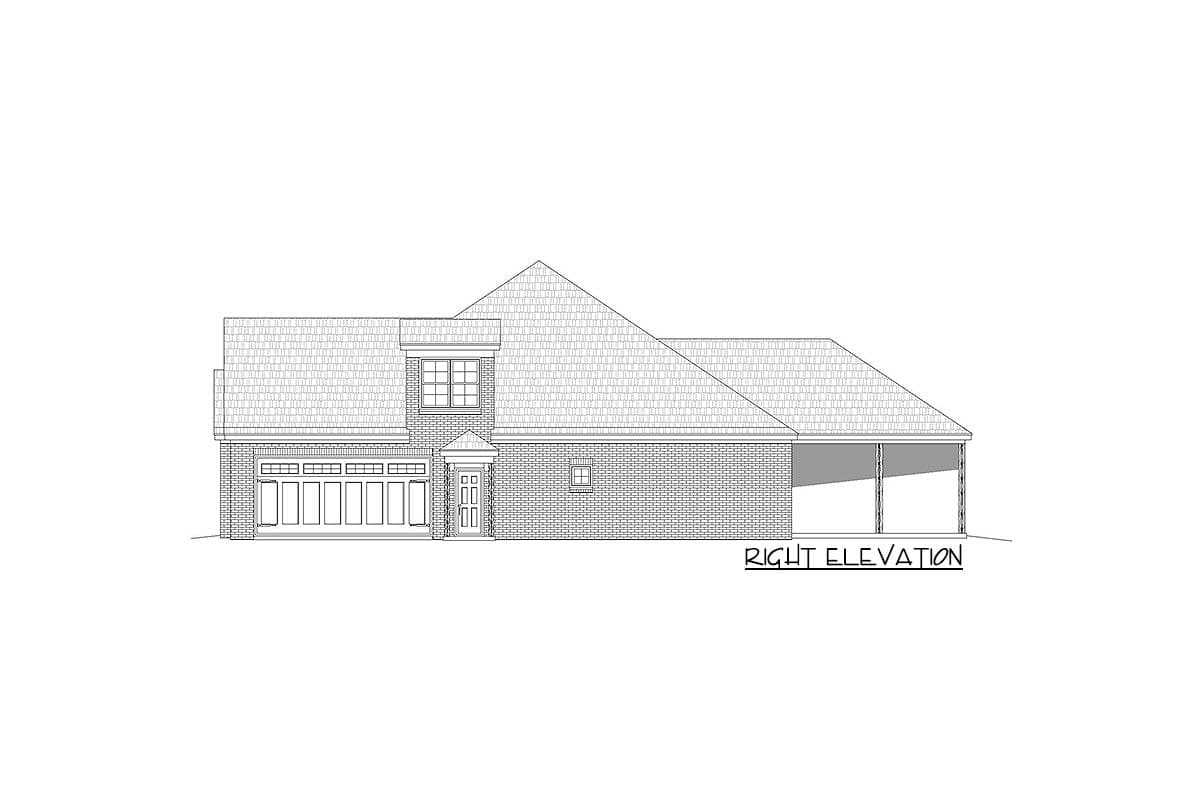

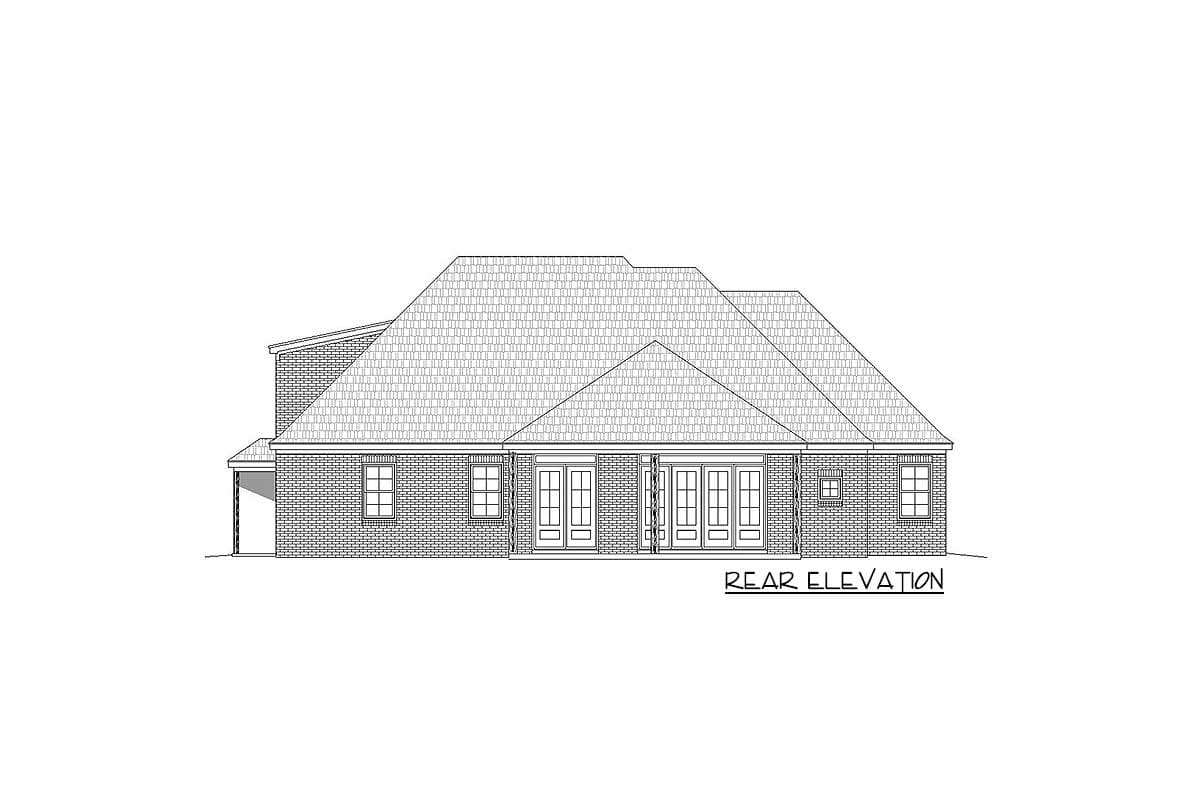

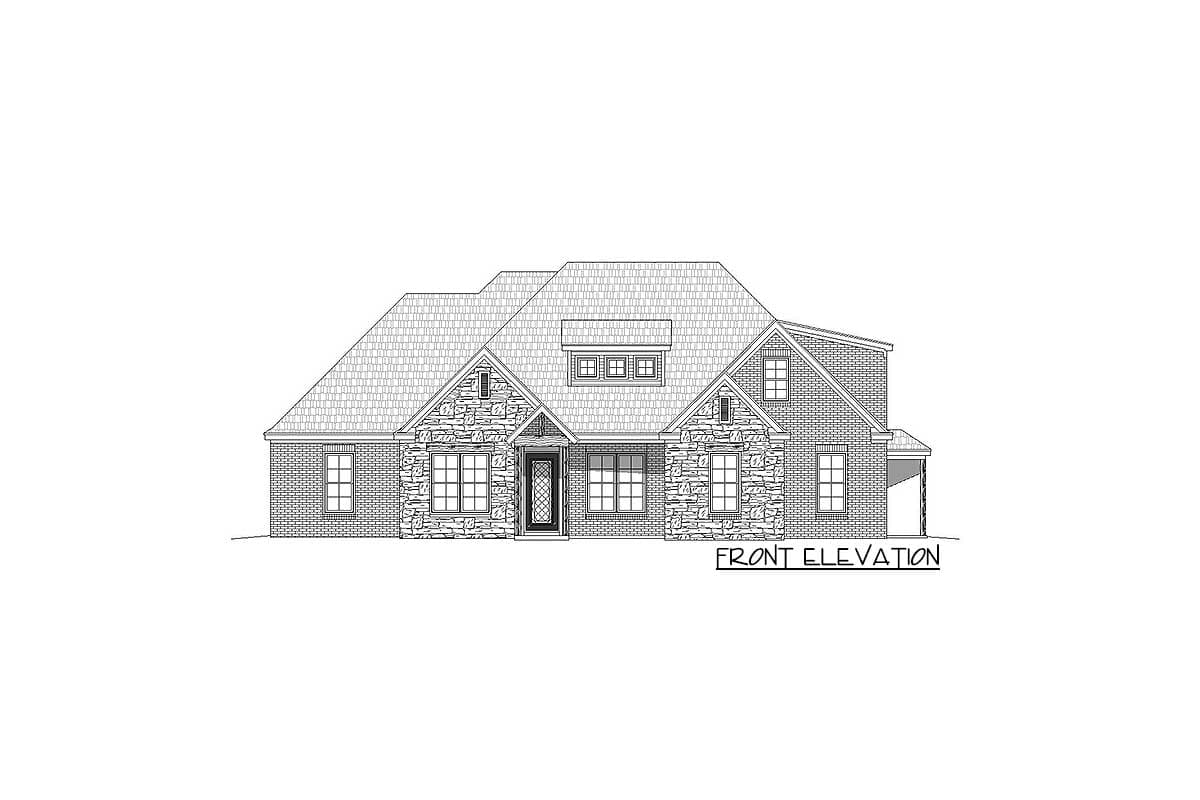

  • Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim
  • Building Sections: Drawings cut through important locations in the structure
  • Construction Details: Drawings showing specific construction of building elements at a large scale
  • Kitchen and bath elevations (excluded on garage plans)
  • Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)
  • Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure
  • Building license: A single-use license for construction at one location only

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,850 sq. ft.

1st Floor

2,500 sq. ft.

2nd Floor

350 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

66' 9"

Depth

75' 9"

Max Ridge Height

27' 9"

Garage

Type

Attached

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

8 on 12

Architectural Style

Country

Ranch

Special Features

Bedrooms - Split

Bonus Room

Jack & Jill Bath

Keeping Room

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Media Room

Mudroom

Square Footage Breakdown

Total Heated Area

2,850 sq. ft.

1st Floor

2,500 sq. ft.

2nd Floor

350 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

66' 9"

Depth

75' 9"

Max Ridge Height

27' 9"

Garage

Type

Attached

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

8 on 12

Architectural Style

Country

Ranch

Special Features

Bedrooms - Split

Bonus Room

Jack & Jill Bath

Keeping Room

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Media Room

Mudroom
