Plan 69111AM
Hillside Prairie Multi-Family Home Plan Duplex
Heated S.F.
5,722
Units
2
Width
Depth
Floor Plan

Plan 69111AM

Main Level
slide image 0
2nd Floor
slide image 1
Lower Level
slide image 2

Plan 69111AM

1-800-854-7852

1-262-521-4596

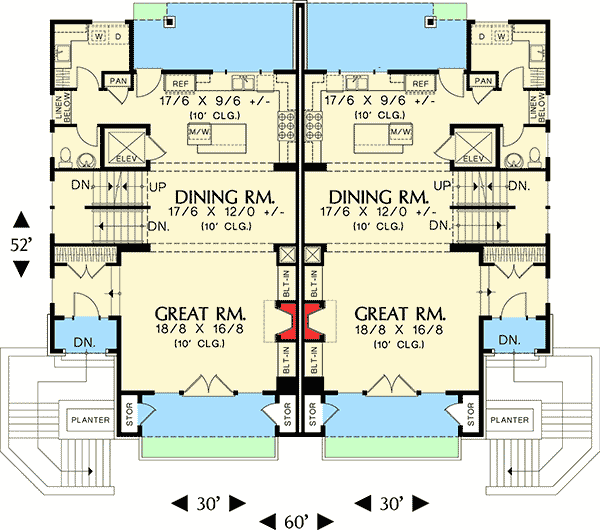

Main Level
floor plan image Main Level

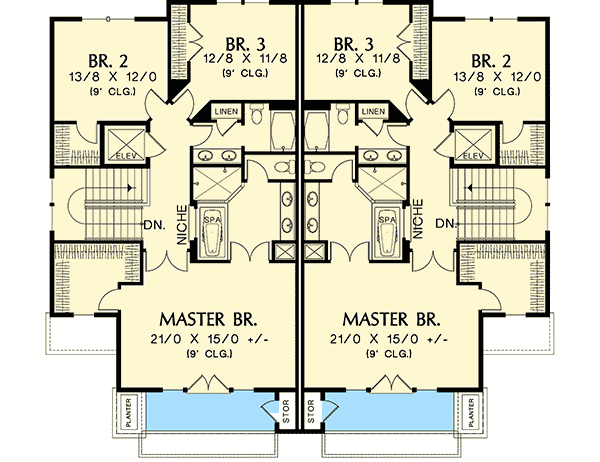

2nd Floor
floor plan image 2nd Floor
Lower Level
floor plan image Lower Level
Plan Details
  • This two-unit house plan gives each unit 1,158 sq. ft. on the main floor and 1,212 sq. ft. on the upper floor.
  • An ideal multifamily dwelling to tuck into a hillside, each unit of this home is contained to just 30-feet in width. Whether the view is to the front or to the rear, projecting decks on the home's upper levels will provide residents with a place to relax while soaking it in. Stone and brick accents on the fa'ade offer a natural counterpoint to the glass and metal deck railings and windows. Stone retaining walls with planters can be built to lead up to the main doors.
  • Inside, a U-shape staircase and an elevator connect the floor plan's three levels, making it accessible for anyone. The kitchen, dining room, and great room are conveniently open, allowing ceiling beams, flooring changes, cabinetry, and built-ins to define the rooms. The great room features a fireplace flanked by media built-ins.
  • The home's three bedrooms are on the top level. A walk-in closet, large shower, and spa tub outfit the master suite. Two more bedrooms share a full bath.

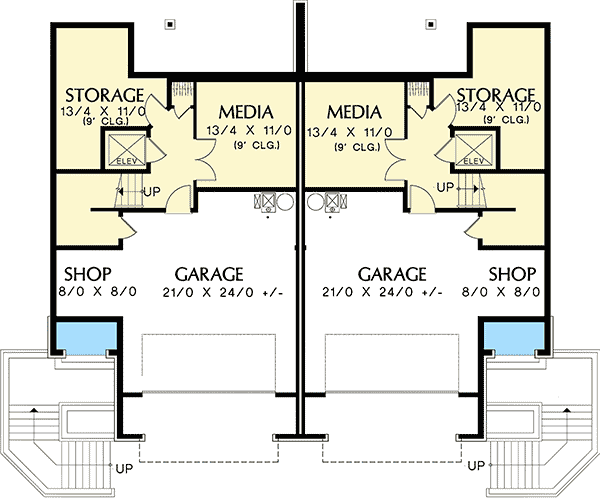

  • The ground level houses the garage, which includes space for a work bench. A media room and an unfinished storage area round out the floor plan.
Unit A
2,861Sq. Ft.
491 Sq. Ft.
Lower Level
1158 Sq. Ft.
1st Floor
1212 Sq. Ft.
2nd Floor
3Beds
2Full Baths
1Half Bath
2Vehicle
Drive Under
901 Sq. Ft.
30'width
52'depth
32' 4"height
Unit B
2,861Sq. Ft.
491 Sq. Ft.
Lower Level
1158 Sq. Ft.
1st Floor
1212 Sq. Ft.
2nd Floor
3Beds
2Full Baths
1Half Bath
2Vehicle
Drive Under
901 Sq. Ft.
30'width
52'depth
32' 4"height
What's Included

  • Exterior Elevations: In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.
  • Foundation Plan: The foundation page dimensions, concrete walls, footings, pads, posts, beams, bearing walls, and any stepped foundation information along with any retaining wall info (schematic only). A typical wall section for the home is also usually included on this page (if not, it is elsewhere in your plan set, as space allows). If your plan features a poured concrete slab rather than a basement or crawlspace, the foundation page shows footings and details for the slab, and includes plumbing locations.
  • Floor Plan(s): Exterior and interior wall framing, and windows/doors are dimensioned. Room sizes are indicated and any beams, posts and structural bearing points are called out. The floor plans include an electrical legend, and electrical fittings, lights and outlets are shown. Floor Plans will also indicate cross–section details (provided on the sections page) and show any special framing details applicable to the design. Cabinet elevations are included for kitchen and bathrooms; some designs feature cabinet elevations for design–related built–ins too.
  • Building Sections: Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Our section pages also show how the stairs are calculated (if there are some!) and depict roof and foundation members. We try and draw sections to show the most useful information — choosing locations where there are elements you or your contractor might need clarification on.
  • IMPORTANT NOTE:  Sections and elevations depict the standard foundation only.
  • Roof Plan: Roof framing or truss directions are shown, slope directions are indicated and structural members are sized and called out if applicable. The gravity loads used to calculate the rafters, beams and posts are indicated , and we also show gutters, downspouts, and any roof venting required for your home.
  • Notes and Details Page(s): Your home comes detailed to meet the requirements of the latest adopted version of the ‘International Residential Code’, and our notes and details pages outline all the elements applicable to the design of your home. Compliance with further standards may need to be incorporated into your plan set, depending on the requirements of your building department — these are usually done locally.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

5,722 sq. ft.

Lower Level

982 sq. ft.

1st Floor

2,316 sq. ft.

2nd Floor

2,424 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

60' 0"

Depth

52' 0"

Max Ridge Height

32' 4"

Garage

Type

Drive Under

Area

1112 sq. ft.

Count

4 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Framing Type

Truss

Architectural Style

Contemporary

Northwest

Prairie

Special Features

Bedrooms - Split

Elevator

Home Theater

Laundry - Main Level

Master Suite - 2nd Floor

Media Room

Mudroom

Square Footage Breakdown

Total Heated Area

5,722 sq. ft.

Lower Level

982 sq. ft.

1st Floor

2,316 sq. ft.

2nd Floor

2,424 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

60' 0"

Depth

52' 0"

Max Ridge Height

32' 4"

Garage

Type

Drive Under

Area

1112 sq. ft.

Count

4 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Framing Type

Truss

Architectural Style

Contemporary

Northwest

Prairie

Special Features

Bedrooms - Split

Elevator

Home Theater

Laundry - Main Level

Master Suite - 2nd Floor

Media Room

Mudroom
