Plan 33053ZRX
House Plan with Formal Dining Room and Rear Porch Under 50-Feet Wide - 1885 Sq Ft
Heated S.F.
1,885
Beds
3
Baths
2.5
Stories
1
Cars
2
Floor Plan

Plan 33053ZRX

Main Level
slide image 0

Plan 33053ZRX

1-800-854-7852

1-262-521-4596

Main Level

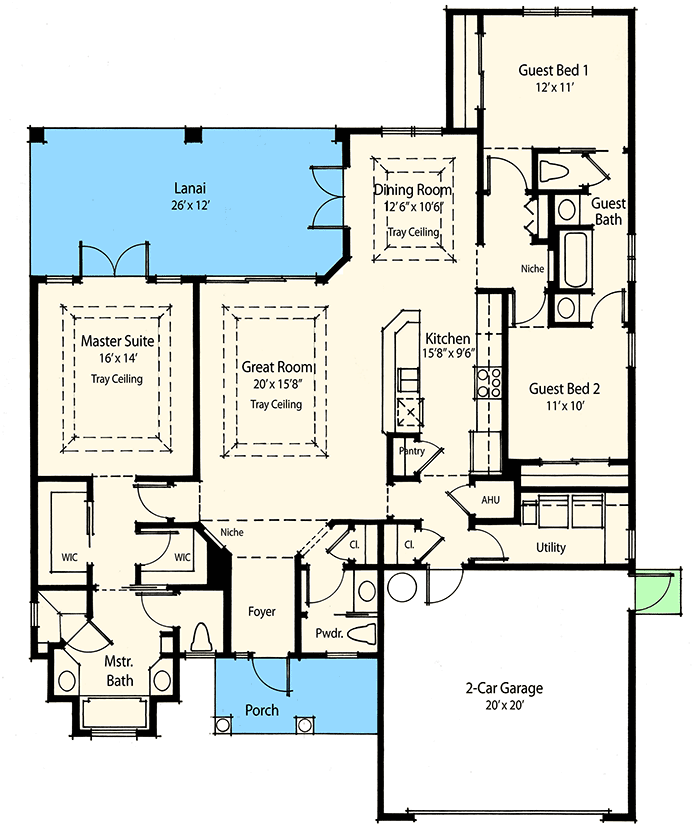

floor plan image Main Level
Plan Details
  • This house plan with 3 bedrooms under 50-feet wide (49'6") gives you 1,885 square feet of heated living space and a 2-car 432 square foot garage.

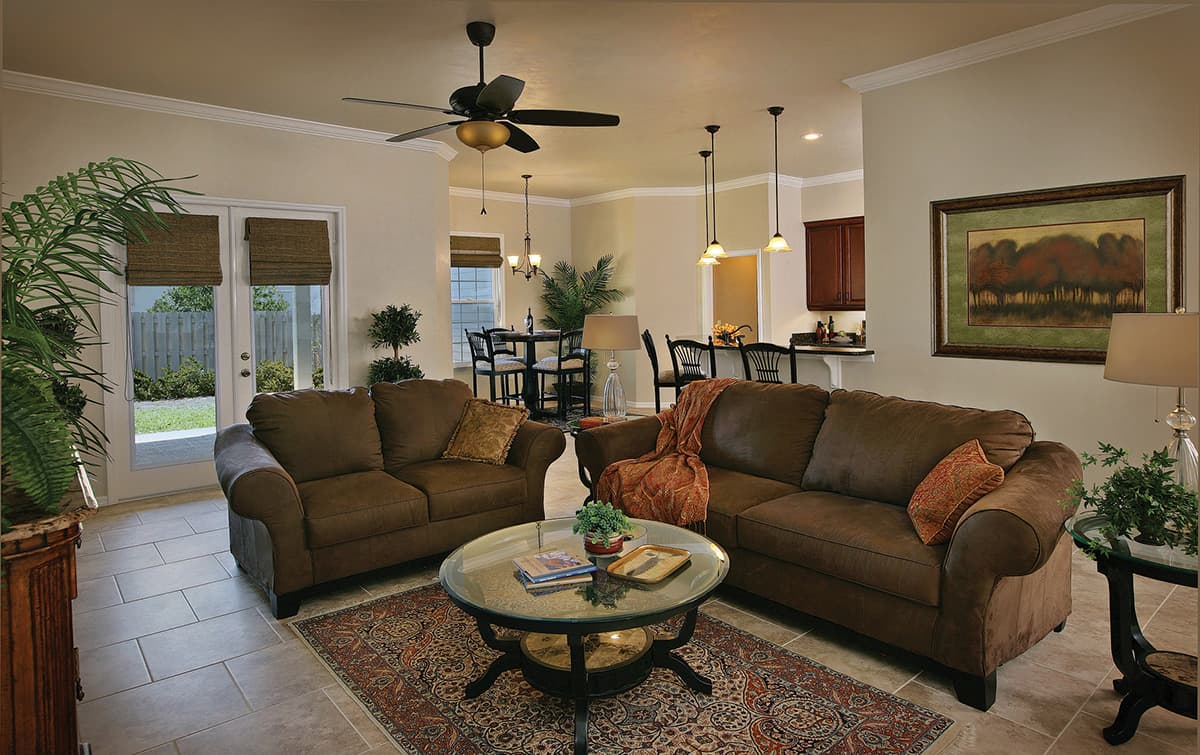

  • The enlarged foyer provides for a grand entrance into the spacious great room with its triple sliders to the spacious 312 square foot private covered lanai. Extra wall space is provided for that large flat screen television viewable from both the kitchen and dining room.
  • A designer's dream bathroom off the master suite delivers two walk-in closets and a French door to the oversized lanai.
  • Guests will appreciate the private lighted niche before entering into the spacious bedrooms with private Jack and Jill bathrooms.

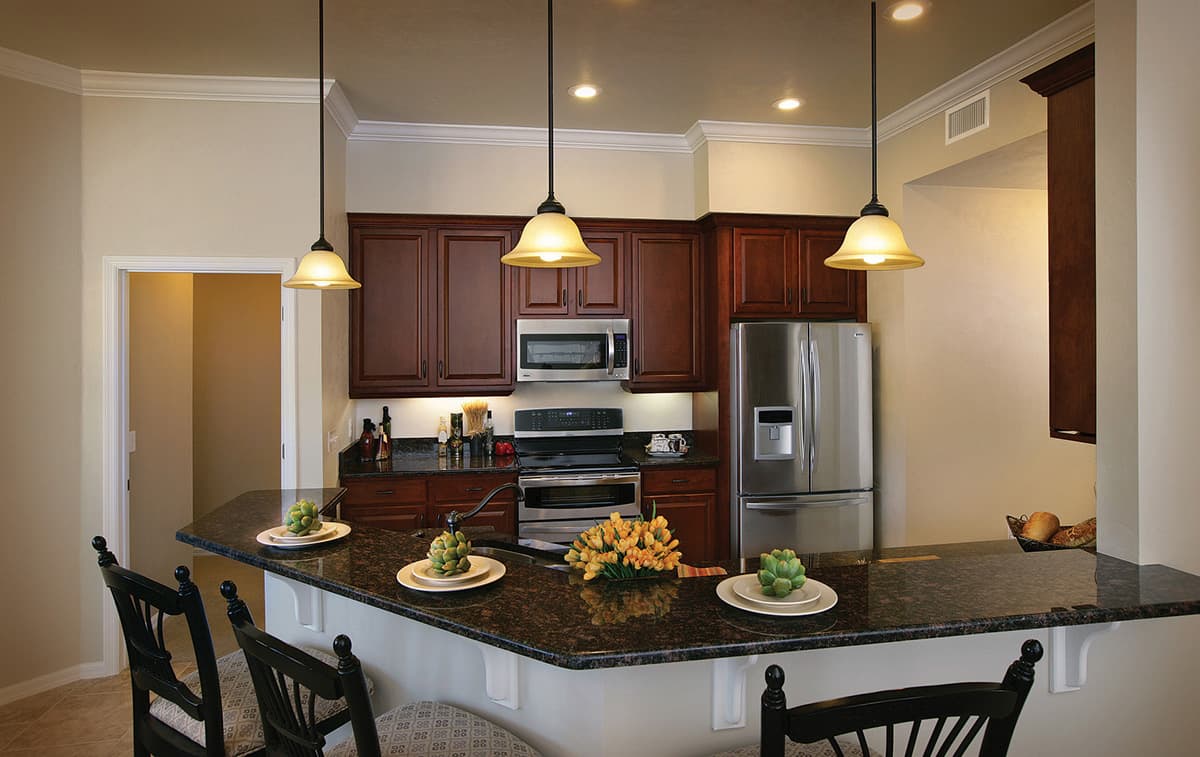

  • The kitchen offers lots of counter space for the cook along with a breakfast bar. Easy access to the garage makes unloading groceries a breeze.
  • Related Plans: Get alternate exteriors with house plan 33051ZR and 33052ZR.
What's Included

  • COVER SHEET – / INDEX / SITE PLAN - The Cover sheet contains an index of the sheets that will follow in the ESHP design development set of plans. It will also include a gray scale elevation or rendering depicting the look of the front of the home, and overall roof plan.
  • WALL SECTIONS -The Wall Section sheet depicts one or more sections of the home’s exterior walls from the foundation to the roof, calling out all materials and construction specifics.
  • FOUNDATION PLAN - The Foundation Plan sheet shows the home’s foundation layout depicting plumbing, footing, support walls, columns, etc., calling out the necessary notes, dimensions and details.
  • SECOND FLOOR FRAMING (where appropriate) - The Second Floor Framing sheet shows important locations of beams and load-bearing conditions, as well as the floor truss spacing and direction. The Second Floor Framing Plan is meant as general information for the truss manufacturer.
  • FLOOR PLANS - The Floor Plan sheet(s), show a detailed layout of the floor plans with dimensions, notes, call outs and keys relating to sheets with sections and details needed by your builder for construction. These plans will include window and door sizes and locations, and will also show the location of bathroom fixtures.
  • ROOF PLAN & SOFFIT (CHASE LAYOUT) PLAN - The Roof Plan sheet is a general layout of the home’s roof. It is meant as general information for the truss manufacturer and framing contractor. This sheet also contains the location and size of the dropped soffits housing the forced-air chases. (Ducts in Conditioned Space – DICS) Energy Smart Home Plans is the only design company that offers this information for those seeking truly High-Performance Homes.
  • REFLECTED CEILING PLAN - The reflected ceiling plan shows all ceiling heights, treatments, and details including necessary notes.
  • EXTERIOR ELEVATIONS - The Exterior Elevation sheet(s) depict elevations for all sides of the home, showing dimensions and material notes and exterior detailing where needed.
  • CROSS SECTION & INTERIOR ELEVATIONS - The Cross Section sheet depicts a section through the home revealing floor, ceiling and roof heights at a strategic location. The Interior Elevation sheet shows conceptual interior wall elevations for the Kitchen, Bathrooms, Utility Room as well as built-ins, fireplaces and other unique interior features as per design. (Interior elevations may not be available for all stock plans.)
  • ELECTRICAL PLAN - The Electrical Plan sheet shows suggested wiring and location of fixtures (lighting, ceiling fans, etc.), switches and outlets. This plan does not contain diagrams detailing how all wiring should be run, or how circuits should be engineered. Your electrician should work out these details.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,885 sq. ft.

1st Floor

1,885 sq. ft.

Porch, Front

81 sq. ft.

Lanai

312 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor) or 2x6

Dimensions

Width

49' 6"

Depth

60' 0"

Max Ridge Height

23' 10"

Garage

Type

Attached

Area

432 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

7 on 12

Framing Type

Truss

Architectural Style

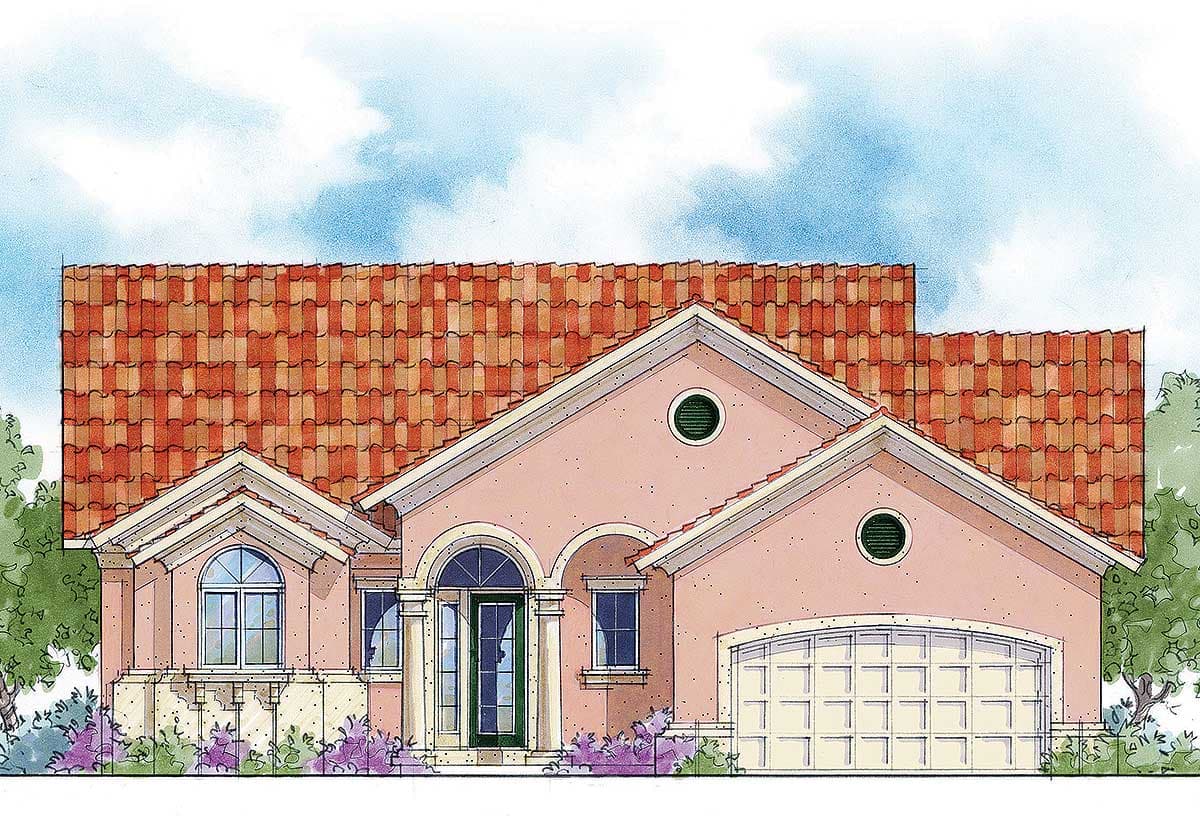

Mediterranean

Southwest

Spanish

Special Features

Bedrooms - Split

Formal Dining

Jack & Jill Bath

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Plan Collections
