Plan 24327TW
House Plan with Great Flow
Heated S.F.
2,502
Beds
3
Baths
2.5
Stories
2
Cars
2
Floor Plan

Plan 24327TW

Main Level
slide image 0
2nd Floor
slide image 1

Plan 24327TW

1-800-854-7852

1-262-521-4596

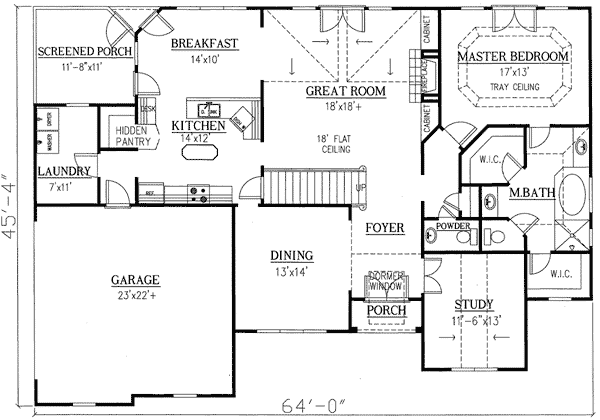

Main Level
floor plan image Main Level

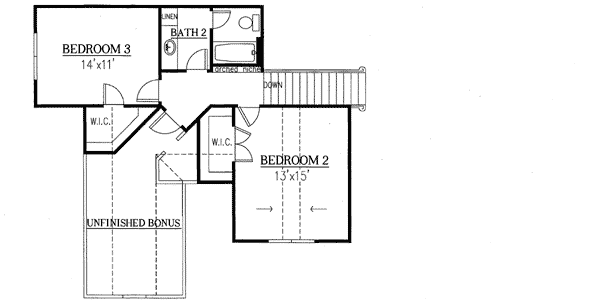

2nd Floor
floor plan image 2nd Floor
Plan Details
  • This house plan has great flow evident as soon as you enter the foyer which gets light from the dormer above. It is flanked by the dining room and vaulted study.

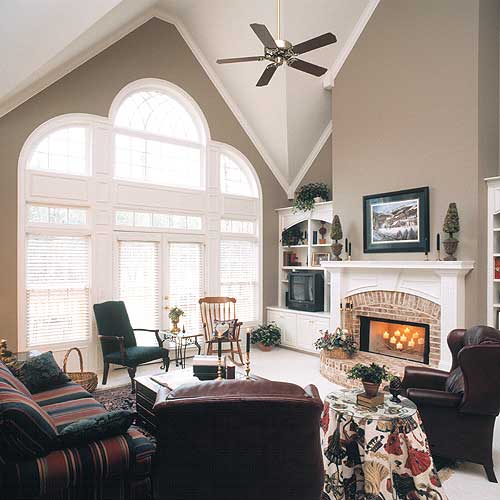

  • The great room features an 18' vaulted ceiling. The fireplace is flanked by built-in cabinets. French doors lead outside - a perfect spot for a patio or deck.
  • The kitchen is open to the breakfast room and is conveniently located by the garage entrance making groceries a snap to unload. A hidden pantry is a plus.
  • Take a break in your screened porch off the breakfast room.
  • The master bedroom features a tray ceiling and has his-and-her closets. French doors lead to the back.
  • Upstairs, two bedrooms (one vaulted) share a bath. Plus you get 221 sq. ft. of bonus space.
  • Related Plans: Need something larger? See house plan 24346TW. Also see these 4 bedroom versions - 24335TW and 24336TW.
  • NOTE: The crawlspace version comes with the same elevations as the basement version.
What's Included

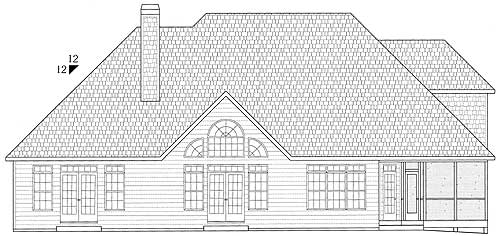

  • Four elevations (front, rear, right & left) with finish details
  • Fully dimensioned floor plans which include window and door sizes
  • Foundation plan with footing details
  • Roof plan with cornice details
  • General framing details
  • Floor joists layout
  • Electrical layout
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,502 sq. ft.

1st Floor

1,906 sq. ft.

2nd Floor

596 sq. ft.

Bonus

221 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Walkout

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

64' 0"

Depth

45' 4"

Max Ridge Height

28' 6"

Garage

Type

Attached

Area

506 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

12 on 12

Framing Type

Truss

Architectural Style

European

Traditional

Special Features

Bonus Room

Butler Walk-in Pantry

Library/Study

Master Suite - 1st Floor

Plan Collections
