Plan 290171IY

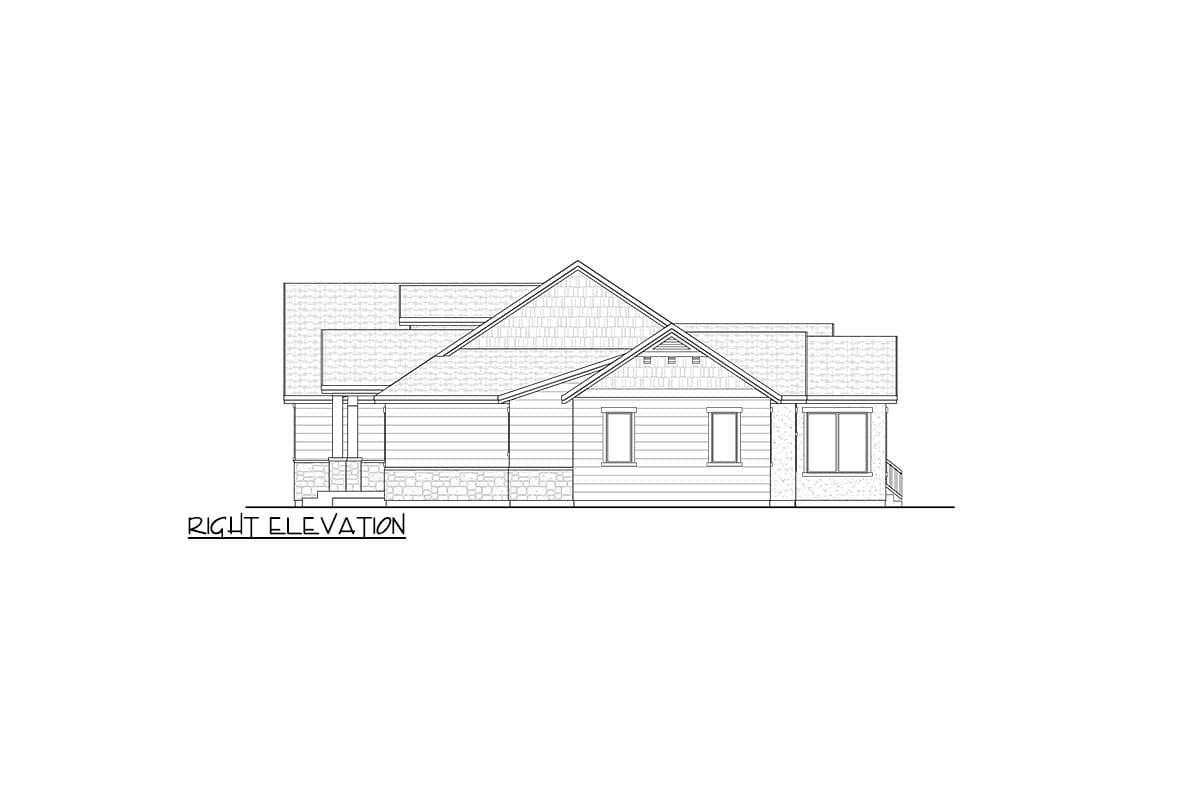

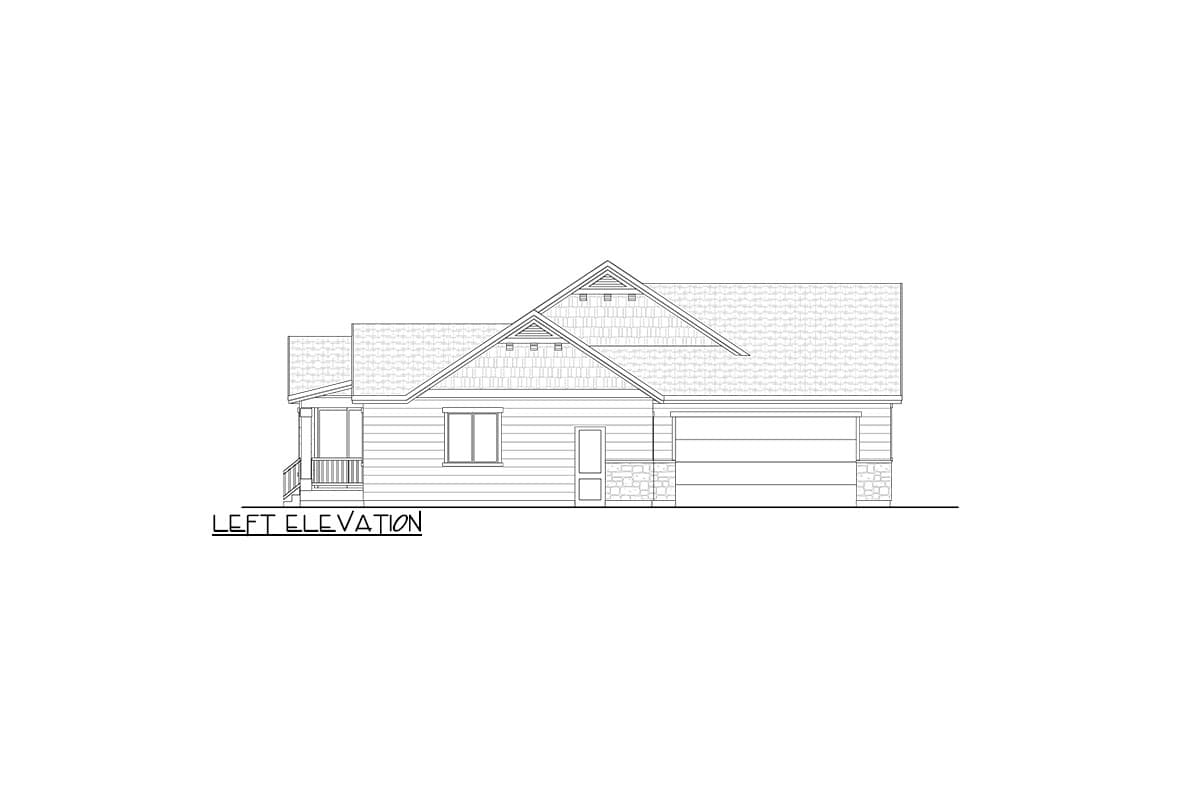

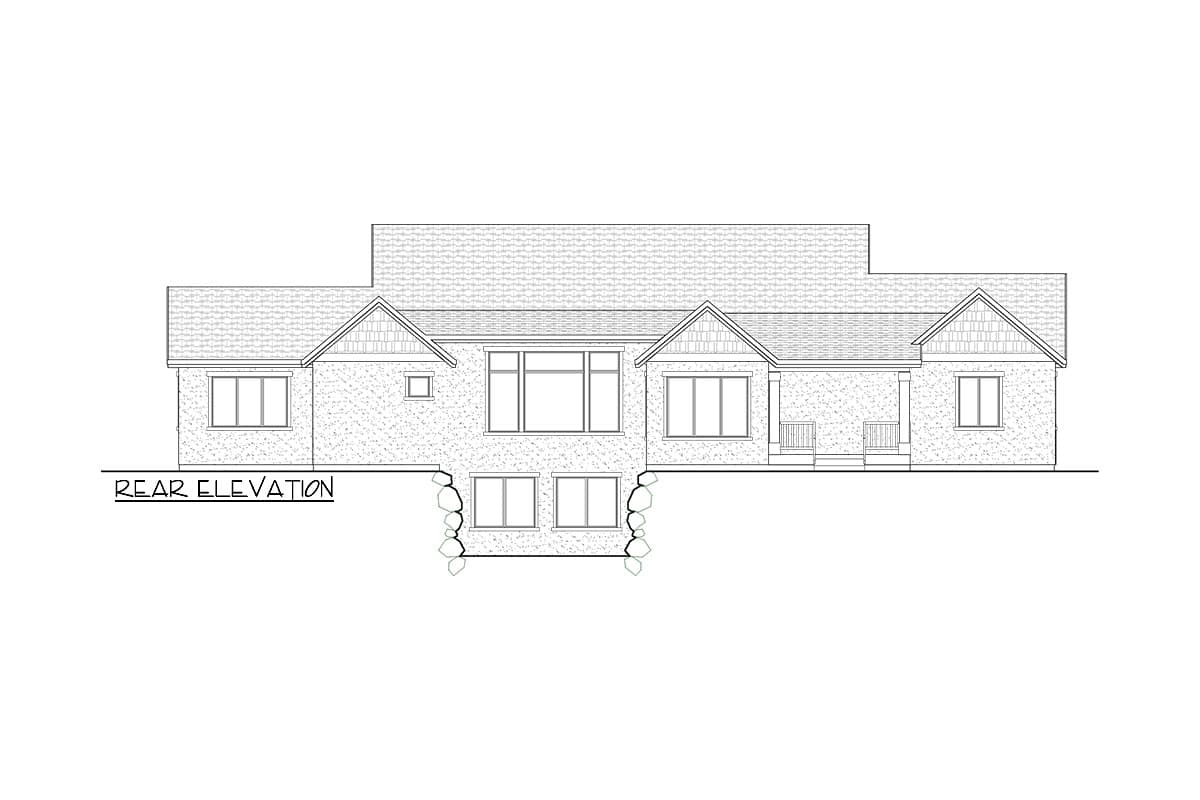

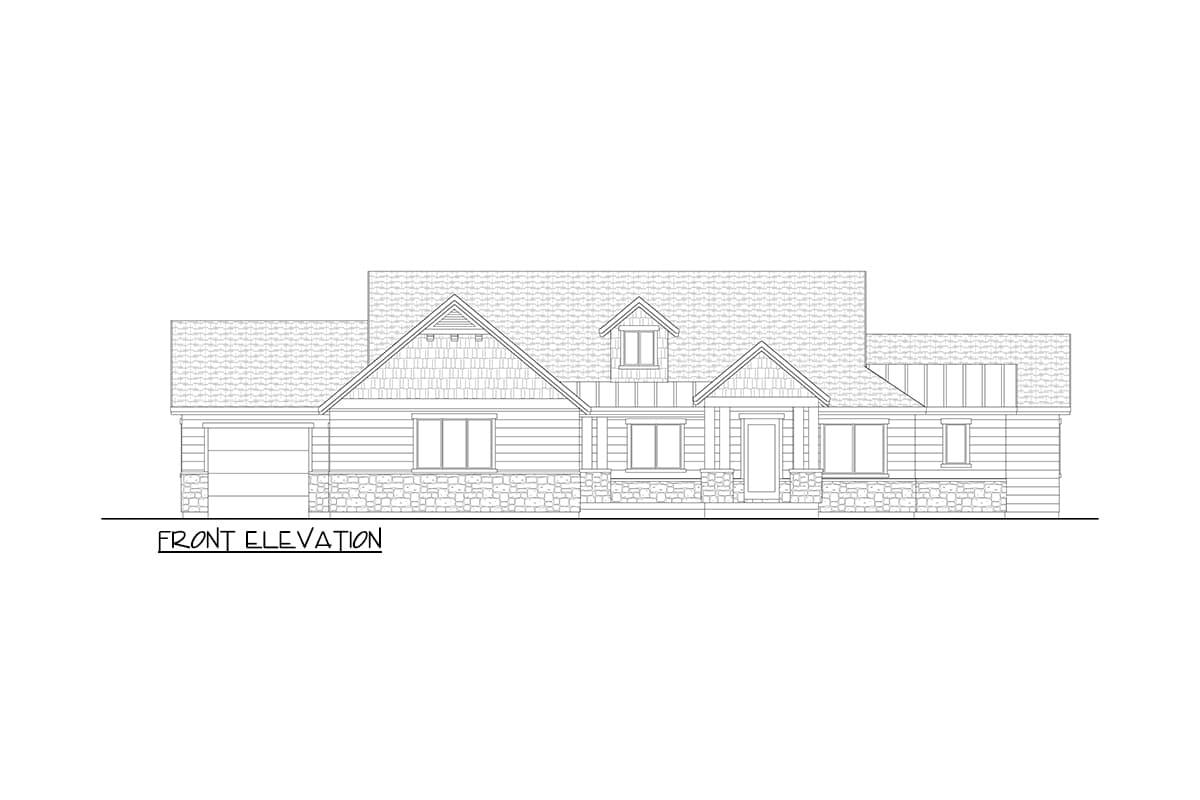

House Plan with Master Suite on Main and Three in Lower Level - 4319 Sq Ft
Heated S.F.
4,319
Beds
4
Baths
3.5+
Stories
1
Cars
3
Floor Plan

Plan 290171IY

Main Level
slide image 0
Lower Level
slide image 1

Plan 290171IY

1-800-854-7852

1-262-521-4596

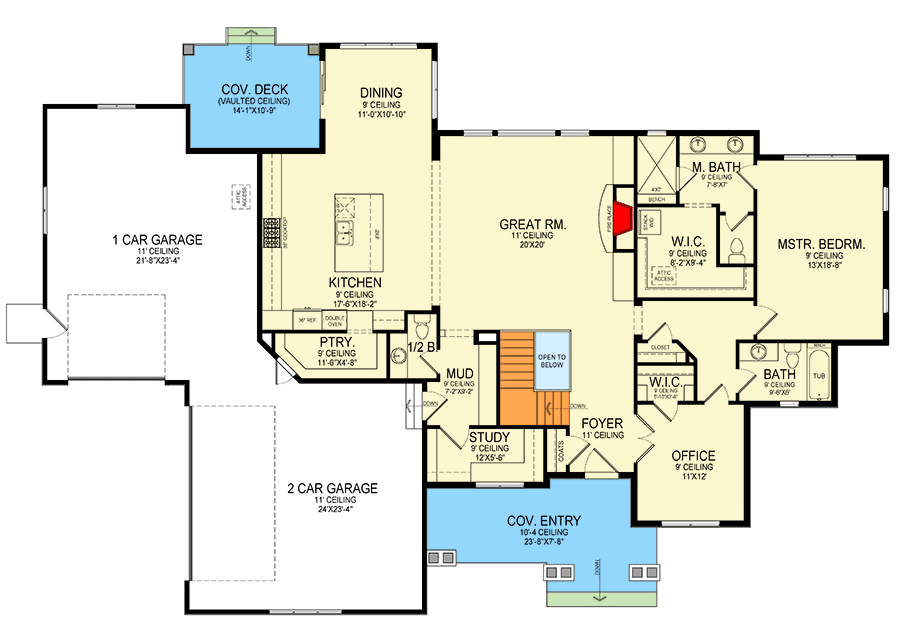

Main Level
floor plan image Main Level

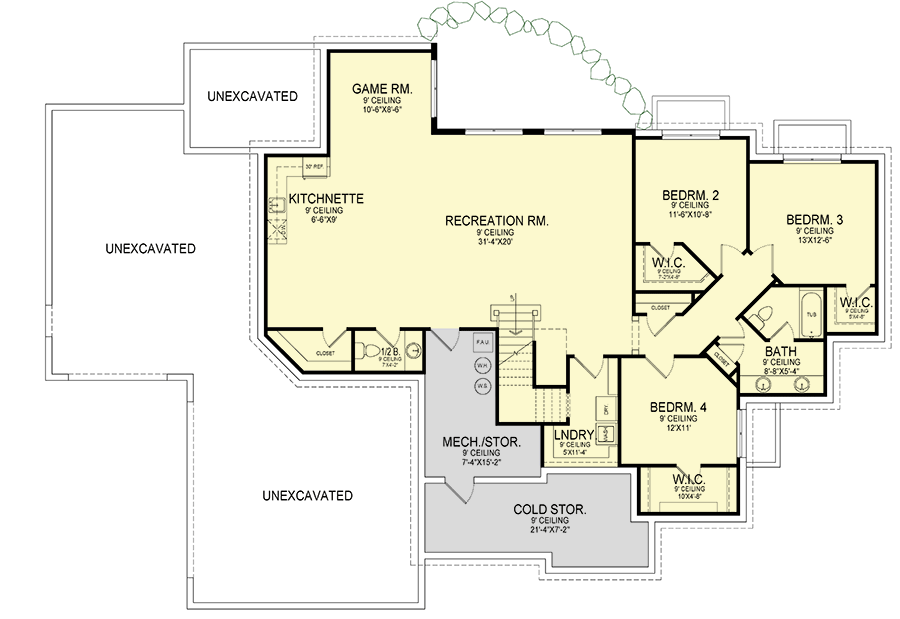

Lower Level
floor plan image Lower Level
Plan Details
  • This house plan gives you a master bedroom on the main floor (2,141 sq. ft.) and 3 more in the lower level (2,178 sq. ft.).
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
What's Included
  • Cover sheet (with rendering)
  • Notes page
  • Complete schedule page
  • Foundation plan
  • Floor plans
  • Dimension plans
  • Elevations
  • Sections
  • Architectural details
  • 3D perspective views (not included with all plans)
  • Floor finish plans
  • Roof plan
  • Lighting plans, and power plans.

Note: Contact us if building in Utah as these plans may not be available for construction in certain areas in that state.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

4,319 sq. ft.

Lower Level

2,178 sq. ft.

1st Floor

2,141 sq. ft.

Optional Lower Level

2,178 sq. ft.

Deck

150 sq. ft.

Entry

219 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

2

Foundation Type

Standard Foundations

Daylight

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

87' 0"

Depth

58' 8"

Max Ridge Height

24' 7"

Garage

Type

Attached

Area

1190 sq. ft.

Count

3 Cars

Entry Location

Front, Side

Ceiling Heights

Lower Level

9'

First Floor

9'

Roof Details

Primary Pitch

12 on 10

Secondary Pitch

12 on 8

Architectural Style

Craftsman

New American

Special Features

Bedrooms - Clustered

Butler Walk-in Pantry

Formal Dining

Game/Rec Room

Home Office

Laundry Access from Master Suite

Laundry - Lower Level

Library/Study

Master Suite - 1st Floor

Mudroom

Wet Bar

Plan Collections

Home Office

Square Footage Breakdown

Total Heated Area

4,319 sq. ft.

Lower Level

2,178 sq. ft.

1st Floor

2,141 sq. ft.

Optional Lower Level

2,178 sq. ft.

Deck

150 sq. ft.

Entry

219 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

2

Foundation Type

Standard Foundations

Daylight

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

87' 0"

Depth

58' 8"

Max Ridge Height

24' 7"

Garage

Type

Attached

Area

1190 sq. ft.

Count

3 Cars

Entry Location

Front, Side

Ceiling Heights

Lower Level

9'

First Floor

9'

Roof Details

Primary Pitch

12 on 10

Secondary Pitch

12 on 8

Architectural Style

Craftsman

New American

Special Features

Bedrooms - Clustered

Butler Walk-in Pantry

Formal Dining

Game/Rec Room

Home Office

Laundry Access from Master Suite

Laundry - Lower Level

Library/Study

Master Suite - 1st Floor

Mudroom

Wet Bar

Plan Collections

Home Office
