Name: Plan 36407TX: Impressive European Manor Home
SKU: 36407TX
Price: 2420.0 USD
Availability: InStock

Plan 36407TX

Impressive European Manor Home

Heated S.F.

5,297

Beds

Baths

5.5

Stories

Cars

Floor Plan

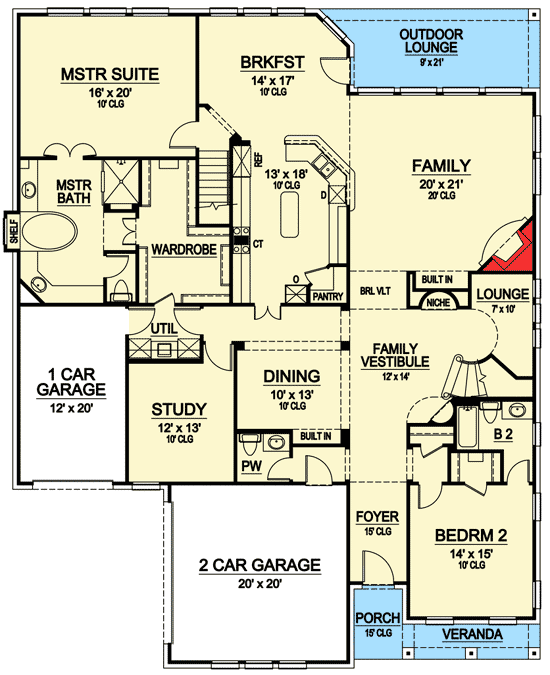

Main Level

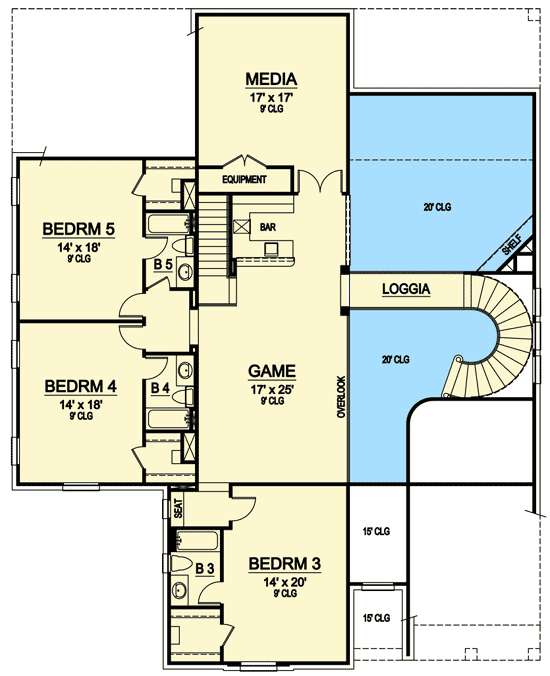

2nd Floor

Plan Details

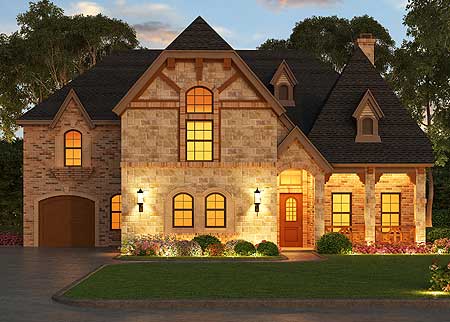

Wood trim and a clipped roofline on the front gable accent this magnificent European home plan.
Built-ins and barrel vault ceilings make the inside of the home special.
The formal dining room is open to the family vestibule, extending the views.
The first floor master suite is large and elegant with a huge bathroom and walk-in closet.
Note the door in the master closet that lets you get to the washer/dryer more quickly.
A beautiful curved staircase leads up to the second floor where three spacious bedrooms each have their own bathroom and walk-in closet.
The enormous game room has a wet bar to aid in entertaining and the media room is without windows for better movie viewing.
Related Plans: Get alternate exteriors with house plans 36405TX and 36380TX.

What's Included

Cover sheet
Foundation Plan - schematic only
First floor fully dimensioned floor plan with notes - All requisite aspects of the floor plan are precise, though the details of flooring material and non-structural aesthetics are left to the discretion of the buyer.
Second floor fully dimensioned floor plan with notes - Exact flooring materials, appliance selection and non-structural aesthetics are left to the discretion of the buyer.
First floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.
Second floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

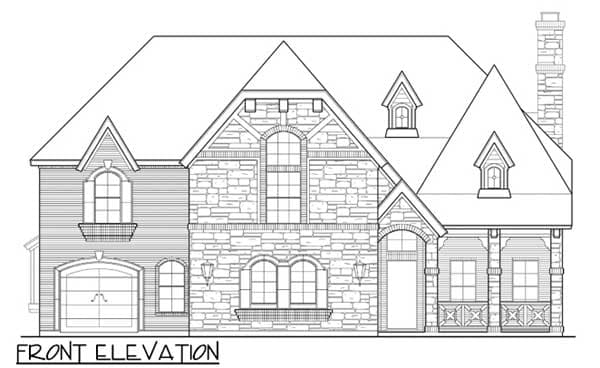

Front & rear elevations with notes-detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

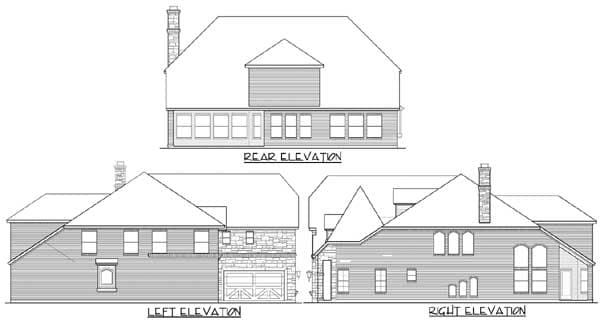

Left and right elevations with notes - detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.
Roof plan - This sheet roof plan is an integral piece of a well-designed set of elevations. Roof cuts are shown to demonstrate how the architectural design is intended to make the elevation aesthetically pleasing to the eye.
Sections page
Standard detail sheets on construction. These sheets are used to cover a broad range of many everyday situations that may occur on a construction site. The detail sheets are current and accurate to the area and time of which the house was originally designed.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
