Name: Plan 710069BTZ: Informally Elegant 4-Bed Craftsman House Plan - 2619 Sq Ft
SKU: 710069BTZ
Price: 2395.0 USD
Availability: InStock

Plan 710069BTZ

Informally Elegant 4-Bed Craftsman House Plan - 2619 Sq Ft

Heated S.F.

2,619

Beds

Baths

3.5

Stories

Cars

Photos

Floor Plan

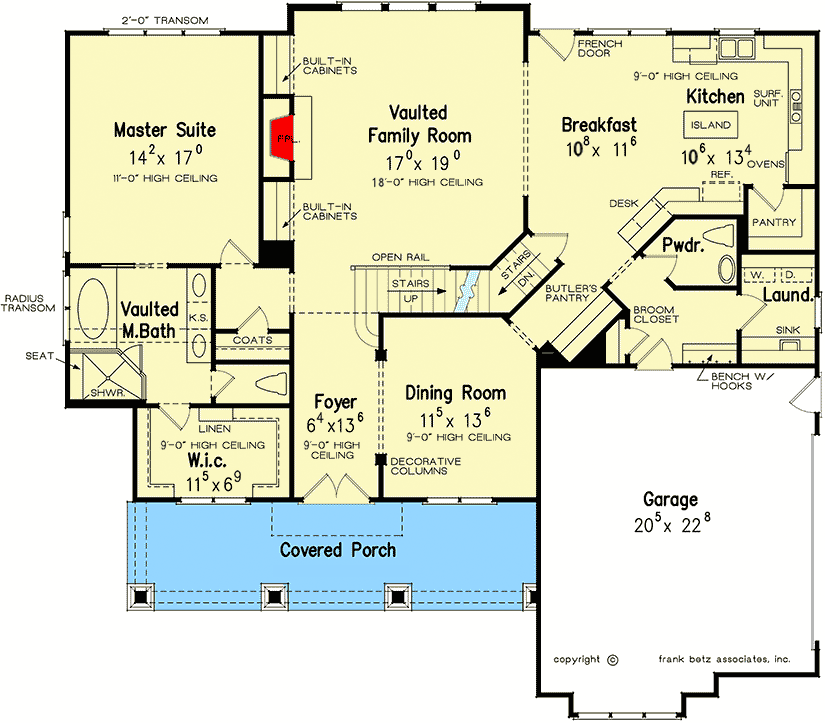

Main Level

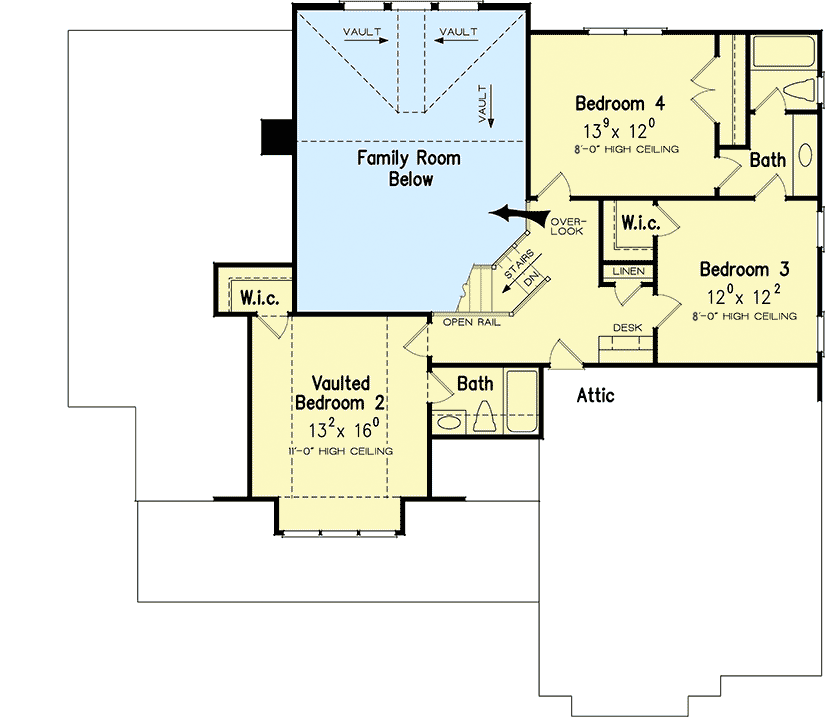

2nd Floor

Plan Details

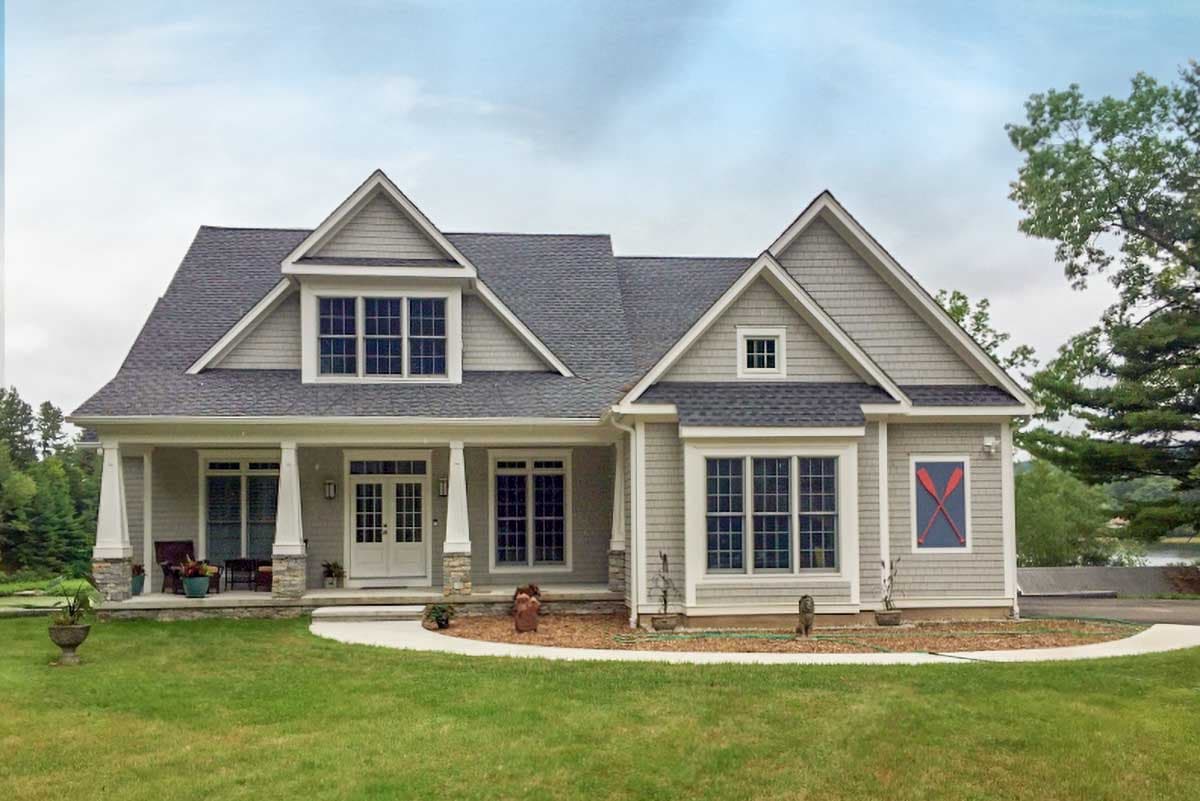

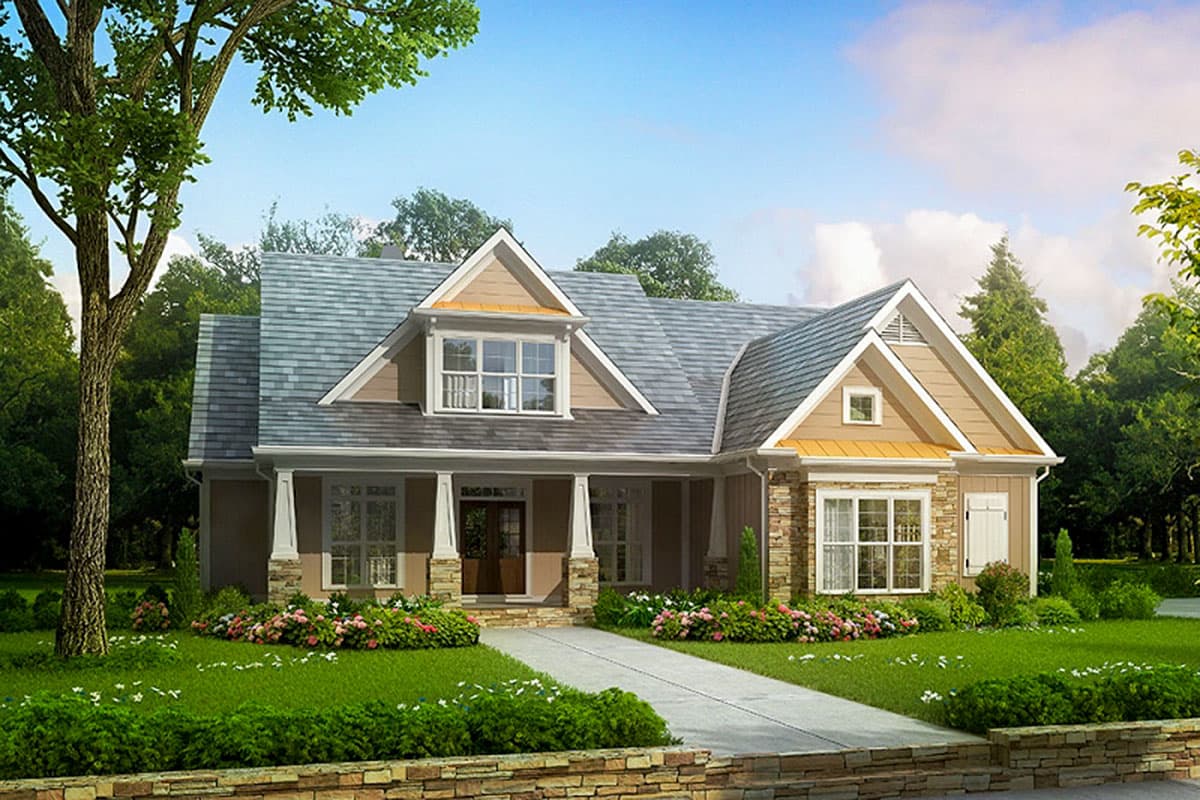

This 4-bed Craftsman house plan has an informal elegance with a graceful front porch, a blend of materials and box bay windows on each floor.

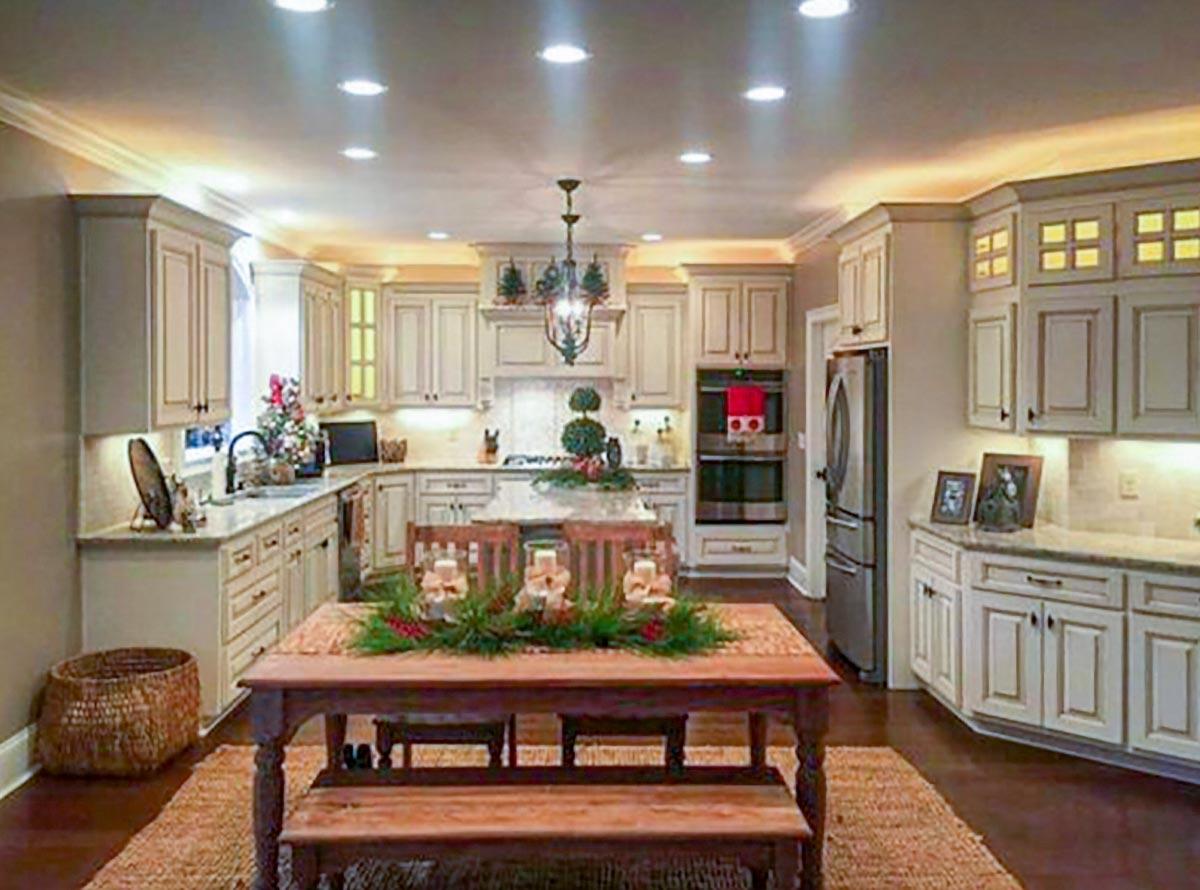

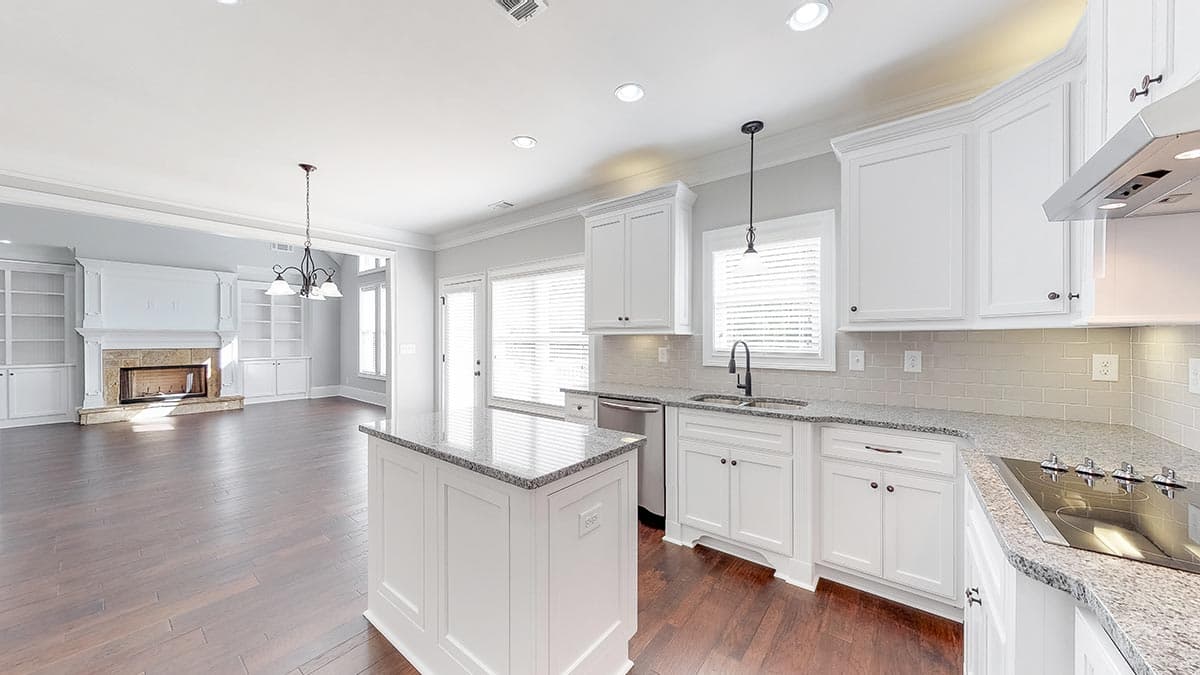

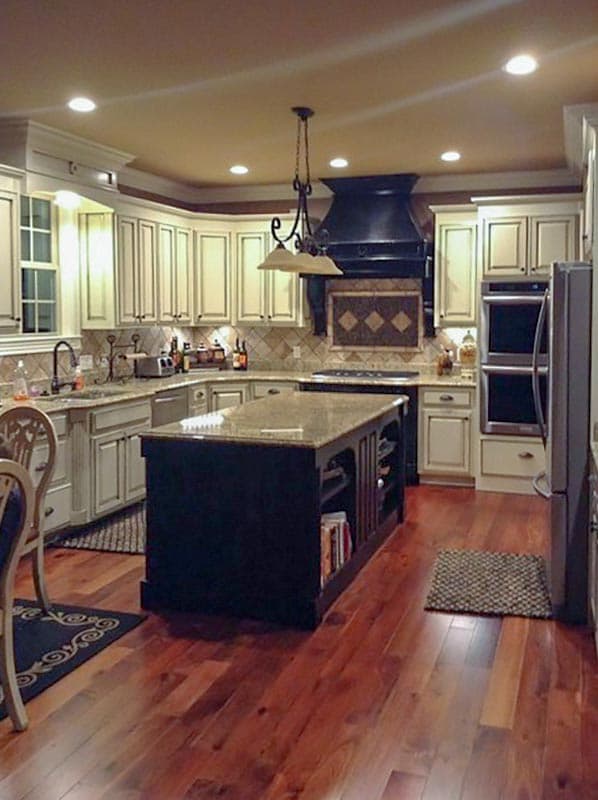

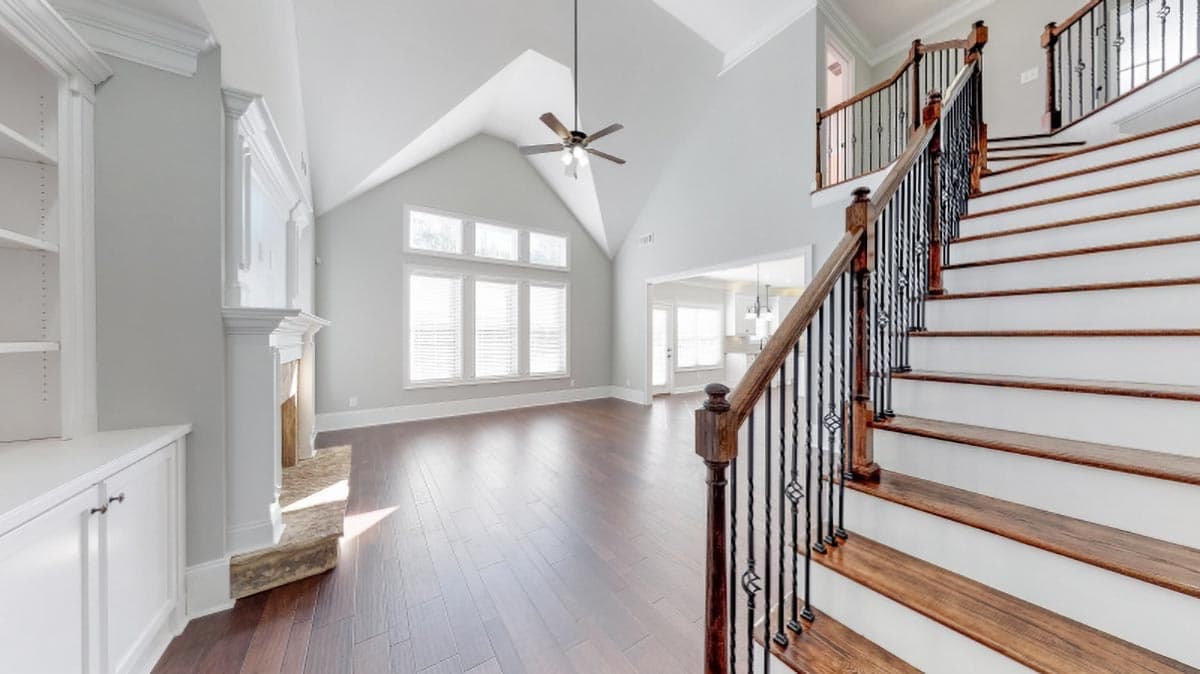

Inside, the home has a circular flow with the ability to get to the kitch from the dining room, the vaulted family room (and conveniently, from the garage entrance as well). The kitchen, breakfast area and family room are all open to each other creating easy access from one area to the next.

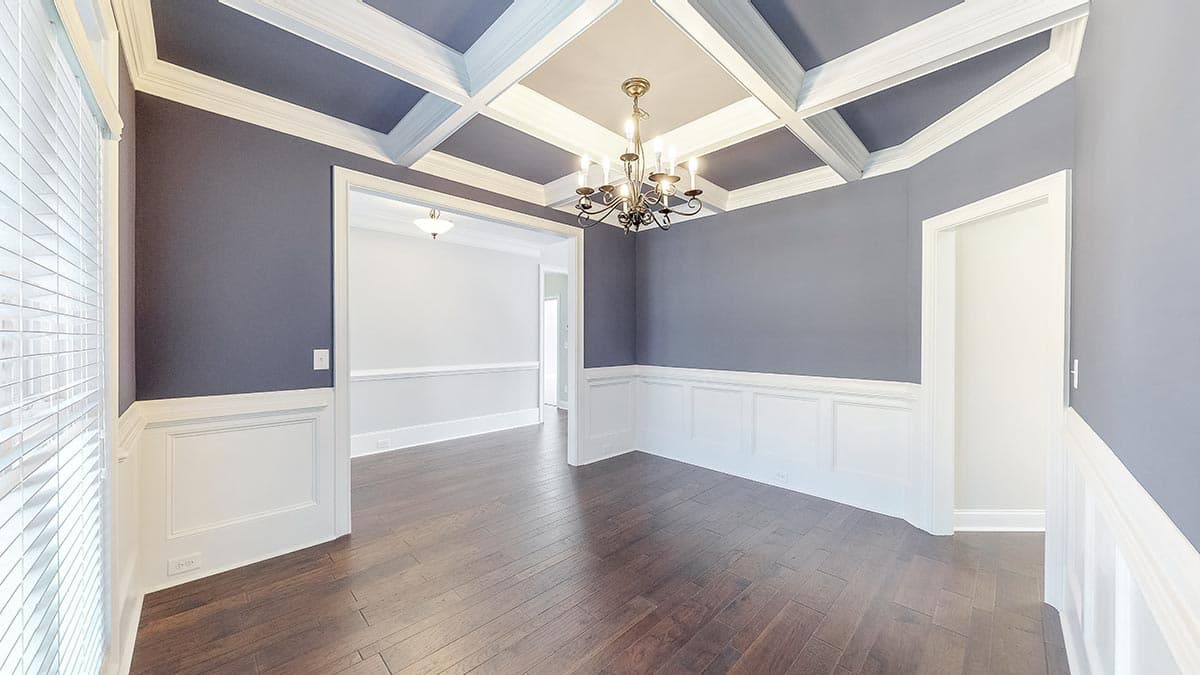

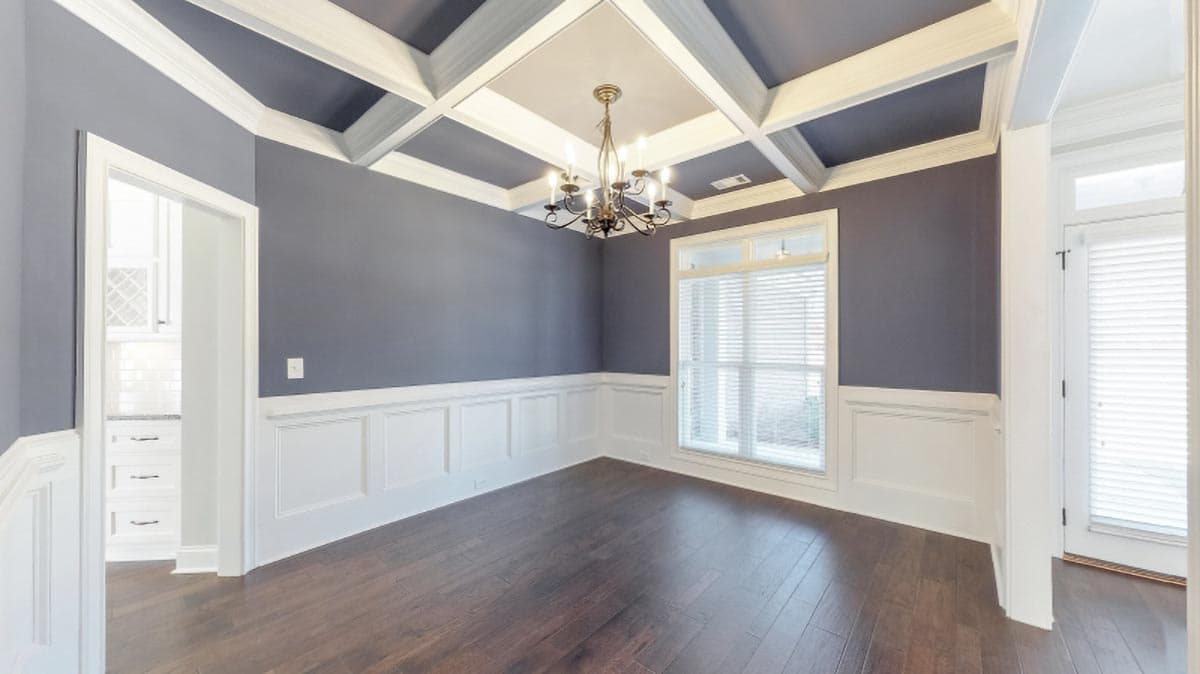

A butler's pantry connects the kitchen to the dining room adding convenience to entertaining.
A mudroom is situated just off the garage and is equipped with a bench, wall hooks, a broom closet and access to the laundry room.

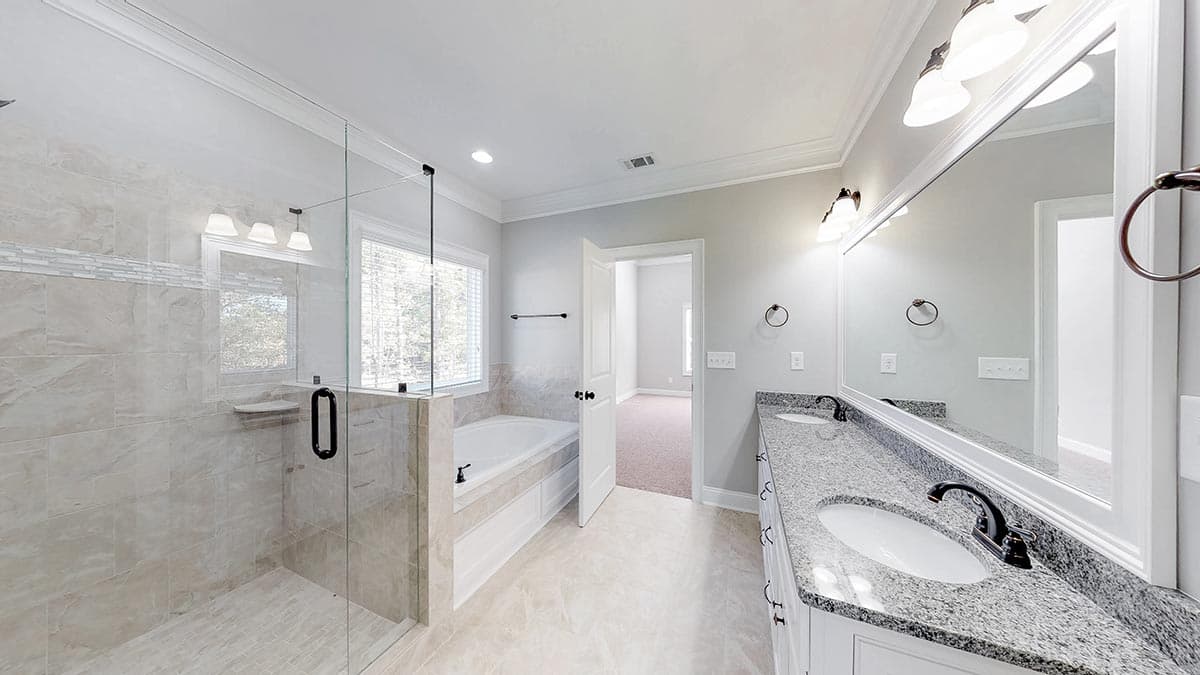

The private master suite occupies the entire left side of the home. Upstairs, you'll find three more bedrooms for the kids and a built-in desk in the open area great for doing homework.

Build Gallery

See and hear from existing customers with real photos, videos, and reviews.

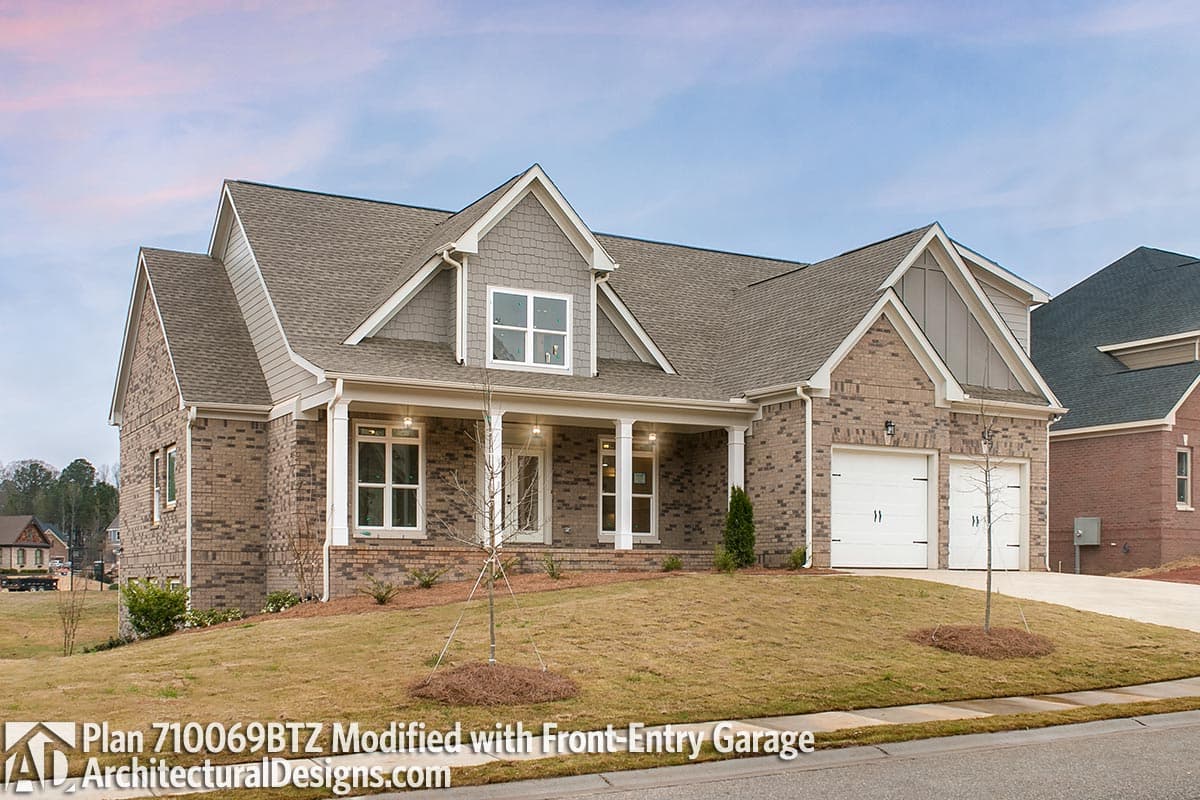

House Plan 710069BTZ Comes to Life in Georgia

Photos

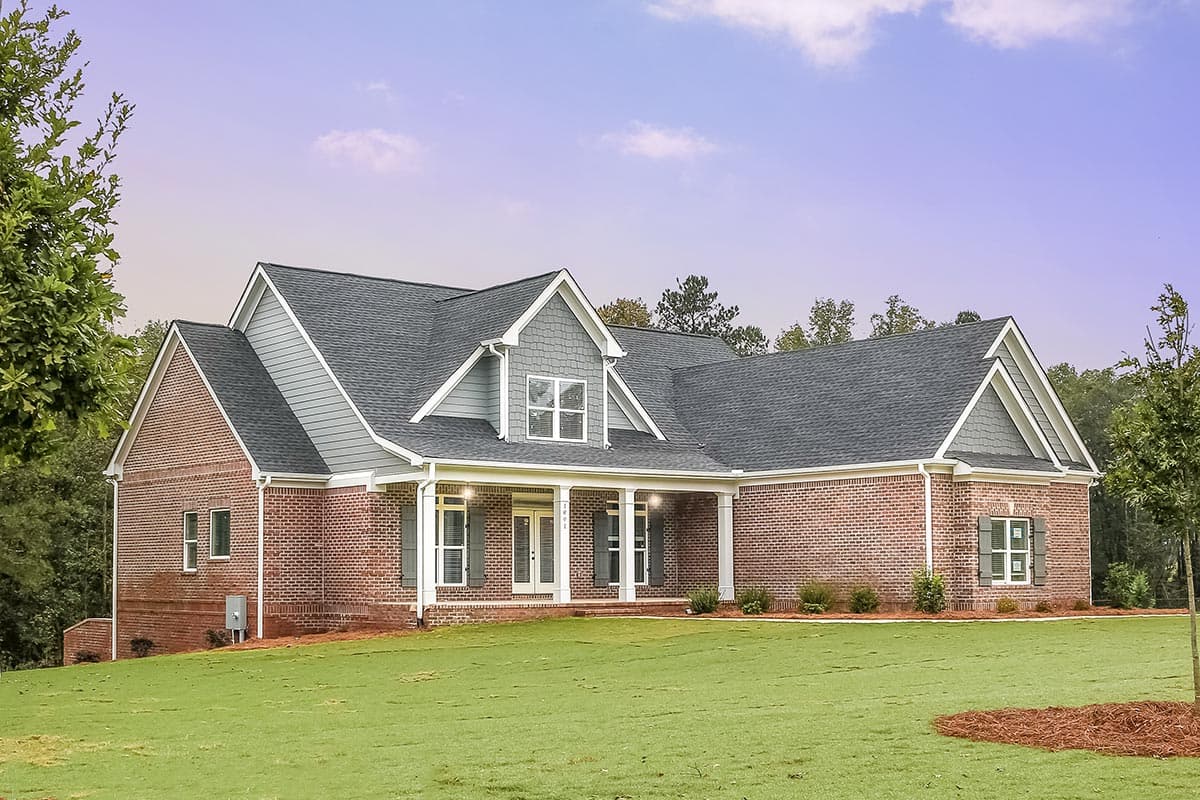

House Plan 710069BTZ comes to life in Virginia

Photos

What's Included

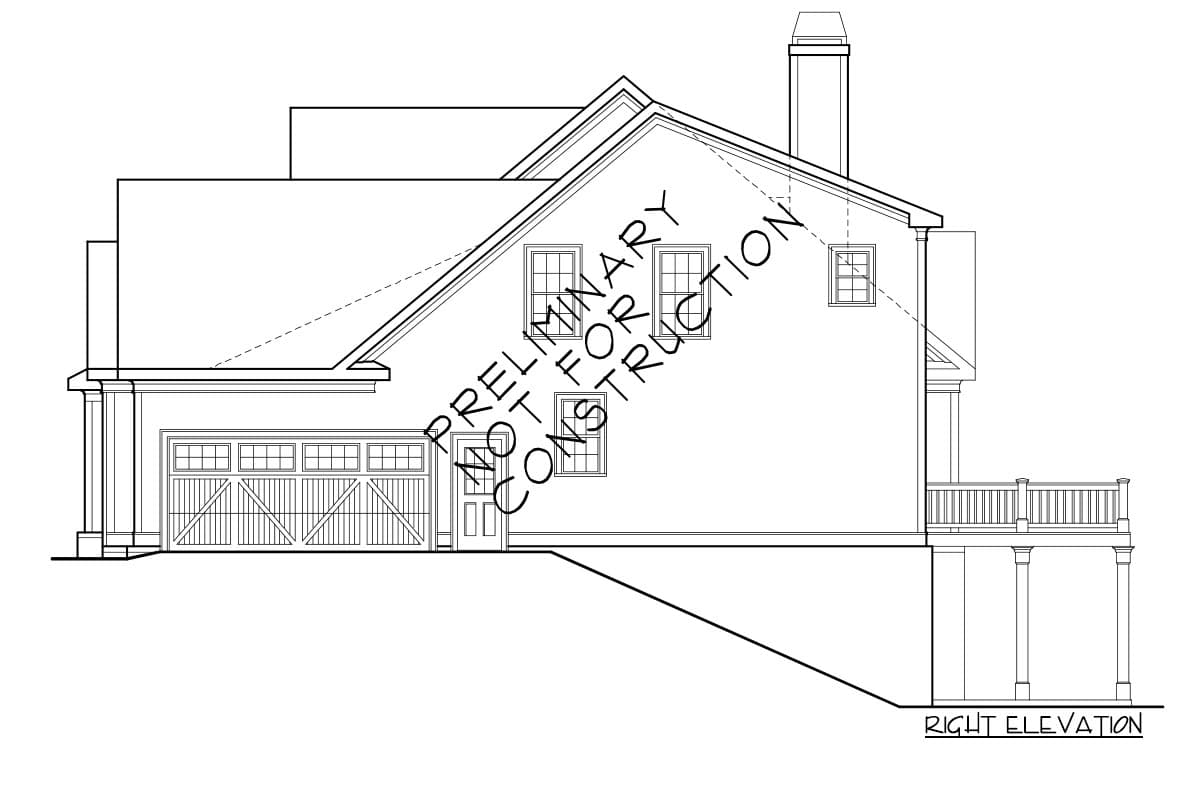

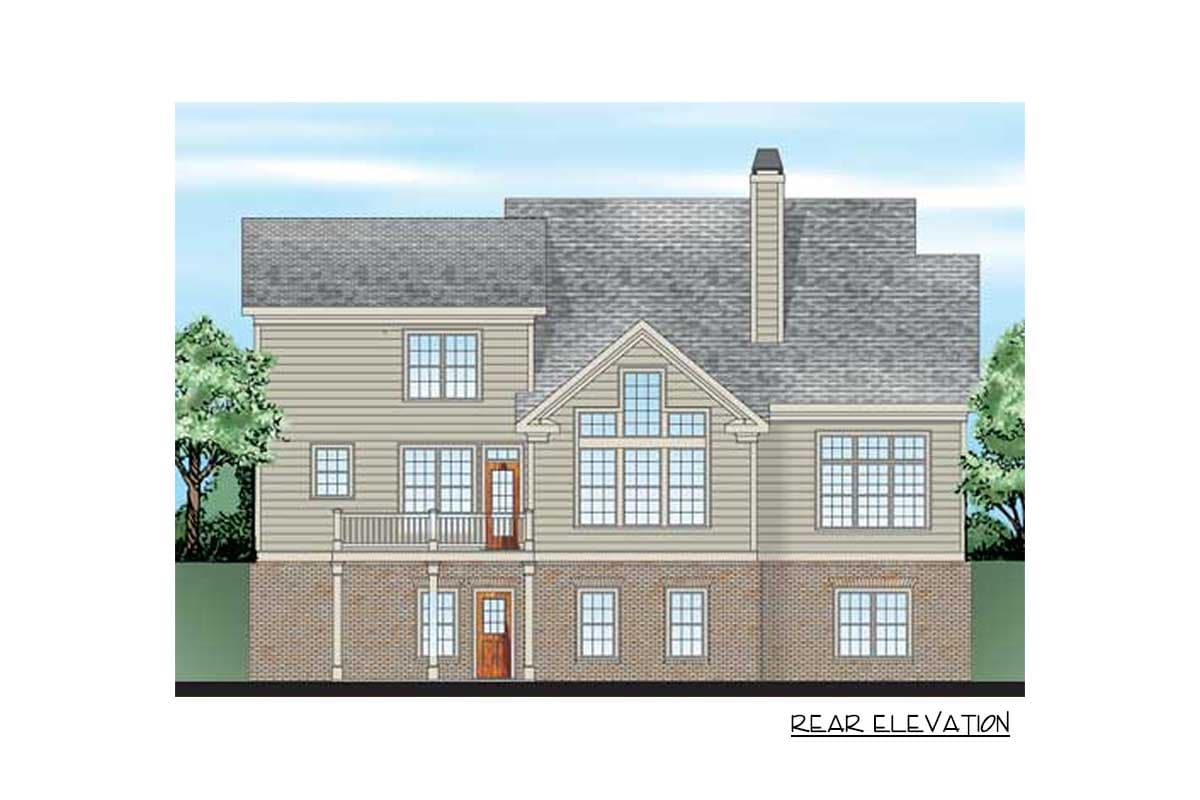

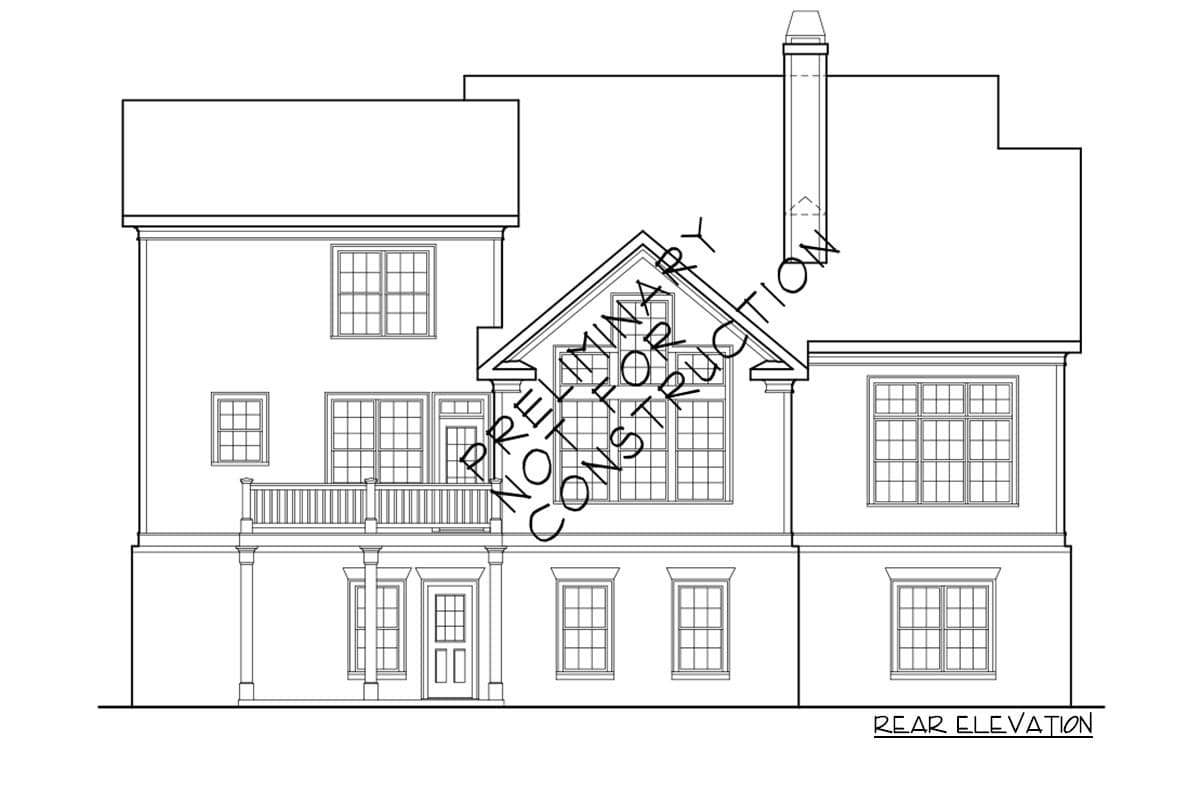

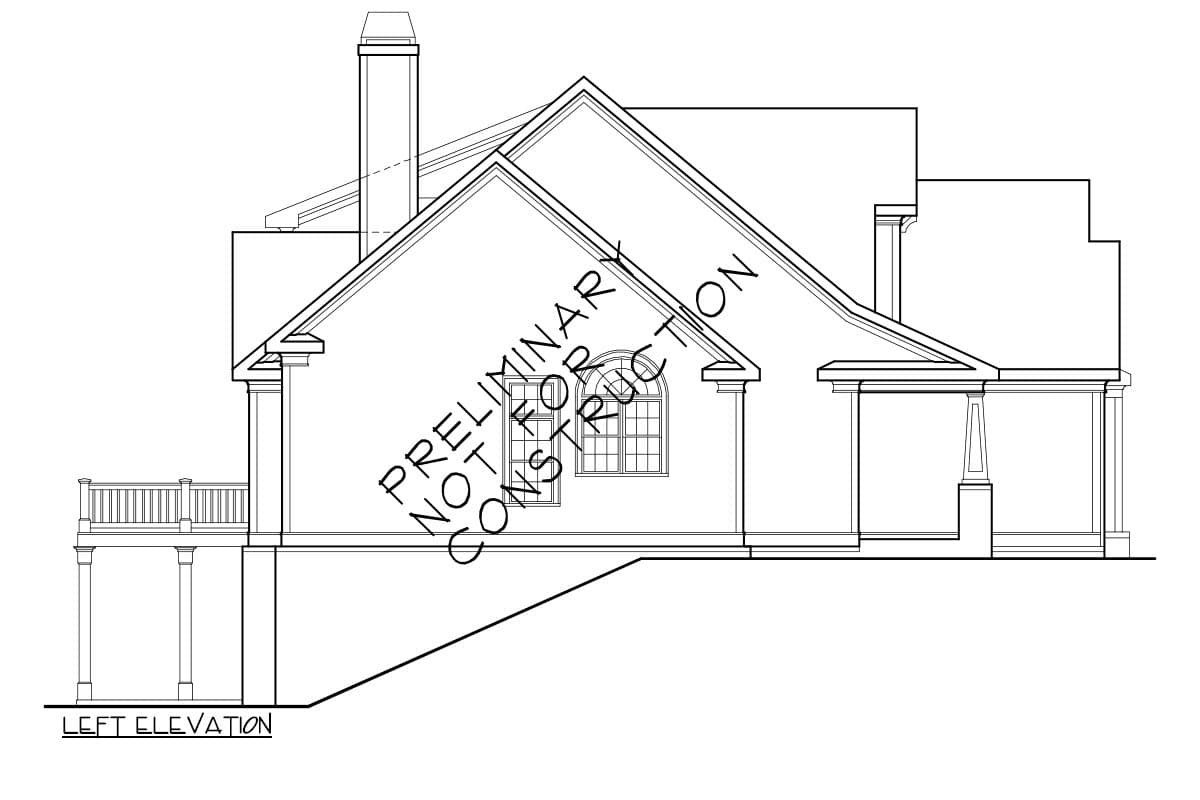

Elevations - at 1/4" or 3/16" and the side and rear elevations at 1/8" scale. The elevations show and note the exterior finished materials of the house.
Foundation - every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors). The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls. These plans are completed with dimensions, door/window sizes. Crawlspace and/or slab on grade foundations are available for some plans.
Floor plan - each plan consists of 1/4" or 3/16" scale layouts showing the location of 2 x 4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
Building sections - Take vertical cuts throughout the house and the stairs showing floor, ceiling and roof height information.
Floor framing - if included it shows each floor joist indicating the size, spacing and length. All beams are sized and labeled. Each framing plan sheet includes any framing details that are needed (tray details, connections details, etc. All framing is designed using conventional 2 x 10 floor joist or wood I-joist, depending on the span conditions of each home. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
Ceiling framing - if included, it shows each ceiling joist indicating the size, spacing and length. All beams are sized and labeled. All of the joists are counted and coordinated with the material list. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
Roof framing - if included, shows each rafter, valley, hip and ridge indicating size, spacing and length. All beams are sized and labeled. All of the joists are counted and coordinated with the material list. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
Details sheets - shows foundation details, typical wall section and other framing details. Also included are miscellaneous interior trim and fireplace details that can be used to customize the home.

What's Not Included

Architectural or Engineering Stamp
Site Plan
Mechanical Drawings (location of heating and air equipment and duct work)
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
Energy calculations
Windows and Doors Schedules
