Plan 710176BTZ: Invited Country Farmhouse Plan with Bonus Upstairs

Plan 710176BTZ

Invited Country Farmhouse Plan with Bonus Upstairs

Heated S.F.

2,322

Beds

3 - 4

Baths

3 - 4

Stories

Cars

Floor Plan

Main Level

Bonus Level

Plan Details

Three sets of beautiful French doors frame the front of this inviting country farmhouse plan. Classic details such as dormers, window boxes and a weather vane complete this quaint country home's façade. The open floorplan is ideal for entertaining.

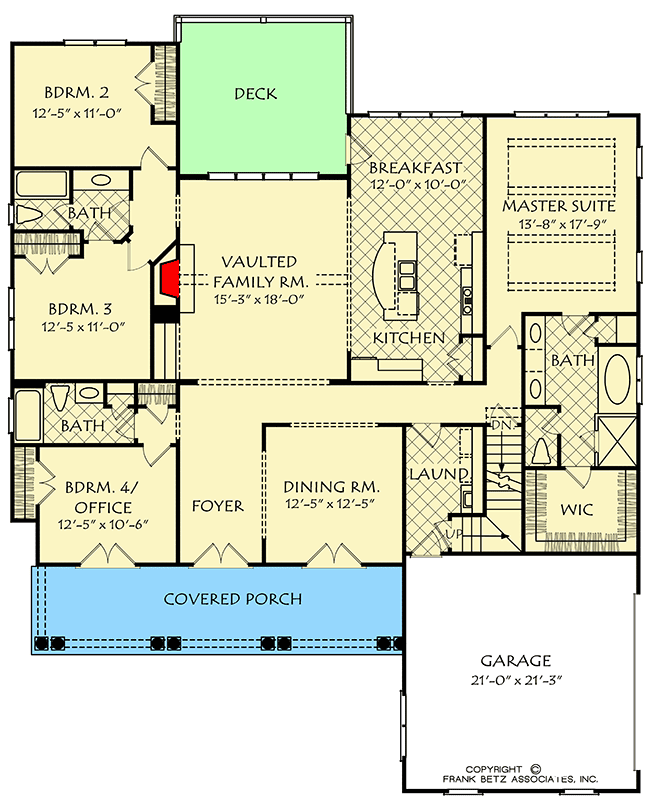

Passing the formal dining room on the first floor, an office and full bath are located conveniently off the foyer. Just a few steps further, and guests are welcomed to the vaulted family room, eat-in kitchen and large breakfast area.
The left wing of this floor harbors two bedrooms with a shared full bath. The right wing is where the master suite can be found. The suite includes a large master bath, complete with his-and-her sinks, walk-in shower and an oversized closet.

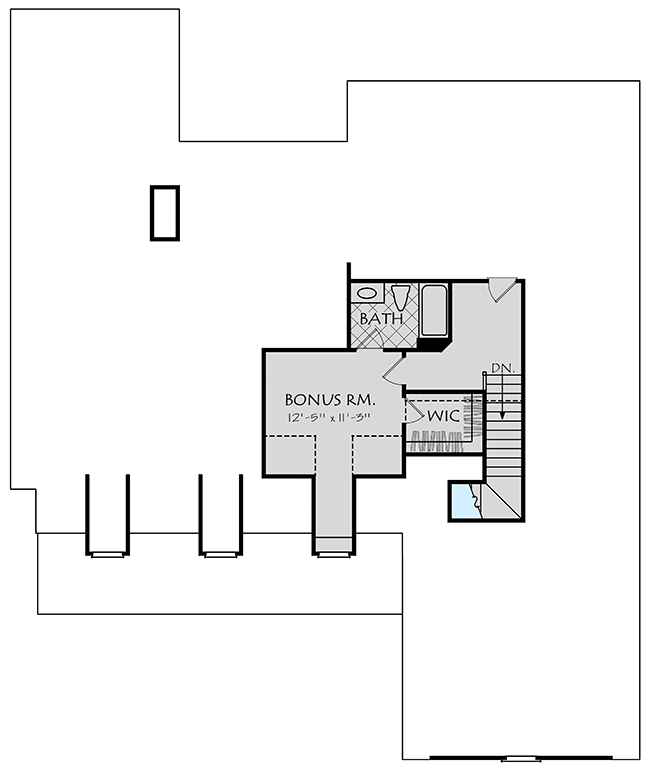

Upstairs, a bonus room with a full bath and walk-in closet is waiting to be used as a game room or private guest suite.
Related Plans: Get an alternate exterior with house plans 710175BTZ and 710177BTZ.

What's Included

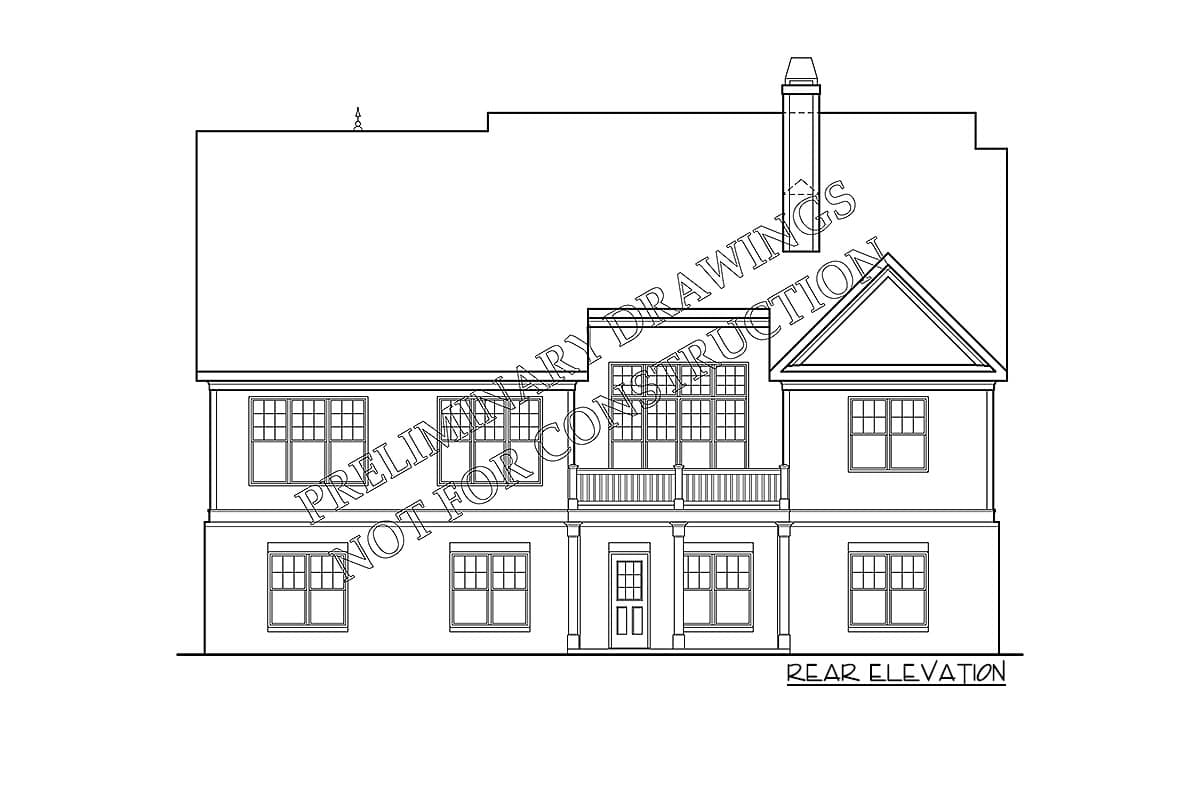

Elevations - at 1/4" or 3/16" and the side and rear elevations at 1/8" scale. The elevations show and note the exterior finished materials of the house.
Foundation - every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors). The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls. These plans are completed with dimensions, door/window sizes. Crawlspace and/or slab on grade foundations are available for some plans.
Floor plan - each plan consists of 1/4" or 3/16" scale layouts showing the location of 2 x 4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
Building sections - Take vertical cuts throughout the house and the stairs showing floor, ceiling and roof height information.
Floor framing - if included it shows each floor joist indicating the size, spacing and length. All beams are sized and labeled. Each framing plan sheet includes any framing details that are needed (tray details, connections details, etc. All framing is designed using conventional 2 x 10 floor joist or wood I-joist, depending on the span conditions of each home. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
Ceiling framing - if included, it shows each ceiling joist indicating the size, spacing and length. All beams are sized and labeled. All of the joists are counted and coordinated with the material list. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
Roof framing - if included, shows each rafter, valley, hip and ridge indicating size, spacing and length. All beams are sized and labeled. All of the joists are counted and coordinated with the material list. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
Details sheets - shows foundation details, typical wall section and other framing details. Also included are miscellaneous interior trim and fireplace details that can be used to customize the home.

What's Not Included

Architectural or Engineering Stamp
Site Plan
Mechanical Drawings (location of heating and air equipment and duct work)
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
Energy calculations
Windows and Doors Schedules
