Plan 51041MM
Inviting Craftsman Styling
Heated S.F.
1,800
Beds
3
Baths
2
Stories
1
Cars
2
Photos
Floor Plan

Plan 51041MM

Main Level
slide image 0
Bonus
slide image 1

Plan 51041MM

1-800-854-7852

1-262-521-4596

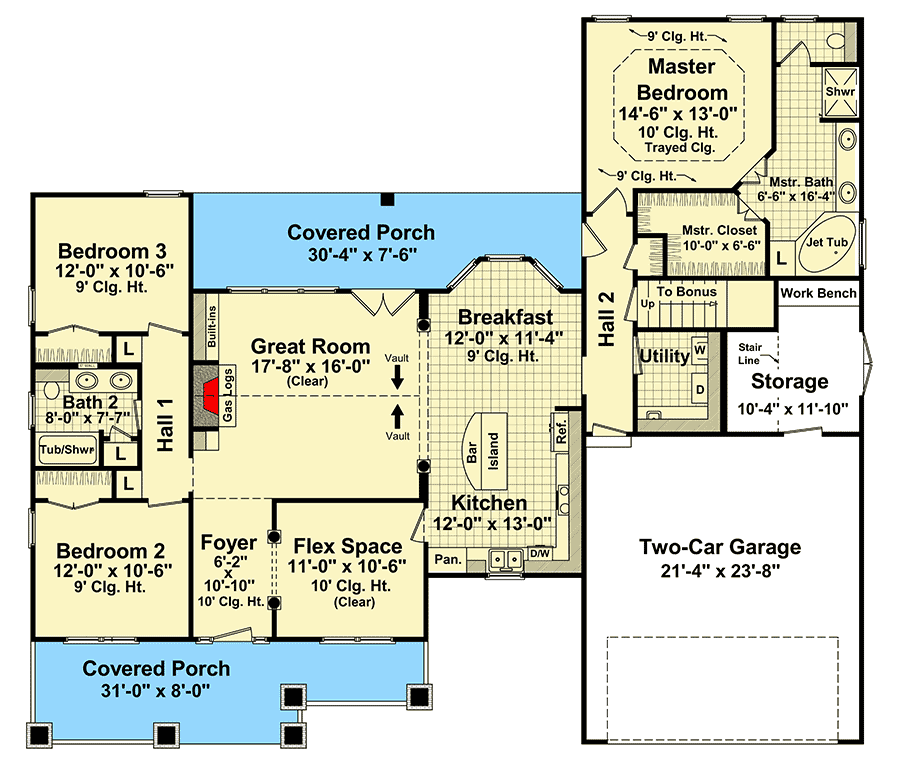

Main Level
floor plan image Main Level

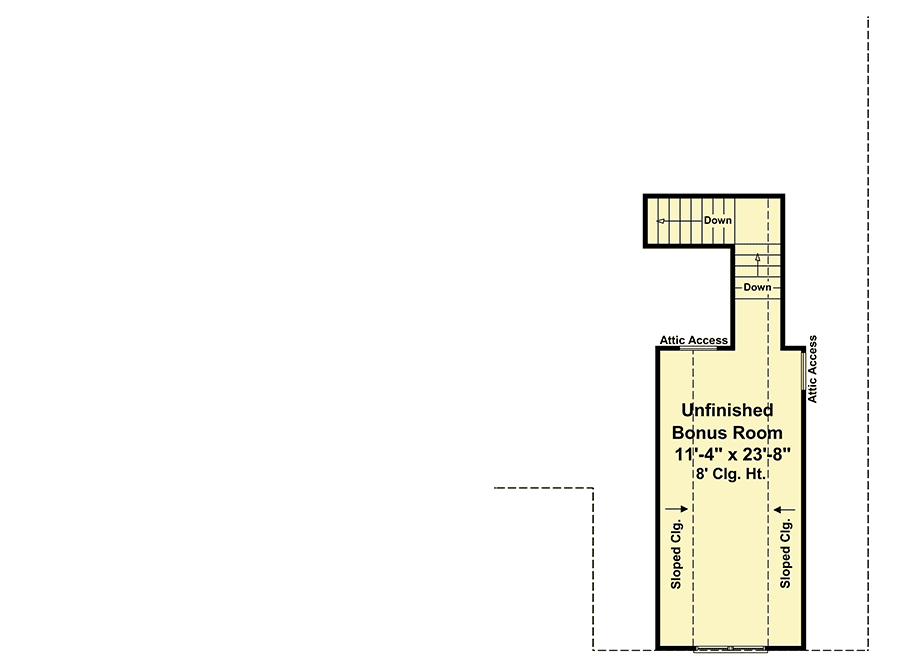

Bonus
floor plan image Bonus
Plan Details
  • This inviting home plan has craftsman styling with upscale features. It is a very flexible home with lots of options to choose from.

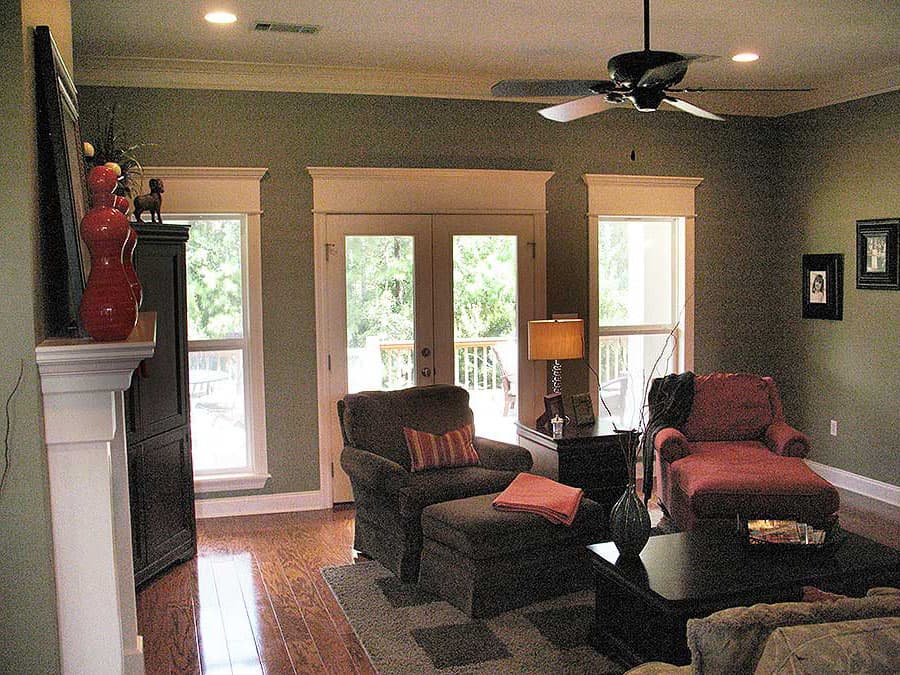

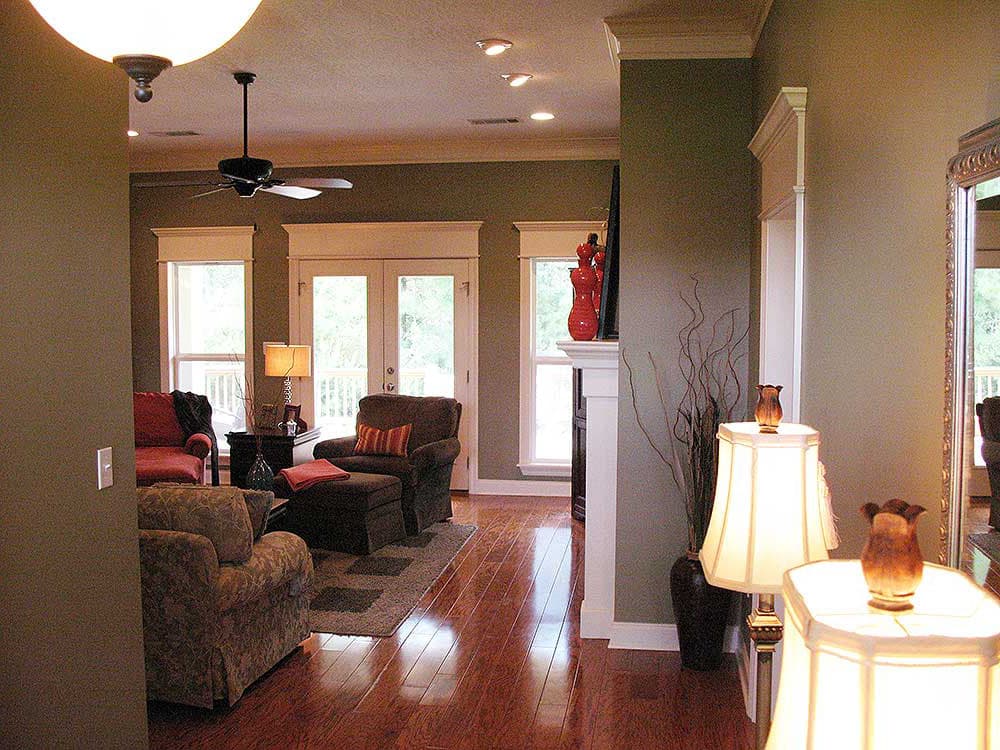

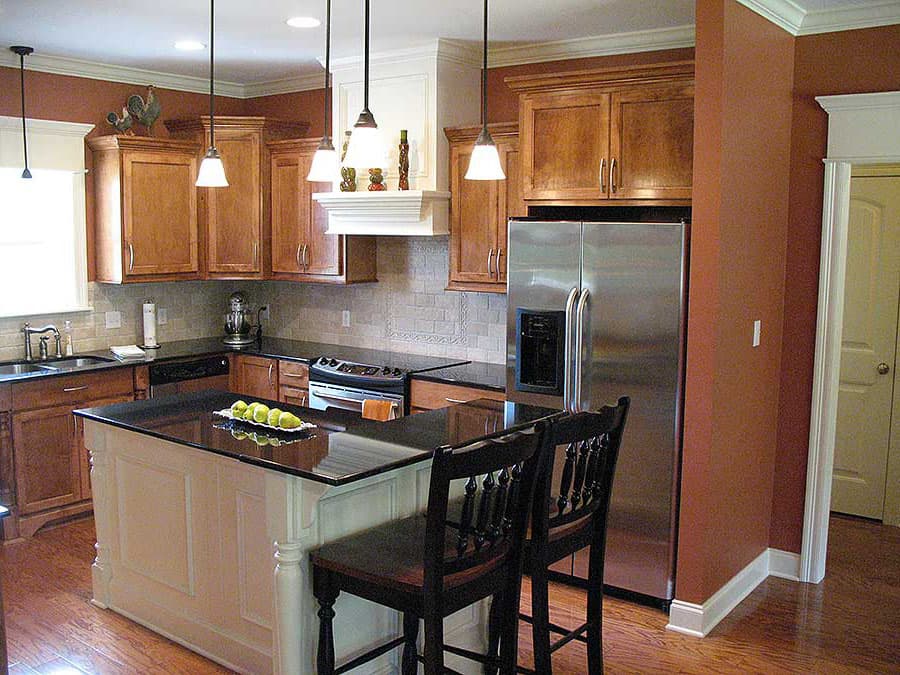

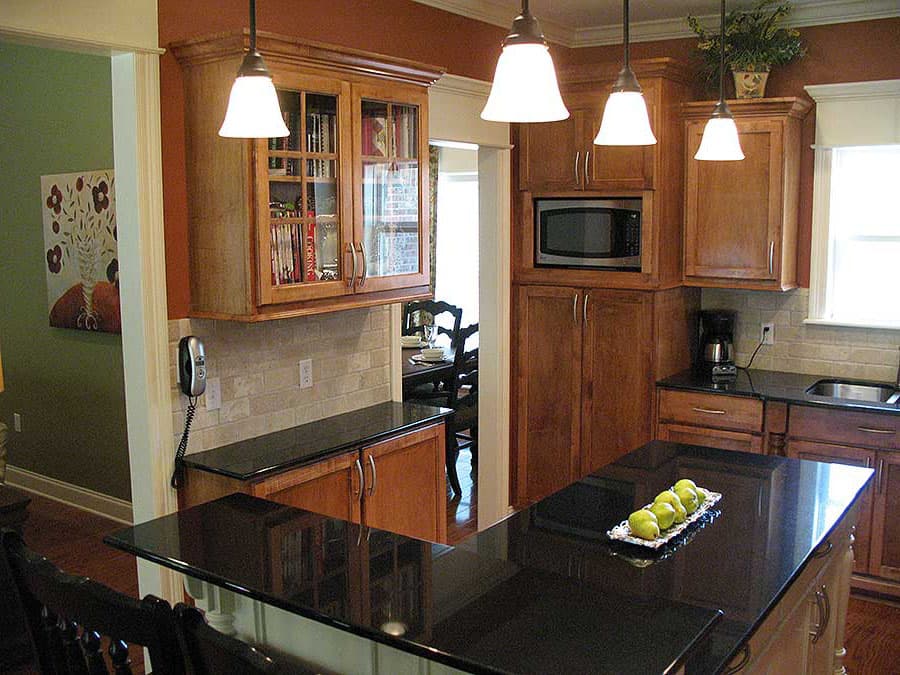

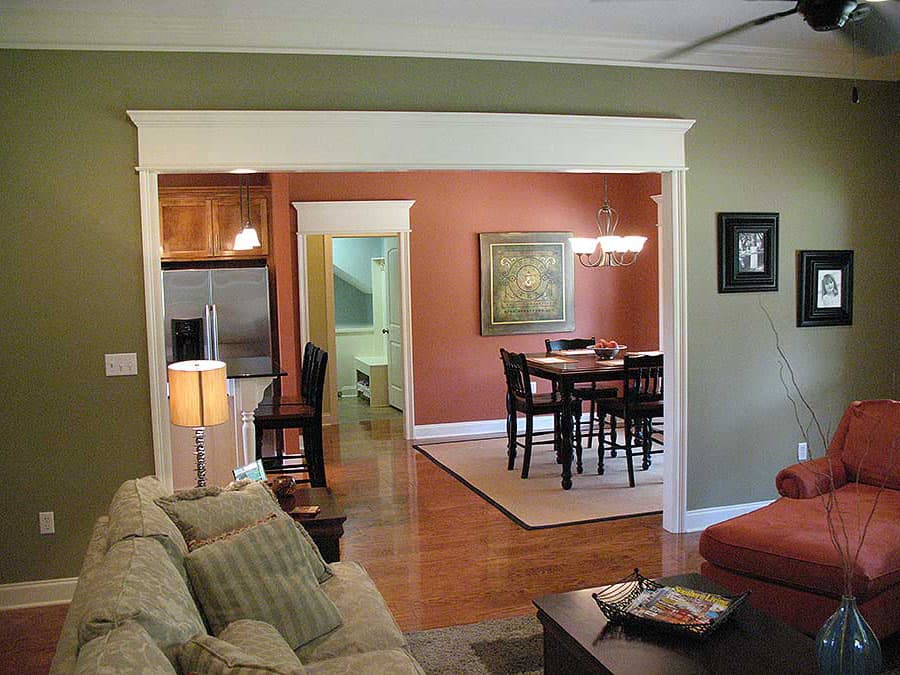

  • The front and rear covered porches add usable outdoor living space. The great room is vaulted with built-in cabinets and a gas fireplace. The spacious kitchen has an island with an eating bar. The hall bath is equipped with dual lavatories for convenience.

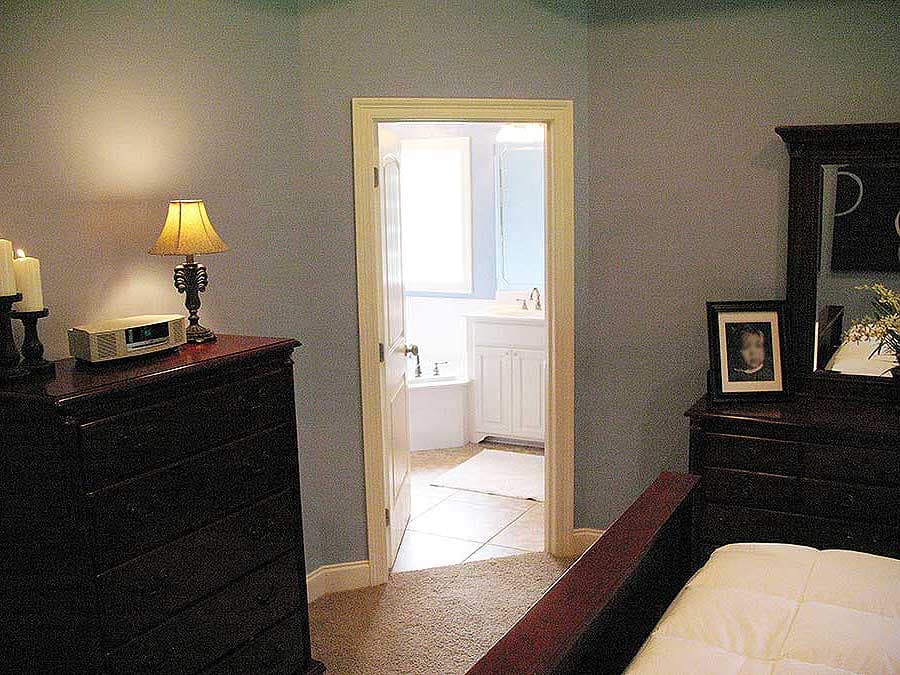

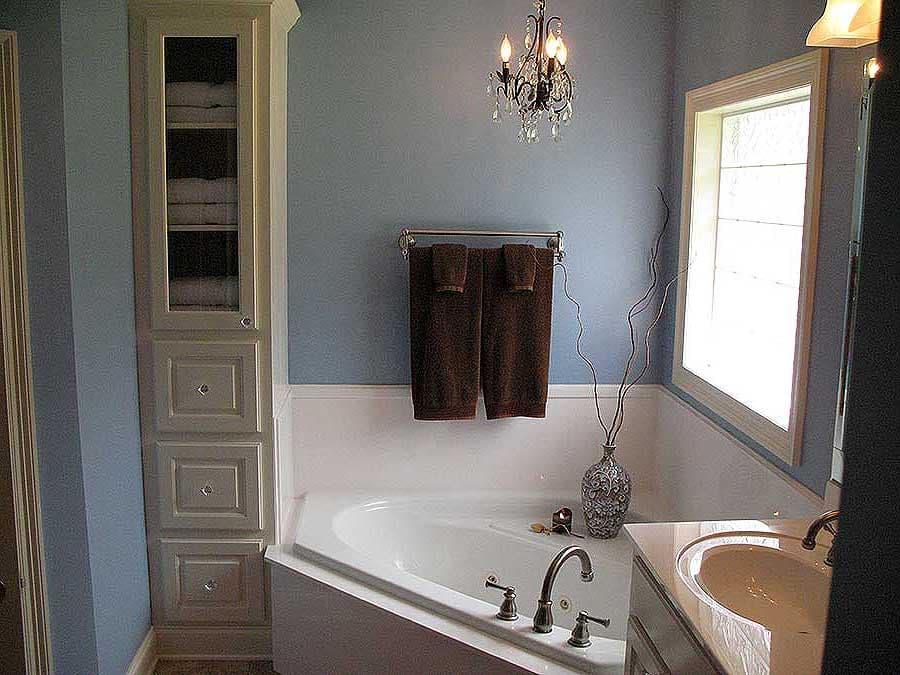

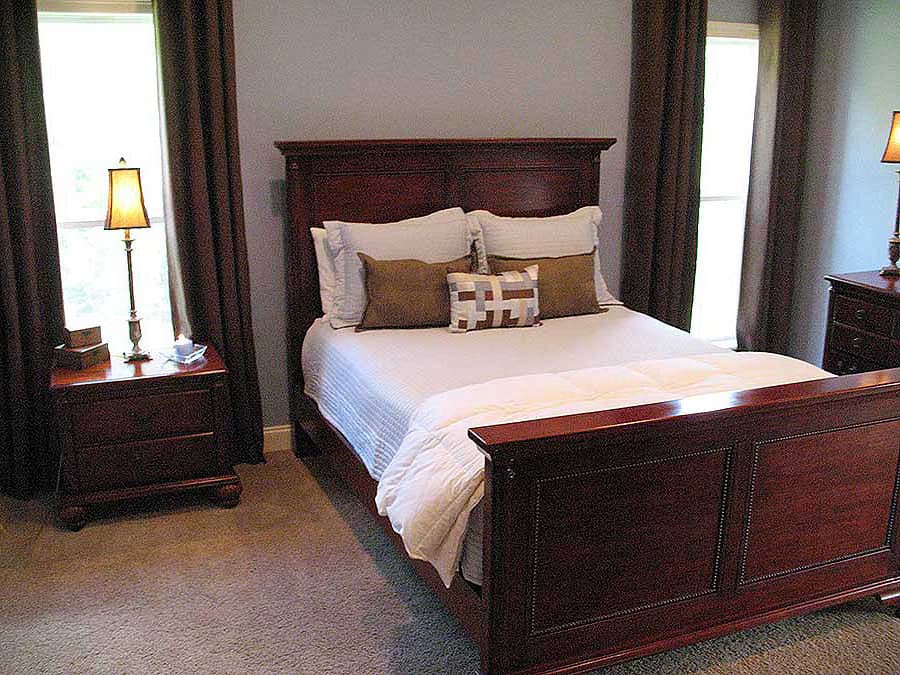

  • The master bedroom has a raised ceiling and opens into the well equipped bath with dual lavatories, corner tub and walk in closet.
  • There is a shop area off the garage for projects and storage.

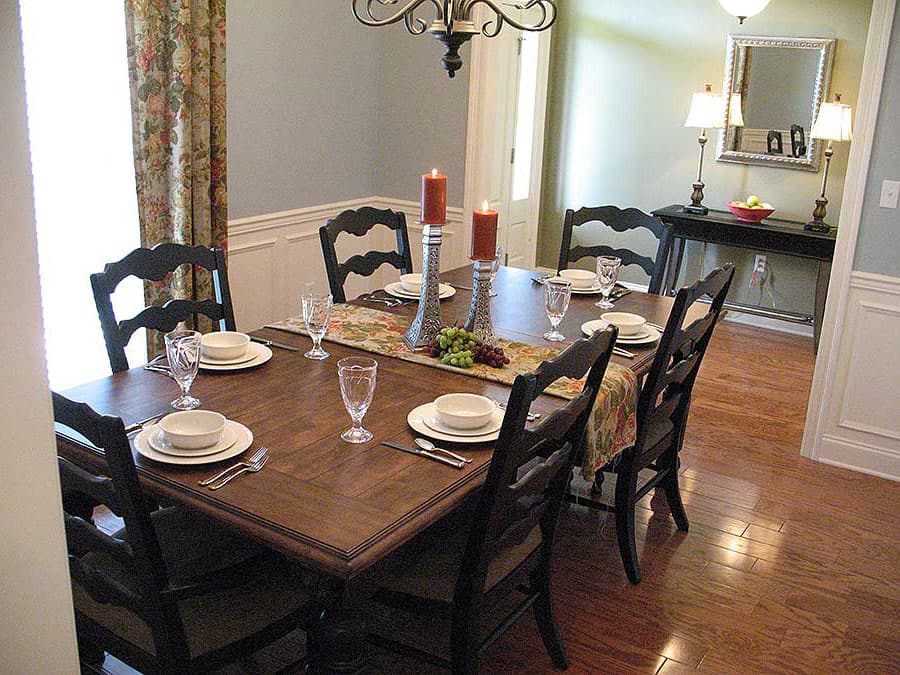

  • Future space upstairs could be a playroom, extra bedroom, or just extra storage. The flex space could be used as a home office, dining room, or playroom.
  • Related Plans: Get a basement with house plan 51088MM. Get more room with house plans 51064MM (1,924 s.f.), 51065MM (2,108 s.f.), 51043MM (2,067 s.f.). Get a smaller home with house plan 51040MM (1,509 s.f. and a reverse orientation).
Build Gallery
See and hear from existing customers with real photos, videos, and reviews.

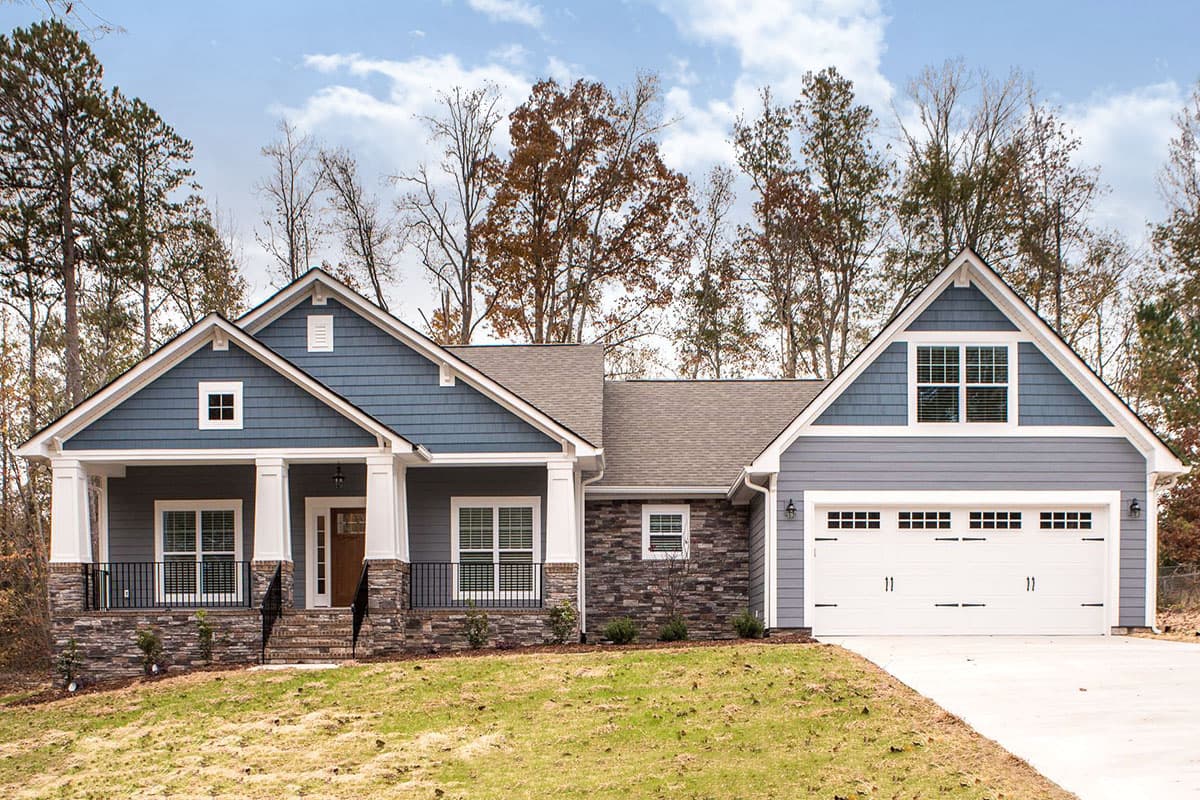

build gallery item - House Plan 51041MM comes to life in North Carolina

House Plan 51041MM comes to life in North Carolina

11

Photos

What's Included

  • Cover Sheet: Showing architectural rendering of residence.
  • Floor Plan(s): In general, each house plan set includes floor plans at 1/4" scale with a door and window schedule.
  • Foundation Plan and Details
  • Electrical Plan with Symbols Legend: In general, each house plan set includes an electrical plan which will show the suggested locations of lights, receptacles, switches, etc.
  • Roof Drainage Plan: In general, each house plan set may include a roof drainage plan which will show the layout of all roof sections/planes.

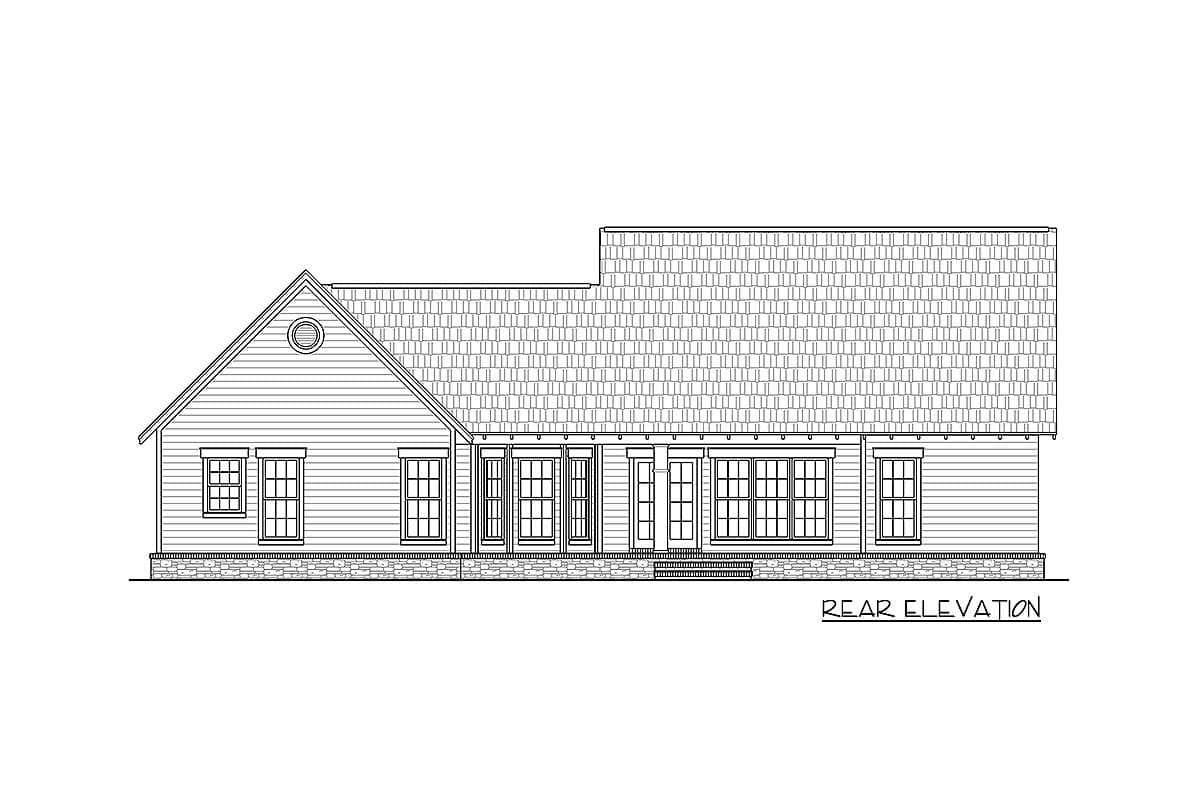

  • Exterior Elevations: In general, each house plan set includes all applicable front, side and rear elevations, as well as any special exterior details.
  • Interior Elevations: Where applicable, each house plan set includes relevant interior elevations, including cabinets, cabinet details, columns and walls with unique conditions.
  • Building Sections and Details


What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,800 sq. ft.

1st Floor

1,800 sq. ft.

Bonus

326 sq. ft.

Porch, Front

218 sq. ft.

Porch, Rear

211 sq. ft.

Storage

122 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

65' 0"

Depth

56' 8"

Max Ridge Height

23' 7"

Garage

Type

Attached

Area

558 sq. ft.

Count

2 Cars

Entry Location

Front, Side

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Craftsman

Northwest

Special Features

Bedrooms - Split

Bonus Room

Breakfast Nook

Flex Room

Home Office

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Playroom

Plan Collections

Home Office

Photo Gallery

USDA Approved
