Plan 5188MM
Inviting Home Plan with Front and Rear Porches
Heated S.F.
1,800
Beds
3
Baths
2
Stories
1-2
Cars
2
Photos
Floor Plan

Plan 5188MM

Main Level
slide image 0
Bonus Level
slide image 1

Plan 5188MM

1-800-854-7852

1-262-521-4596

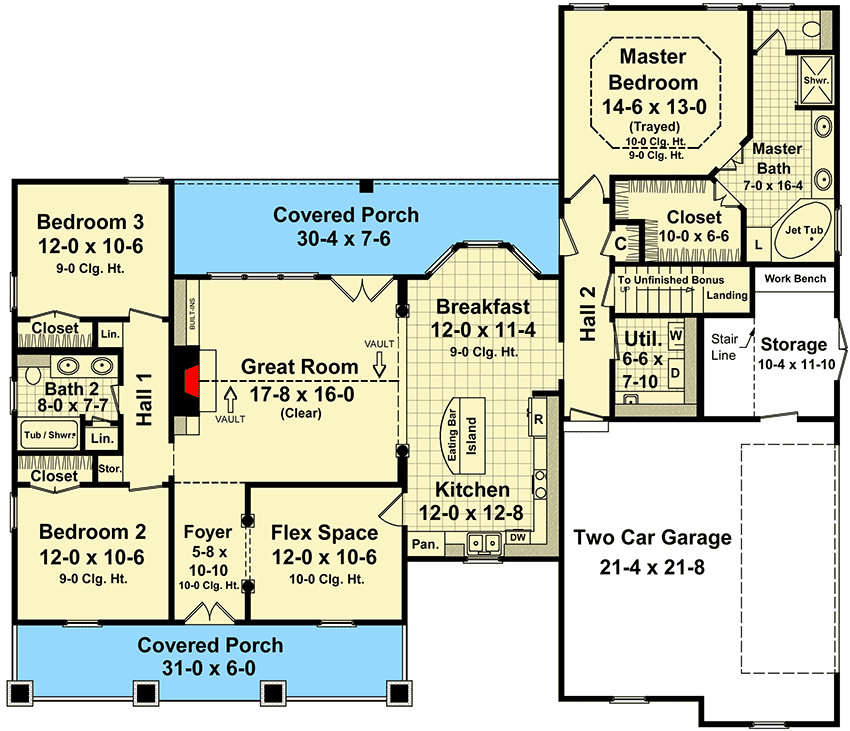

Main Level
floor plan image Main Level

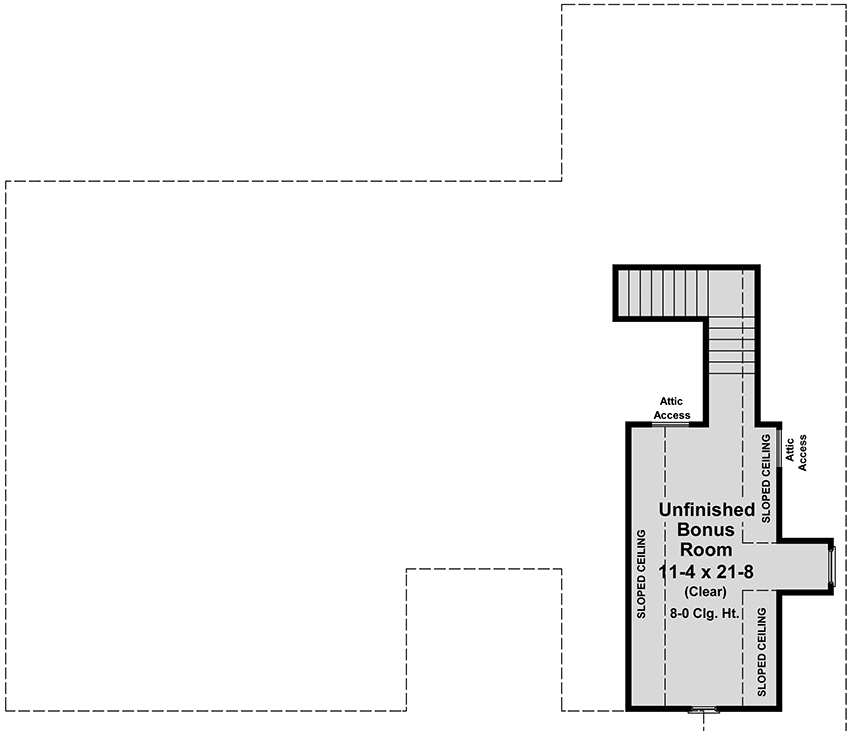

Bonus Level
floor plan image Bonus Level
Plan Details

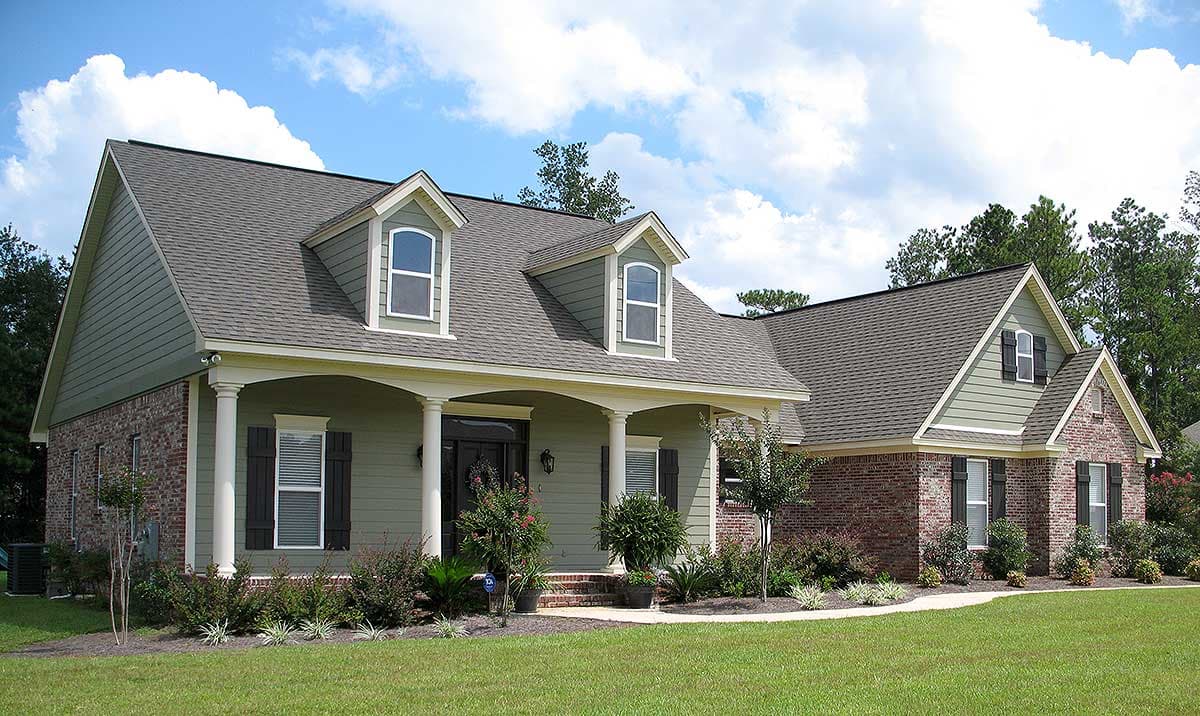

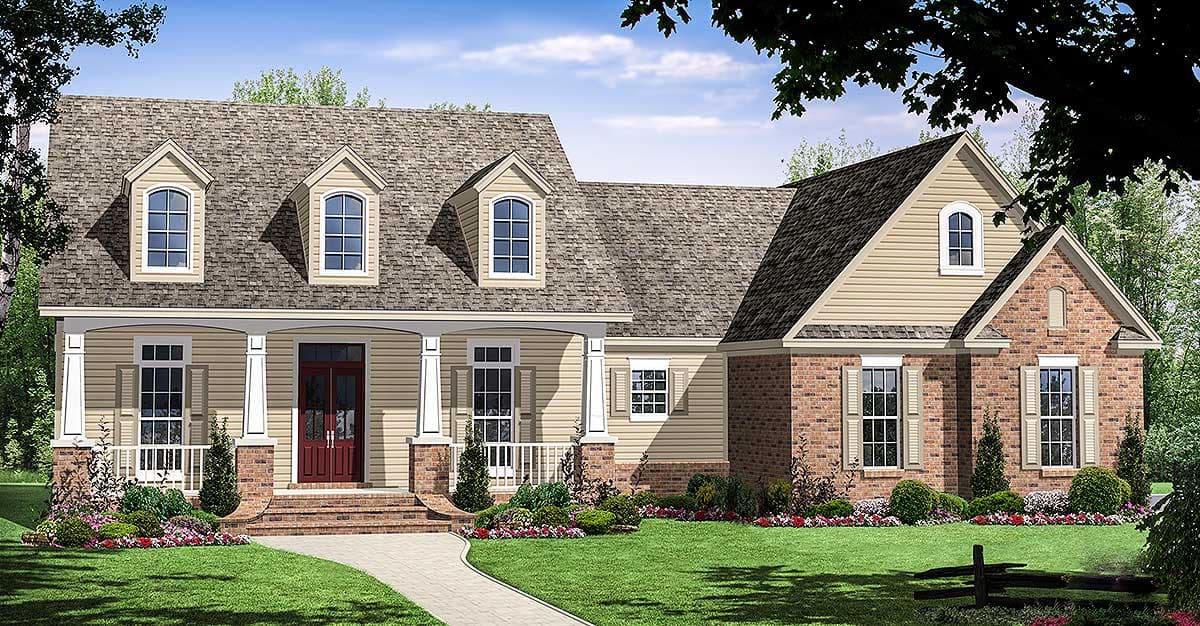

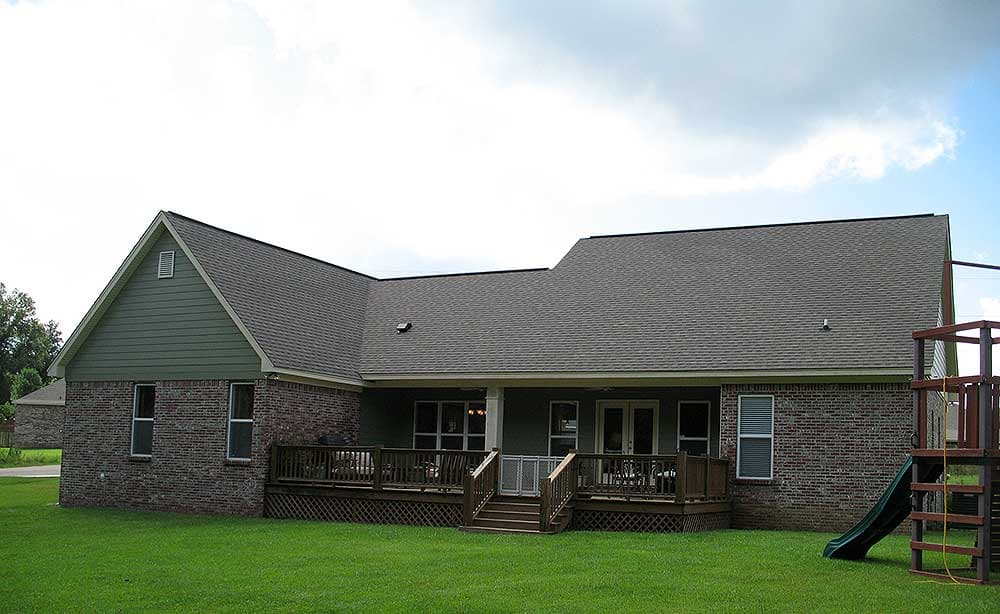

  • This inviting home plan has country styling with upscale features and the front and rear covered porches add usable outdoor living space.

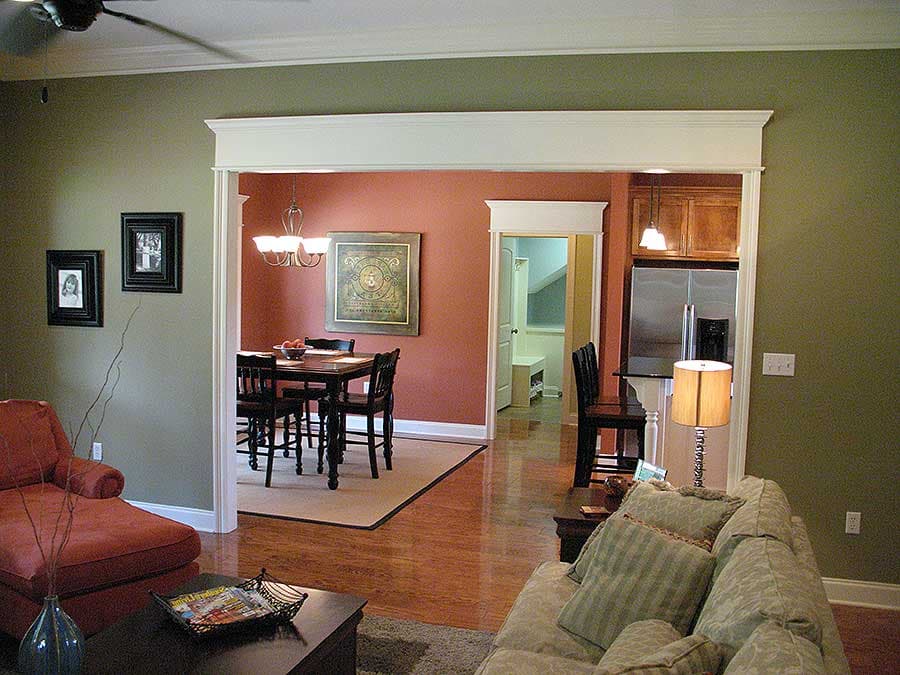

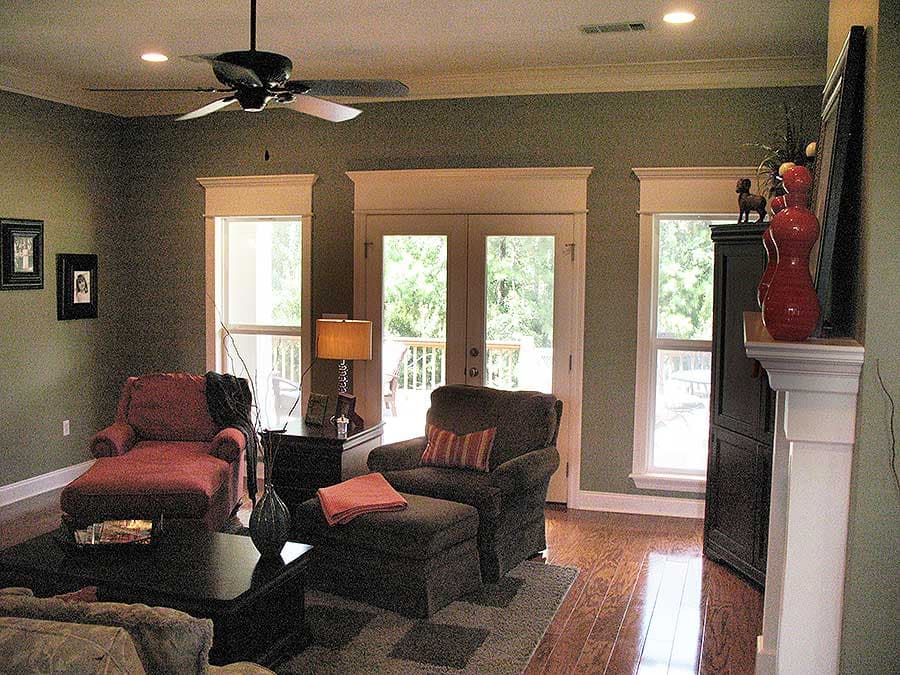

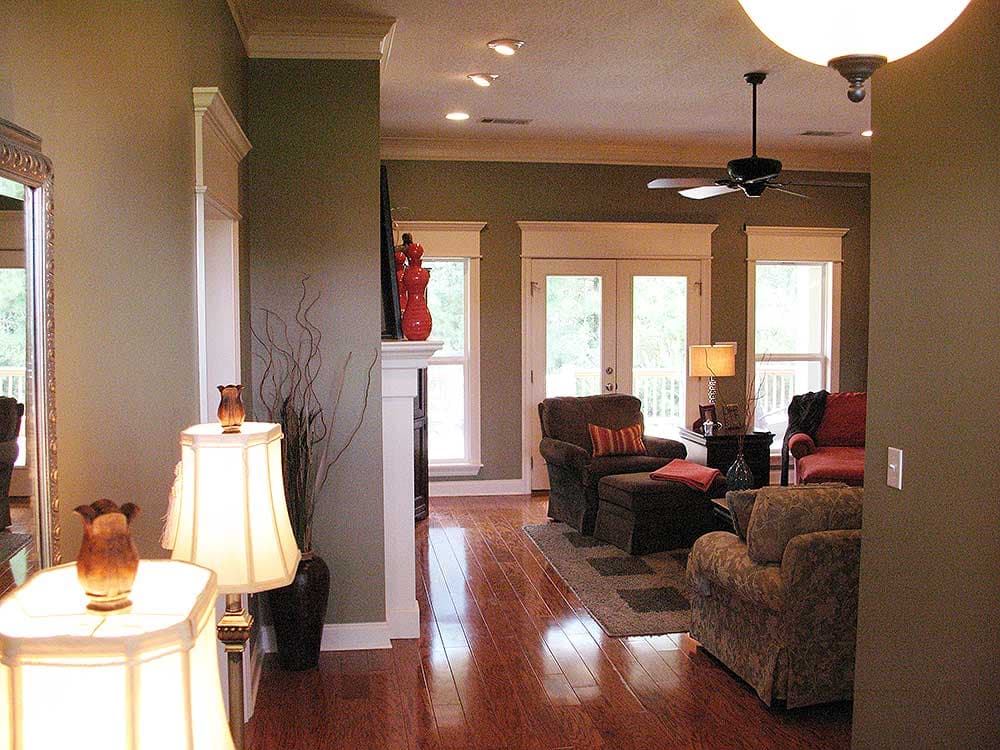

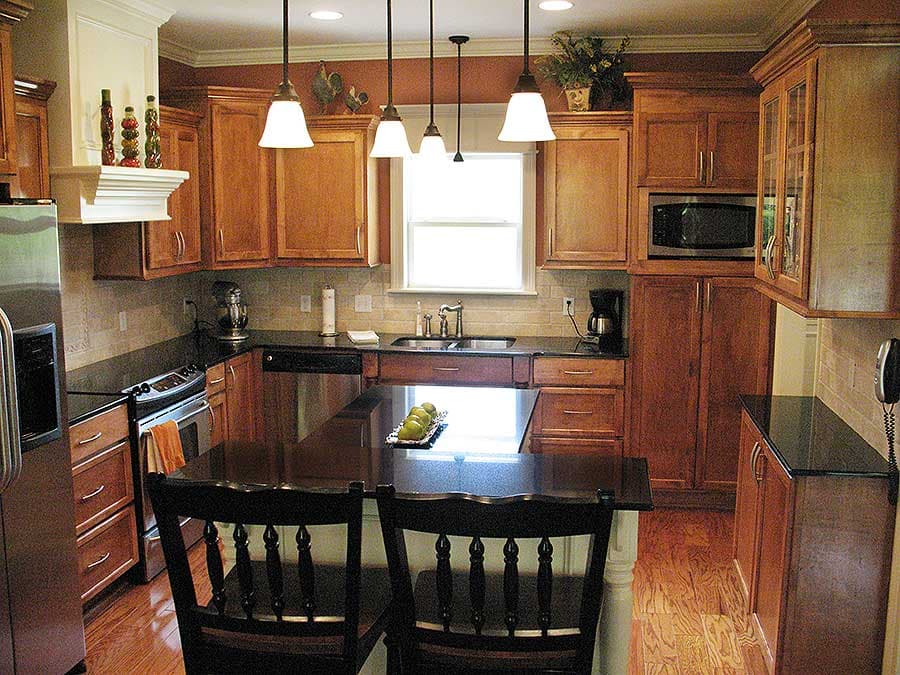

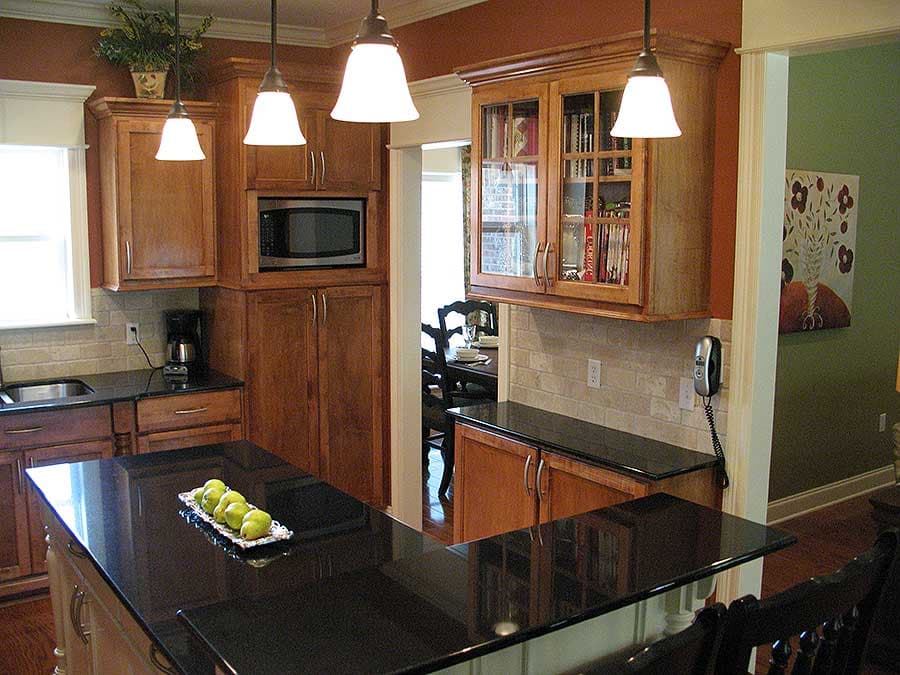

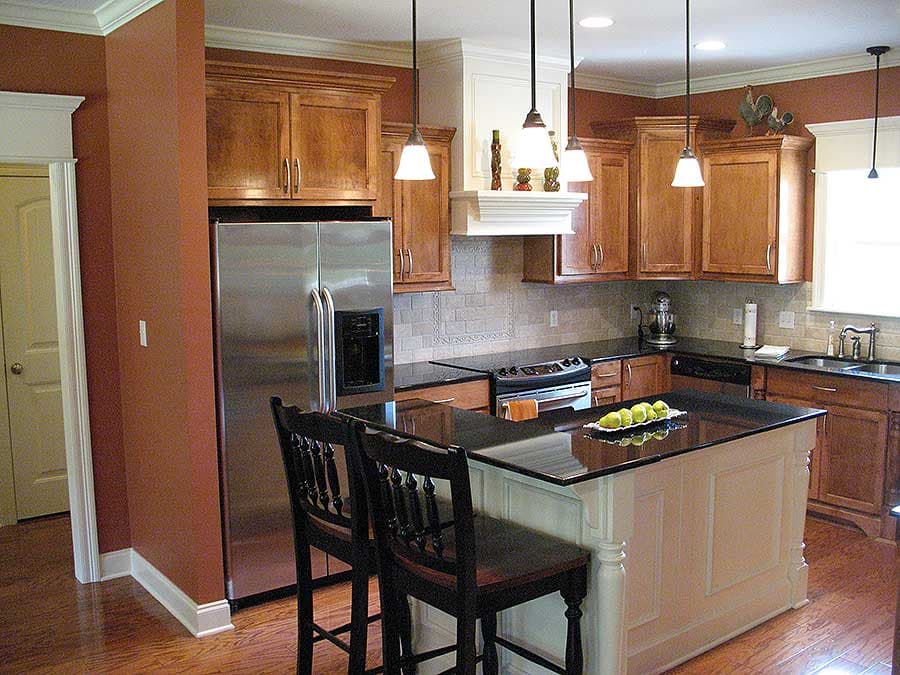

  • The great room is vaulted with built in cabinets and a gas fireplace. The spacious kitchen has an island with an eating bar. The hall bath is equipped with dual lavatories for convenience.

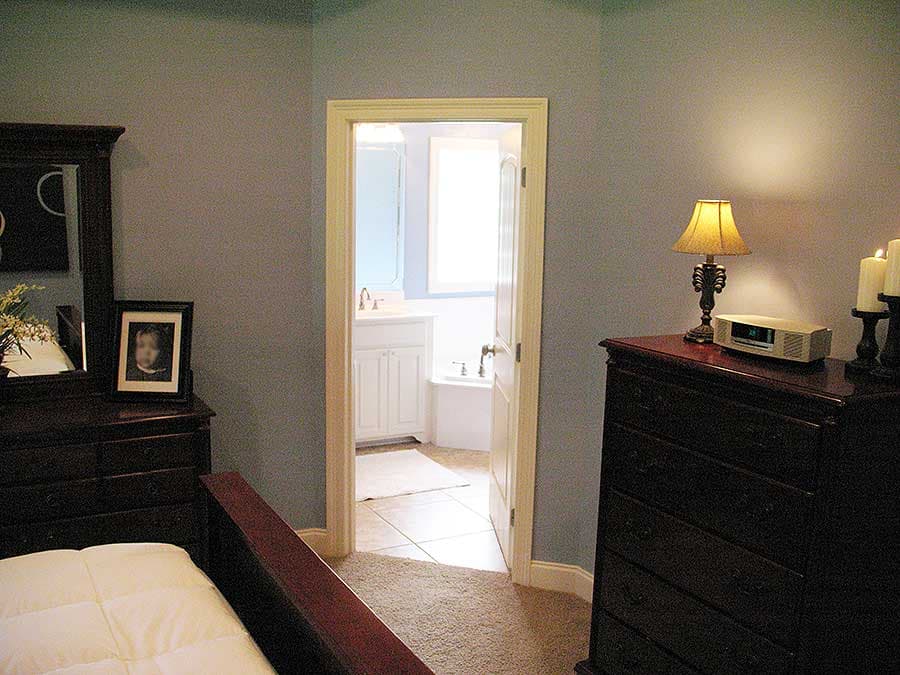

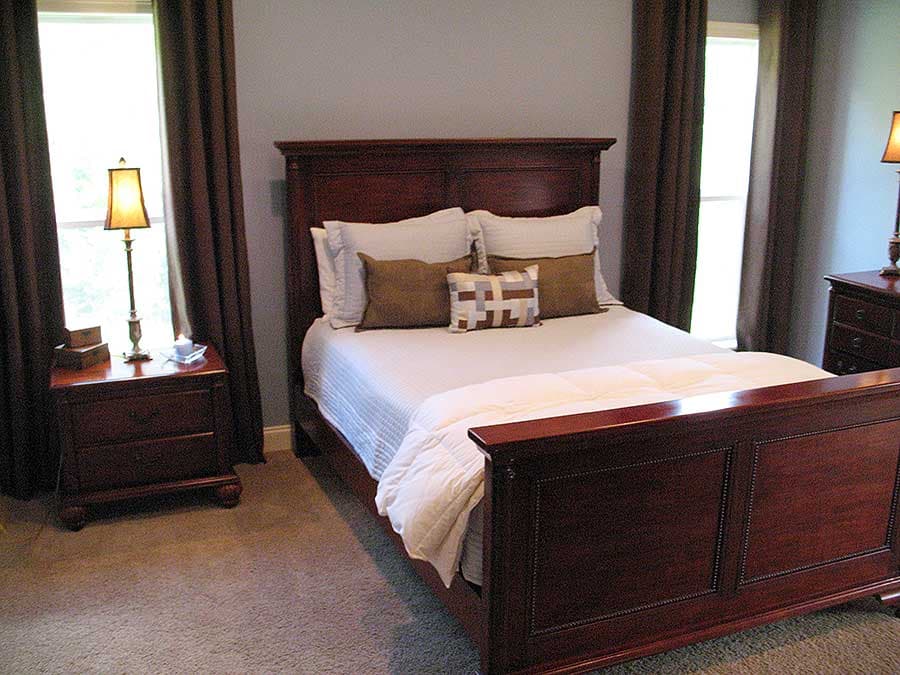

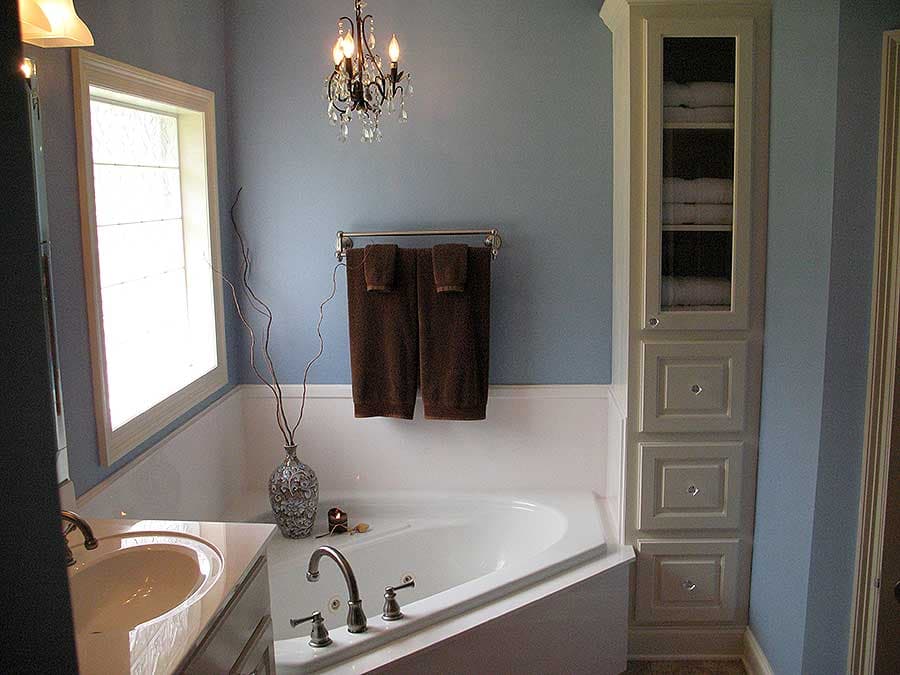

  • The master bedroom has a raised ceiling and opens into the well equipped bath with dual lavatories, corner tub and walk in closet.

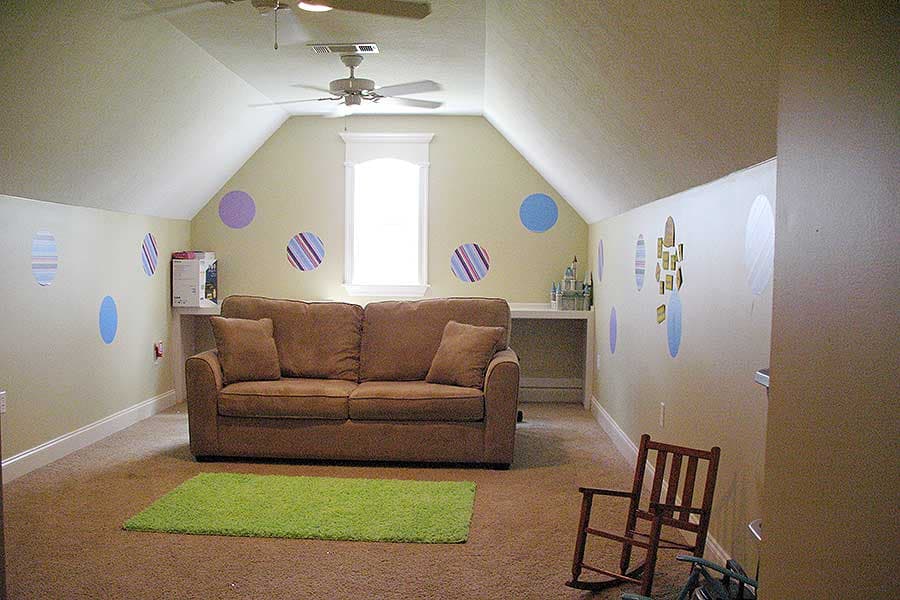

  • There is a shop area off the garage for projects and storage. Future space upstairs could be a playroom, extra bedroom, or just extra storage. The flex space could be used as a home office, dining room, or playroom.
  • Related Plans: Get a basement with house plan 51153MM and more room with house plan 51134MM (2,067 sq. ft.). Get even more room with house plans 5191MM (2,250 sq. ft.) and 5192MM (2,500 sq. ft.). Get a Craftsman exterior with house plans 51043MM, 51041MM, 51052MM and 51040MM.
Build Gallery
See and hear from existing customers with real photos, videos, and reviews.

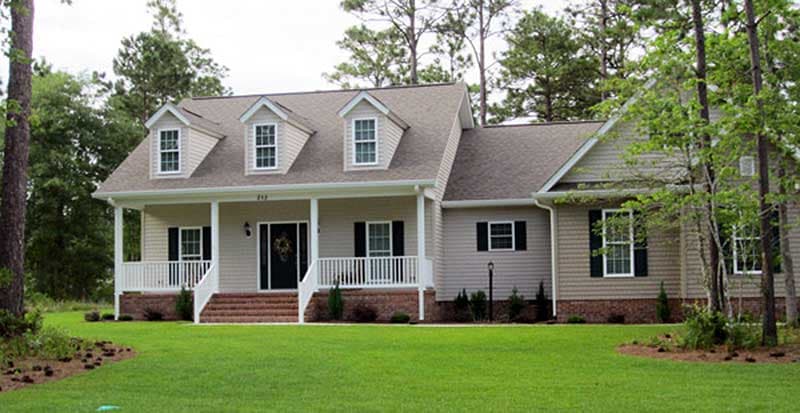

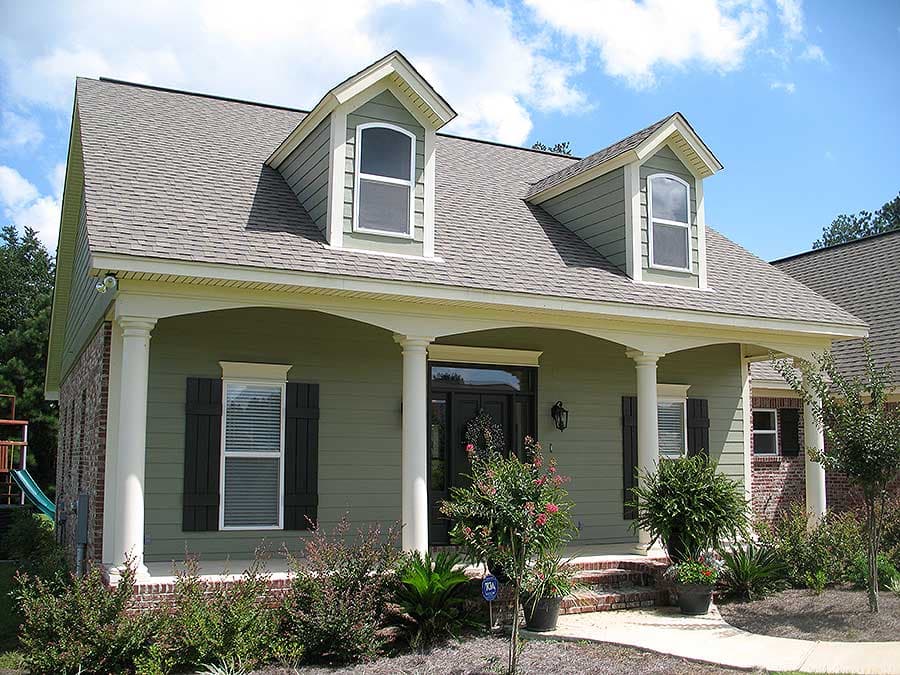

build gallery item - House Plan 5188MM Comes to life in Tennessee

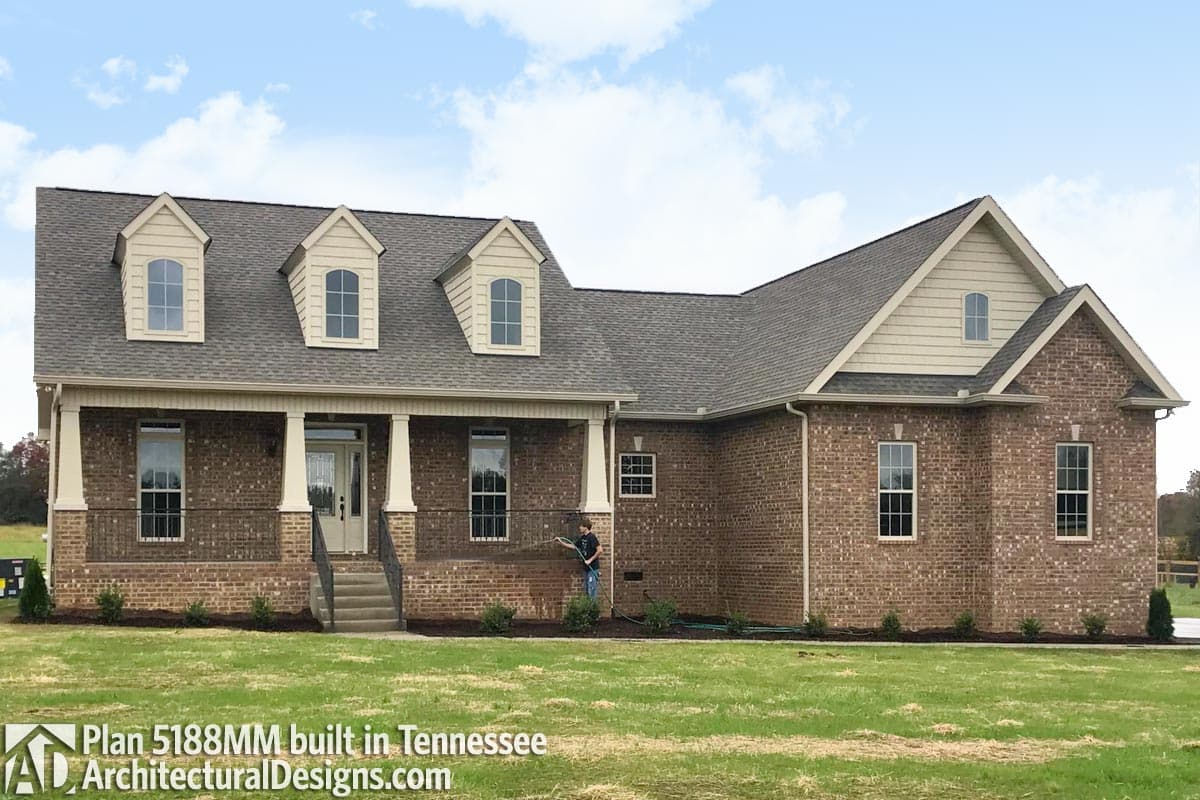

House Plan 5188MM Comes to life in Tennessee

33

Photos

What's Included

  • Cover Sheet: Showing architectural rendering of residence.
  • Floor Plan(s): In general, each house plan set includes floor plans at 1/4" scale with a door and window schedule.
  • Foundation Plan and Details
  • Electrical Plan with Symbols Legend: In general, each house plan set includes an electrical plan which will show the suggested locations of lights, receptacles, switches, etc.
  • Roof Drainage Plan: In general, each house plan set may include a roof drainage plan which will show the layout of all roof sections/planes.

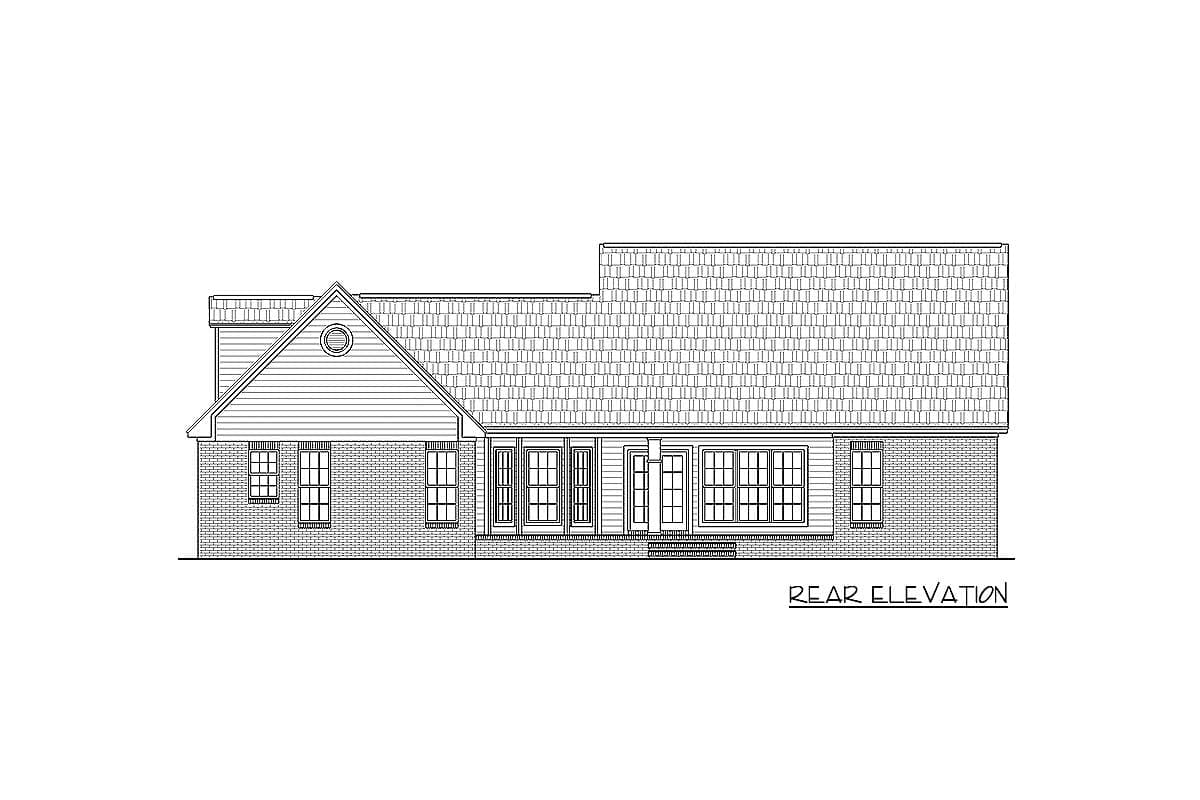

  • Exterior Elevations: In general, each house plan set includes all applicable front, side and rear elevations, as well as any special exterior details.
  • Interior Elevations: Where applicable, each house plan set includes relevant interior elevations, including cabinets, cabinet details, columns and walls with unique conditions.
  • Building Sections and Details


What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,800 sq. ft.

1st Floor

1,800 sq. ft.

Bonus

302 sq. ft.

Porch, Front

186 sq. ft.

Porch, Rear

211 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Basement, Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

65' 0"

Depth

56' 8"

Max Ridge Height

23' 6"

Garage

Type

Attached

Area

658 sq. ft.

Count

2 Cars

Entry Location

Side, Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Cottage

Country

Traditional

Special Features

Bedrooms - Split

Bonus Room

Home Office

Master Suite - 1st Floor

Playroom

Plan Collections

Home Office

Photo Gallery

USDA Approved
