Plan 9820SW
Inviting Open Floor Plan
Heated S.F.
2,604
Beds
3
Baths
3.5
Stories
2
Cars
2
Floor Plan

Plan 9820SW

Main Level
slide image 0
2nd Floor
slide image 1

Plan 9820SW

1-800-854-7852

1-262-521-4596

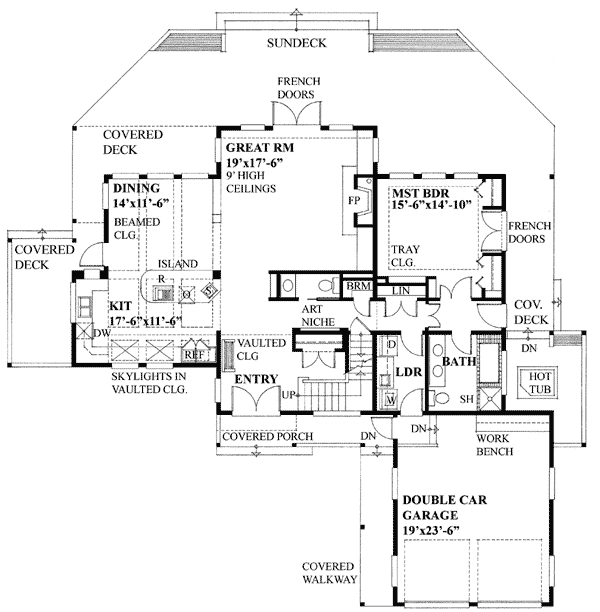

Main Level
floor plan image Main Level

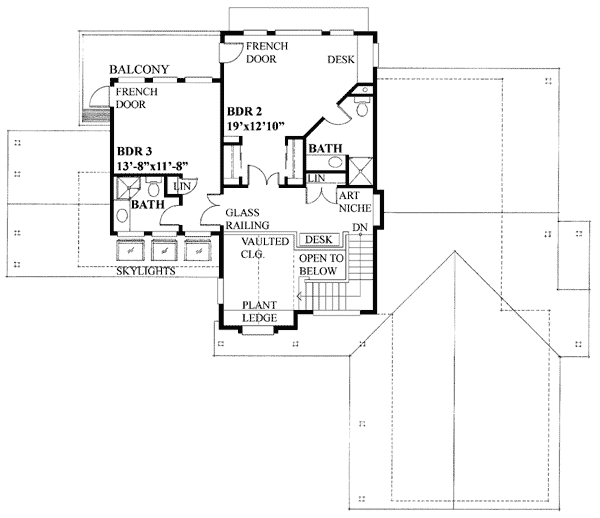

2nd Floor
floor plan image 2nd Floor
Plan Details
  • This inviting open floor plan concept boasts a 9' ceiling height on the main floor and a 2-story entry topped with a vaulted ceiling. This extra height enables the garage to have 9'-high overhead doors assuring admittance for any of the larger necessities.
  • The continuous wrap around deck creates the illusion of a much larger residence and captures all available views and sight lines. Add insect screening to one or more of the multiple covered deck locations to enhance and promote additional seasonal use or to create that special retreat environment.
  • Beamed ceiling details adorn the kitchen and adjoining dining room while the master bedroom is home to a tray ceiling treatment. Private access from the master bedroom to the secluded covered hot tub deck is provided through French Doors.
  • The upper floor is dedicated to two additional bedrooms each outfitted with separate bathrooms and access to a shared rear facing balcony.
  • House plans come with a below-grade unfinished basement foundation plan.
What's Included
  • Cover sheet with rendering
  • General notes and specifications
  • Foundation plan
  • Fully dimensioned floor plan - windows are called out as generic sizes
  • Structural floor/roof information either on the floor plans or separate framing plans for more complex designs
  • Electrical
  • Cross sections
  • Details as required
  • Elevations
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
  • Interior Cabinet Elevations or Window Schedules
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,604 sq. ft.

1st Floor

1,584 sq. ft.

2nd Floor

1,020 sq. ft.

Porch, Combined

687 sq. ft.

Deck

708 sq. ft.

Balcony / Veranda

144 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Daylight

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

72' 0"

Depth

60' 0"

Max Ridge Height

31' 3"

Garage

Type

Attached

Area

473 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

8 on 12

Architectural Style

Cottage

Country

Special Features

Formal Dining

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Plan Collections

Canadian House Plans

Square Footage Breakdown

Total Heated Area

2,604 sq. ft.

1st Floor

1,584 sq. ft.

2nd Floor

1,020 sq. ft.

Porch, Combined

687 sq. ft.

Deck

708 sq. ft.

Balcony / Veranda

144 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Daylight

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

72' 0"

Depth

60' 0"

Max Ridge Height

31' 3"

Garage

Type

Attached

Area

473 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

8 on 12

Architectural Style

Cottage

Country

Special Features

Formal Dining

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Plan Collections

Canadian House Plans
