Plan 35141GH: King of the Mountain

Plan 35141GH

King of the Mountain

Heated S.F.

2,075

Beds

Baths

Stories

Cars

Floor Plan

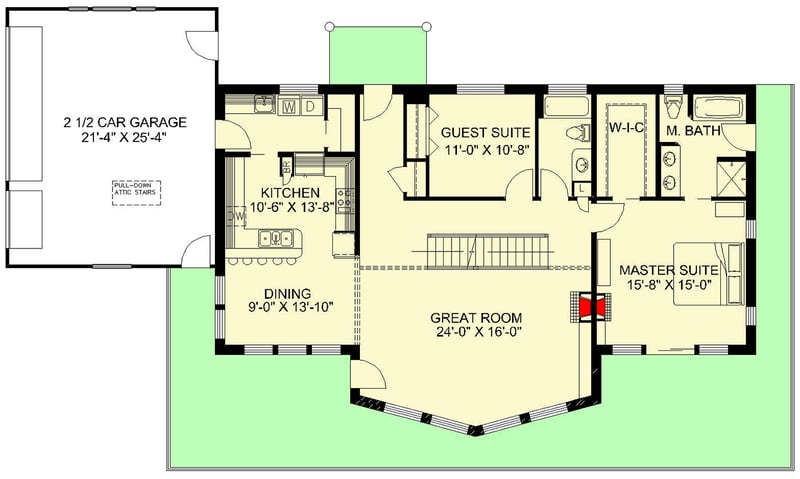

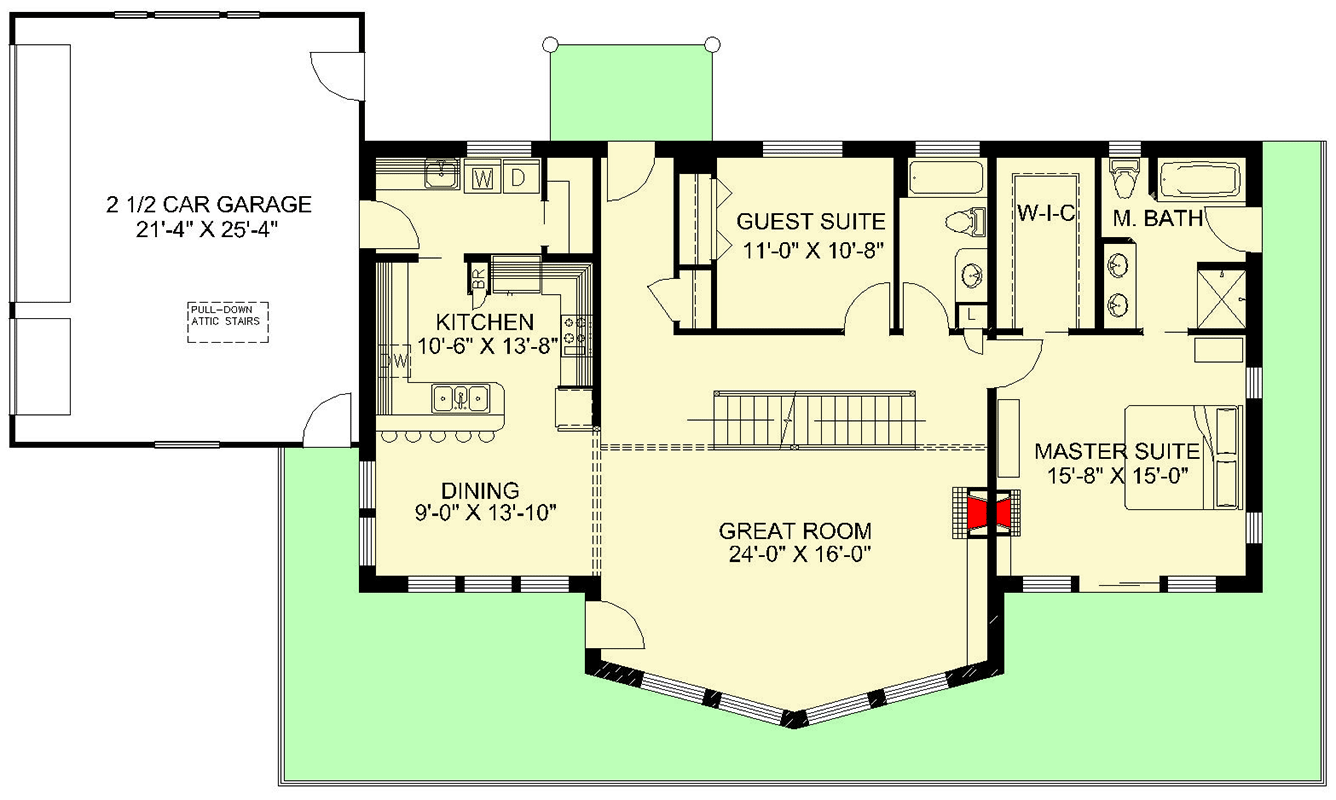

Main Level

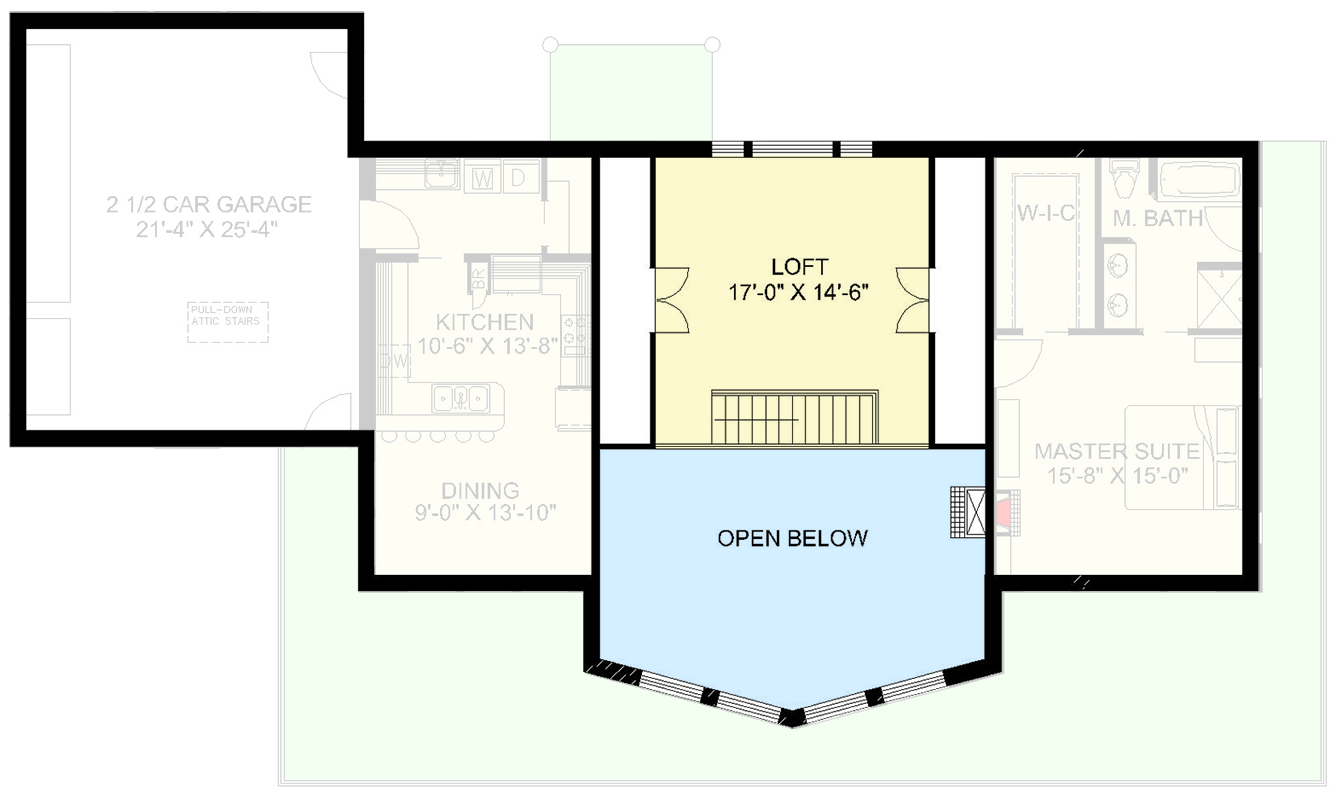

2nd Floor

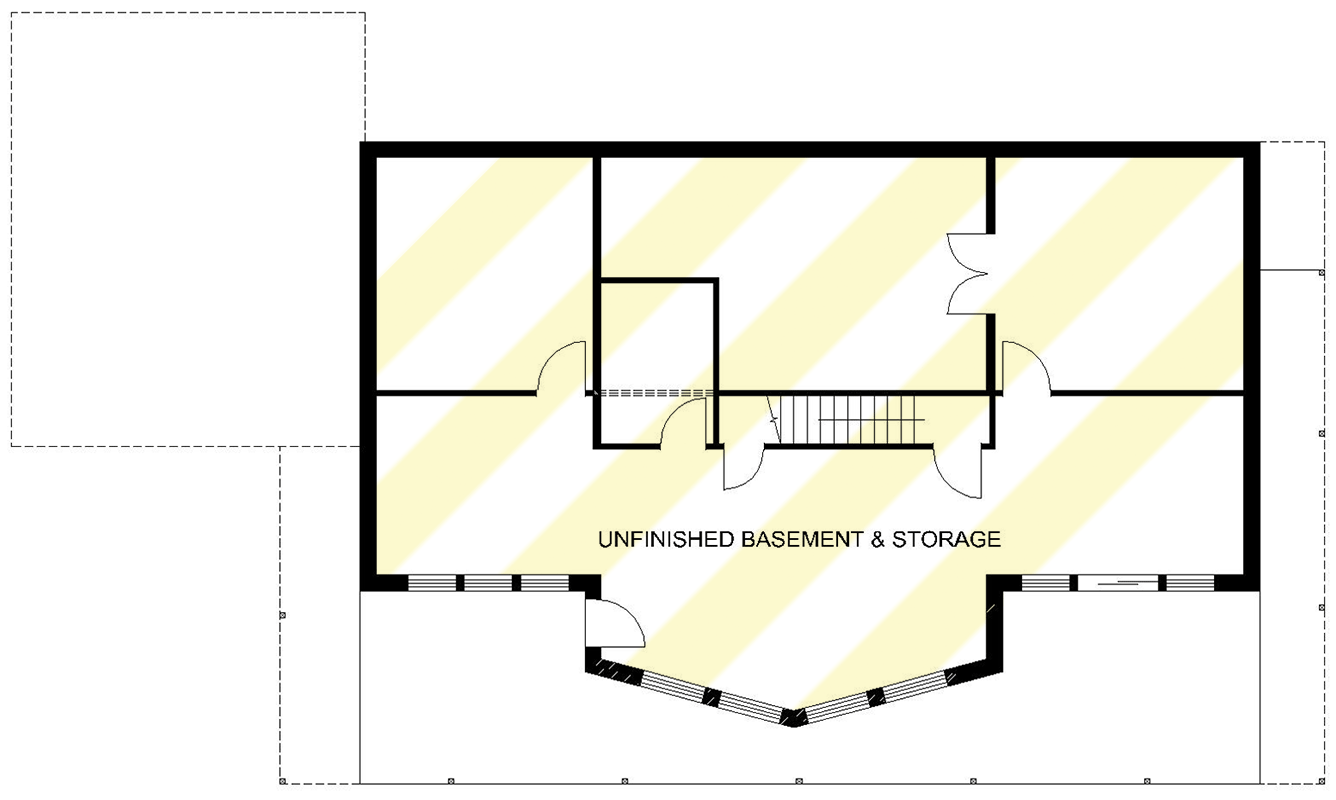

Optional Lower Level

Plan Details

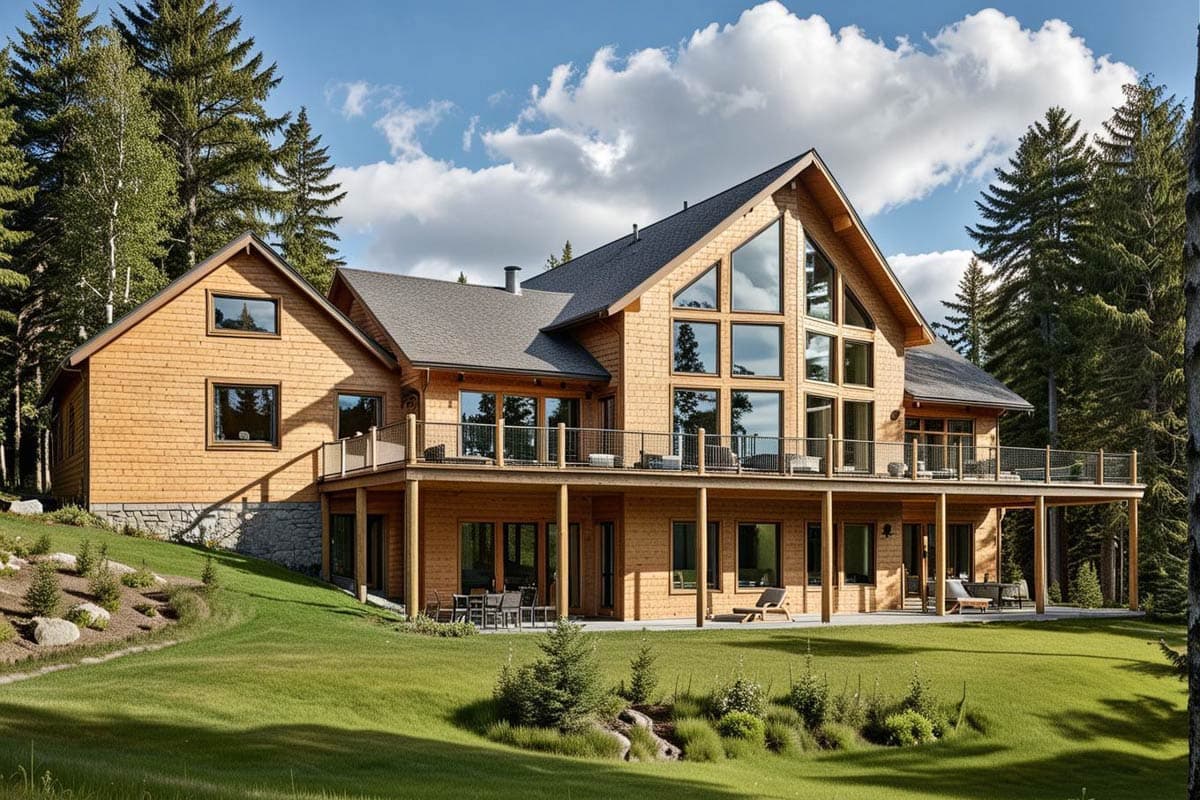

Feel like the king of the mountain in your own mountain lodge with two story windows geared to take advantage of your views.
On the main level, lots of open decks provide space to sit and enjoy the views and the sun.
The focal point of the great room is the warm fireplace where you can relax and enjoy the views from the two-story windows.
Windows surround the dining room with light and close proximity to the kitchen makes serving a breeze.
A large walk-in closet and a spa bath pamper the owners who also have their own access to the deck. A second bedroom can be used as a study.
On the upper level you'll find a spacious loft with walls lined with closets or storage.
Finish the lower level later. There's lots of room and you are only limited by your imagination.
Related Plans: Remove the loft and gain a finished lower level with house plans 35221GH and 35042GH. Build with 2x6 and get a larger finished upper level with house plan 35244GH. Get an RV garage with house plan 35398GH.

What's Included

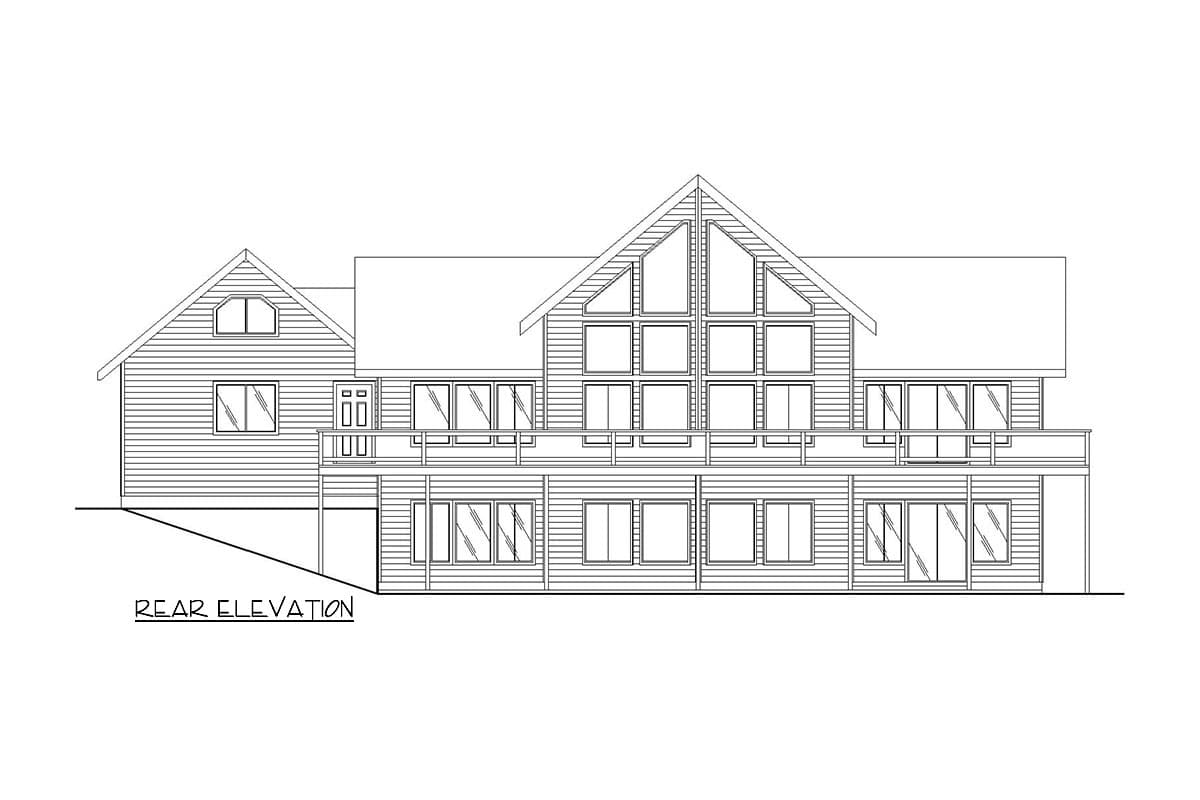

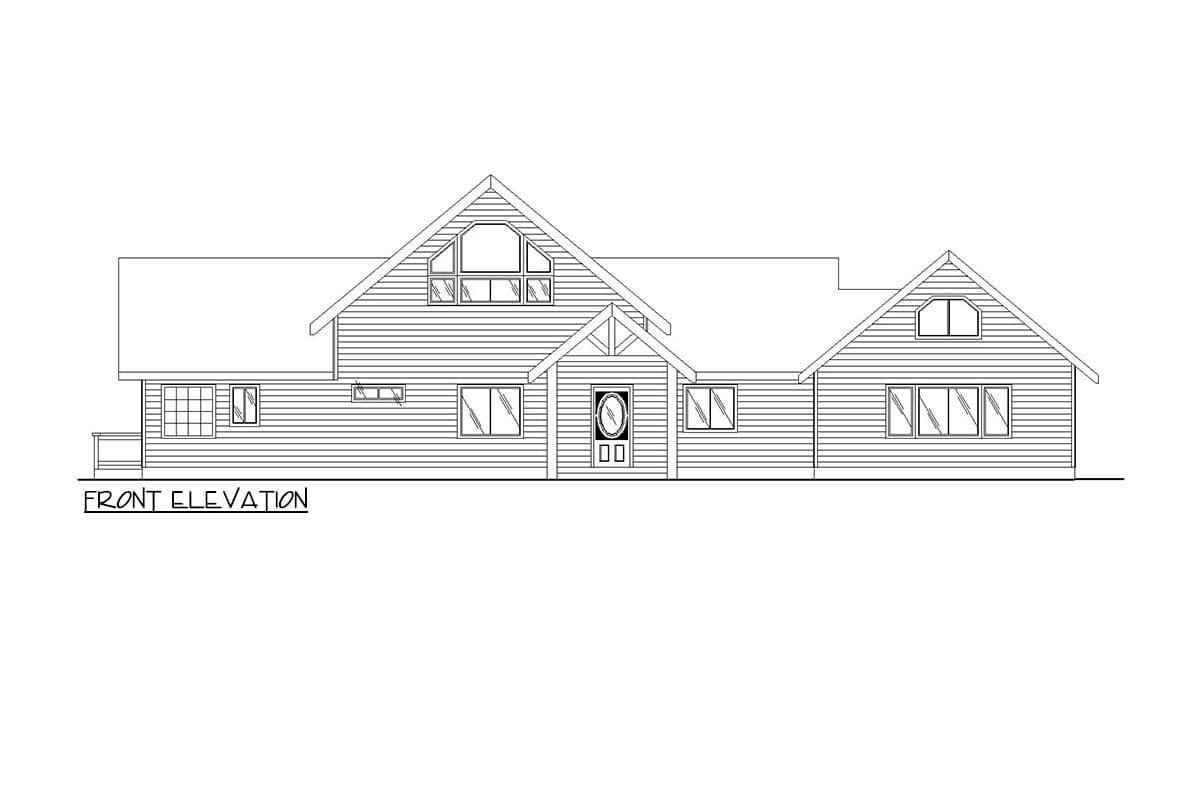

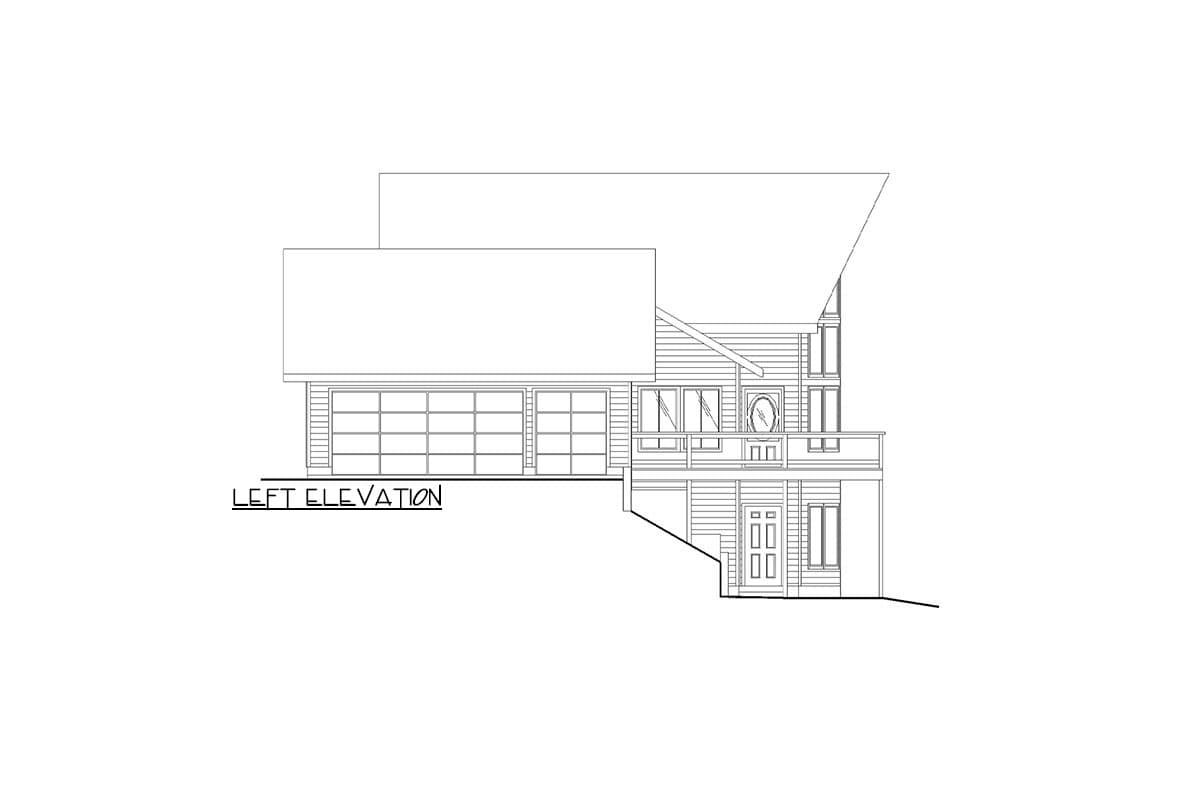

Exterior Elevations: The exterior elevations provide exterior views of the house and call out the exterior finish materials, such as siding, stucco, brick, stone, etc. This page also shows roof pitches and materials, and decorative elements, such as columns and window shutters. Sometimes window and door sizes are also shown here.
Floor Plans: The floor plan shows how each room is laid out on each floor of the house. In most cases, the floor plan will include wall sizes, room dimensions, notes about ceiling design, window and door locations and sizes, and other structural layout notes and details.
Foundation Plan: This page provides a detailed foundation drawing, including the thickness of the foundation walls, how the foundation is built, footing and wall placement, Rebar schedule, as well as other construction notes and details. This page may also include a floor framing plan.
Cross Sections: Cross sections are views from the top to the bottom of the house plan showing structural details related to the construction of the home. They will show the composition of the foundation, interior and exterior walls, roof, floor and stair details. They also show rooflines, ceiling heights, and the relationships between floors. Cross sections may be on a separate page or on various pages throughout the home plan.
Basic Electric: This page shows the locations of outlets, switches, and fixtures. It may be on a separate page, or located on the floor plan page.
Simple Plumbing: This page shows the locations of the bathtubs, showers, toilets, and sinks. This may be found on the floor plan, or it might be on a separate page.
Details: This page includes the structural details for the construction of the house.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
