Plan 777053MTL

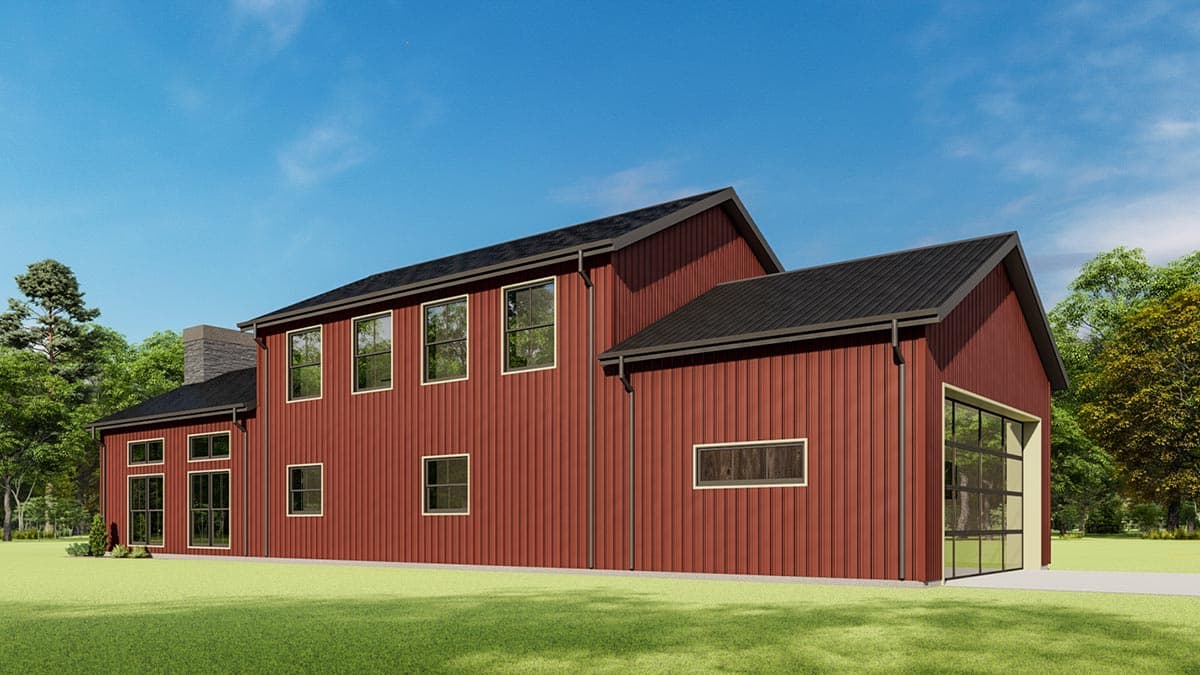

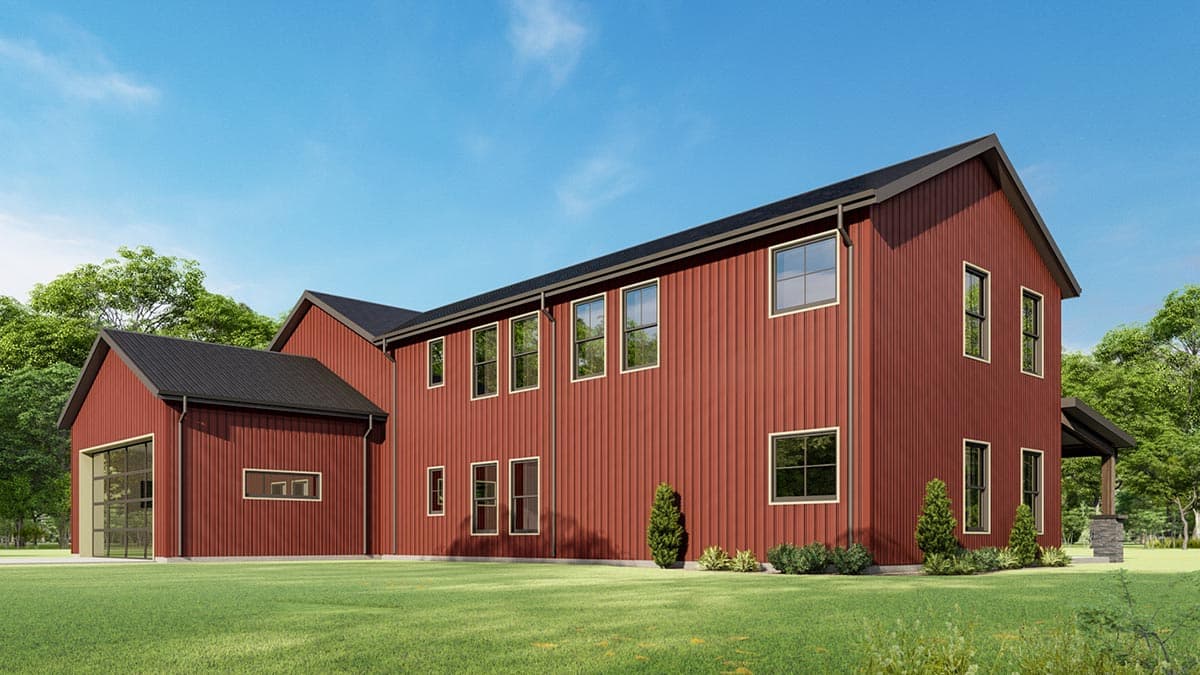

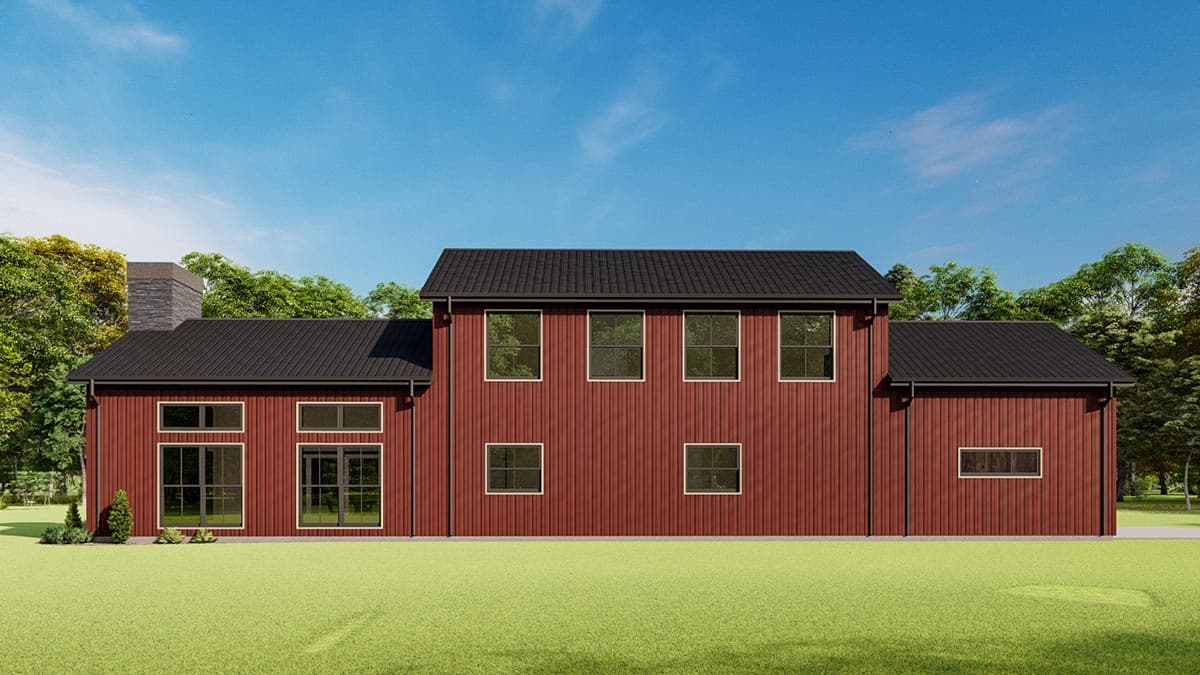

L-Shaped House Plan with Upstairs Family Room, Kitchenette and Home Office
Heated S.F.
3,971
Beds
5
Baths
4.5
Stories
2
Cars
2
Floor Plan

Plan 777053MTL

Main Level
slide image 0
2nd Floor
slide image 1
Wall Framing Section
slide image 2

Plan 777053MTL

1-800-854-7852

1-262-521-4596

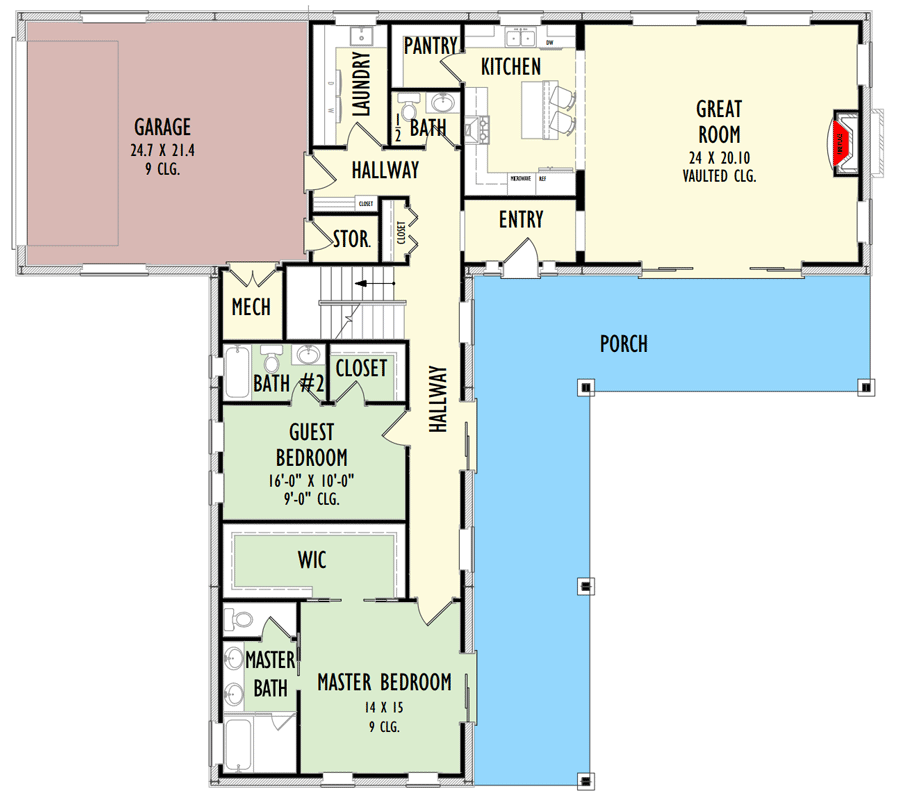

Main Level
floor plan image Main Level

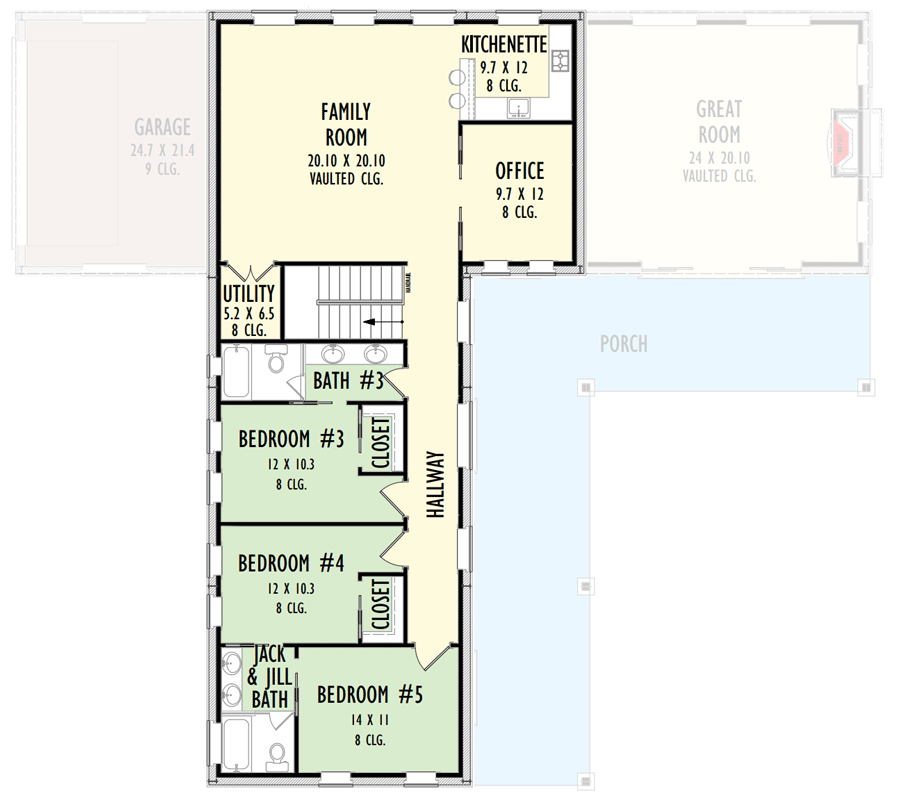

2nd Floor
floor plan image 2nd Floor
Wall Framing Section
floor plan image Wall Framing Section
Plan Details

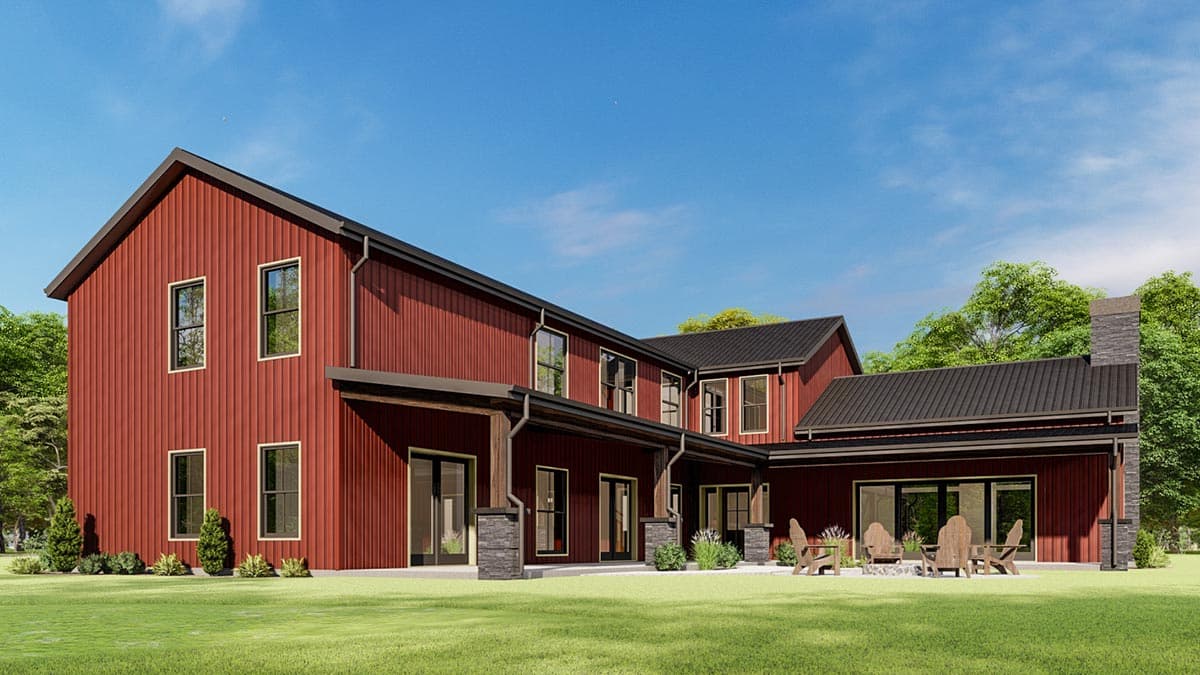

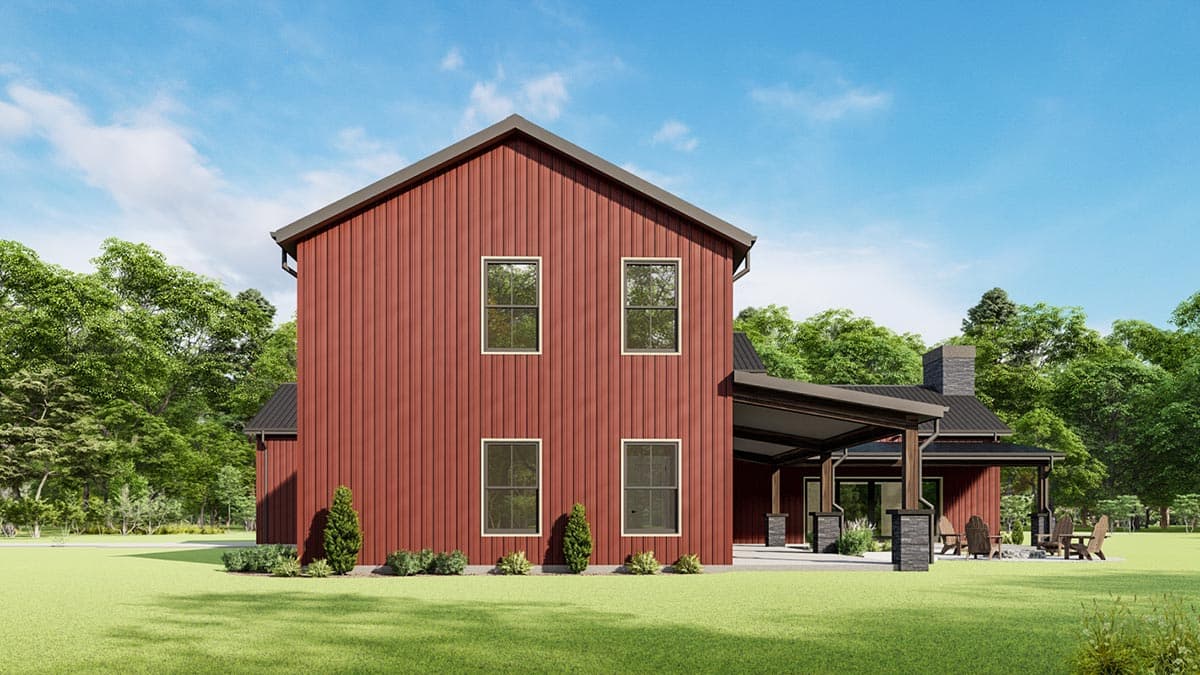

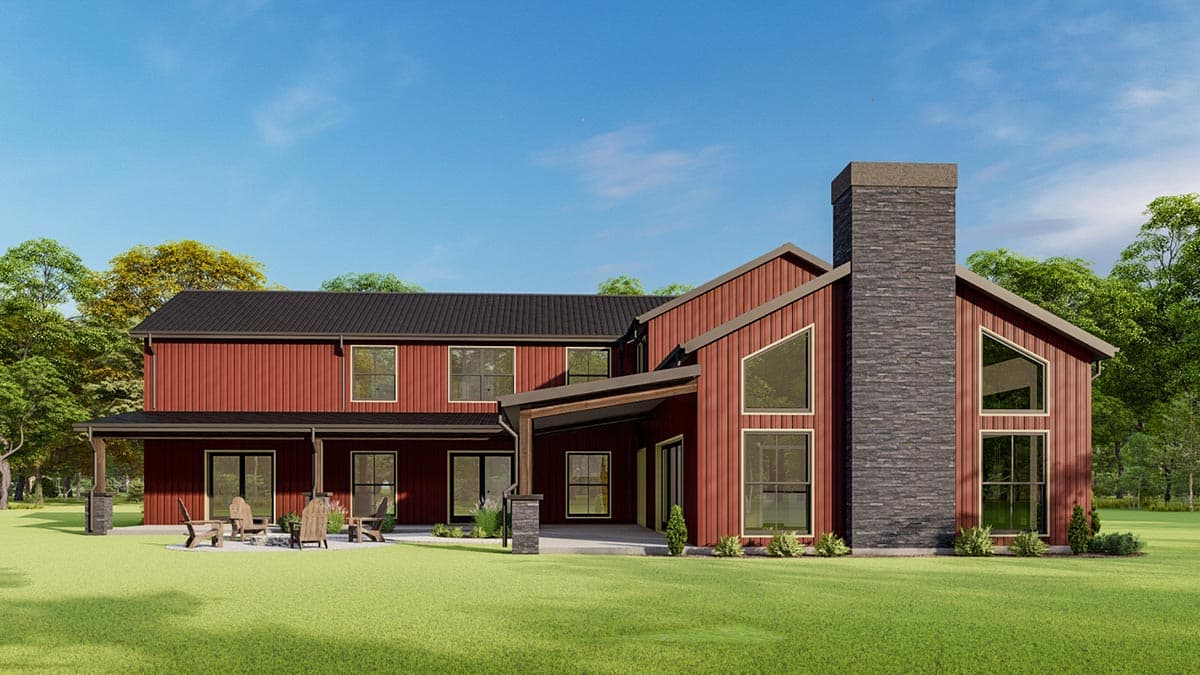

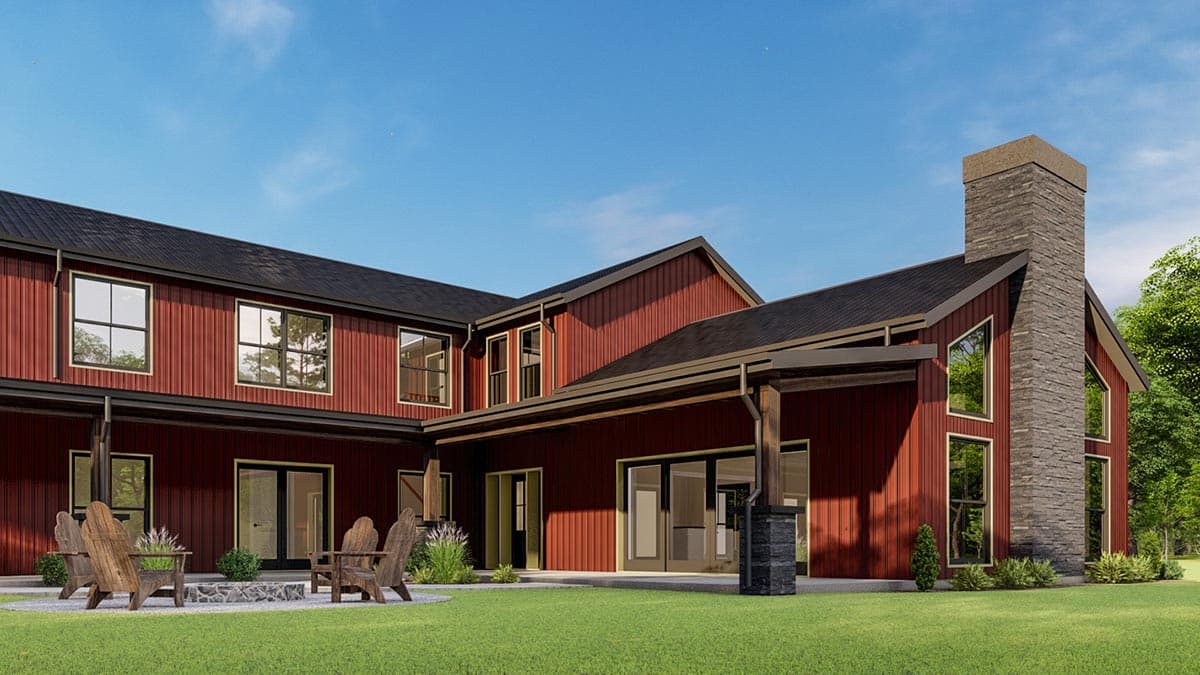

  • This L-shaped house plan has a wrapping porch with four points of access - the front entry, the great room, the master suite and the hall - giving you multiple ways to enjoy the outdoors.
  • The great room with fireplace is under a vaulted ceiling and opens to the kitchen with island and walk-in pantry.
  • Upstairs, a family room with kitchenette and a home office behind pocket doors are all to the left of the stairs while to the right, three bedrooms and two baths await.

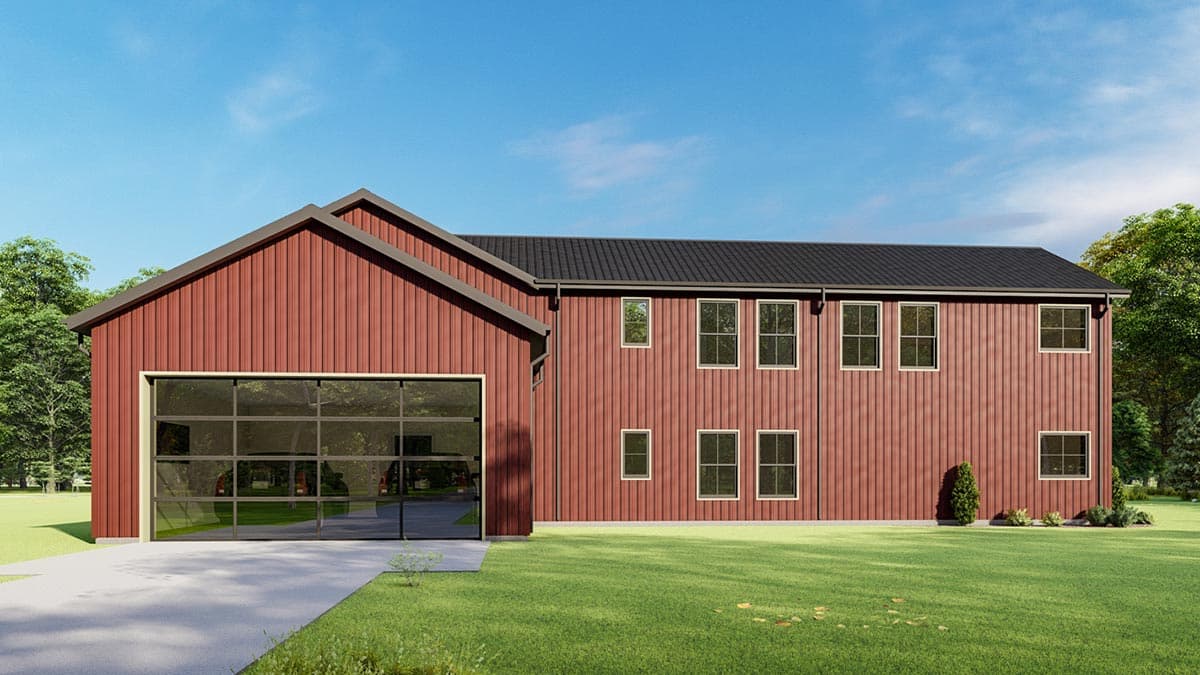

  • A 2-car garage has a storage closet in back.
  • An L-shaped porch This Metal House Plan was designed with a Pre-Engineered Metal Building (PEMB) in mind. A PEMB is the most commonly used structure when building a barndominium. A PEMB can be engineered, fabricated and shipped to any location in the world and generally can be installed in a much shorter time than a traditionally framed home. Pre-Engineered Metal Buildings get a project in the dry very quickly and allow for interior build-outs to be convenient, not having to support roof loads.
  • This metal house plan is available with 2x6 exterior framing by selecting it from the Options menu.
What's Included
  • Cover sheet
  • Foundation Plan
  • Floor plan with basic Electrical Plan and Door/Window Schedule
  • Roof Plan
  • Elevations with necessary sections
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

3,971 sq. ft.

1st Floor

2,177 sq. ft.

2nd Floor

1,794 sq. ft.

Porch, Front

720 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Metal

Optional Type(s)

2x6

Dimensions

Width

75' 0"

Depth

68' 0"

Max Ridge Height

26' 0"

Garage

Type

Attached

Area

583 sq. ft.

Count

2 Cars

Entry Location

Rear

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

2 on 12

Framing Type

PEMB and Stick

Architectural Style

Barndominium

Country

Farmhouse

Modern Farmhouse

New American

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Game/Rec Room

Home Office

Laundry - Main Level

Master Suite - 1st Floor

Two Story Great Room

Plan Collections

Home Office

Square Footage Breakdown

Total Heated Area

3,971 sq. ft.

1st Floor

2,177 sq. ft.

2nd Floor

1,794 sq. ft.

Porch, Front

720 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Metal

Optional Type(s)

2x6

Dimensions

Width

75' 0"

Depth

68' 0"

Max Ridge Height

26' 0"

Garage

Type

Attached

Area

583 sq. ft.

Count

2 Cars

Entry Location

Rear

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

2 on 12

Framing Type

PEMB and Stick

Architectural Style

Barndominium

Country

Farmhouse

Modern Farmhouse

New American

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Game/Rec Room

Home Office

Laundry - Main Level

Master Suite - 1st Floor

Two Story Great Room

Plan Collections

Home Office
