Plan 92322MX

Exclusive

Lake House Plan With 4 Bunks and 3 Bedrooms - 2347 Sq Ft
Heated S.F.
2,347
Beds
3 - 4
Baths
2.5
Stories
1
Floor Plan

Plan 92322MX

Main Level
slide image 0
Lower Level
slide image 1
3D View - Main Level
slide image 2
3D View - Lower Level
slide image 3

Plan 92322MX

1-800-854-7852

1-262-521-4596

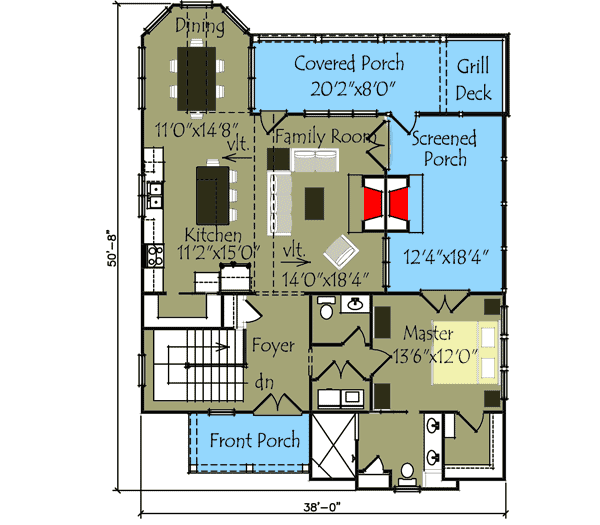

Main Level
floor plan image Main Level

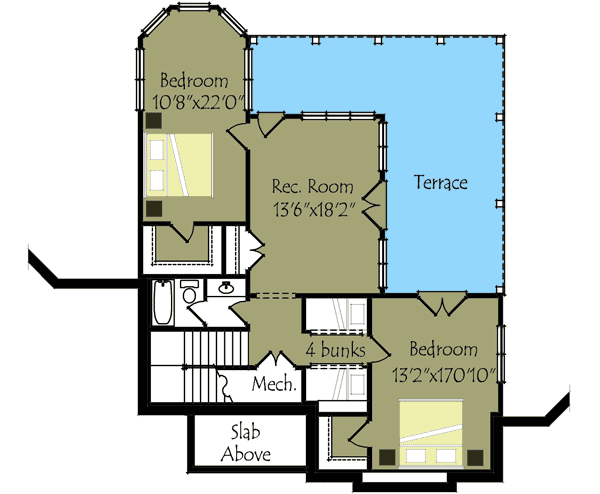

Lower Level
floor plan image Lower Level

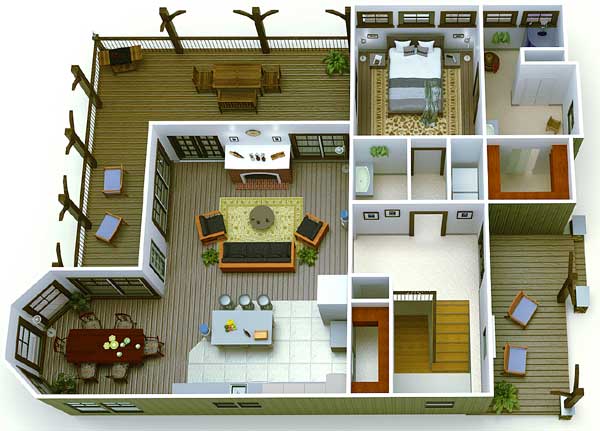

3D View - Main Level
floor plan image 3D View - Main Level

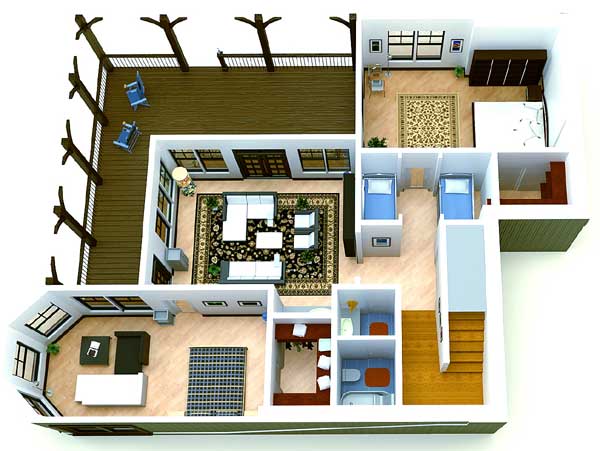

3D View - Lower Level
floor plan image 3D View - Lower Level
Plan Details
  • Bring all your friends and family to this lake house plan with 3 bedrooms (one on the main floor and 2 on the lower) plus 4 bunks on the lower level to accommodate.

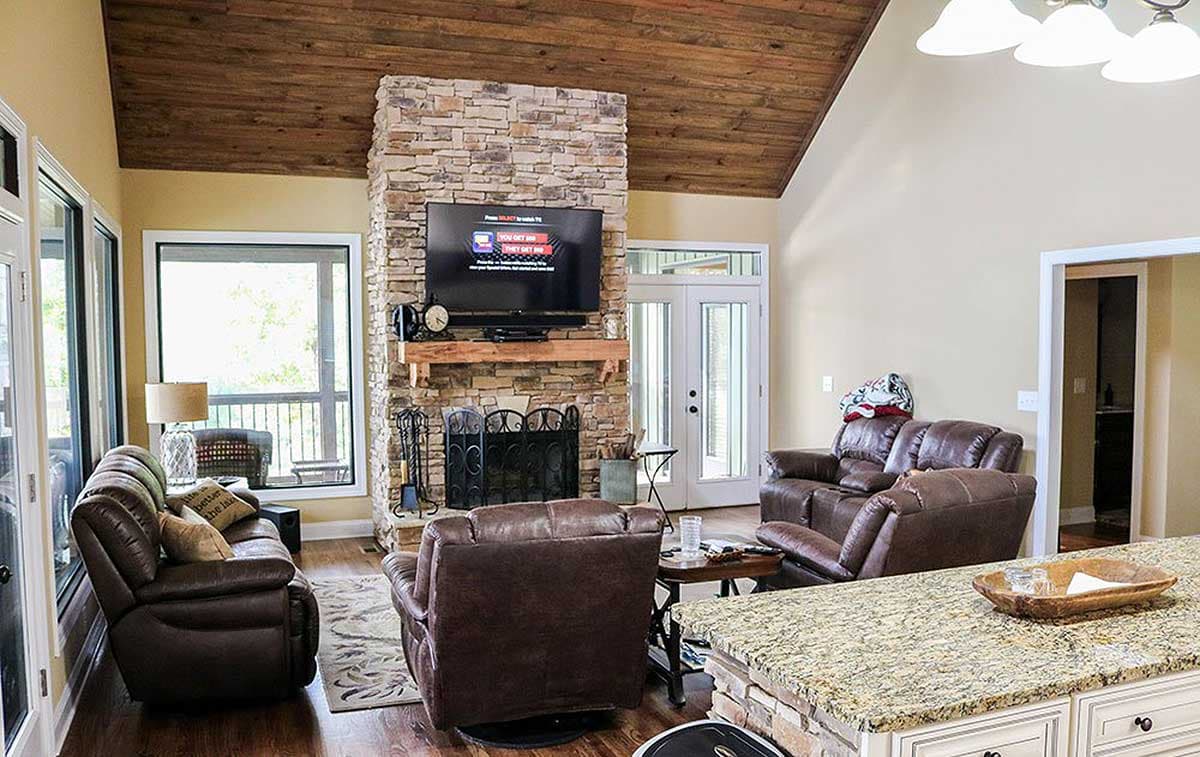

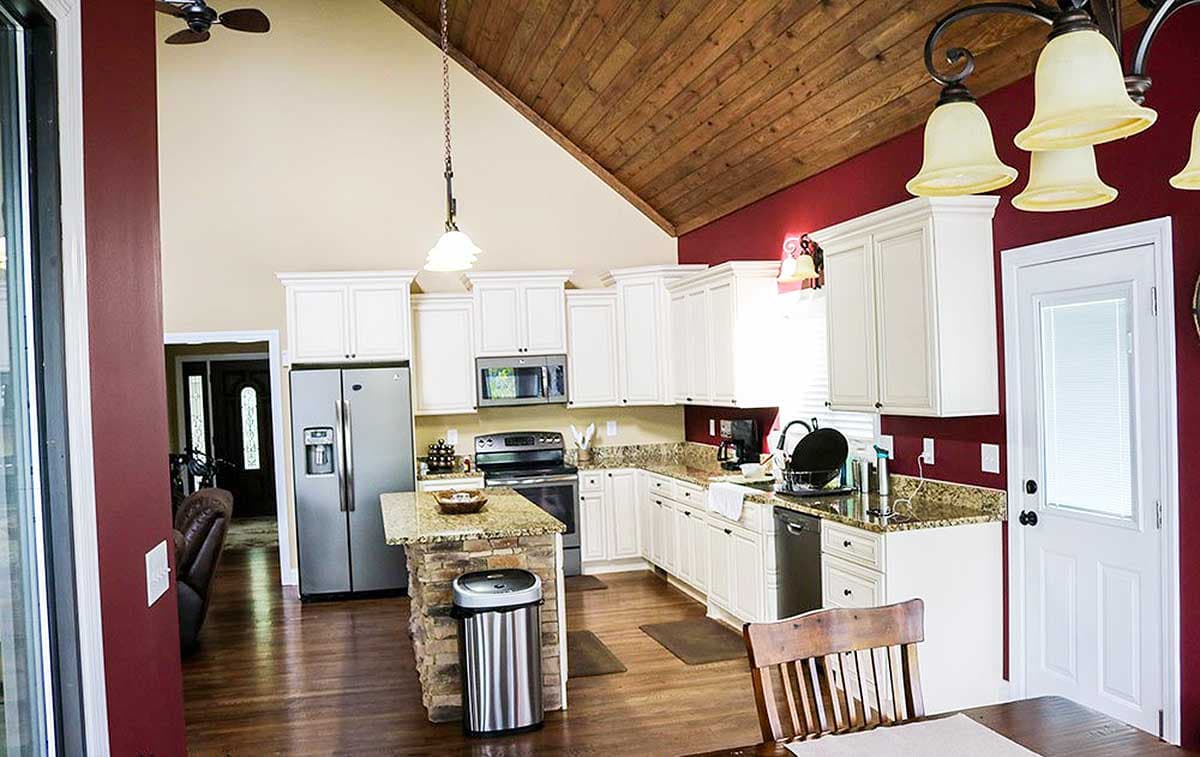

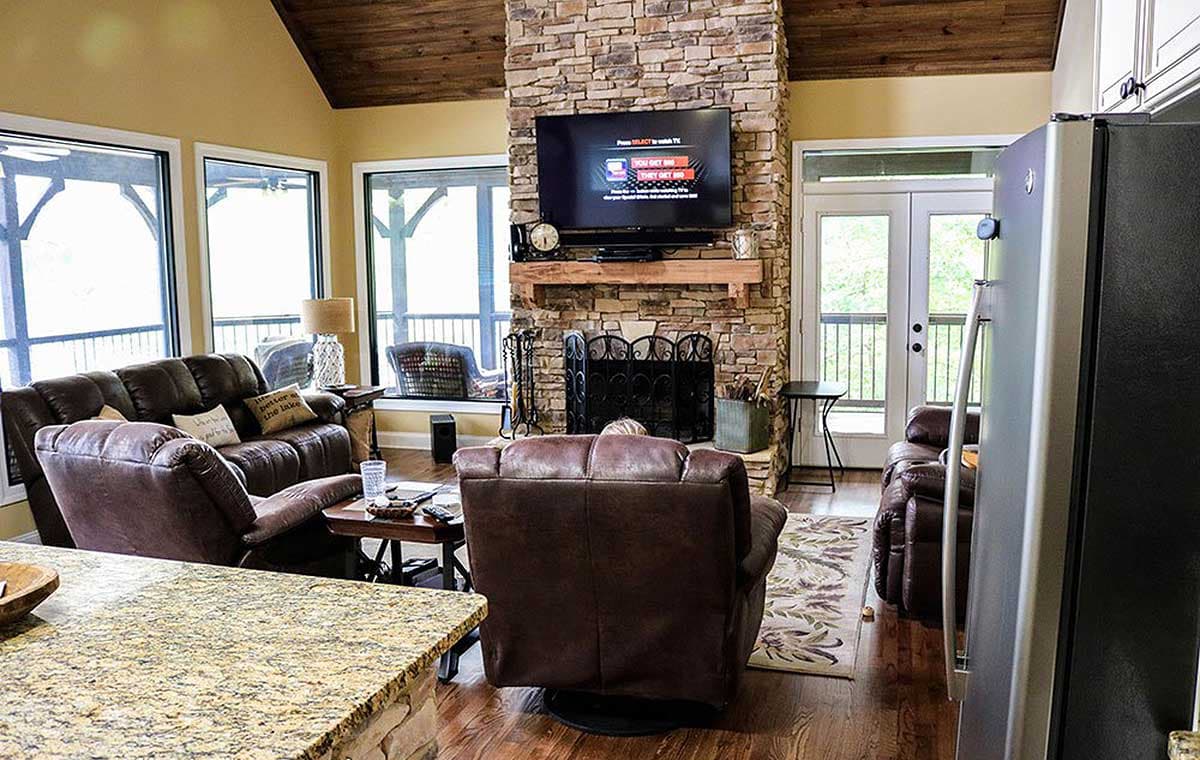

  • The family room and kitchen are vaulted creating a great open space.
  • The dining room is a light-filled space with windows on all sides.

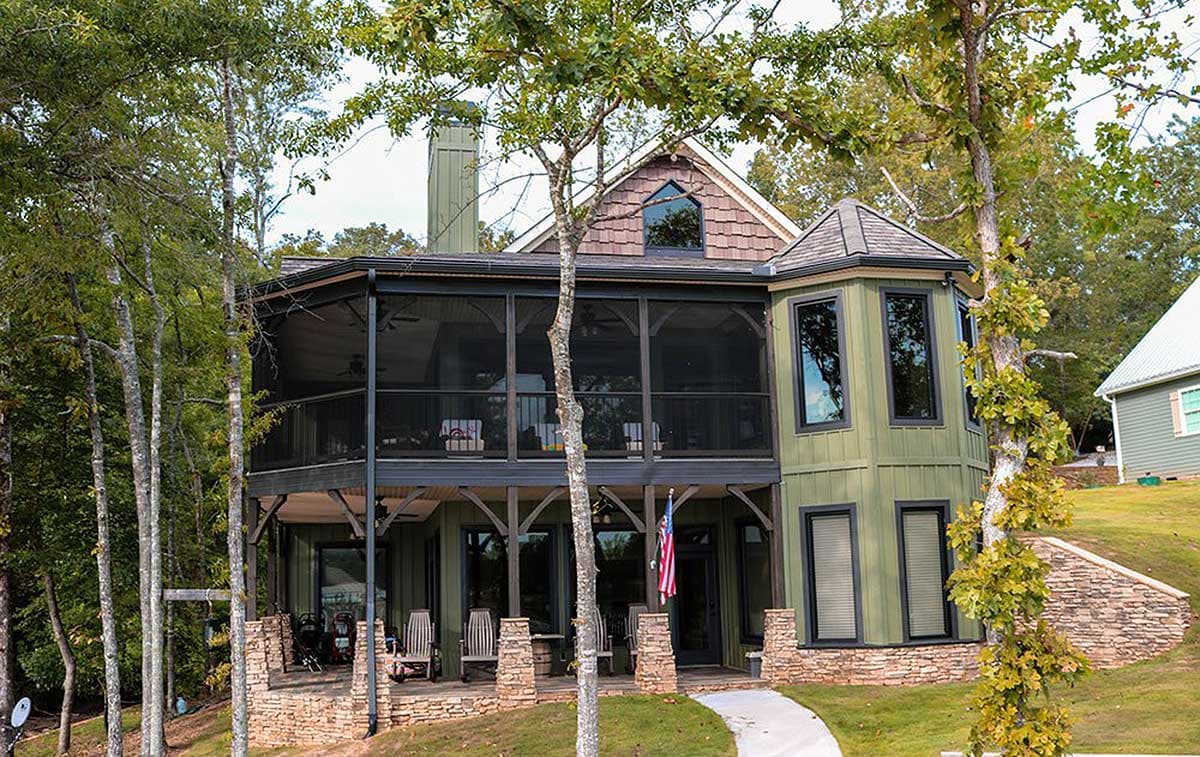

  • Take advantage of the outdoors on your covered porch or the screened porch with fireplace.
  • The master has screened porch access and is conveniently located on the main level.
  • An L-shaped terrace is provided on the lower level, along with a large rec room with views extending on two sides.
What's Included
  • Front, side and rear elevations at 1/4" scale.  All elevations include notes, dimensions and recommended materials.
  • Complete dimensioned and detailed floor plans
  • Foundation plan.  Typically, the plans show a basement foundation. Slab and crawlspace foundations are also available for most plans for an additional fee.
  • Roof plans at 1/4" scale showing all pitches, ridges, hips and valleys
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
  • Electrical plans are customer specific and not included.  A custom electrical plan can be created for $350.

Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,347 sq. ft.

Lower Level

1,097 sq. ft.

1st Floor

1,250 sq. ft.

Porch, Rear

162 sq. ft.

Screened Porch

226 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement, Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

38' 0"

Depth

50' 8"

Ceiling Heights

Lower Level

9'

First Floor

9'

Architectural Style

Cottage

Country

Mountain

Rustic

Special Features

Bedrooms - Clustered

Butler Walk-in Pantry

Formal Dining

Game/Rec Room

Laundry - Main Level

Master Suite - 1st Floor

Outdoor Fireplace

Plan Collections

Exclusive

Lake House Plans

Photo Gallery
