Plan 680331VR
Lake House Plan with Upstairs Master Suite and Optional Lower Level - 2894 Sq Ft
Heated S.F.
2,894
Beds
3
Baths
3.5
Stories
2
Cars
2
Floor Plan

Plan 680331VR

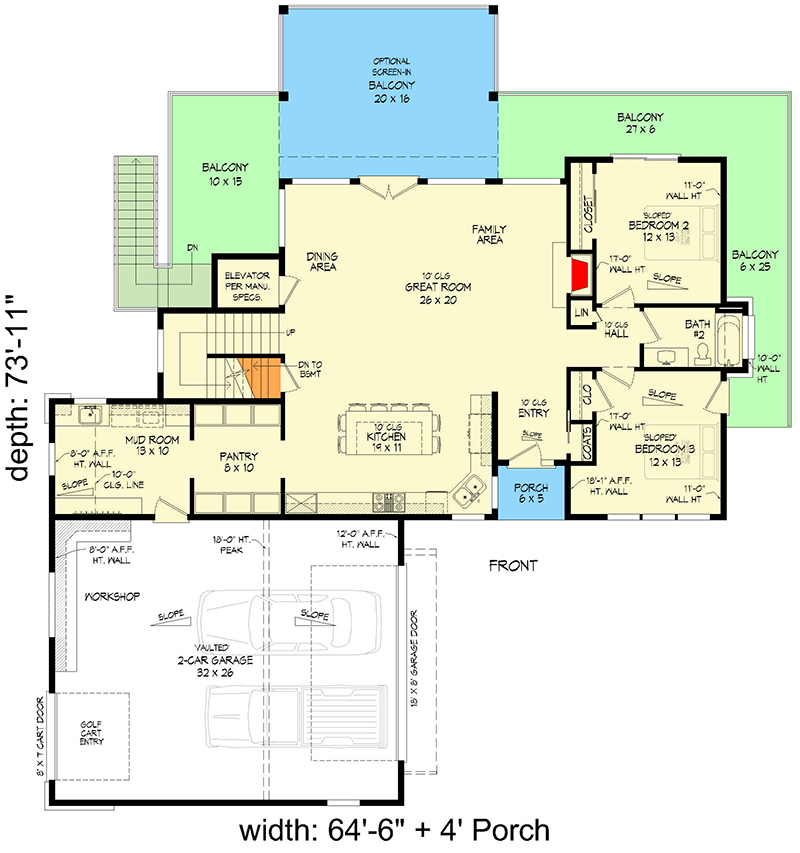

Main Level
slide image 0

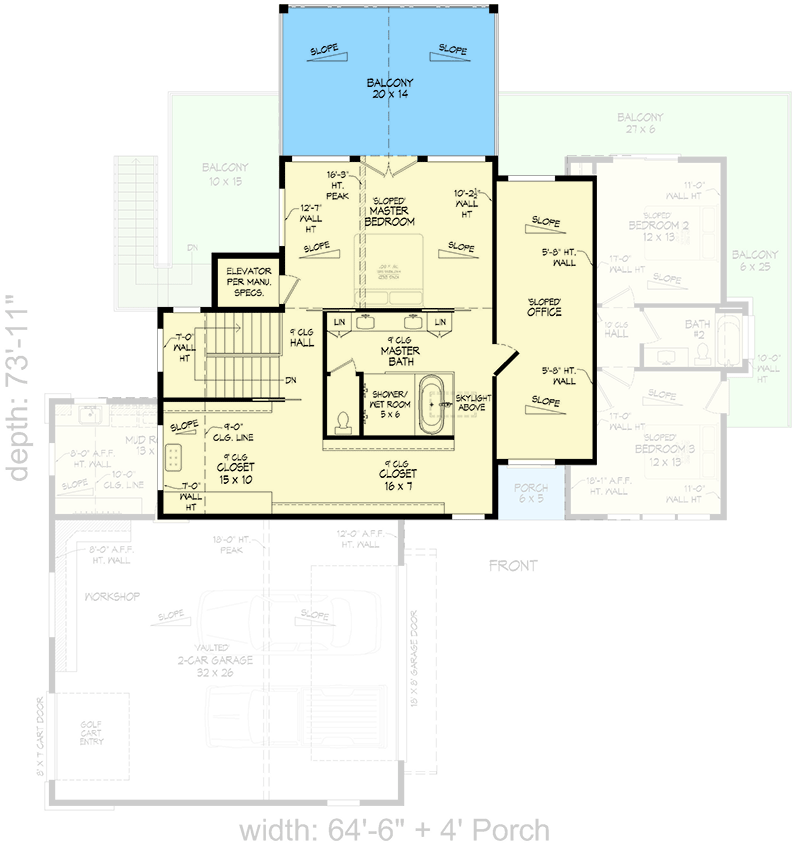

2nd Floor
slide image 1

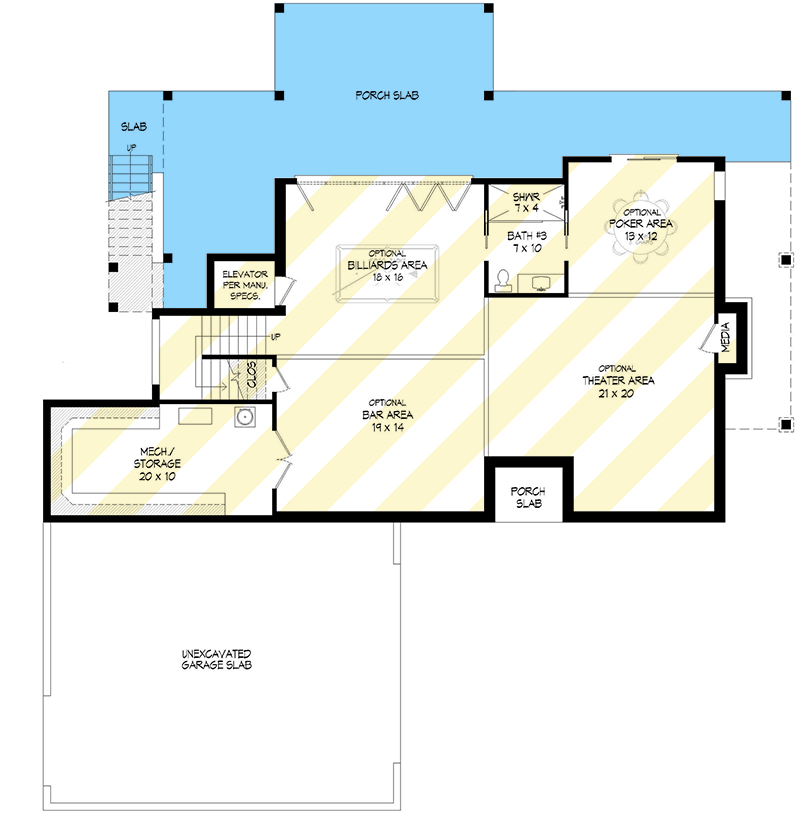

Optional Lower Level
slide image 2

Plan 680331VR

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
2nd Floor
floor plan image 2nd Floor
Optional Lower Level
floor plan image Optional Lower Level
Plan Details
  • This lake house plan gives you 3 beds, 2 baths and 2,894 square feet of heated living space. The master suite constitutes the entire second floor and is serviced by an elevator in addition to the stairs. Included is also an optional lower level that gives you an extra 1,678 square feet of potential living.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
  • Related Plans: Get an alternate version with house plans 680237VR (2,568 sq. ft.) and 680385VR (2,851 sq. ft.).
What's Included

  • Floor Plans: House plan drawings indicating dimensions for construction
  • Roof Plan: Drawings indicating roof slopes and unique conditions
  • Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim
  • Building Sections: Drawings cut through important locations in the structure
  • Construction Details: Drawings showing specific construction of building elements at a large scale
  • Kitchen and bath elevations (excluded on garage plans)
  • Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)
  • Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure
  • Building license: A single-use license for construction at one location only

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,894 sq. ft.

1st Floor

1,678 sq. ft.

2nd Floor

1,171 sq. ft.

Optional Lower Level

1,678 sq. ft.

Porch, Front

51 sq. ft.

Deck

807 sq. ft.

Balcony / Veranda

283 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

34' 0"

Depth

44' 0"

Max Ridge Height

31' 4"

Garage

Type

Attached

Area

864 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Second Floor

9'

Roof Details

Primary Pitch

3 on 12

Secondary Pitch

2 on 12

Framing Type

Stick

Architectural Style

Contemporary

Mountain

Special Features

Bedrooms - Clustered

Elevator

Game/Rec Room

Home Office

Laundry - Main Level

Master Suite - 2nd Floor

Mudroom

Square Footage Breakdown

Total Heated Area

2,894 sq. ft.

1st Floor

1,678 sq. ft.

2nd Floor

1,171 sq. ft.

Optional Lower Level

1,678 sq. ft.

Porch, Front

51 sq. ft.

Deck

807 sq. ft.

Balcony / Veranda

283 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

34' 0"

Depth

44' 0"

Max Ridge Height

31' 4"

Garage

Type

Attached

Area

864 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Second Floor

9'

Roof Details

Primary Pitch

3 on 12

Secondary Pitch

2 on 12

Framing Type

Stick

Architectural Style

Contemporary

Mountain

Special Features

Bedrooms - Clustered

Elevator

Game/Rec Room

Home Office

Laundry - Main Level

Master Suite - 2nd Floor

Mudroom
