Plan 72900DA
Large Country-Style Duplex House Plan
Heated S.F.
2,881
Units
2
Width
Depth
Floor Plan

Plan 72900DA

Main Level
slide image 0
2nd Floor
slide image 1

Plan 72900DA

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
2nd Floor
floor plan image 2nd Floor
Plan Details
  • This large country-style duplex gives you two homes for the price of one.
  • Both 3-bedroom units have a charming railed and covered porch up front and a garage at the rear, but they are far from being mirror images. Their covered patios are well out of earshot of each other, while the shapes and sizes of the rooms vary.
  • Each has a large, bright gathering space.
Unit A
1,436Sq. Ft.
688 Sq. Ft.
1st Floor
748 Sq. Ft.
2nd Floor
3Beds
2Full Baths
1Half Bath
1Vehicle
Attached
312 Sq. Ft.
24' 6"width
65'depth
28' 6"height
Unit B
1,445Sq. Ft.
662 Sq. Ft.
1st Floor
783 Sq. Ft.
2nd Floor
3Beds
2Full Baths
1Half Bath
1Vehicle
Attached
288 Sq. Ft.
24' 6"width
65'depth
28' 6"height
What's Included
Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
  • Cover Sheet/Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.

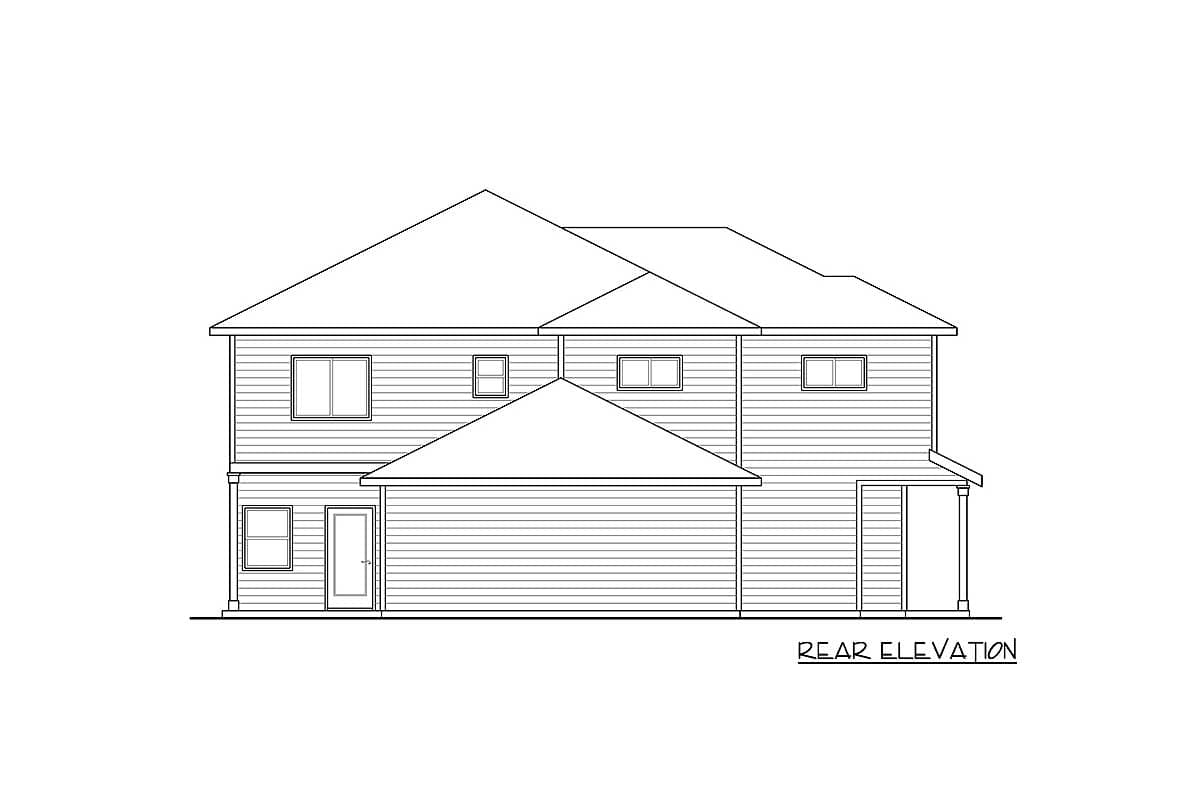

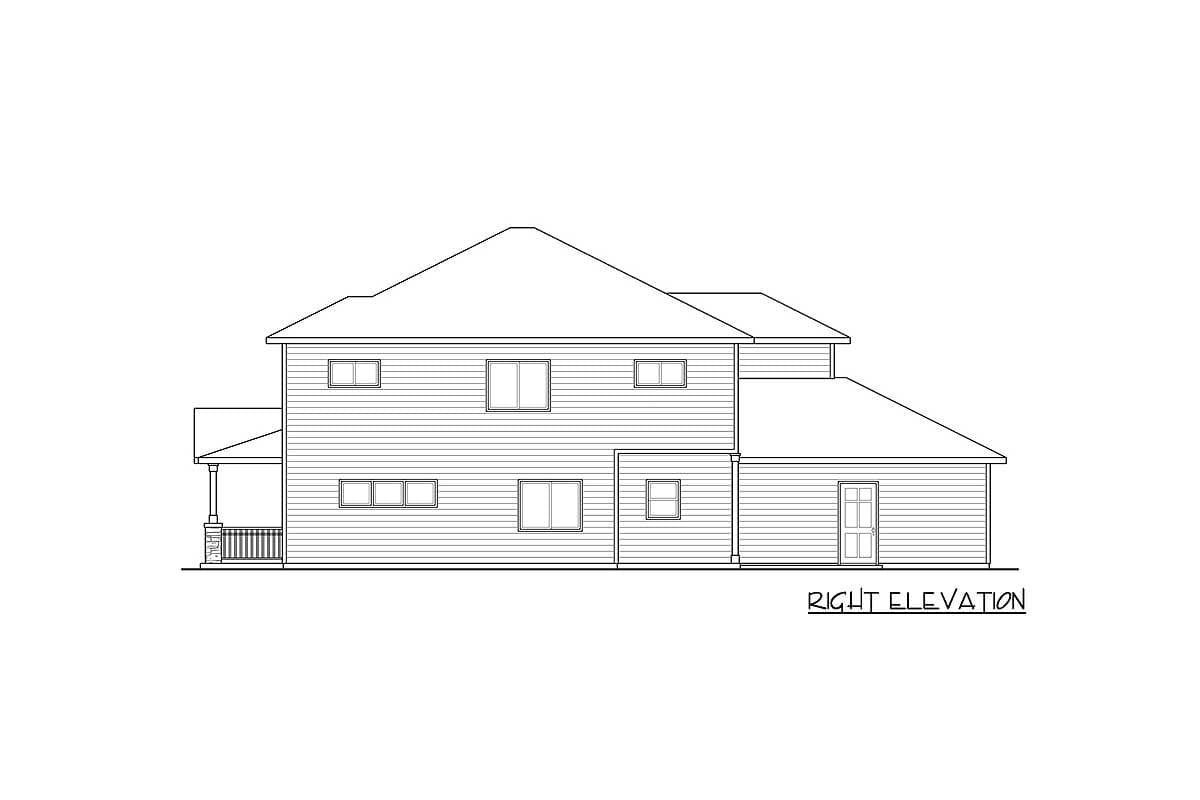

  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.

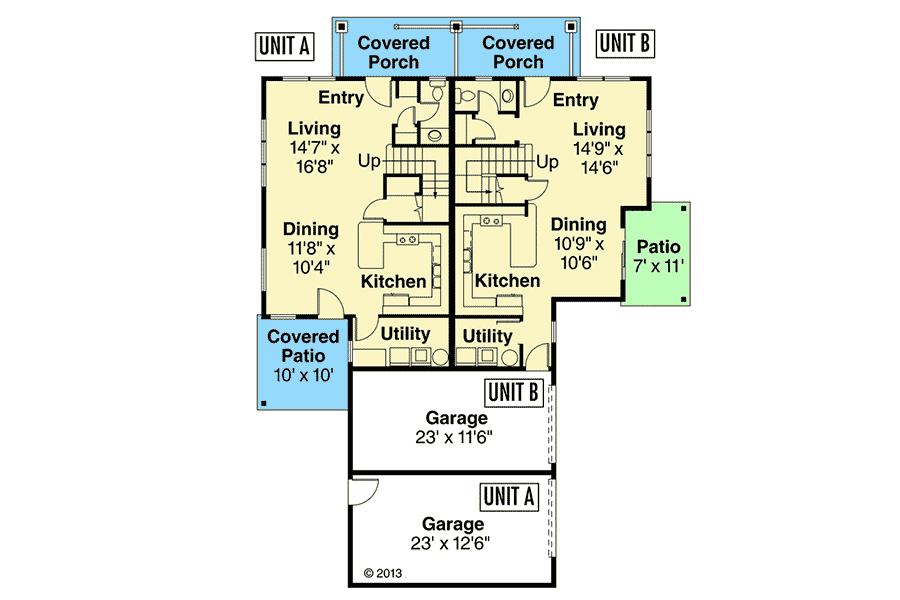

  • Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Building Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches, and electrical outlets.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,881 sq. ft.

1st Floor

1,350 sq. ft.

2nd Floor

1,531 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

49' 0"

Depth

65' 0"

Max Ridge Height

28' 6"

Garage

Type

Attached

Area

600 sq. ft.

Count

2 Cars

Entry Location

Side

Roof Details

Primary Pitch

6 on 12

Framing Type

Stick And Truss

Special Features

Master Suite - 2nd Floor

Square Footage Breakdown

Total Heated Area

2,881 sq. ft.

1st Floor

1,350 sq. ft.

2nd Floor

1,531 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

49' 0"

Depth

65' 0"

Max Ridge Height

28' 6"

Garage

Type

Attached

Area

600 sq. ft.

Count

2 Cars

Entry Location

Side

Roof Details

Primary Pitch

6 on 12

Framing Type

Stick And Truss

Special Features

Master Suite - 2nd Floor
