Name: Plan 66357WE: Lavish One-Story House Plan - 3869 Sq Ft
SKU: 66357WE
Price: 2200.0 USD
Availability: InStock

Plan 66357WE

Lavish One-Story House Plan - 3869 Sq Ft

Heated S.F.

3,869

Beds

Baths

Stories

Cars

Floor Plan

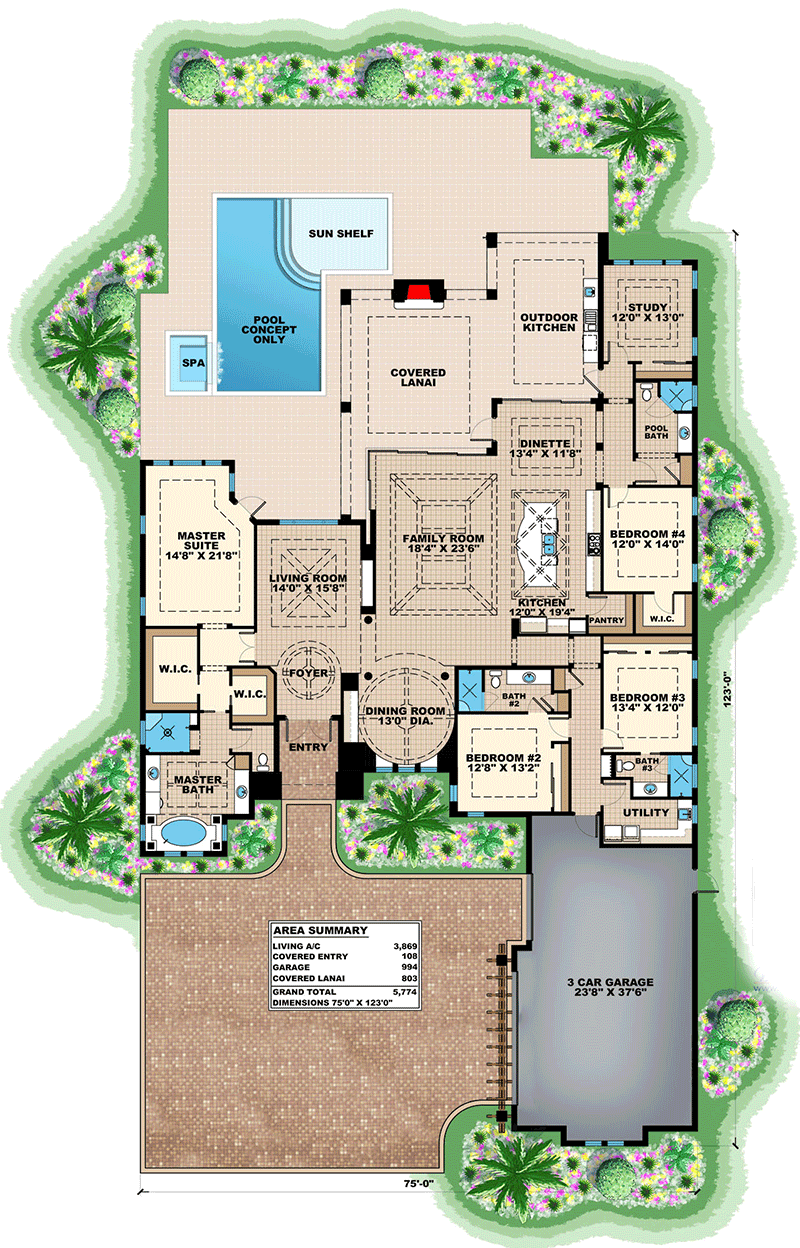

Main Level

Plan Details

Decked out with gorgeous special ceiling treatments, interior columns and built-ins, this lavish one-story house plan is designed to impress.

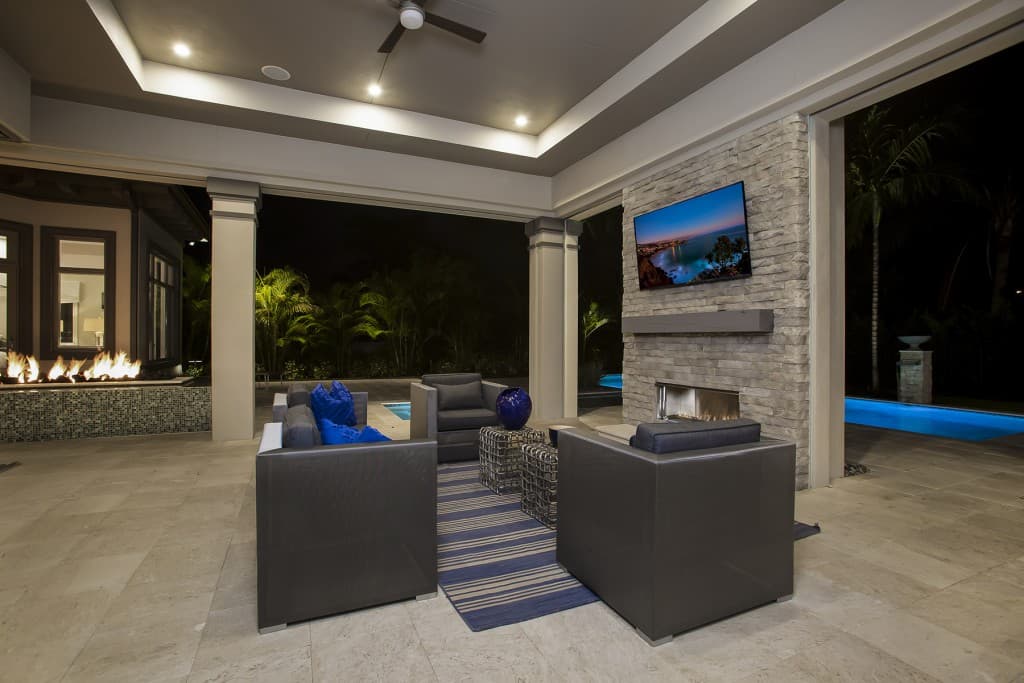

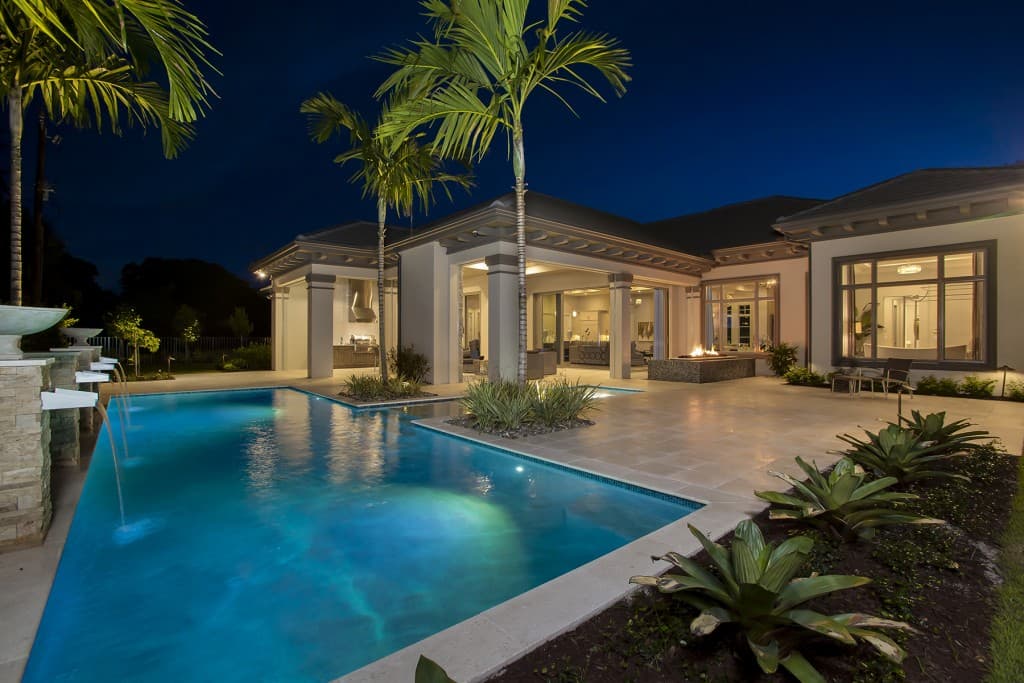

Walls of windows all across the back of the house showcase the outdoor living areas.
Folding glass door systems slide back to bring the outside in.

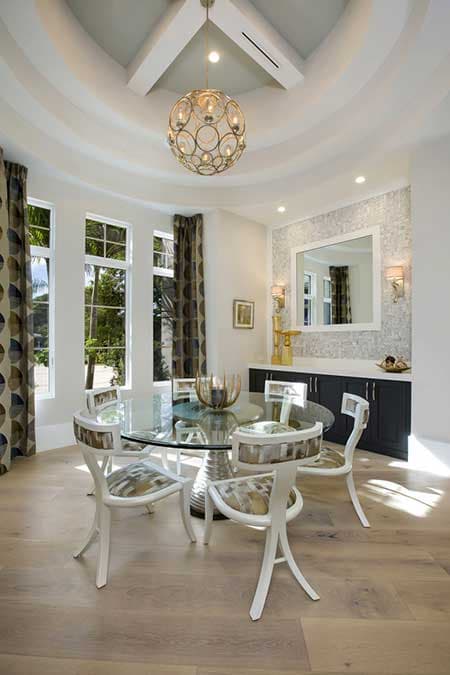

The circular dining room is a unique feature with its 13' diameter, built-ins and a bank of triple windows.

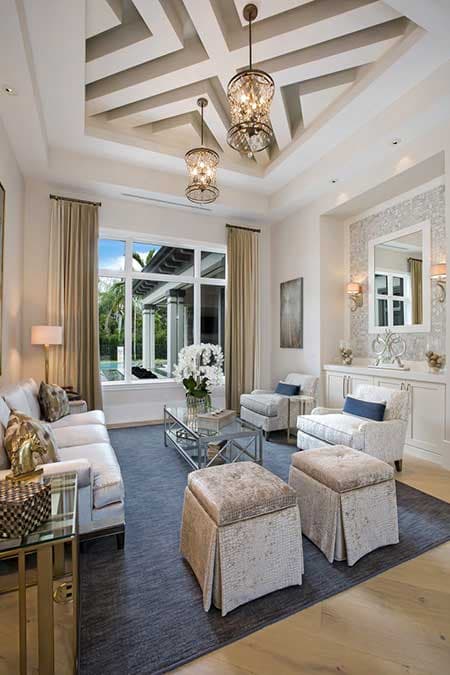

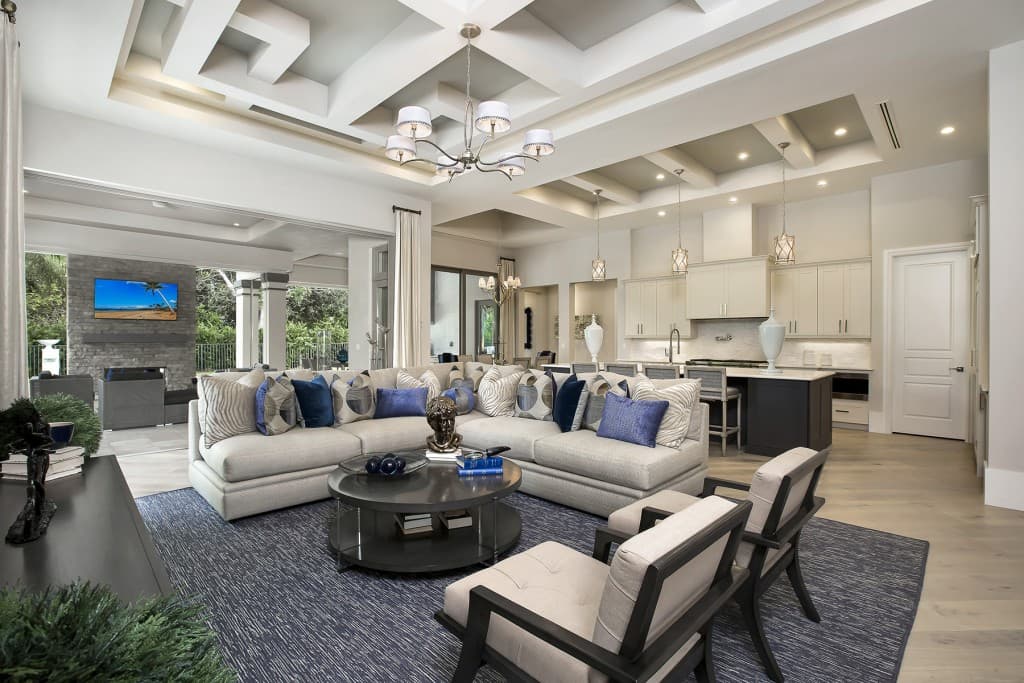

While there is a lovely formal living room, the heart of the home is in the huge open living area comprised of the kitchen, family room and dinette.
The kitchen island is enormous, adding counter space as well as storage.

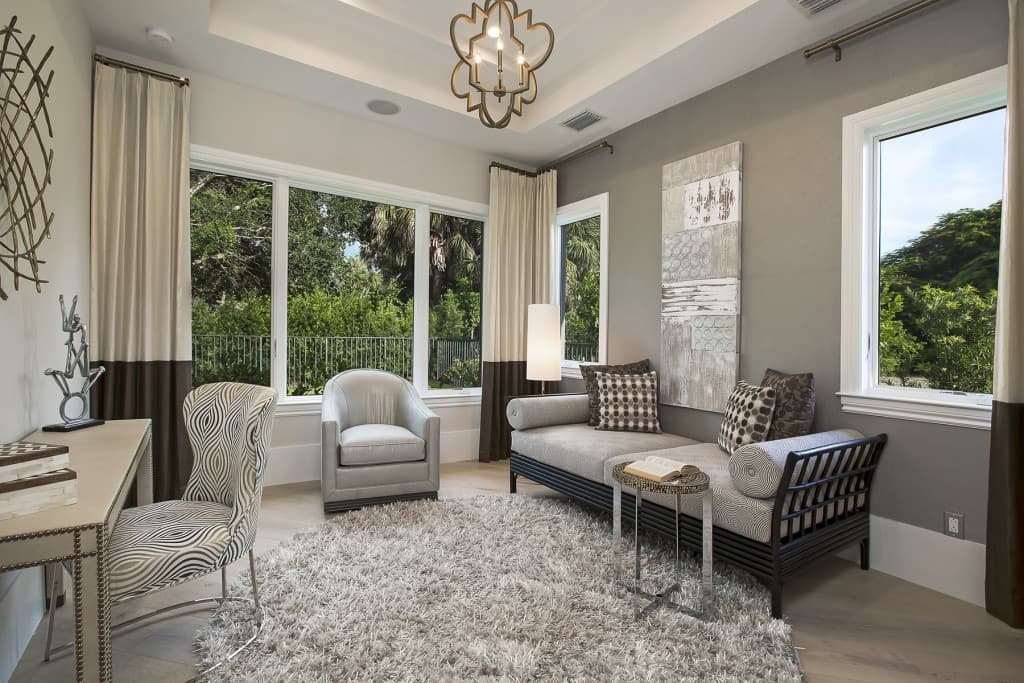

Three of the bedrooms are grouped on the right side of the home, with a quiet study at the very back of the home.

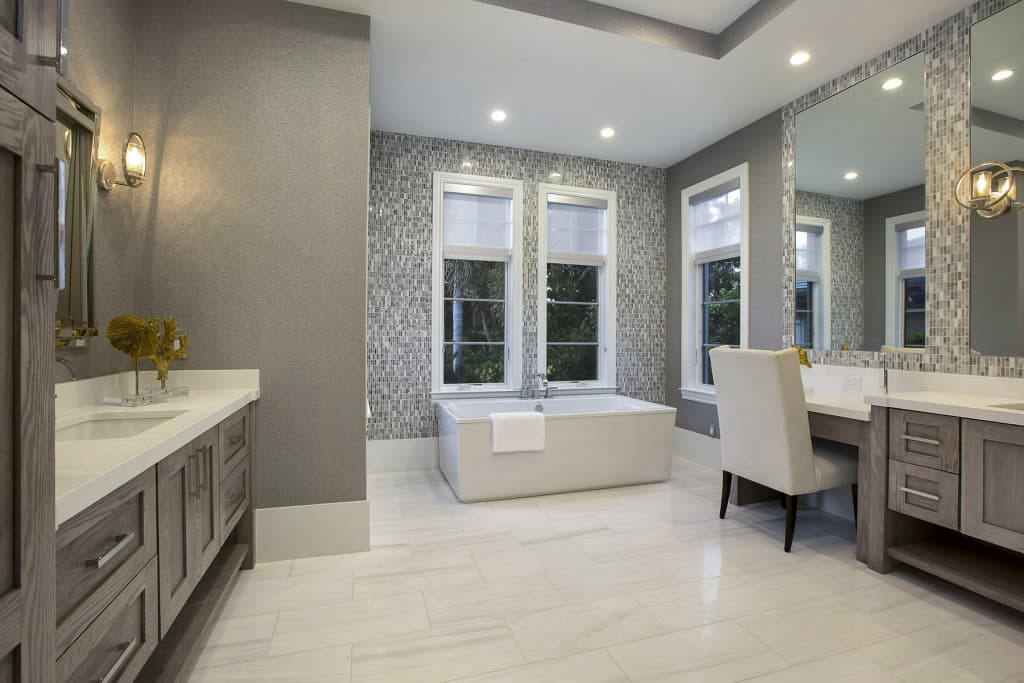

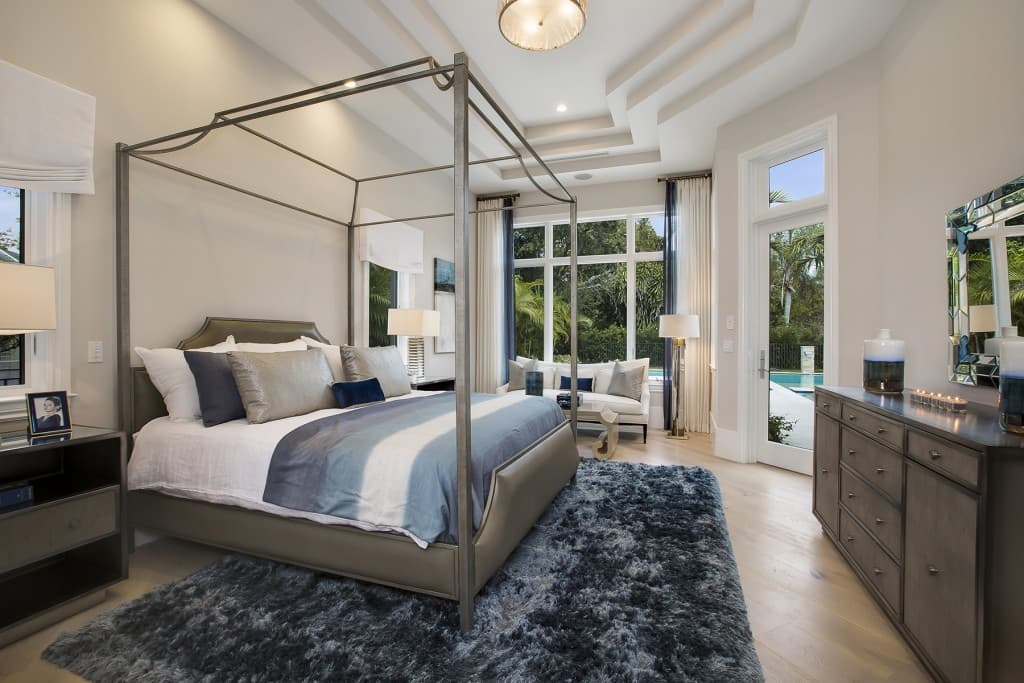

The luxurious master suite takes up the whole left side of the home and boasts a tray ceiling, sitting area and a spa-like master bathroom with the soaking tub set off by four columns.
This is truly a lavish and impressive home.

What's Included

Elevations - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:

Material Labels
Floor-to-Floor Heights
Roof Slope Indicators

Floor Plans - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:

Door and Window Sizes
Completely Dimensioned Floor Plan
Room Labels and Interior Room Sizes

Electrical Layouts

Building Section Markers
All Electrical Outlets, Fixtures, and Switching

Foundation Plan - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:

Floor and Deck Joist Size and Spacing
Electrical Locations (if applicable)

Roof Design Plan - Drawn at 1/8″ to 1/4″ = 1′-0″scale, and Includes:

All Beam and Header Heights and Locations
All Hips, Gables, Ridges, and Valleys
Building Section Markers

Building Sections - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:

Floor Joist Size and Spacing
Floor-to-Floor Heights
Non-Typical Plate Heights Indicated

Typical Wall Sections - Drawn at 1/8″ to 1/2″ = 1′-0″ Scale, and Includes:

All Labels Indicating Wall Construction
Foundation Wall Thickness and Reinforcing
Insulation Type and Thickness

Miscellaneous Notes and Details

Miscellaneous General Notes
Stairway details (if applicable)

We do provide a slab plan, however, the structural foundation plan is to be provided by the structural engineer selected by your builder or yourself. This is done because our slab plan cannot anticipate the variations in soil, footings and other conditions per your specific site. We provide the design of the roof as well, however, the truss layouts need to be provided by a truss engineer or your lumber company. Your builder can provide these contacts for you. Please keep in mind that these are additional expenses outside of the cost of the original plan that you purchase from us.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
