Plan 680262VR
Lift-Friendly RV Garage with Adjacent Tandem Bay - 1381 Sq Ft
Heated S.F.
0
Beds
Baths
0
Stories
1
Cars
2- 3
Floor Plan

Plan 680262VR

Main Level
slide image 0

Plan 680262VR

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
Plan Details

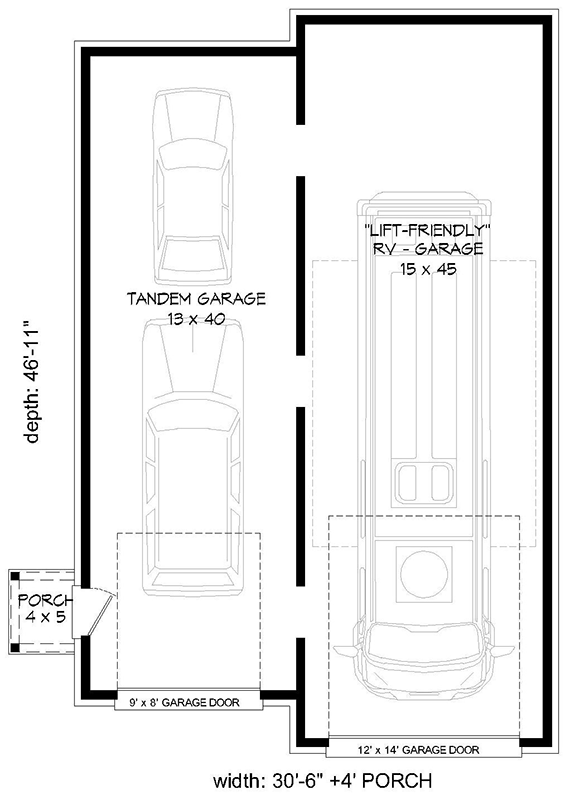

  • This lift-friendly RV garage gives you 1,381 square feet of parking space with an RV bay (12' by 14' overhead door) and an adjacent tandem bay (9' by 8' overhead door) and a 4' by 5' side porch.
  • Architectural Designs' primary focus is to make the process of finding and buying plans more convenient for those interested in constructing them. We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
What's Included

  • Floor Plans: House plan drawings indicating dimensions for construction
  • Roof Plan: Drawings indicating roof slopes and unique conditions
  • Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim
  • Building Sections: Drawings cut through important locations in the structure
  • Construction Details: Drawings showing specific construction of building elements at a large scale
  • Kitchen and bath elevations (excluded on garage plans)
  • Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)
  • Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure
  • Building license: A single-use license for construction at one location only

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

0 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

30' 6"

Depth

46' 11"

Max Ridge Height

24' 0"

Garage

Type

Detached, RV Garage

Area

1381 sq. ft.

Count

2 or 3 Cars

Entry Location

Front

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Architectural Style

European

Southern

Traditional

Special Features

Workshop

Square Footage Breakdown

Total Heated Area

0 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

30' 6"

Depth

46' 11"

Max Ridge Height

24' 0"

Garage

Type

Detached, RV Garage

Area

1381 sq. ft.

Count

2 or 3 Cars

Entry Location

Front

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Architectural Style

European

Southern

Traditional

Special Features

Workshop
