Plan 680096VR

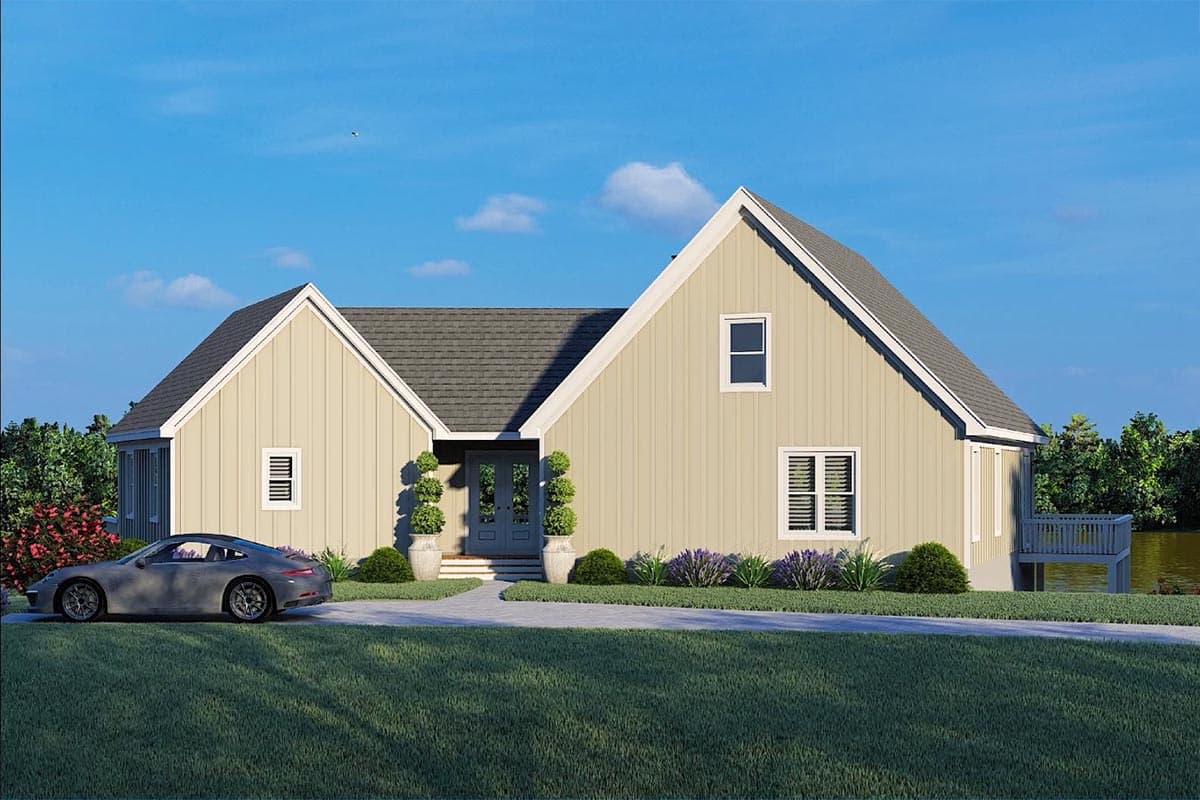

Light-Filled Lake House Plan with Large Wrapping Deck and Lower Level Expansion
Heated S.F.
2,396
Beds
2 - 4
Baths
2 - 3
Stories
2
Floor Plan

Plan 680096VR

Main Level
slide image 0
2nd Floor
slide image 1
Optionally Finished Lower Level
slide image 2

Plan 680096VR

1-800-854-7852

1-262-521-4596

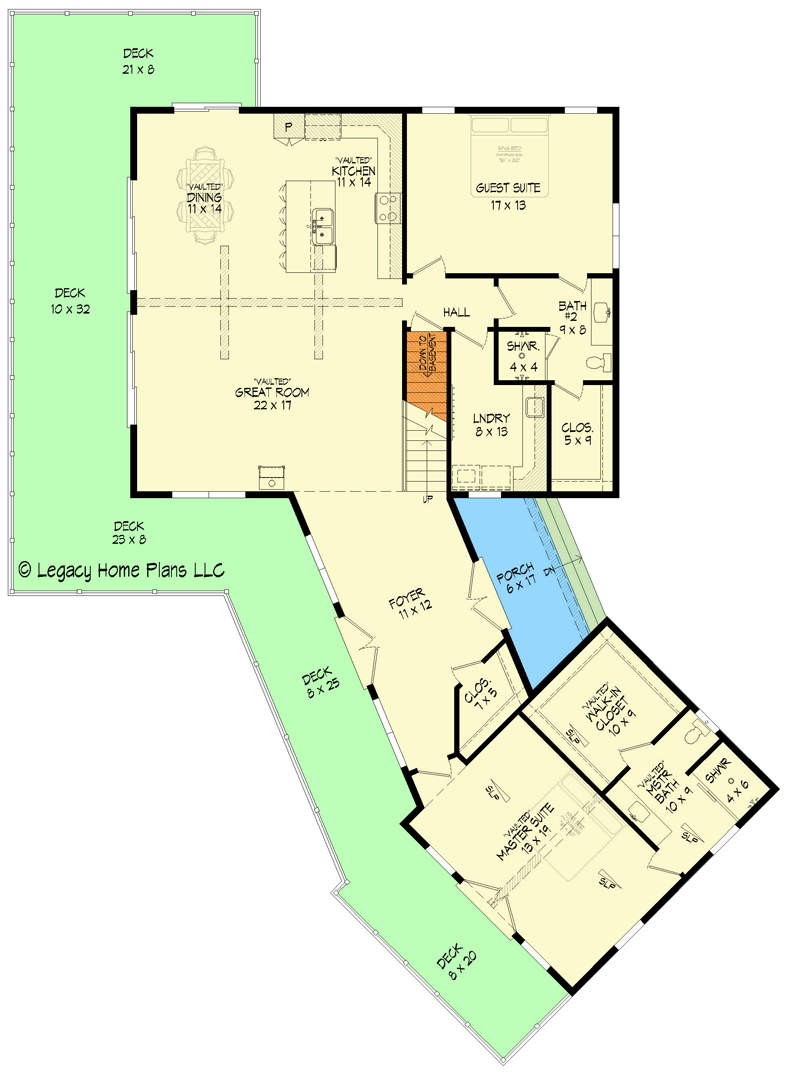

Main Level
floor plan image Main Level

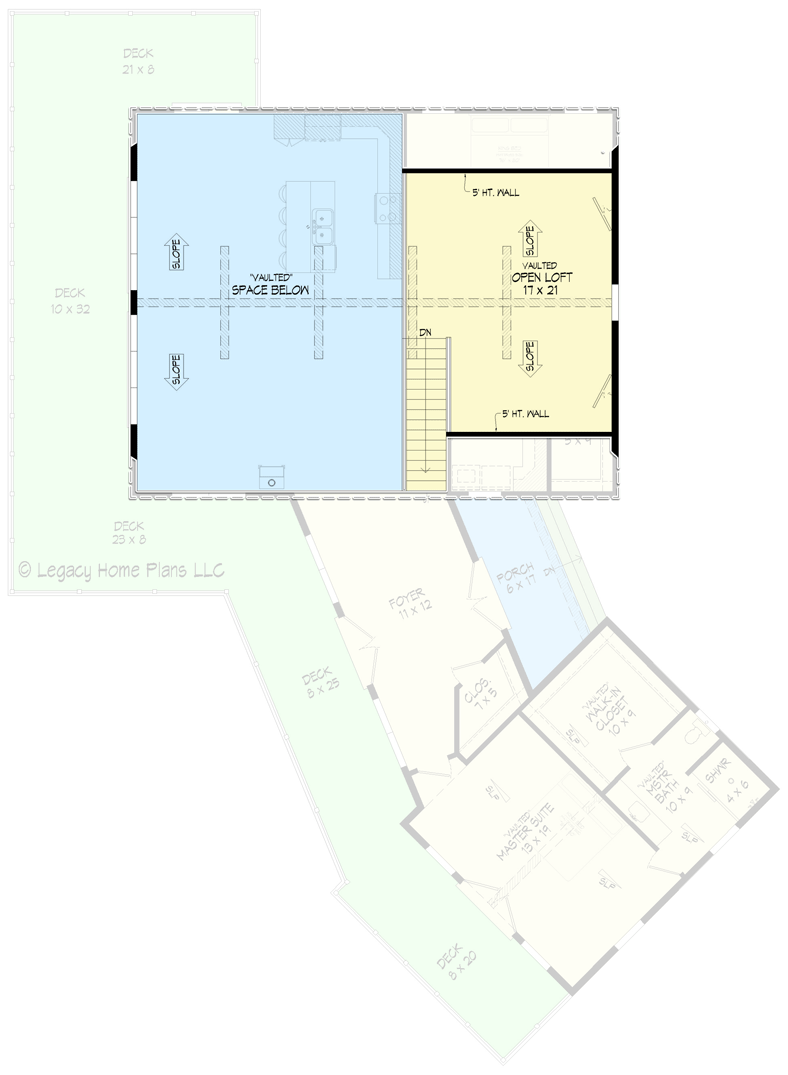

2nd Floor
floor plan image 2nd Floor

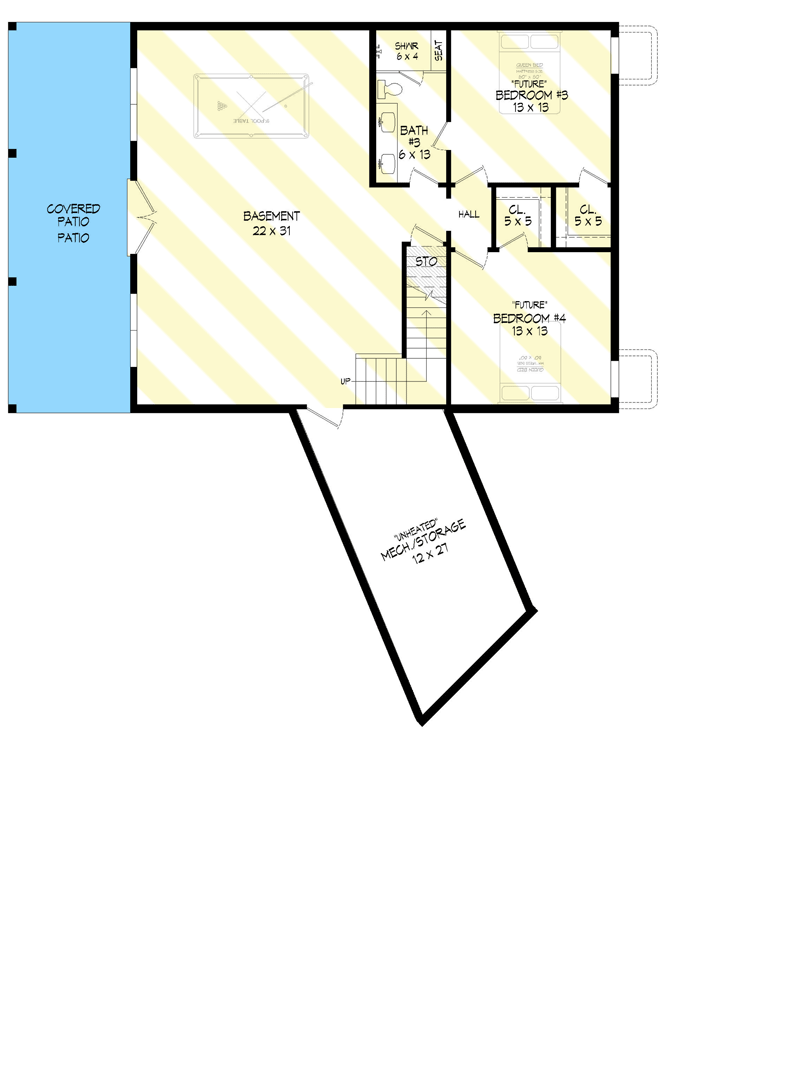

Optionally Finished Lower Level
floor plan image Optionally Finished Lower Level
Plan Details

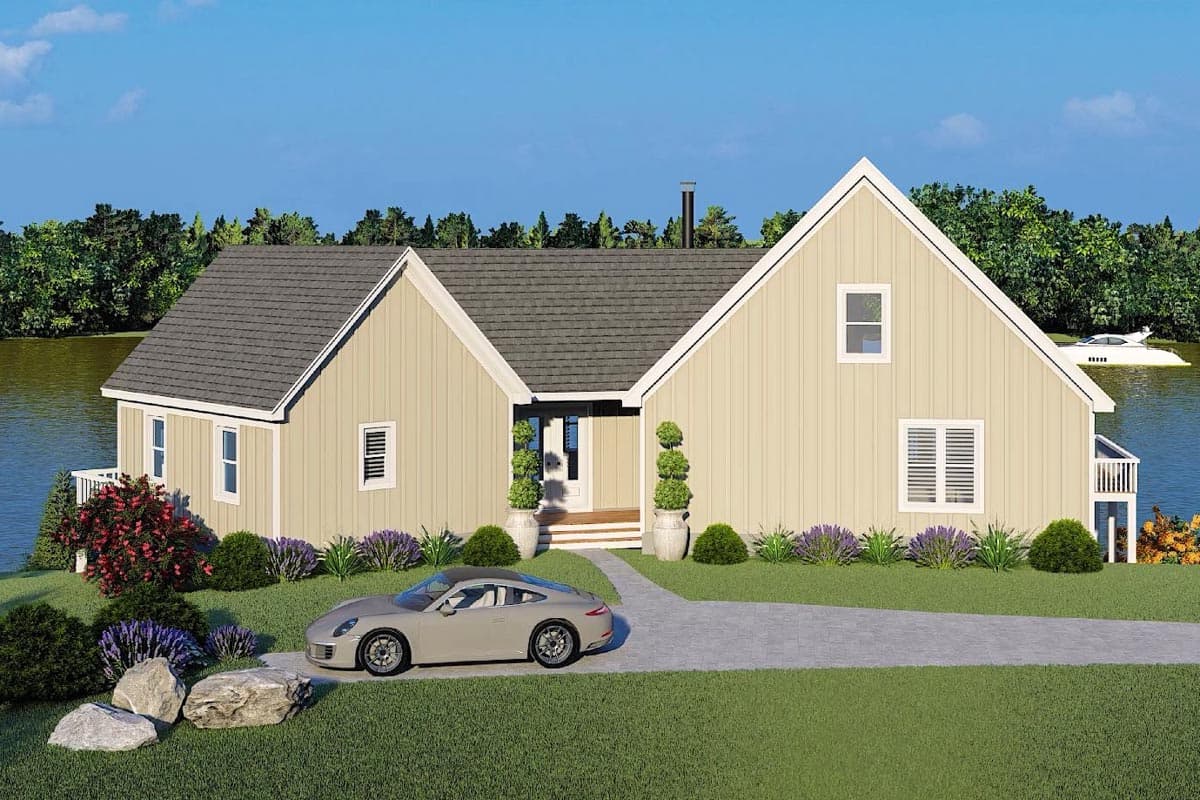

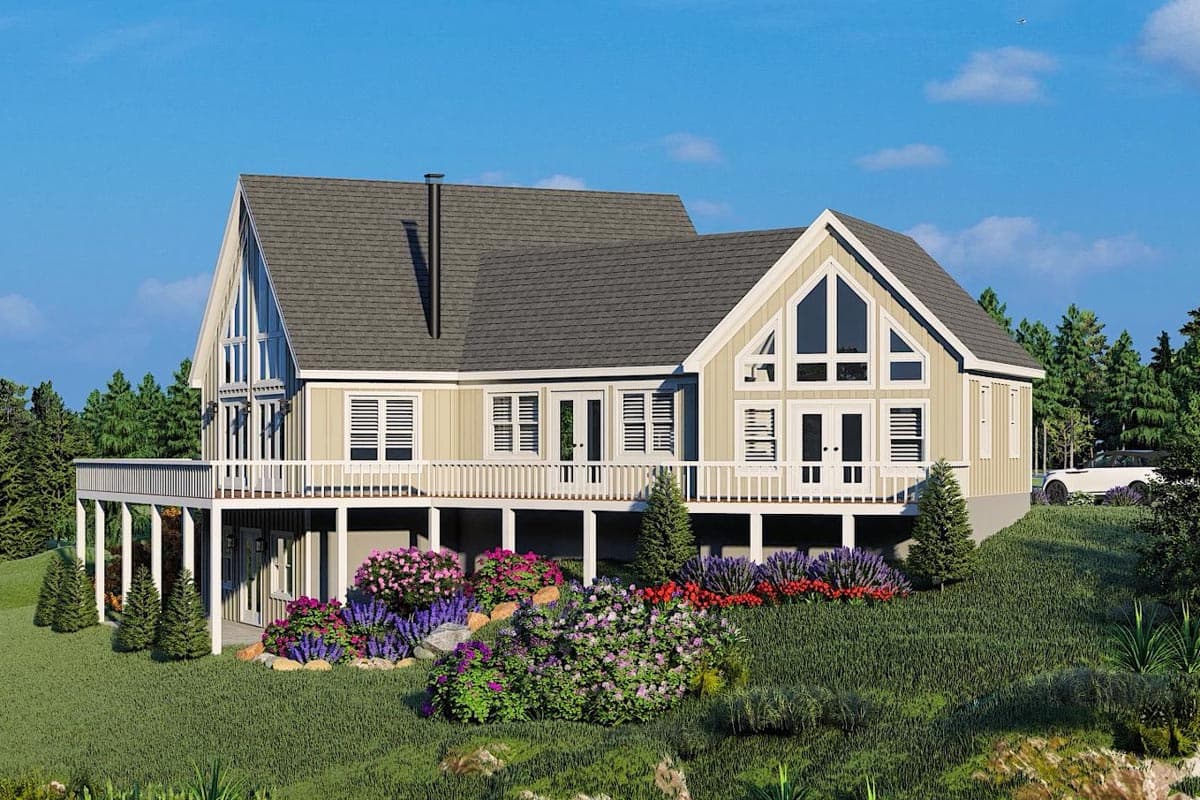

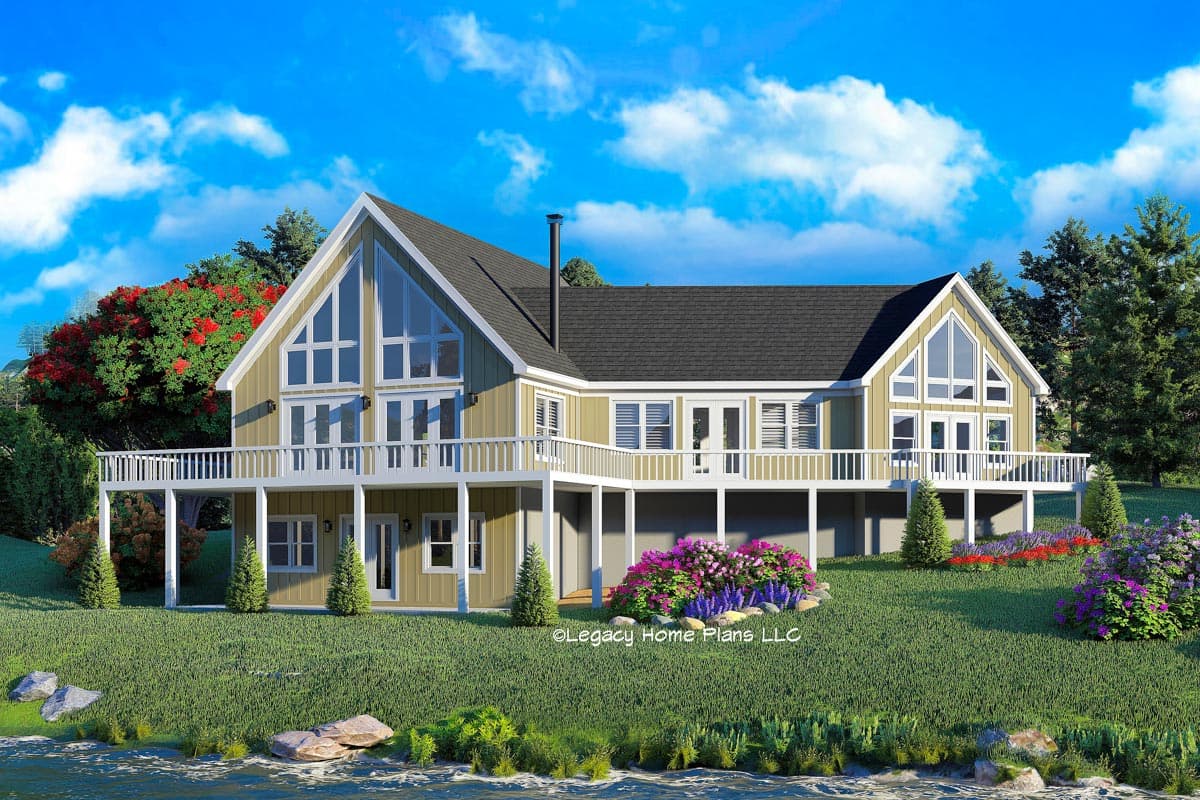

  • Two broad gables filled with windows give you views in two directions and natural-light-filled spaces inside. Enjoy fresh air on the deck that wraps around the home.
  • The sun-drenched interior features a two-story great room with a vaulted ceiling and floor to ceiling windows. The adjoining eat-in kitchen includes a multi-purpose island and easy access to the deck for grilling.
  • Off the great room, you'll find one of the bedroom suite and laundry. The master is off to the right from the French-door foyer and has a vaulted and beamed ceiling and access to the deck.
  • A loft at the top of the stairs overlooks the great room below.
  • Expansion opportunities in the lower level include two bedrooms and an open rec room. Mechanicals and storage complete the home.
What's Included

  • Floor Plans: House plan drawings indicating dimensions for construction
  • Roof Plan: Drawings indicating roof slopes and unique conditions
  • Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim
  • Building Sections: Drawings cut through important locations in the structure
  • Construction Details: Drawings showing specific construction of building elements at a large scale
  • Kitchen and bath elevations (excluded on garage plans)
  • Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)
  • Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure
  • Building license: A single-use license for construction at one location only

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,396 sq. ft.

1st Floor

2,035 sq. ft.

2nd Floor

361 sq. ft.

Optional Lower Level

1,280 sq. ft.

Porch, Combined

1,105 sq. ft.

Beds/Baths

Bedrooms

2, 3, or 4

Full bathrooms

2 or 3

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

63' 2"

Depth

86' 6"

Max Ridge Height

26' 10"

Ceiling Heights

Lower Level

10'

First Floor

9'

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Contemporary

Country

Lake House

Mountain

New American

Rustic

Traditional

Special Features

Game/Rec Room

Laundry - Main Level

Loft

Master Suite - 1st Floor

Two Story Great Room

Wrap Around Porch

Plan Collections

Lake House Plans

Square Footage Breakdown

Total Heated Area

2,396 sq. ft.

1st Floor

2,035 sq. ft.

2nd Floor

361 sq. ft.

Optional Lower Level

1,280 sq. ft.

Porch, Combined

1,105 sq. ft.

Beds/Baths

Bedrooms

2, 3, or 4

Full bathrooms

2 or 3

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

63' 2"

Depth

86' 6"

Max Ridge Height

26' 10"

Ceiling Heights

Lower Level

10'

First Floor

9'

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Contemporary

Country

Lake House

Mountain

New American

Rustic

Traditional

Special Features

Game/Rec Room

Laundry - Main Level

Loft

Master Suite - 1st Floor

Two Story Great Room

Wrap Around Porch

Plan Collections

Lake House Plans
