Plan 31807DN

Living in Grandeur

Heated S.F.

7,395

Beds

5 - 6

Baths

5.5+

Stories

2

Cars

3

Floor Plan

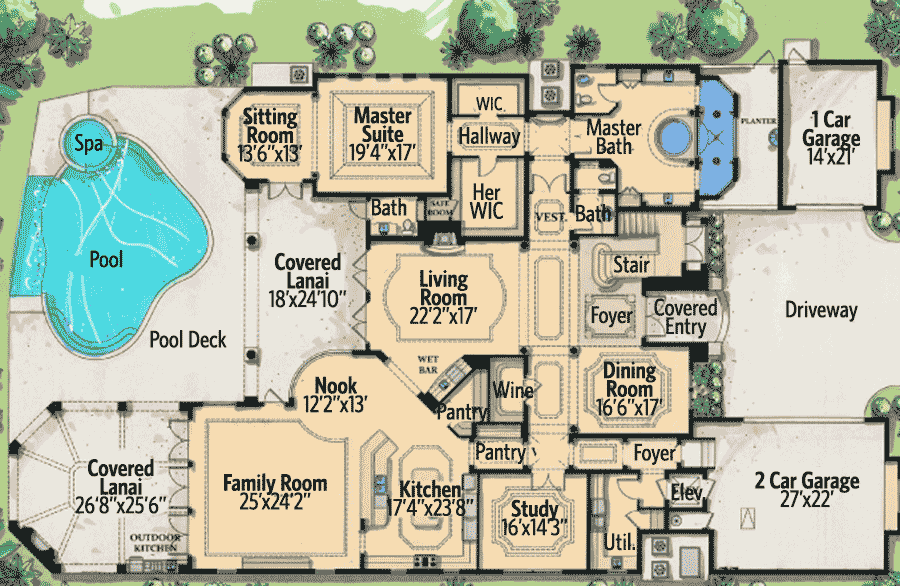

Main Level

floor plan image Main Level

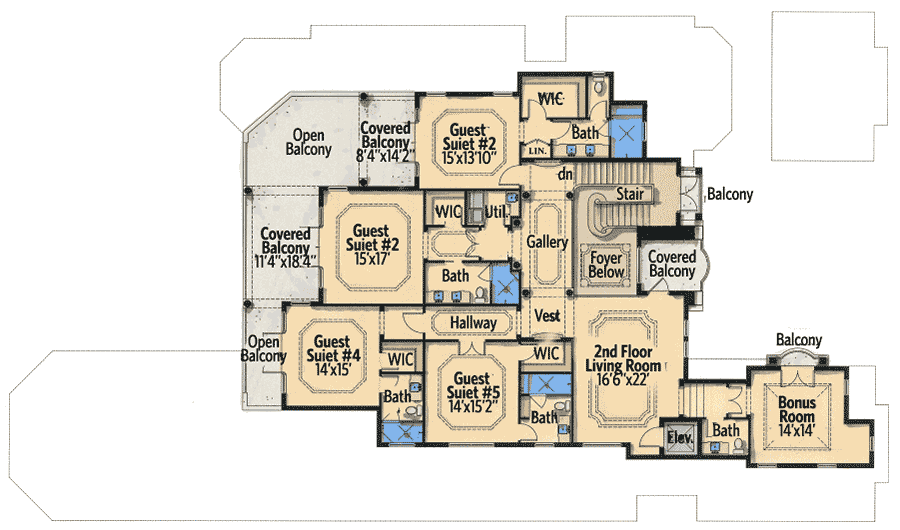

2nd Floor

floor plan image 2nd Floor

Plan Details

Live in grandeur in this 2-story luxury home plan with a residential elevator easing the work needed to enjoy the upstairs.

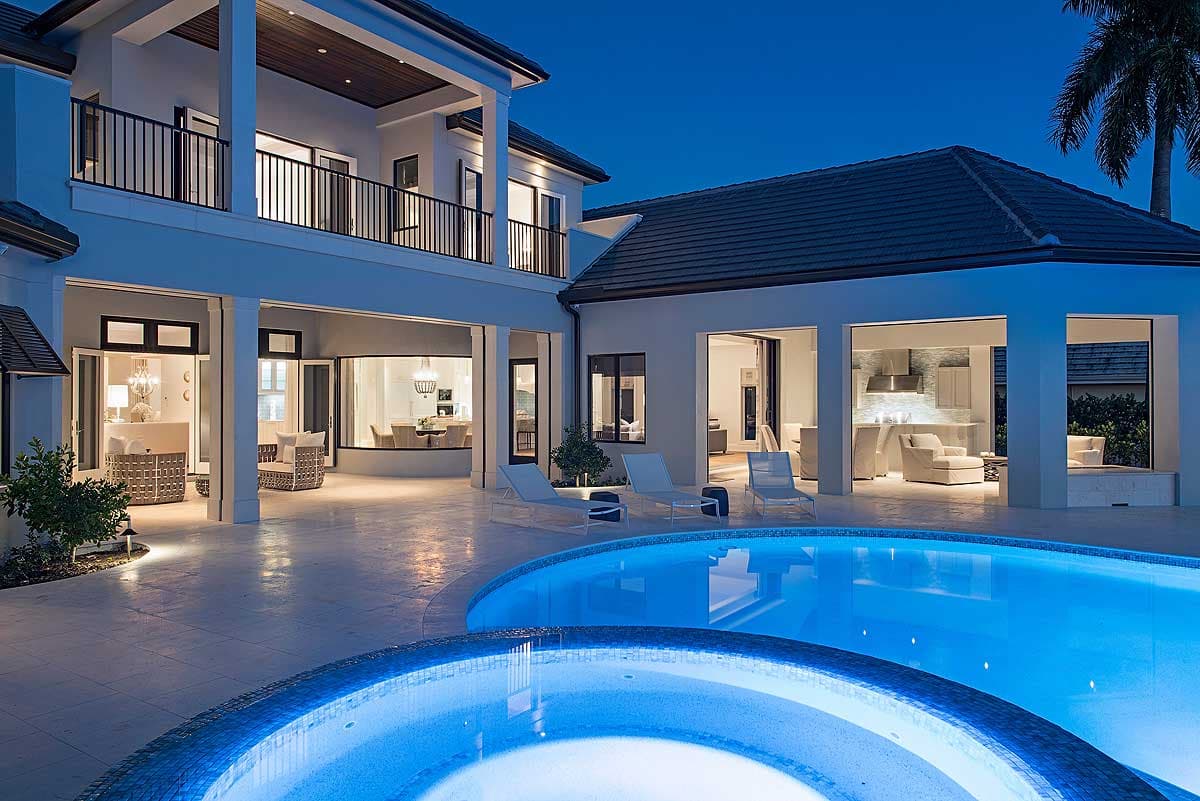

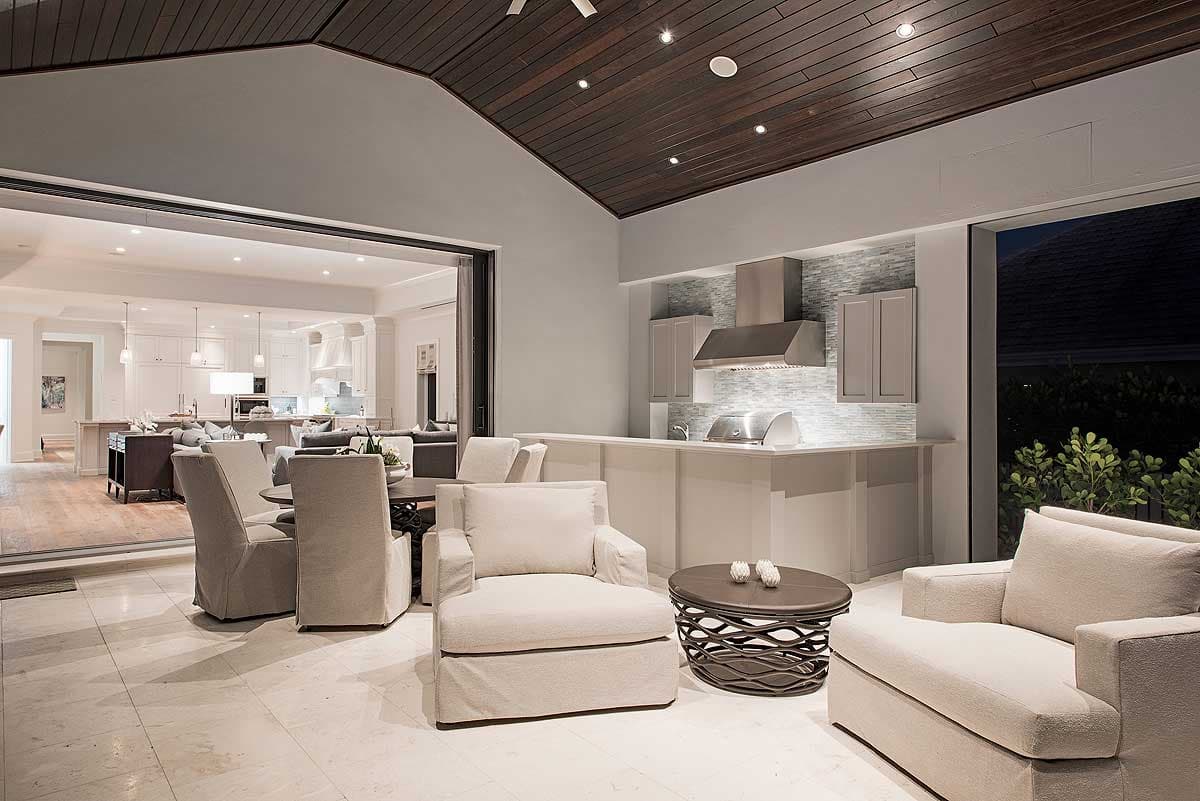

From the foyer you have continuous views through to the covered lanai in back.

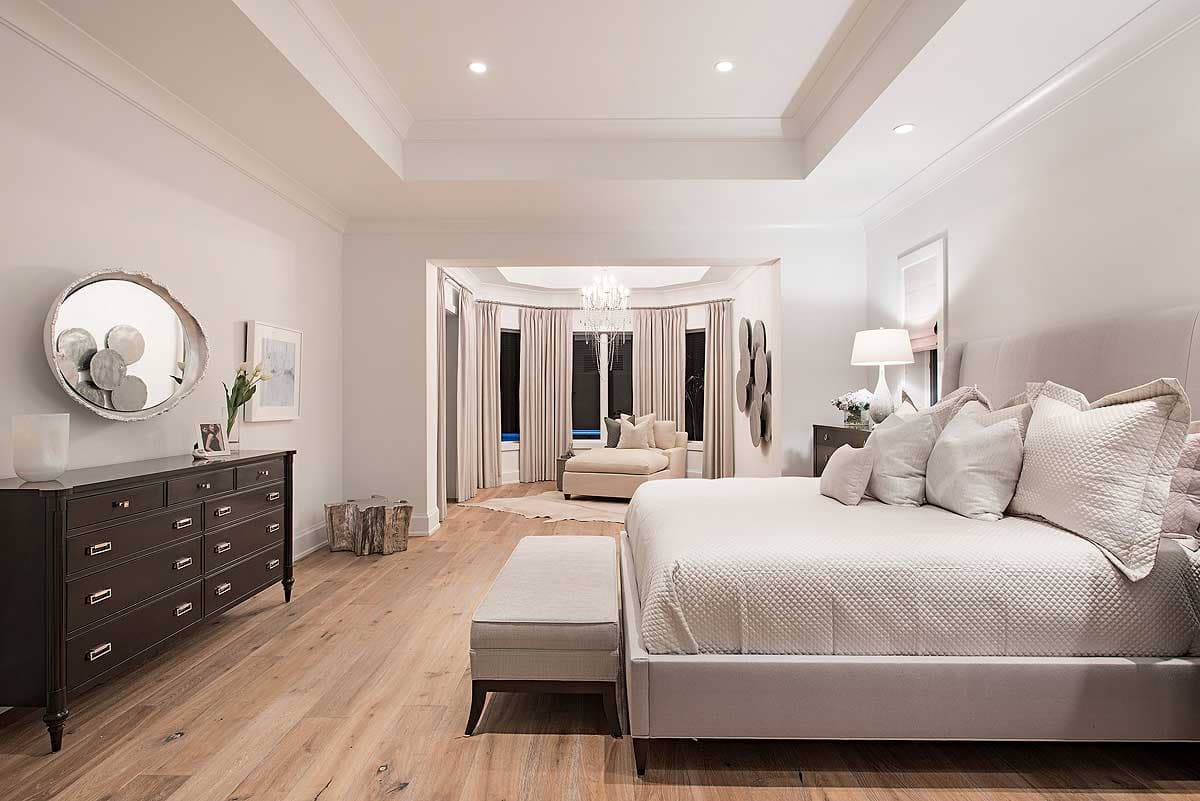

The master in on the main for your convenience and has covered lanai access and an oversized sitting room with great panoramic views.

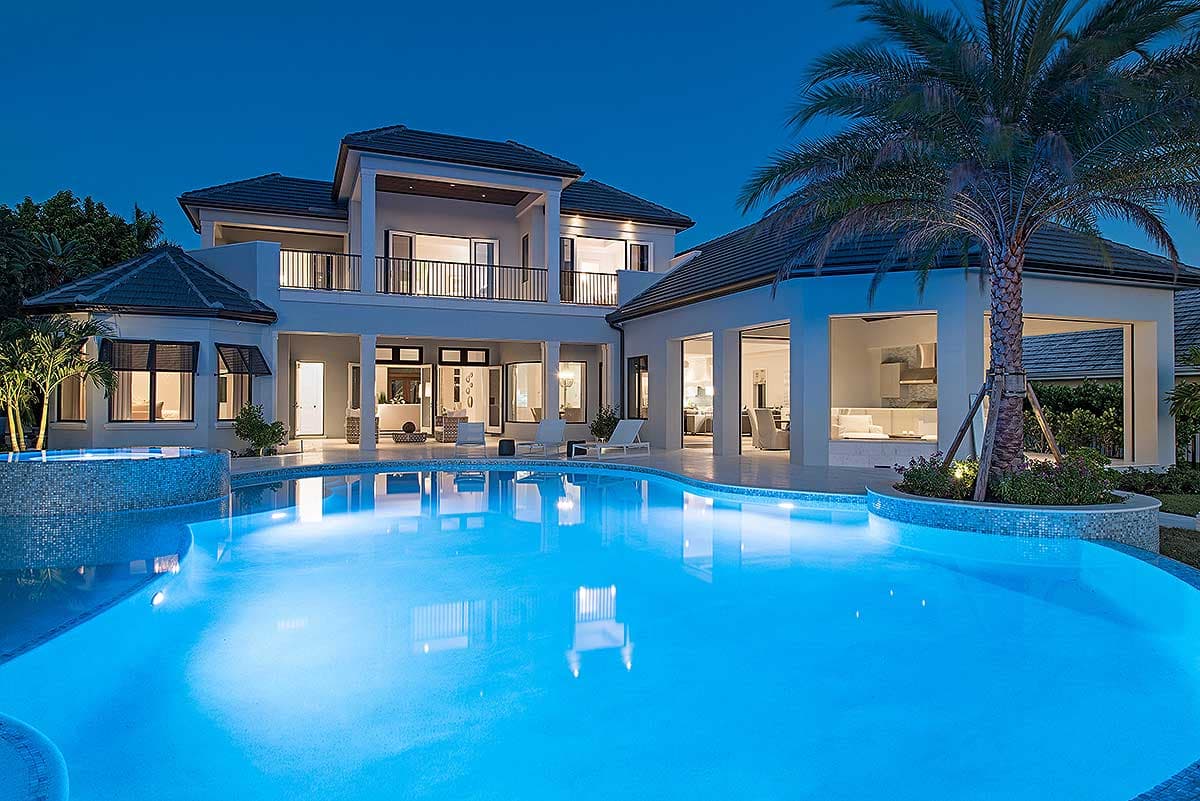

Outdoor spaces are integral to your enjoyment and are found on both levels.

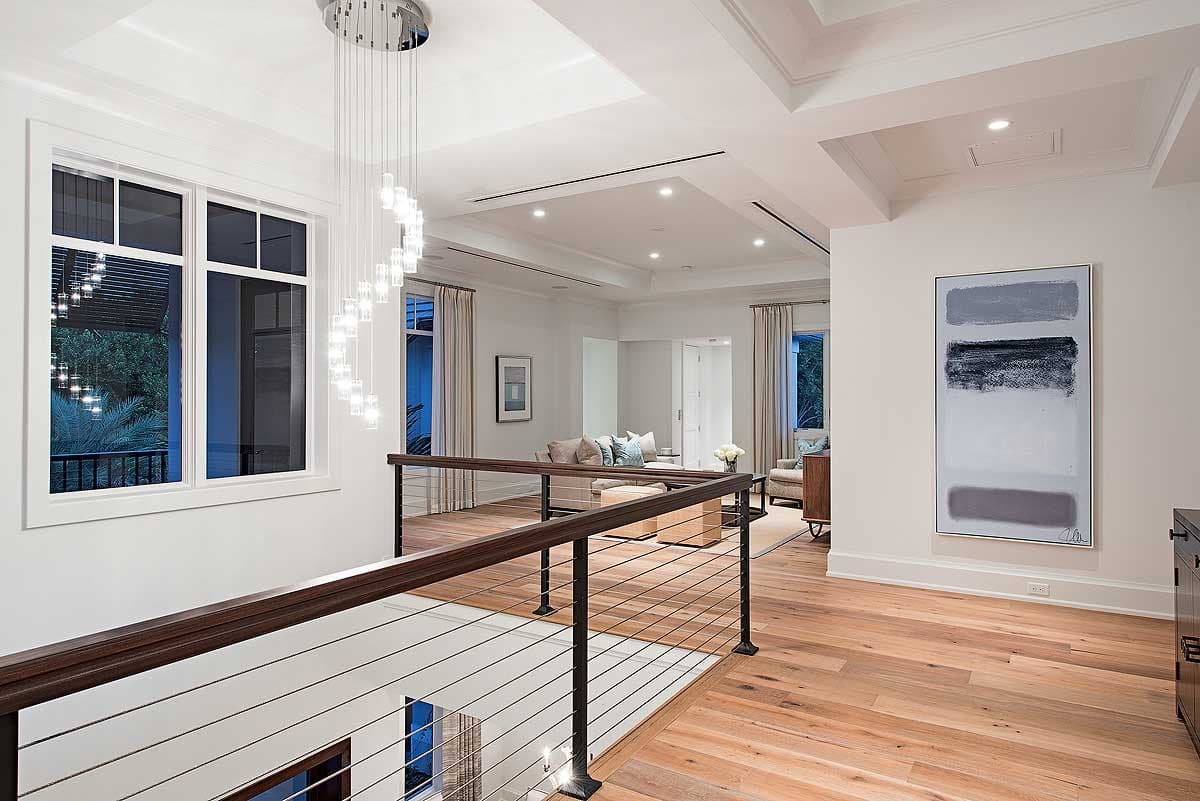

The upstairs features 4 or 5 bedrooms depending on your use of the bonus room. All have baths and walk-in closets. A living room and upstairs laundry - plus four balconies in back and off the bonus room - complete the floor.
Related Plan: Get more room with house plan 31804DN.

What's Included

Slab Plan
Floor Plans with Notes and Dimensions
Door and Window Schedules
Electrical Plans
Ceiling Plans
Elevations of All Sides
Roof Plans
Building Sections
Wall Sections
Fastener Requirements

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Modify This Plan

Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

7,395 sq. ft.

1st Floor

4,702 sq. ft.

2nd Floor

2,693 sq. ft.

Deck

287 sq. ft.

Entry

60 sq. ft.

Balcony / Veranda

372 sq. ft.

Lanai

1,098 sq. ft.

Beds/Baths

Bedrooms

5 or 6

Full bathrooms

5

Half bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

83' 1"

Depth

132' 1"

Max Ridge Height

30' 0"

Garage

Type

Attached

Area

1054 sq. ft.

Count

3 Cars

Entry Location

Courtyard

Ceiling Heights

First Floor

11'

Second Floor

10'

Room

Ceiling Type

Height

Kitchen

Coffered

11' 0''

Family Room

Coffered

12' 0''

Master Bedroom

Coffered

12' 0''

Guest Room

Coffered

11' 0''

Study

Coffered

11' 8''

Lanai

Coffered

11' 0''

Foyer

Volume

23' 0''

Living Room

Coffered

12' 0''

Bonus

Vaulted

12' 0''

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Special Features

Butler Walk-in Pantry

Laundry - Upstairs

Master Suite - 1st Floor

Master Suite - Sitting Area

Outdoor Kitchen

Two Master Suites

Plan Collections

Premium Collection
