Plan 21534DR
Living Large
Heated S.F.
2,169
Beds
3
Baths
2
Stories
2
Cars
2
Floor Plan

Plan 21534DR

Main Level
slide image 0
2nd Floor
slide image 1

Plan 21534DR

1-800-854-7852

1-262-521-4596

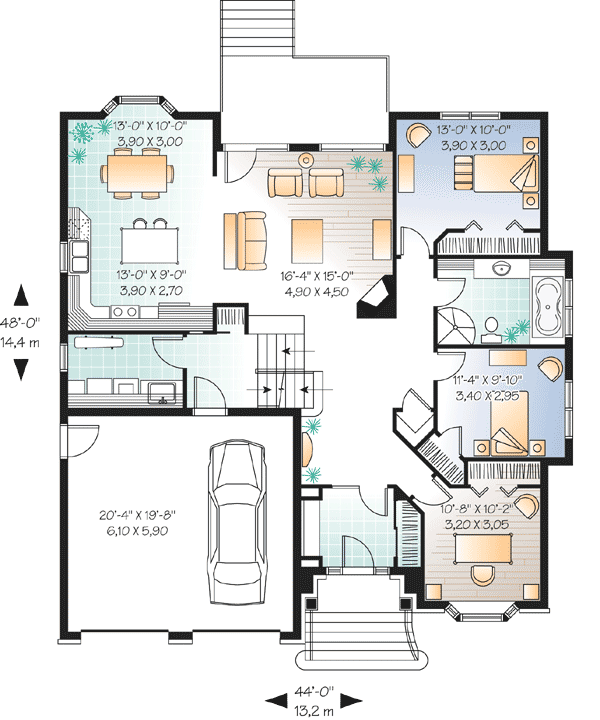

Main Level
floor plan image Main Level

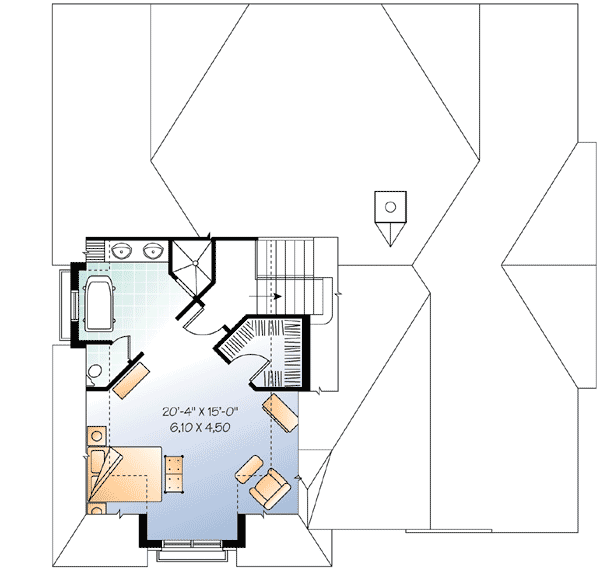

2nd Floor
floor plan image 2nd Floor
Plan Details
  • A formal entry foyer with a built-in bench and coat closet welcomes you to this European split level house plan.
  • A corner home office is a great place to put in a few more hours of work or to get some quiet reading time.
  • Note the open floor plan with the island kitchen the hub between the informal dining area with a tasteful bay window and the family room with corner fireplace and rear porch access.
  • Two bedrooms are tucked to the side and share a hall bath.
  • A laundry/utility area is handy to the two-car garage.
  • The second level rises to a master suite and full bathroom.
  • Related Plan: For a smaller version without the office see house plan 21987DR.
What's Included
  • Elevations
  • Foundation Plan
  • Main Floor Plan
  • Upper Floor Plans (if applicable)
  • Roof Plan
  • Building Section
  • Construction Details
  • Typical Wall Section
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,169 sq. ft.

1st Floor

1,571 sq. ft.

2nd Floor

598 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

44' 0"

Depth

48' 0"

Max Ridge Height

33' 10"

Garage

Type

Attached

Area

440 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Secondary Pitch

10 on 12

Framing Type

Truss

Architectural Style

European

Special Features

Home Office

Master Suite - 2nd Floor

Split Level

Plan Collections

Canadian House Plans

Home Office

Metric

Split Level House Plans
