Plan 72896DA
Lodge-Like Living With Amazing Views
Heated S.F.
2,063
Beds
3
Baths
2.5
Stories
2
Floor Plan

Plan 72896DA

Main Level
slide image 0
2nd Floor
slide image 1

Plan 72896DA

1-800-854-7852

1-262-521-4596

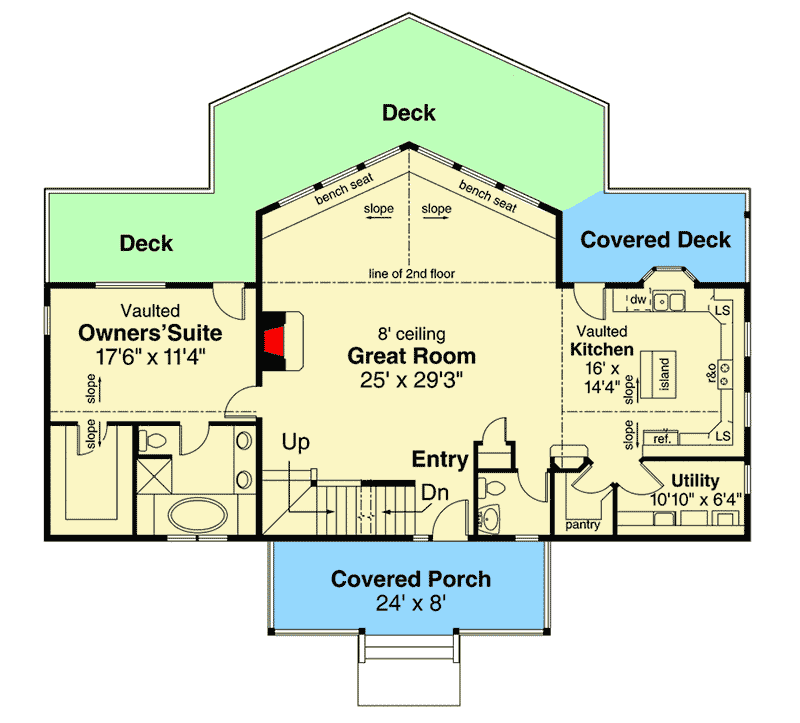

Main Level
floor plan image Main Level

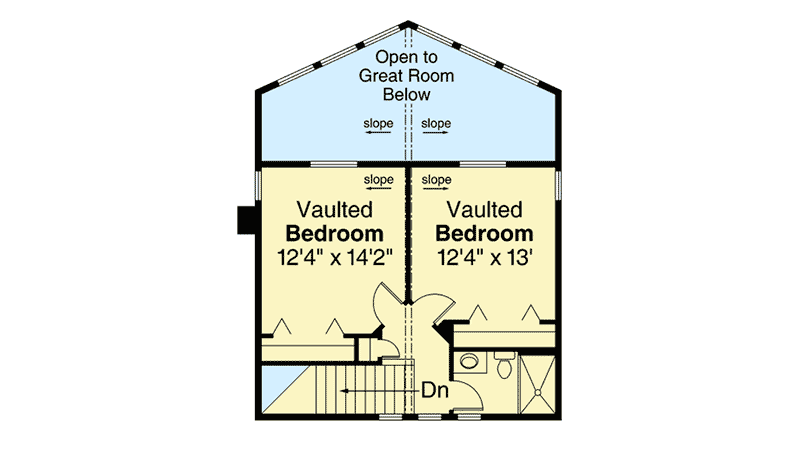

2nd Floor
floor plan image 2nd Floor
Plan Details
  • Natural light comes flooding into the living area of this lodge-style house plan. A large covered porch greets you and provides a sheltered entrance into the home.
  • Directly left of the front door is a set of stairs, one side leads to the basement the other side leads to the second floor. The entry immediately opens into the large great room that provides bench seats along the windows.
  • The owners' suite is located off the great room and has its own access to the expansive deck as well as a generously sized walk-in closet and bathroom with soaking tub.
  • Upstairs are two additional bedrooms. Each bedroom as an interior window that allows the wonderful views out the back of the home to be enjoyed from these rooms too!
What's Included
Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
  • Cover Sheet/Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.

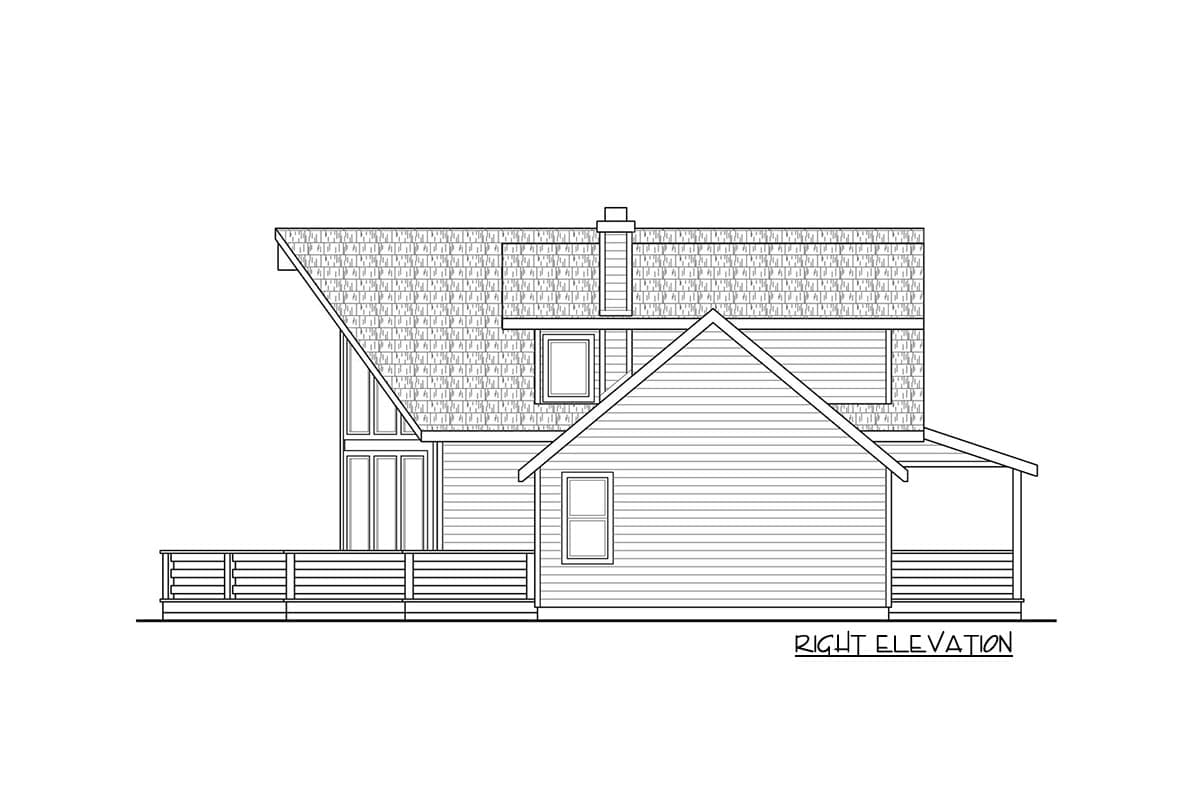

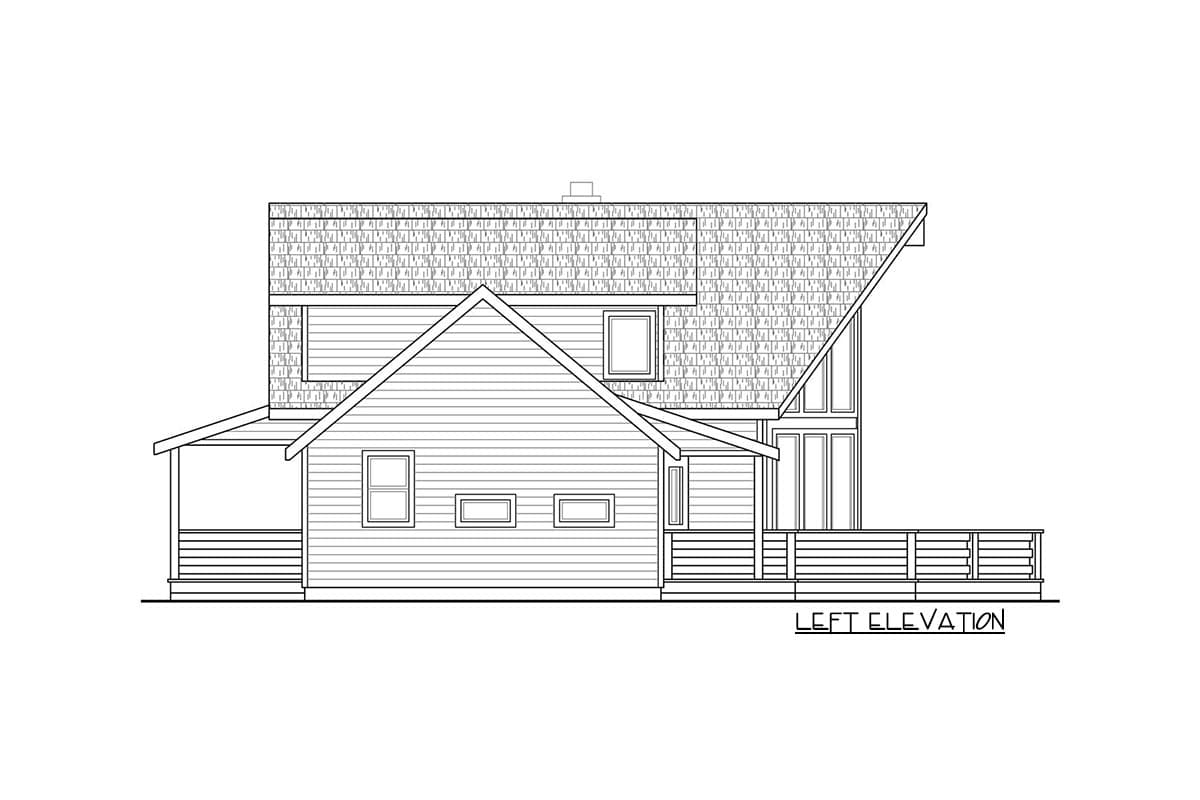

  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Building Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches, and electrical outlets.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,063 sq. ft.

1st Floor

1,554 sq. ft.

2nd Floor

509 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

60' 0"

Depth

42' 0"

Max Ridge Height

24' 3"

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Mountain

Northwest

Vacation

Special Features

Butler Walk-in Pantry

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

2,063 sq. ft.

1st Floor

1,554 sq. ft.

2nd Floor

509 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

60' 0"

Depth

42' 0"

Max Ridge Height

24' 3"

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Mountain

Northwest

Vacation

Special Features

Butler Walk-in Pantry

Master Suite - 1st Floor
