Plan 9803SW
Lodge Living
Heated S.F.
2,682
Beds
6
Baths
3
Stories
2
Floor Plan

Plan 9803SW

Main Level
slide image 0
2nd Floor
slide image 1

Plan 9803SW

1-800-854-7852

1-262-521-4596

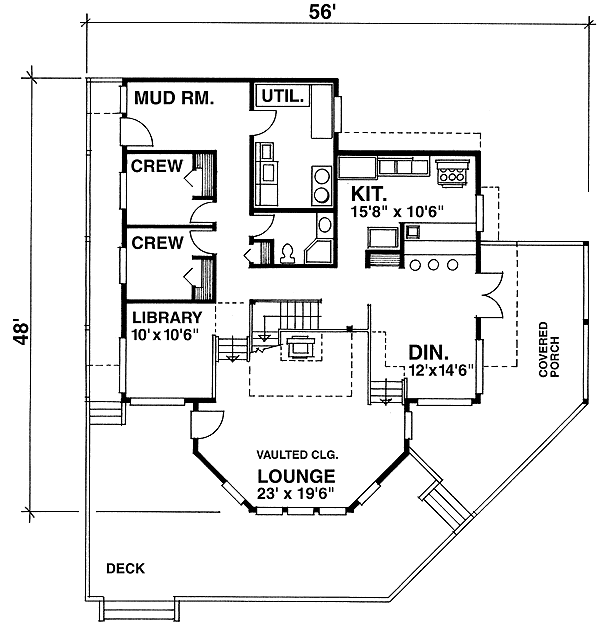

Main Level
floor plan image Main Level

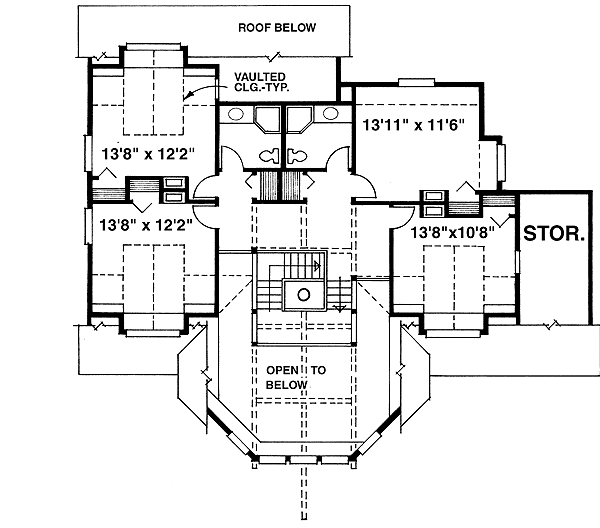

2nd Floor
floor plan image 2nd Floor
Plan Details
  • This six-bedroom lodge easily accommodates and encourages multifamily entertaining.
  • The voluminous lounge boasts a twenty-foot high open beamed ceiling with a centrally located warming wood stove.
  • The towering front window wall captures all the available views.
  • Raised above the lounge floor level but separated only by a railing are the library and the spacious dining room.
  • Numerous French door locations access the wrap-a-round multi-level decks for outdoor entertaining.
  • A staircase hung from the ceiling beams allows access to the second level, where four guest suites share the two full bathrooms.
  • Plans designed with a concrete pier and post foundation plan.
What's Included
  • Cover sheet with rendering
  • General notes and specifications
  • Foundation plan
  • Fully dimensioned floor plan - windows are called out as generic sizes
  • Structural floor/roof information either on the floor plans or separate framing plans for more complex designs
  • Electrical
  • Cross sections
  • Details as required

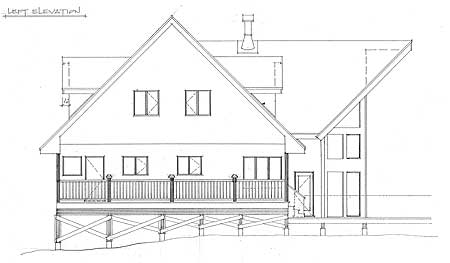

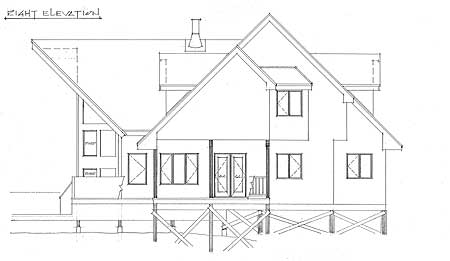

  • Elevations
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
  • Interior Cabinet Elevations or Window Schedules
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,682 sq. ft.

1st Floor

1,559 sq. ft.

2nd Floor

1,123 sq. ft.

Bonus

144 sq. ft.

Deck

792 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

3

Foundation Type

Standard Foundations

Post/Pier

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

56' 0"

Depth

48' 0"

Max Ridge Height

36' 0"

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Contemporary

Mountain

Special Features

Bonus Room

Laundry - Main Level

Library/Study

Master Suite - 2nd Floor

Mudroom

Two Story Great Room

Wrap Around Porch

Plan Collections

Canadian House Plans

Lake House Plans

Square Footage Breakdown

Total Heated Area

2,682 sq. ft.

1st Floor

1,559 sq. ft.

2nd Floor

1,123 sq. ft.

Bonus

144 sq. ft.

Deck

792 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

3

Foundation Type

Standard Foundations

Post/Pier

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

56' 0"

Depth

48' 0"

Max Ridge Height

36' 0"

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Contemporary

Mountain

Special Features

Bonus Room

Laundry - Main Level

Library/Study

Master Suite - 2nd Floor

Mudroom

Two Story Great Room

Wrap Around Porch

Plan Collections

Canadian House Plans

Lake House Plans
