Plan 666010RAF
Lots of Light
Heated S.F.
3,887
Beds
4
Baths
4.5
Stories
2
Cars
2
Floor Plan

Plan 666010RAF

Main Level
slide image 0
2nd Floor
slide image 1

Plan 666010RAF

1-800-854-7852

1-262-521-4596

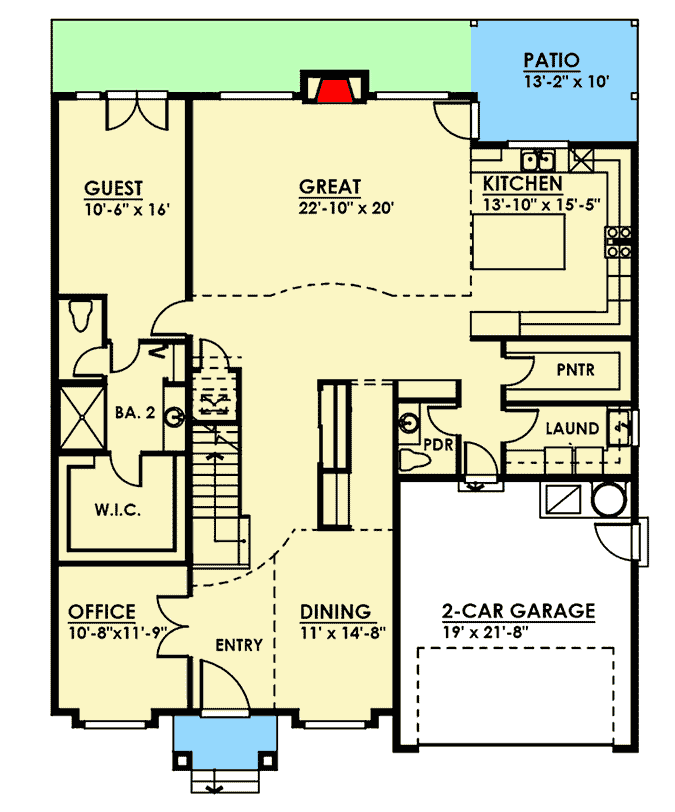

Main Level
floor plan image Main Level
2nd Floor
floor plan image 2nd Floor
Plan Details
  • Tall windows and transoms flood this spacious Northwest house plan with light.
  • Grand two-story ceilings crown the foyer, dining room and great room.
  • The kitchen is loaded with counter space and there's a big island that adds prep space for cooking plus a large walk-in pantry.
  • The first floor guest suite is ideal as an in-law suite since it has a huge walk-in closet, private bathroom and double doors out to the rear patio.
  • Open railing on both sides of the loft lets you look down into the foyer and great room below.
  • The grand master suite lies on the right wing and boasts a massive walk-in closet that is even bigger than the bedroom!
  • Two more bedrooms lie on the left side of the second floor off by themselves.
What's Included
  • Cover Sheet with plan info
  • General Notes - Note: codes will not include local state adopted amendments
  • Fully dimensions and detailed floor plans
  • Elevations
  • Building Cross Section
  • Roof Plan
  • Details
  • Window Schedule
  • Original Structural plan FOR REFERENCE ONLY
What's Not Included
  • Architectural or Engineering Stamp  - handled locally when required
  • Site plans - handled locally - handled locally when required
  • Mechanical Drawings - handled locally when required
  • Plumbing Drawings  - handled locally when required
  • Electrical Drawings  - handled locally when required
  • Energy Calculations  - handled locally when required
  • Foundation and Framing plans  - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

3,887 sq. ft.

1st Floor

2,041 sq. ft.

2nd Floor

1,846 sq. ft.

Covered Patio

132 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

48' 0"

Depth

61' 5"

Garage

Type

Attached

Area

414 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

9'

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Northwest

Prairie

Special Features

Bedrooms - Split

Butler Walk-in Pantry

In-Law Suite

Laundry - Main Level

Loft

Master Suite - 2nd Floor

Square Footage Breakdown

Total Heated Area

3,887 sq. ft.

1st Floor

2,041 sq. ft.

2nd Floor

1,846 sq. ft.

Covered Patio

132 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

48' 0"

Depth

61' 5"

Garage

Type

Attached

Area

414 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

9'

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Northwest

Prairie

Special Features

Bedrooms - Split

Butler Walk-in Pantry

In-Law Suite

Laundry - Main Level

Loft

Master Suite - 2nd Floor
