Plan 20064GA
Lovely Craftsman Ranch
Heated S.F.
1,992
Beds
3
Baths
2.5
Stories
1
Cars
3
Floor Plan

Plan 20064GA

Main Level
slide image 0

Plan 20064GA

1-800-854-7852

1-262-521-4596

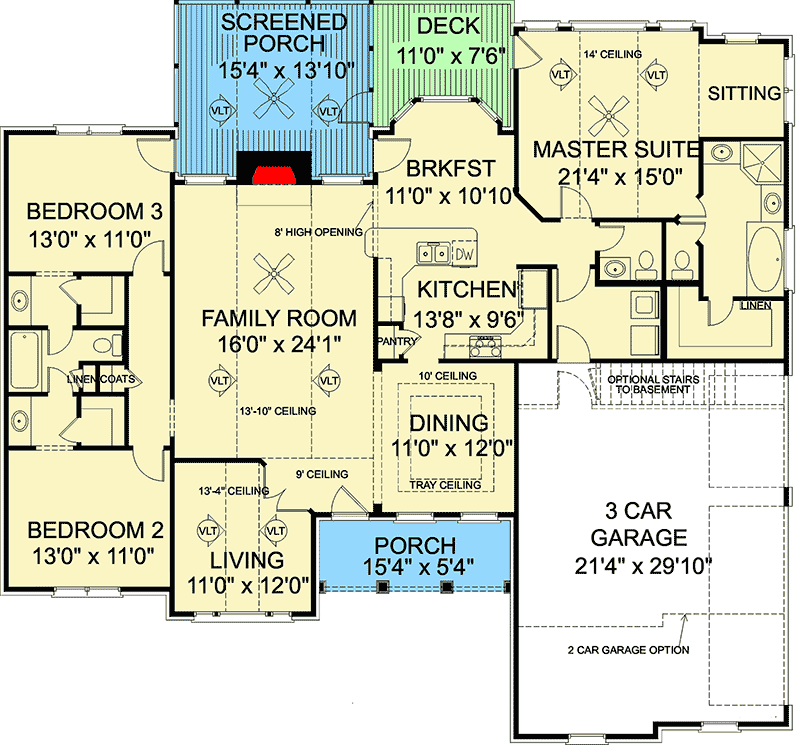

Main Level
floor plan image Main Level
Plan Details
  • This attractive Craftsman integrates desirable features into a mid-sized ranch. The siding exterior is accented with stacked stone. An inviting front porch welcomes you. A "cost-cutting" 6:12 main roof pitch, an exquisite master suite, a 3-car garage, and a large screened porch are sure to make this 1992 square foot home irresistible.
  • The exceptional master suite, with direct access to the deck, a sitting area, full-featured bath, and spacious walk-in closet, create a true "Master's Retreat." A bay window brightens the breakfast room and kitchen. Vaulted or trayed ceilings adorn the living, family room, dining, and master suite. Other rooms have 9' ceilings.
  • The secondary bedrooms each measure approx. 13' x 11' and feature walk-in closets. They share a private "Jack and Jill" bath. The screened porch measures approx. 15'x14' and boasts a vaulted ceiling with a fan.
What's Included
  • Digital exterior rendering cover page
  • Exterior elevation page
  • Main floor plan page with electrical, 3-D floor plan, and window and door schedule
  • Upper level floor plan page with upper floor framing schematic, and 3-D floor plan
  • Cross sections and interior elevation page
  • Roof framing plan with 3-D roof framing schematic
  • IRC code specifications and methodologies
  • General construction details
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,992 sq. ft.

1st Floor

1,992 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement, Crawl

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

63' 0"

Depth

57' 2"

Max Ridge Height

20' 0"

Garage

Type

Attached

Area

636 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Ranch

Traditional

Special Features

Bedrooms - Split

Jack & Jill Bath

Master Suite - 1st Floor

Master Suite - Sitting Area

Square Footage Breakdown

Total Heated Area

1,992 sq. ft.

1st Floor

1,992 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement, Crawl

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

63' 0"

Depth

57' 2"

Max Ridge Height

20' 0"

Garage

Type

Attached

Area

636 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Ranch

Traditional

Special Features

Bedrooms - Split

Jack & Jill Bath

Master Suite - 1st Floor

Master Suite - Sitting Area
