Plan 93136EL

Exclusive

Luxurious European House Plan with Upstairs Man Cave and Theater - 6841 Sq Ft
Heated S.F.
6,841
Beds
5
Baths
6.5+
Stories
2
Cars
5
Floor Plan

Plan 93136EL

Main Level
slide image 0
2nd Floor
slide image 1

Plan 93136EL

1-800-854-7852

1-262-521-4596

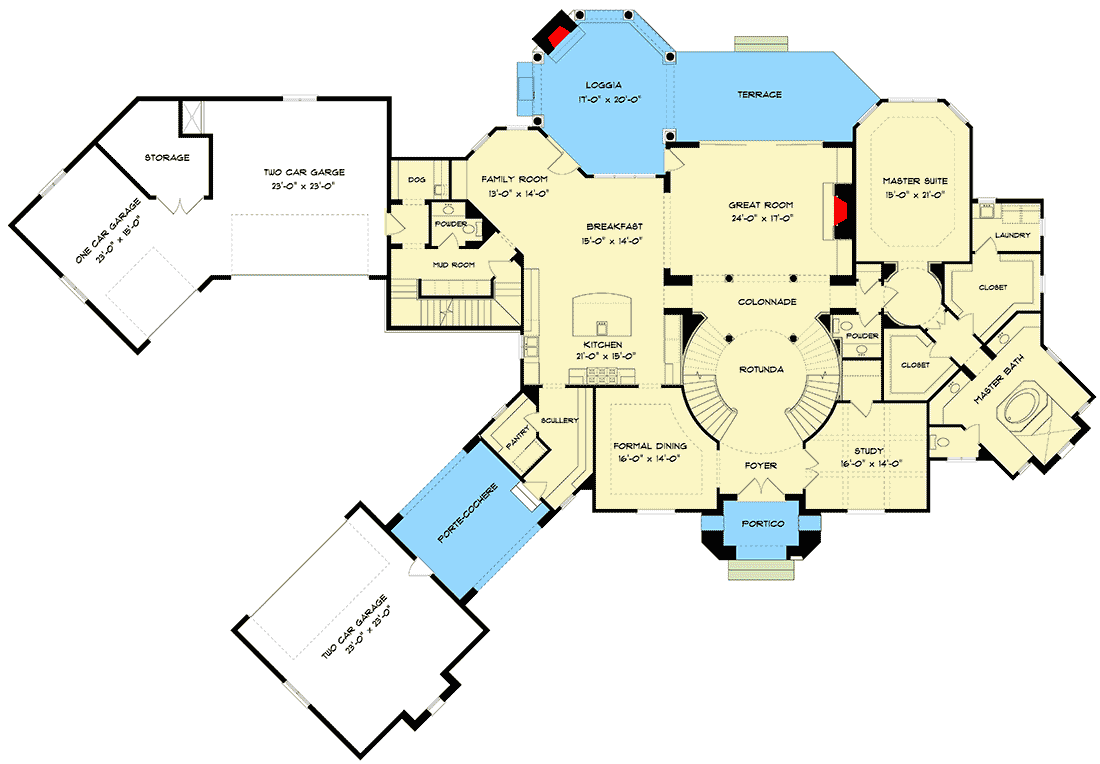

Main Level
floor plan image Main Level

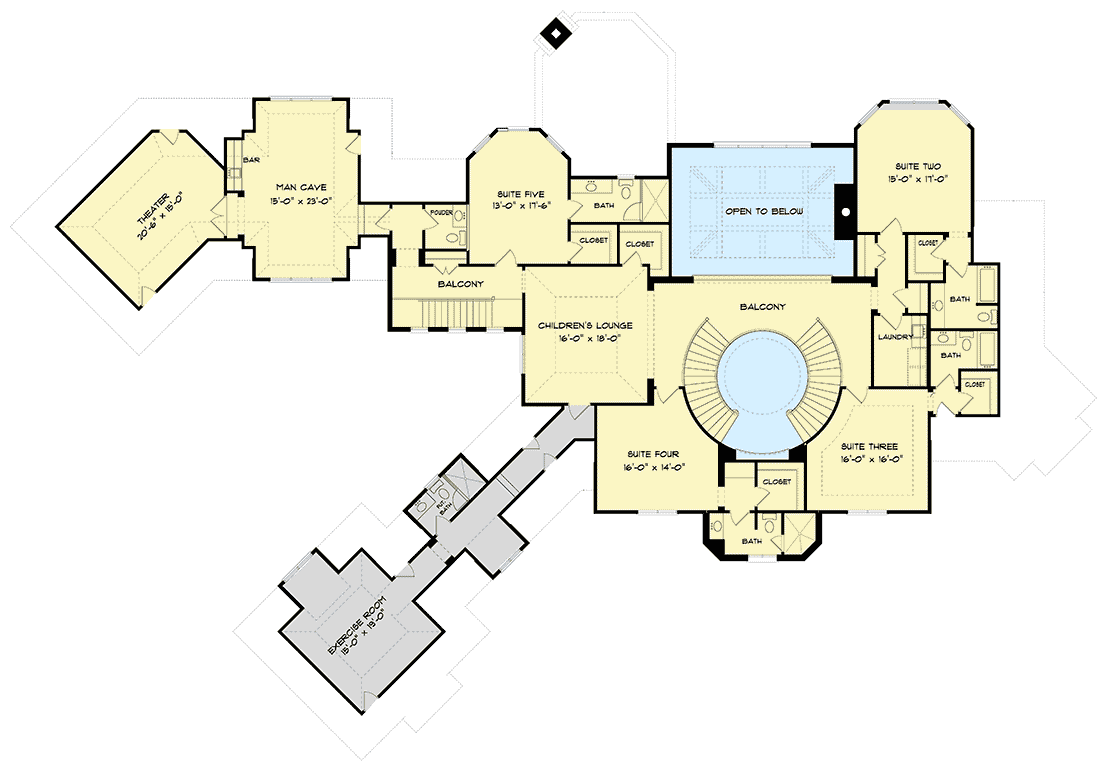

2nd Floor
floor plan image 2nd Floor
Plan Details

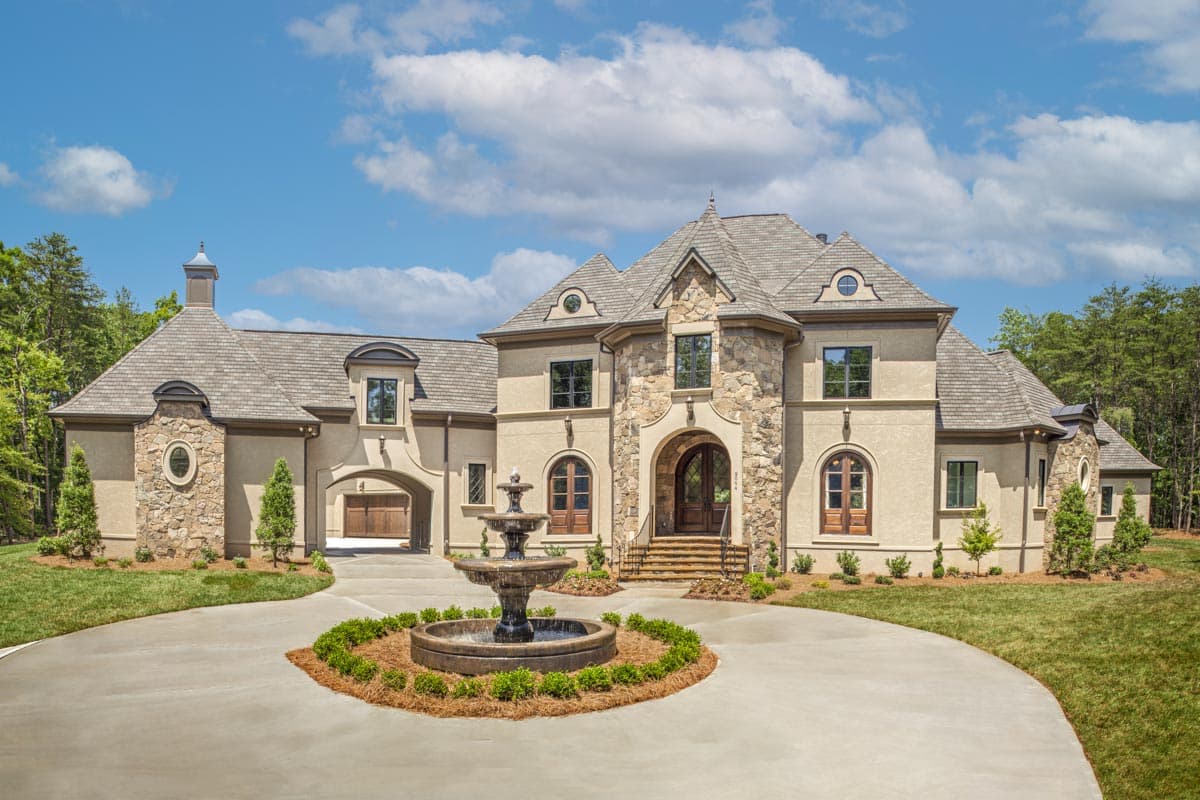

  • This luxurious, European house plan, exclusive to Architectural Designs, boasts a rich exterior with a porte-cochere leading into a courtyard surrounded by five garage bays.

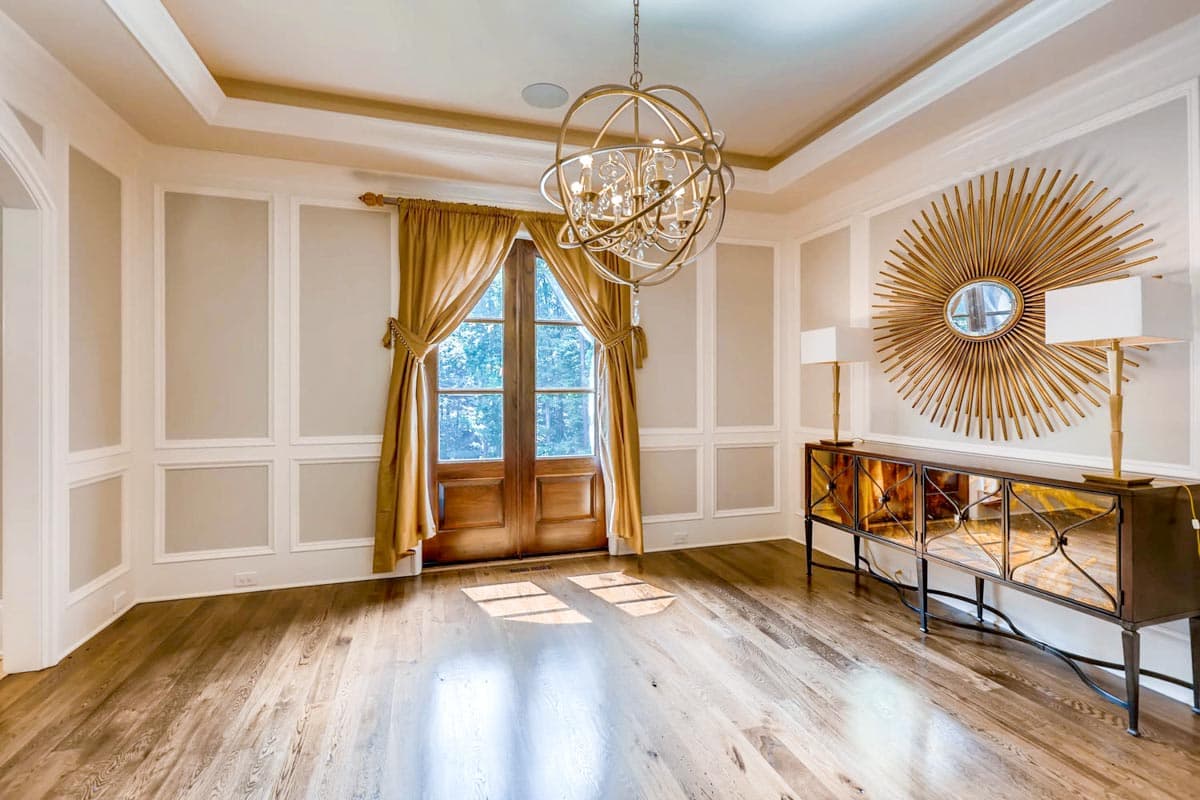

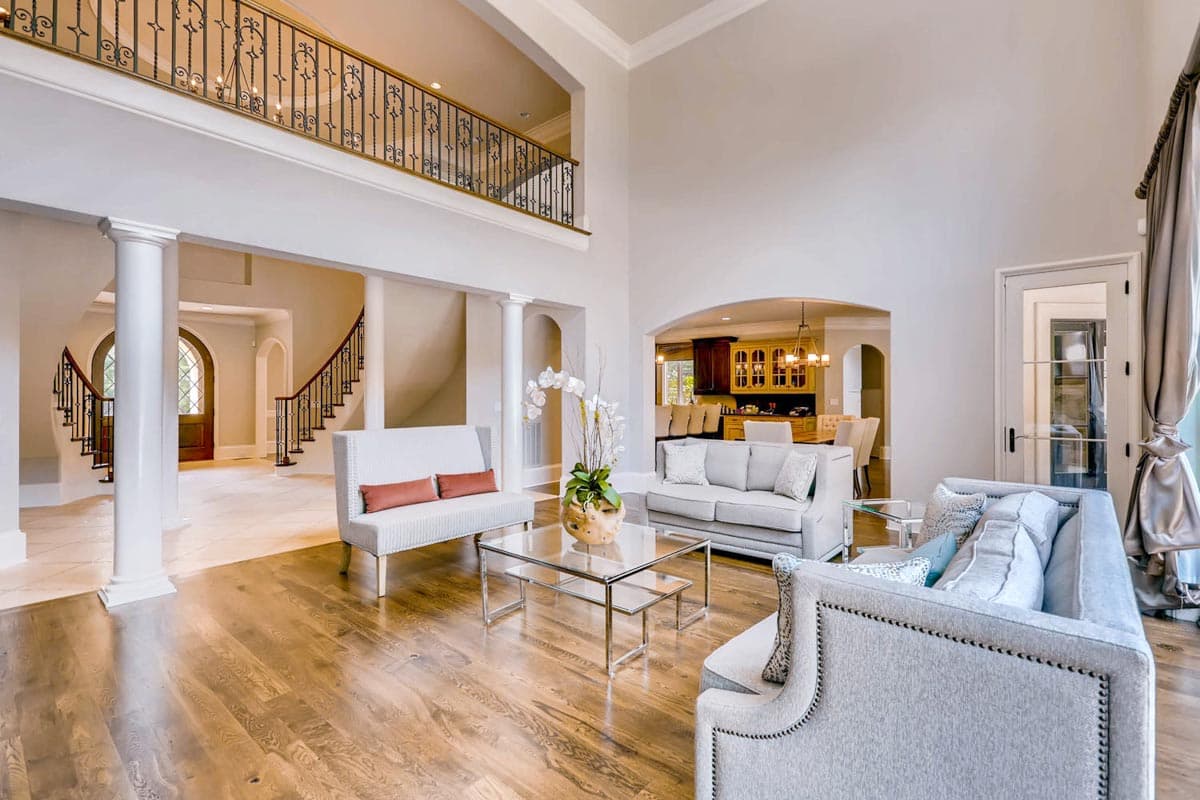

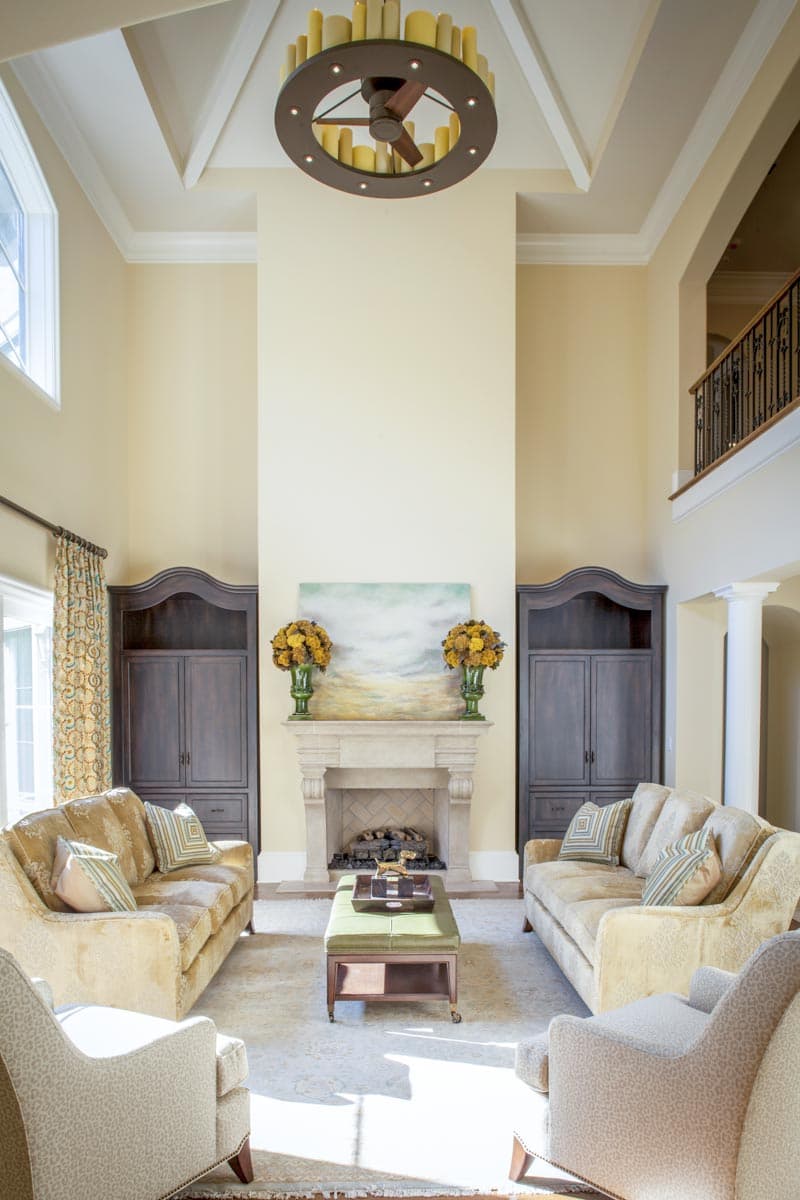

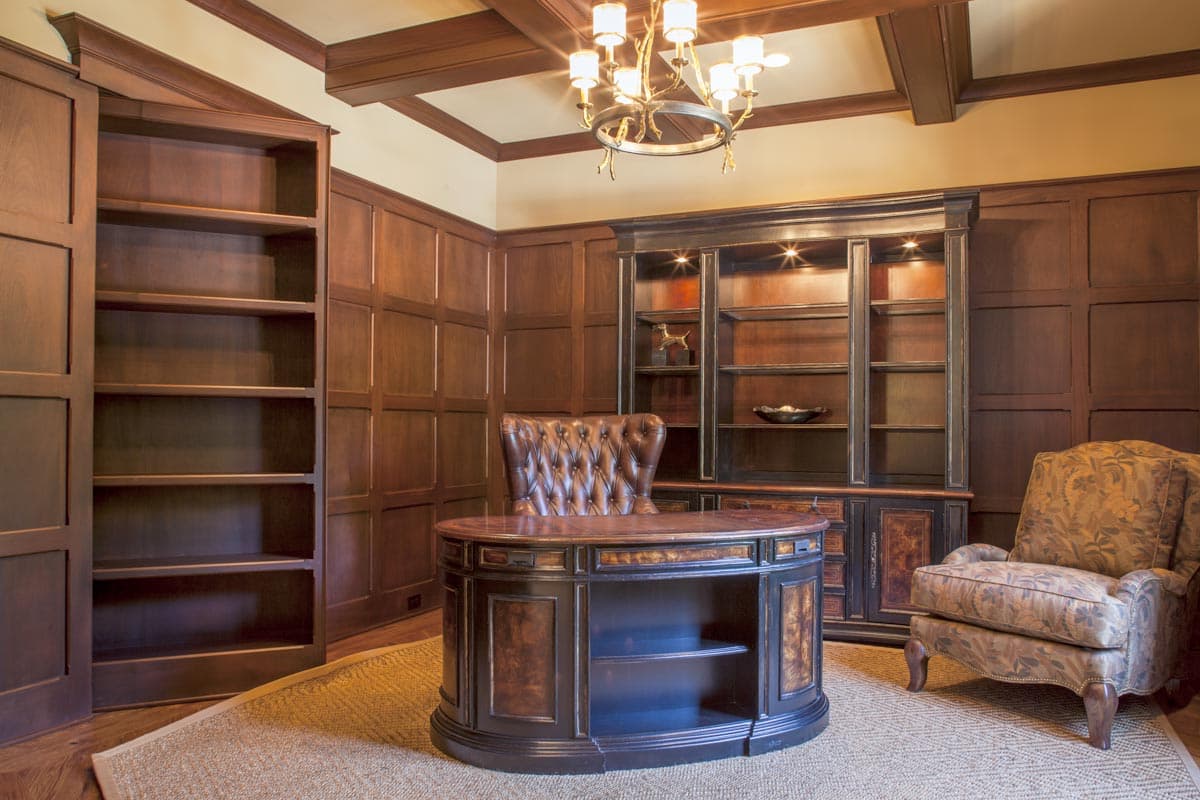

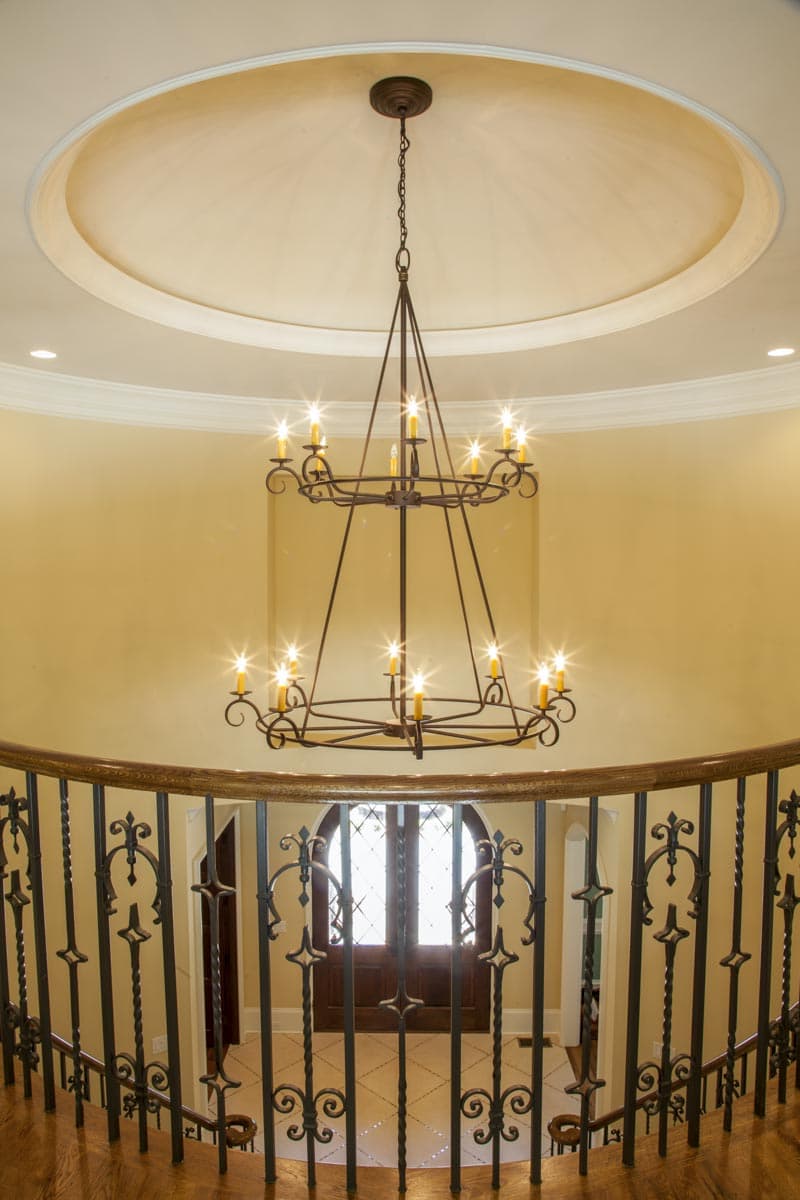

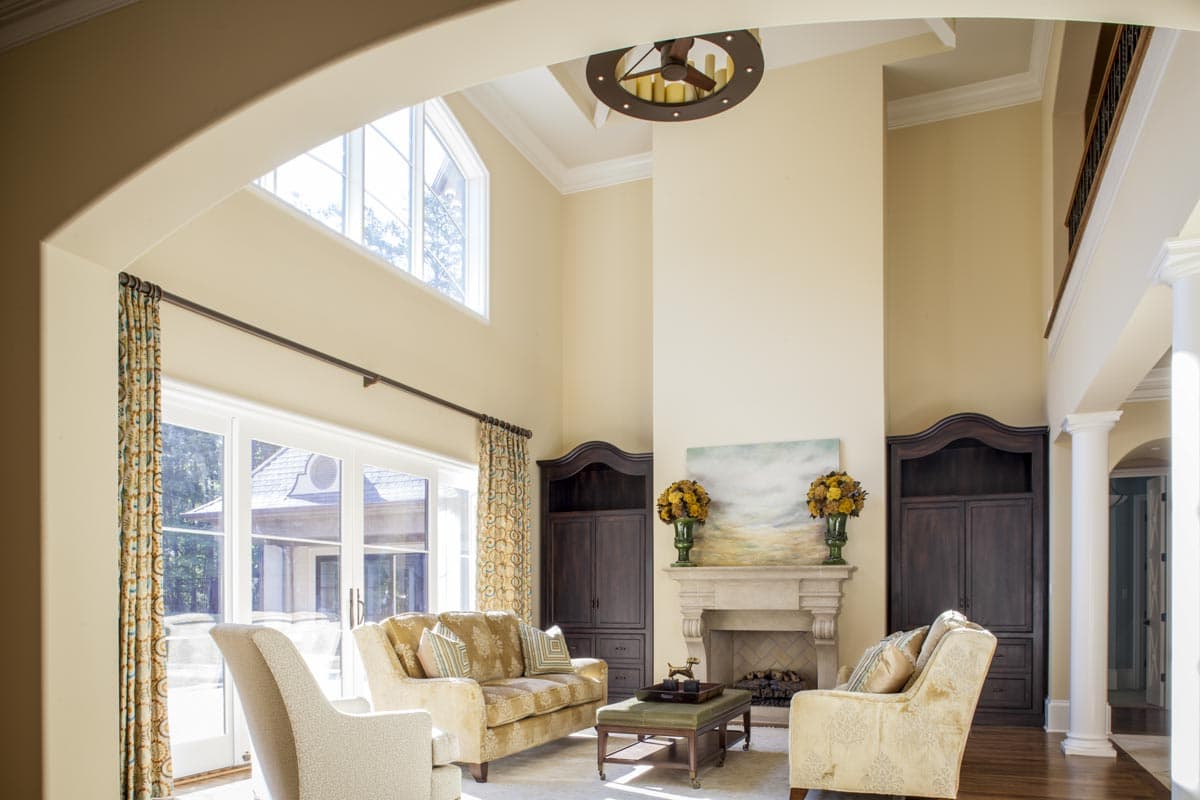

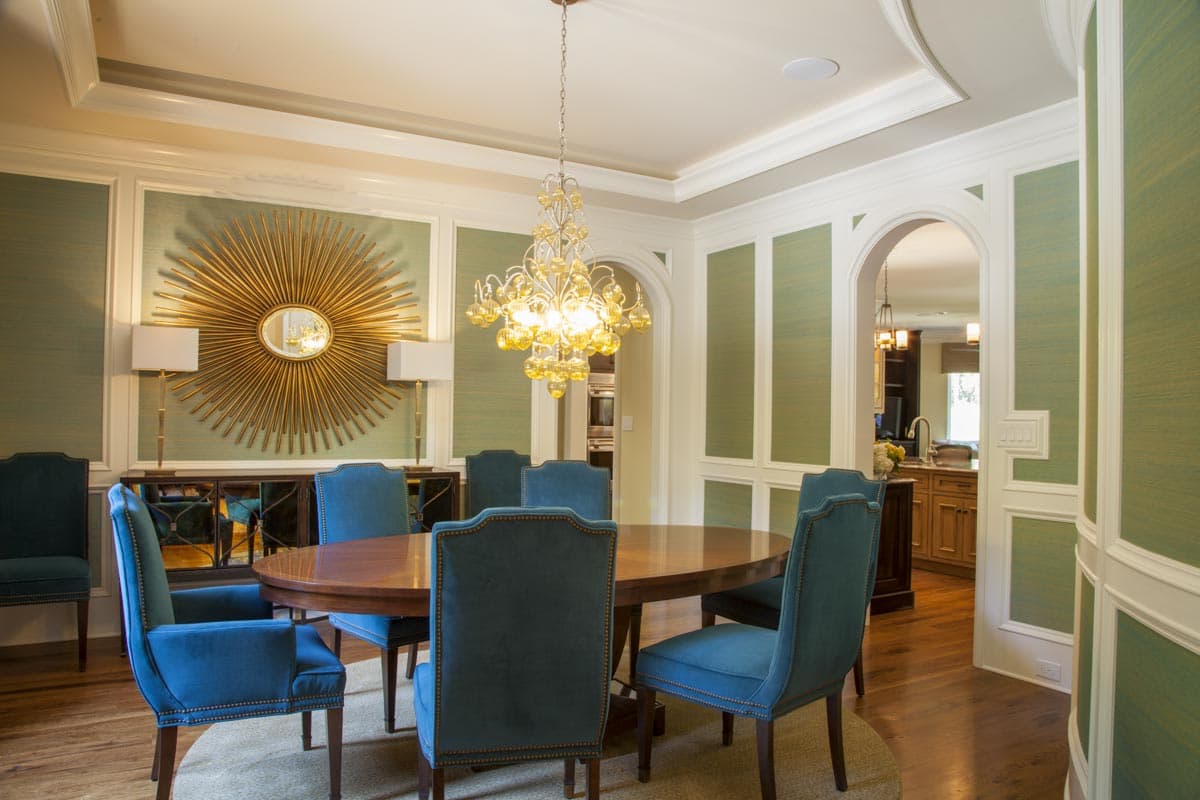

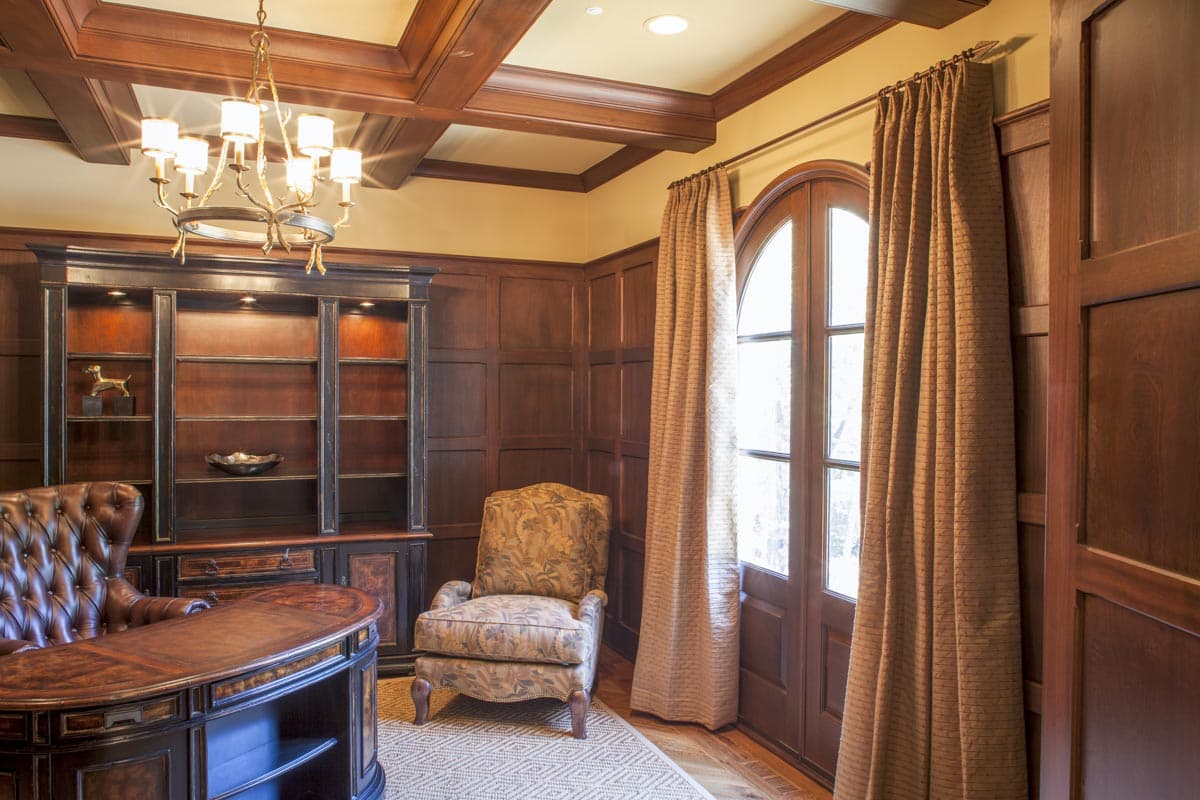

  • The palatial interior highlights a grand, curved staircase in the foyer, with views into the bordering dining room and study, as well as straight ahead into the great room.

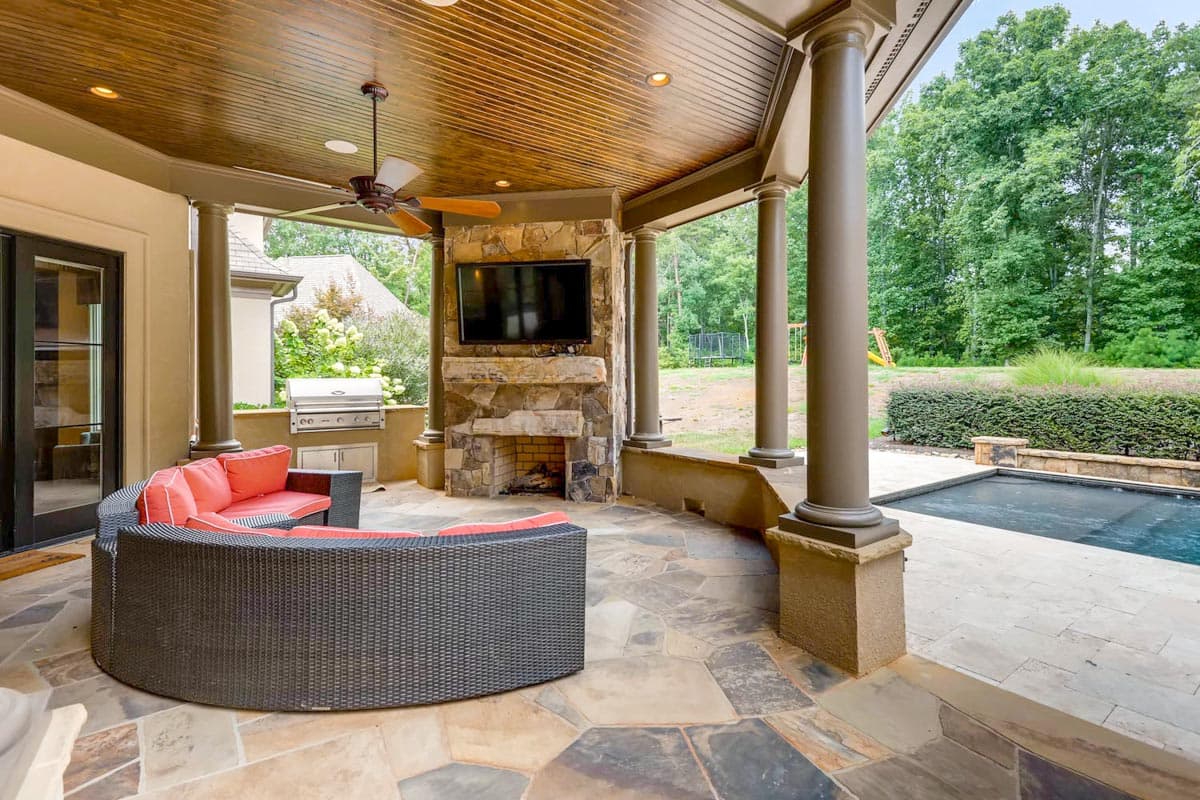

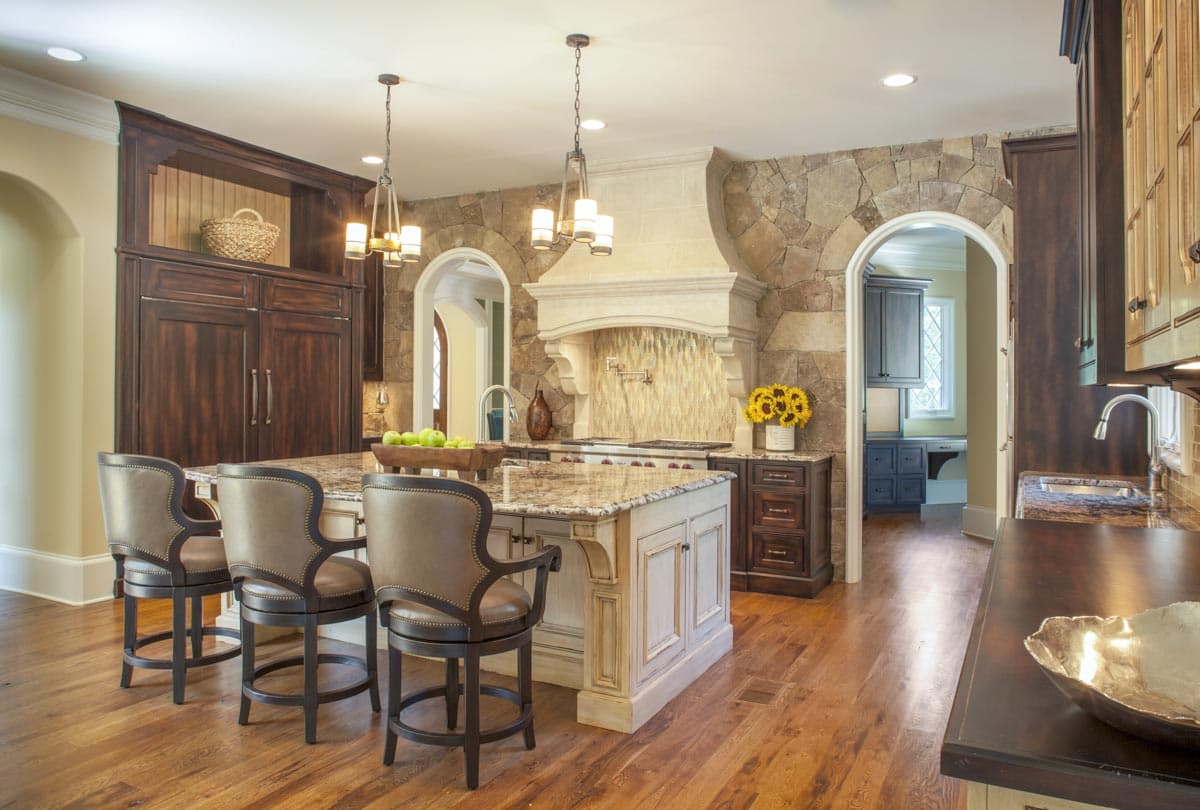

  • The chef's kitchen makes entertaining a dream, and the adjoining scullery maximizes workspace. Escape to the loggia for fresh air, complete with a fireplace and grilling station.
  • The well-appointed, master suite is located on the main level, and presents a laundry room attached to one of the walk-in closets flanking the hallway to the lavish en suite.
  • Each of the four additional suites on the second level includes a full bath, and a children's lounge contains toys to the second level.

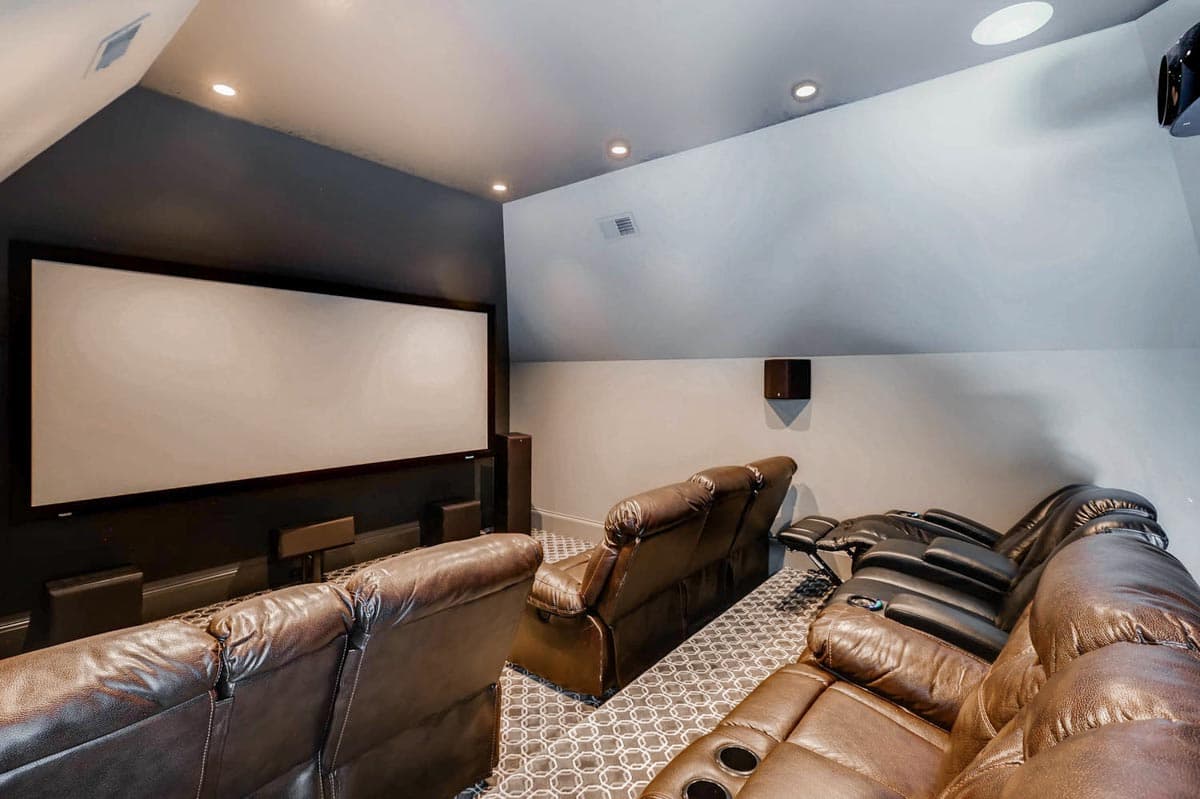

  • Above the garage, discover a man cave with a wet bar and a theater. An option for an exercise room offers the homeowner a flexible design.
What's Included

  • Cover Sheet
  • General Note Sheet
  • Foundation Sheet
  • Floor Plan
  • Roof Framing Plan

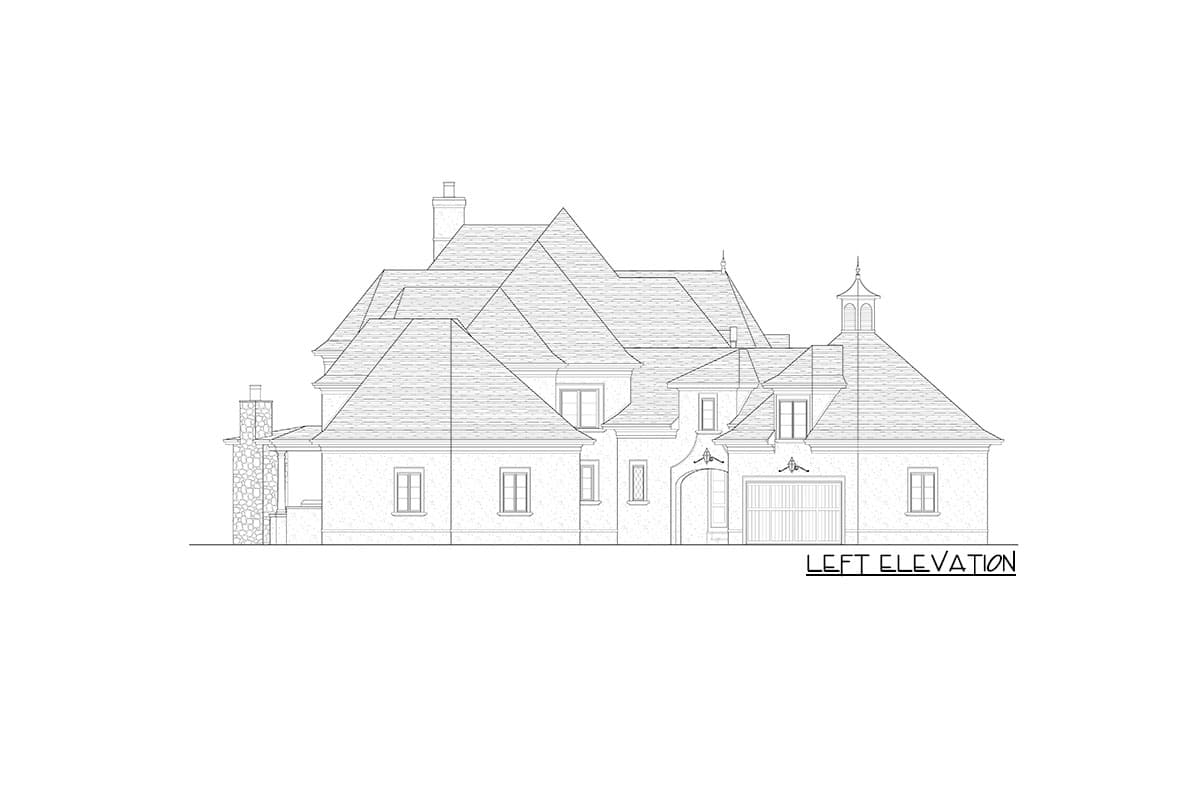

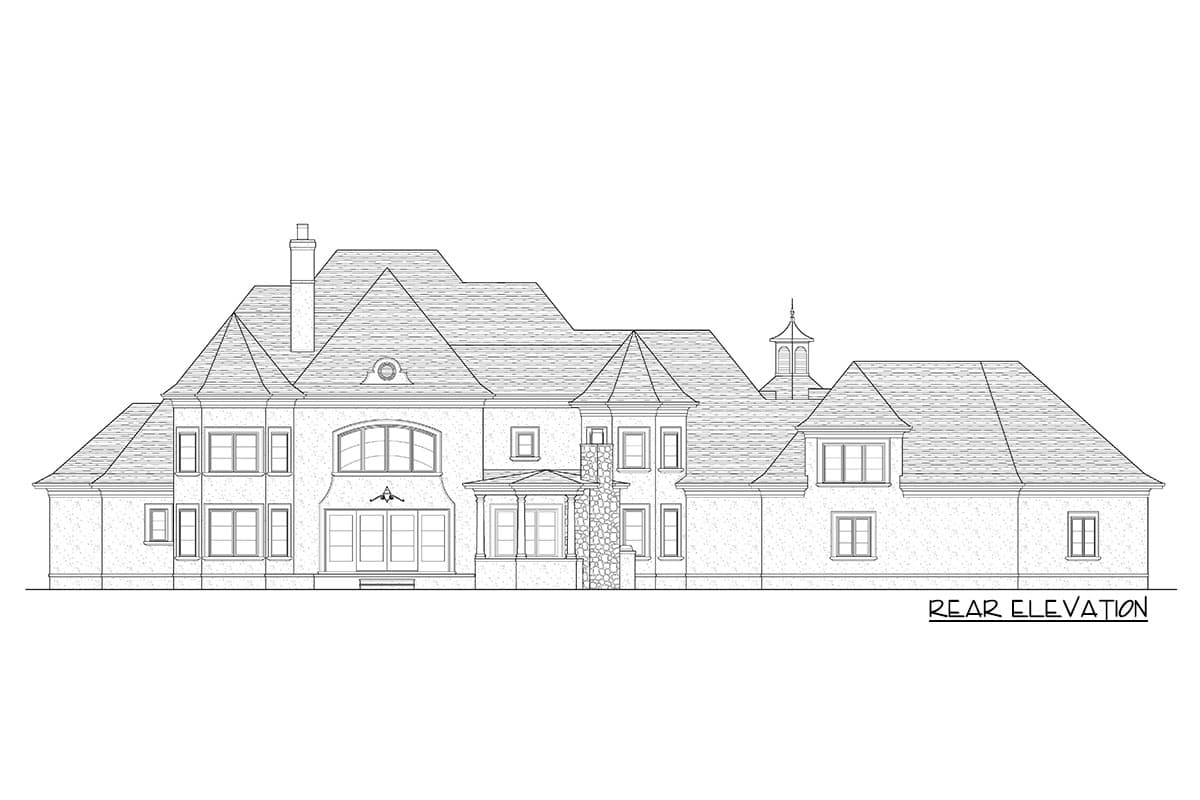

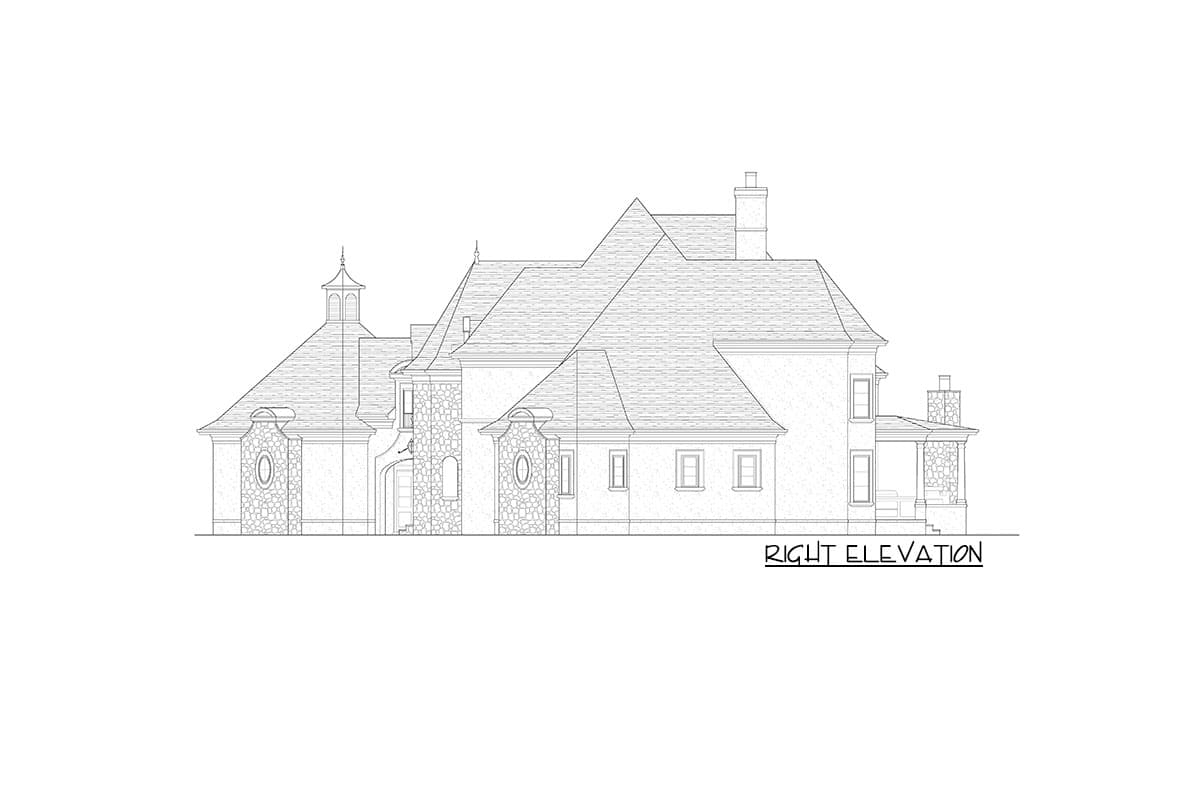

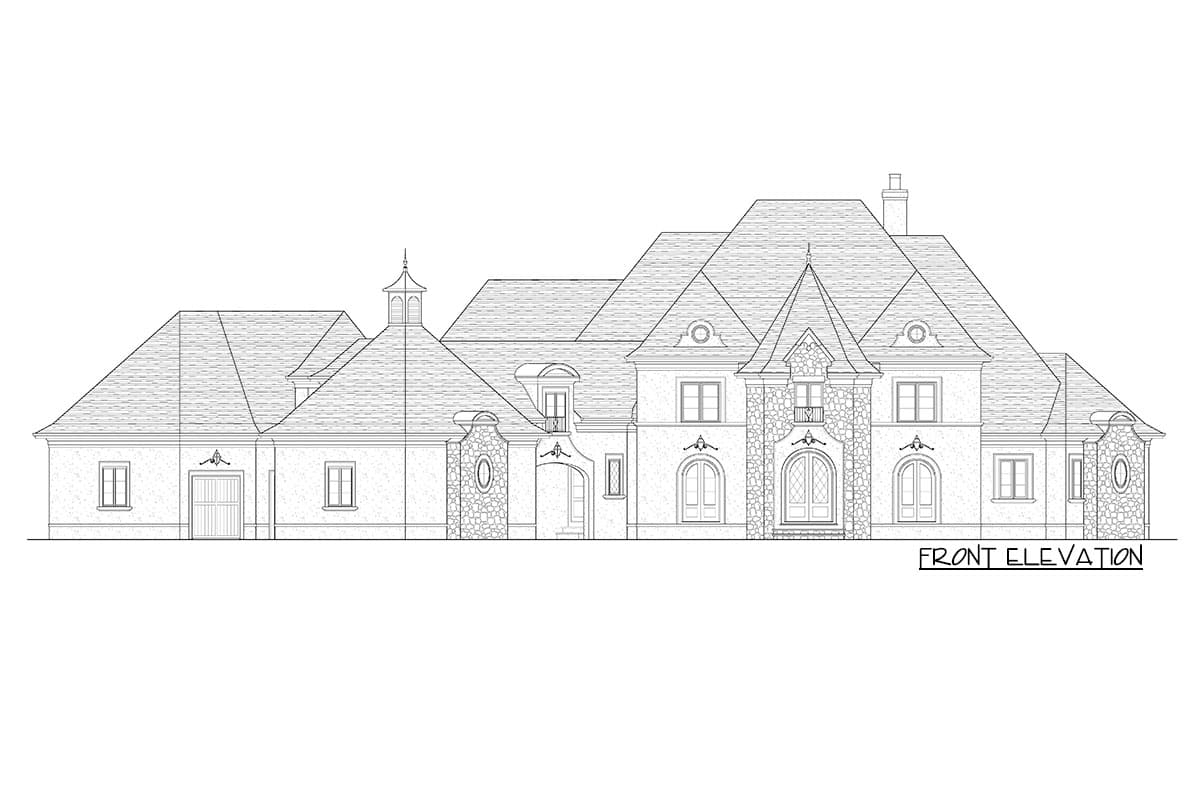

  • 4 Elevations
  • Openings & Sections Sheet
  • Foundation Details
  • Cornice Details
  • Electrical

View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

6,841 sq. ft.

1st Floor

3,685 sq. ft.

2nd Floor

3,156 sq. ft.

Basement Unfinished

1,105 sq. ft.

Bonus

505 sq. ft.

Lanai

343 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

6

Half bathrooms

3

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

143' 5"

Depth

98' 11"

Max Ridge Height

42' 0"

Garage

Type

Attached

Area

1723 sq. ft.

Count

5 Cars

Entry Location

Front, Rear

Ceiling Heights

First Floor

10'

Architectural Style

European

Square Footage Breakdown

Total Heated Area

6,841 sq. ft.

1st Floor

3,685 sq. ft.

2nd Floor

3,156 sq. ft.

Basement Unfinished

1,105 sq. ft.

Bonus

505 sq. ft.

Lanai

343 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

6

Half bathrooms

3

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

143' 5"

Depth

98' 11"

Max Ridge Height

42' 0"

Garage

Type

Attached

Area

1723 sq. ft.

Count

5 Cars

Entry Location

Front, Rear

Ceiling Heights

First Floor

10'
