Name: Plan 15799GE: Luxurious Manor Home Plan
SKU: 15799GE
Price: 2955.0 USD
Availability: InStock

Plan 15799GE

Luxurious Manor Home Plan

Heated S.F.

5,910

Beds

5 - 6

Baths

5.5

Stories

Cars

Floor Plan

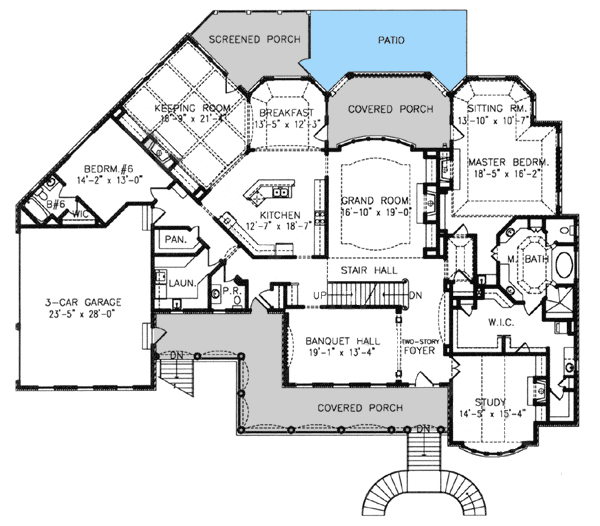

Main Level

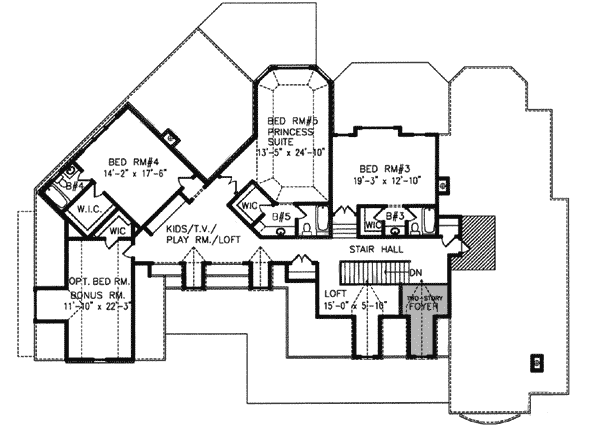

2nd Floor

Plan Details

Two staircases lead to the entrances of this luxurious home plan.
Special ceiling treatments throughout the home add to the elegance, with five or six bedrooms to house your family in comfort.
A banquet-sized formal dining room has lots of room so you never feel cramped.
Built-ins flank the fireplace in the grand room with tray ceiling and a bow window overlooks the covered porch.
The first floor master suite is truly luxurious with its own fireplace and sitting room.
Each of the three upstairs bedrooms has its own walk-in closet and private bath and the bonus room could become an additional bedroom.

What's Included

Exterior elevations: Included are front, rear, left and right side views of the exterior of the house. Exterior materials, construction details and measurements are also noted.
Foundation Plan: Includes layout of foundation support walls, plus excavated and unexcavated areas, if applicable.
Detailed Floor Plans: These plans show the layout of each floor of the house, including room dimensions, window and doors sizes and keys for cross section details provided later in the plans. Engineered floor joist, ceiling joist and roof plans are not included in some plans. Local engineers or manufacturing engineers are widely available to supply the services that apply to local geographic conditions.
Interior Details: These drawings show the specific details and design of special interior features.
Roof Plan: Includes the overall layout for roof construction. If trusses are used, we recommend using a local truss manufacturer to ensure compliance with local codes and regulations.
Cross Section Detail: Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Exterior details such as railing and banding may also be shown.
Electrical: Electrical floor plan schematics for 1st and 2nd floors.
Plans include wall and cornice sections, general foundation sections and details.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Framing plans
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
