Plan 95046RW

Luxurious Mountain Ranch Home Plan with Lower Level Expansion - 3623 Sq Ft

Heated S.F.

3,623

Beds

2 - 3

Baths

2.5 - 3.5

Stories

1

Cars

3

Floor Plan

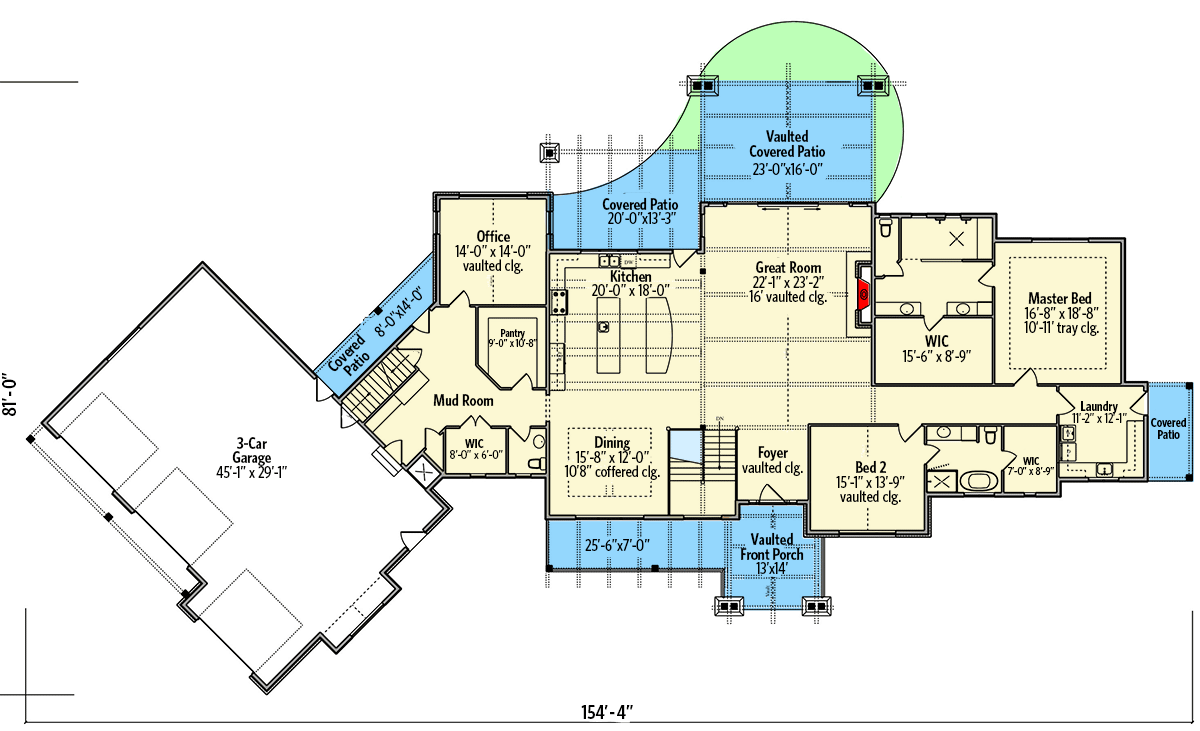

Main Level

floor plan image Main Level

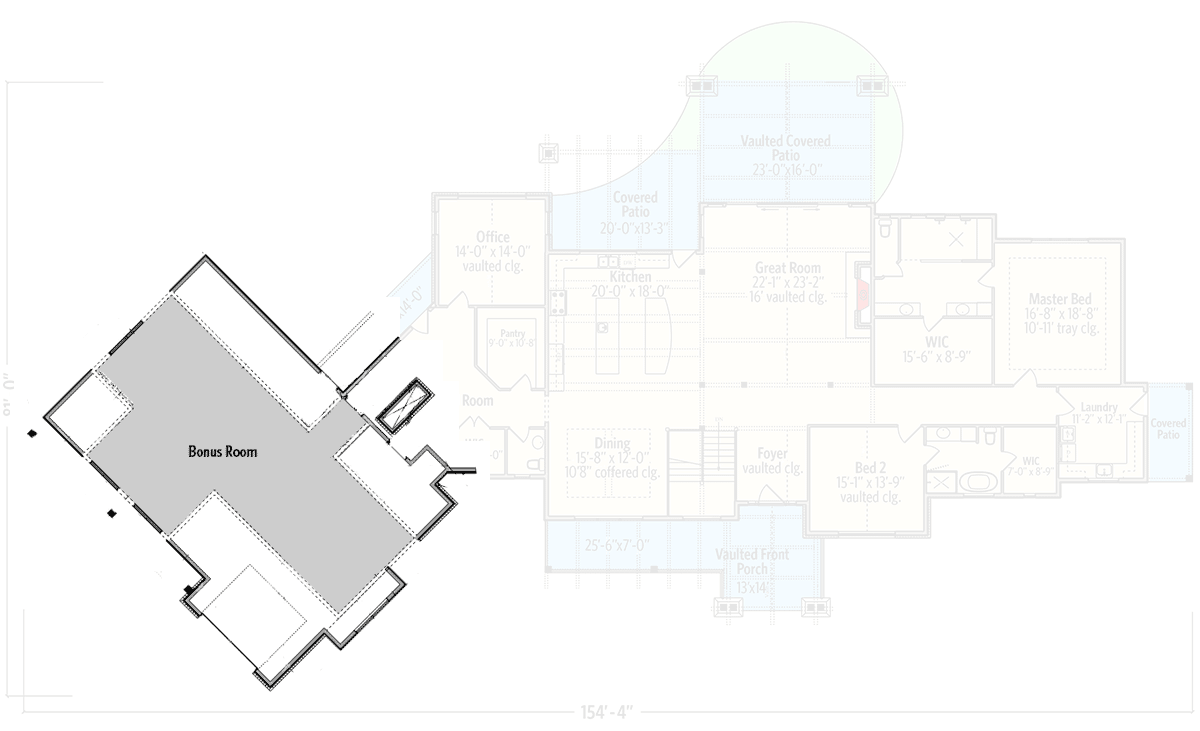

Bonus Level

floor plan image Bonus Level

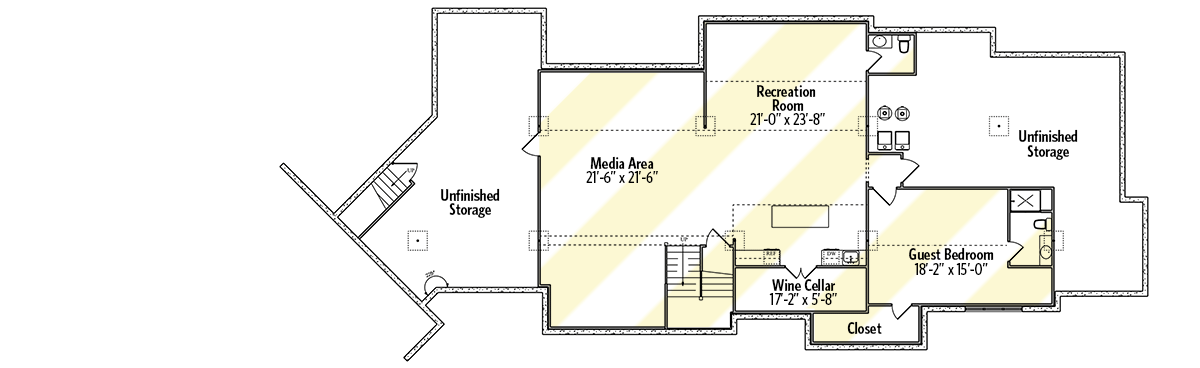

Optional Finished Lower Level

floor plan image Optional Finished Lower Level

Plan Details

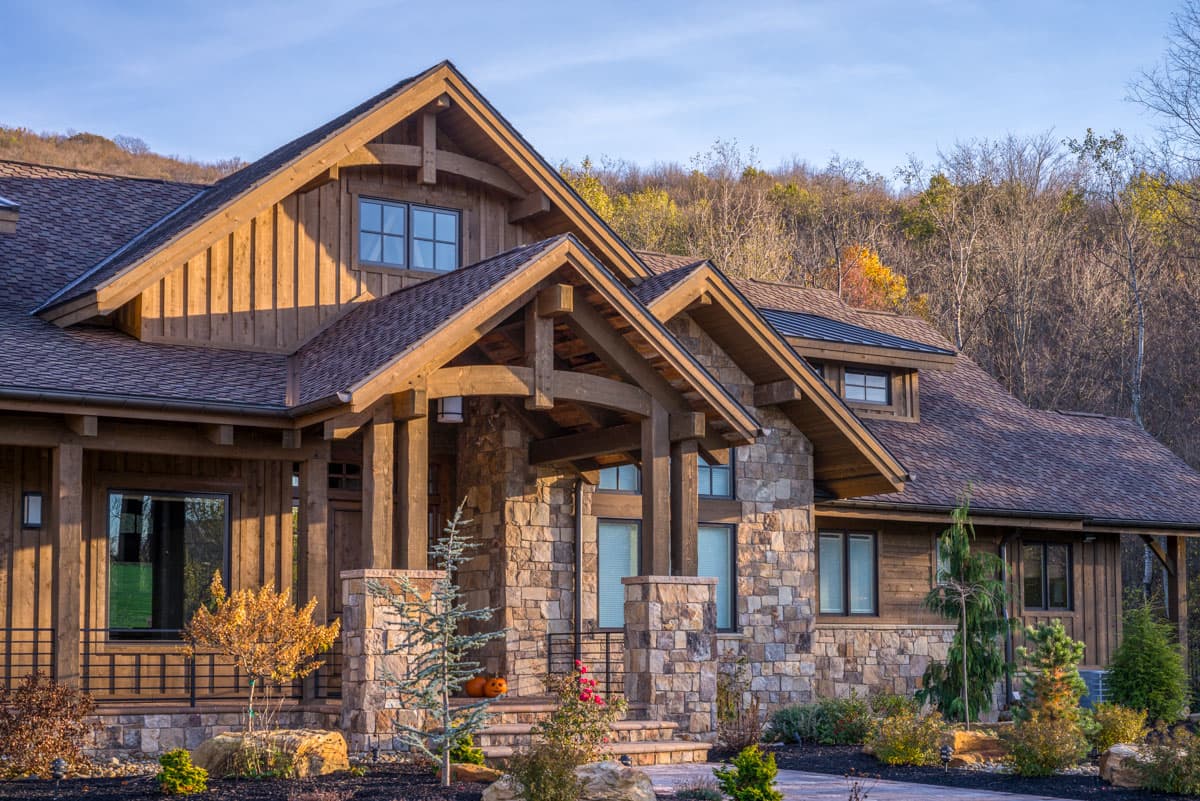

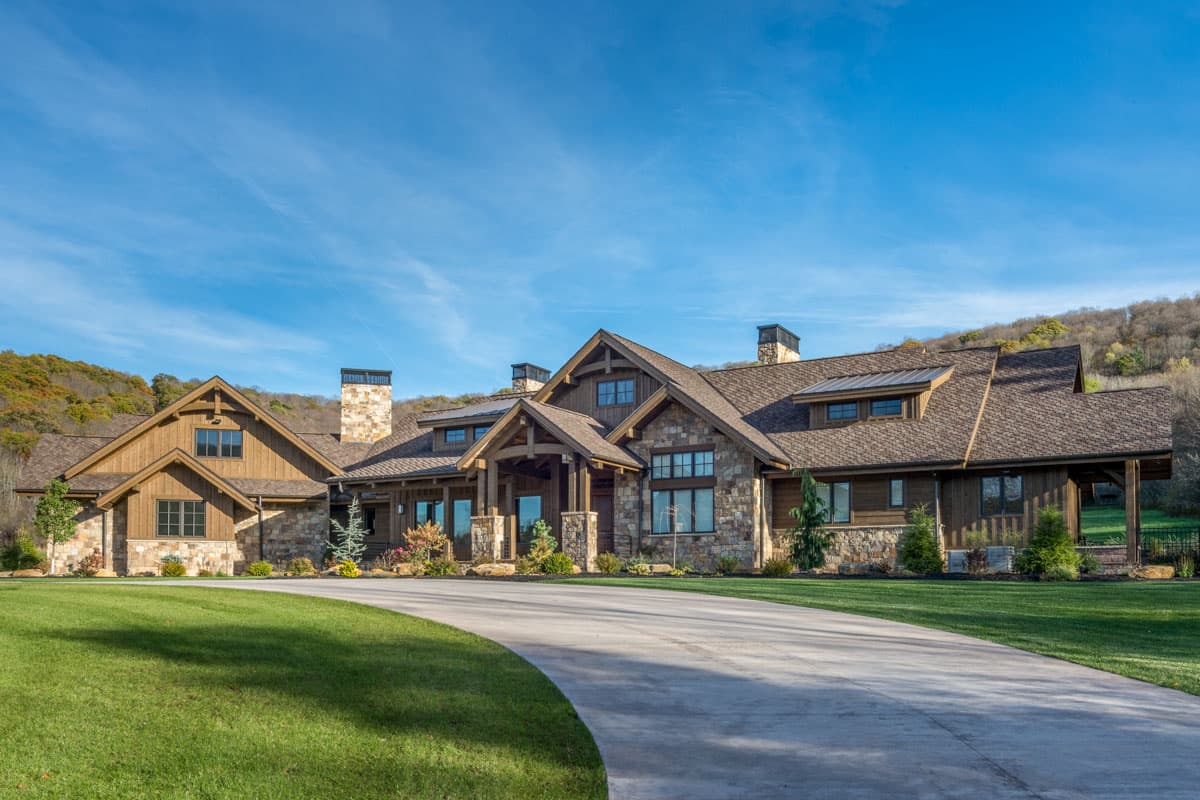

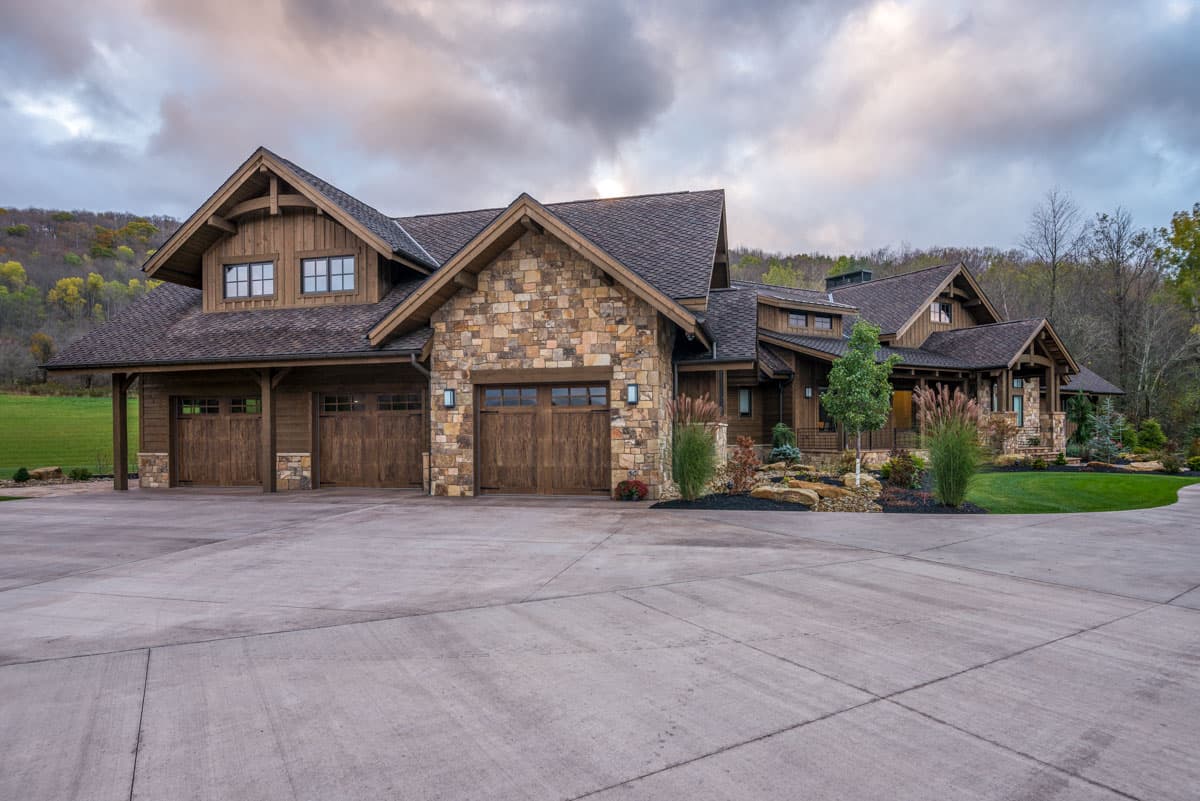

This rugged Craftsman home plan has a 3-car garage angled from the main body of the home on the left and matching shed dormers flanking the covered entry.

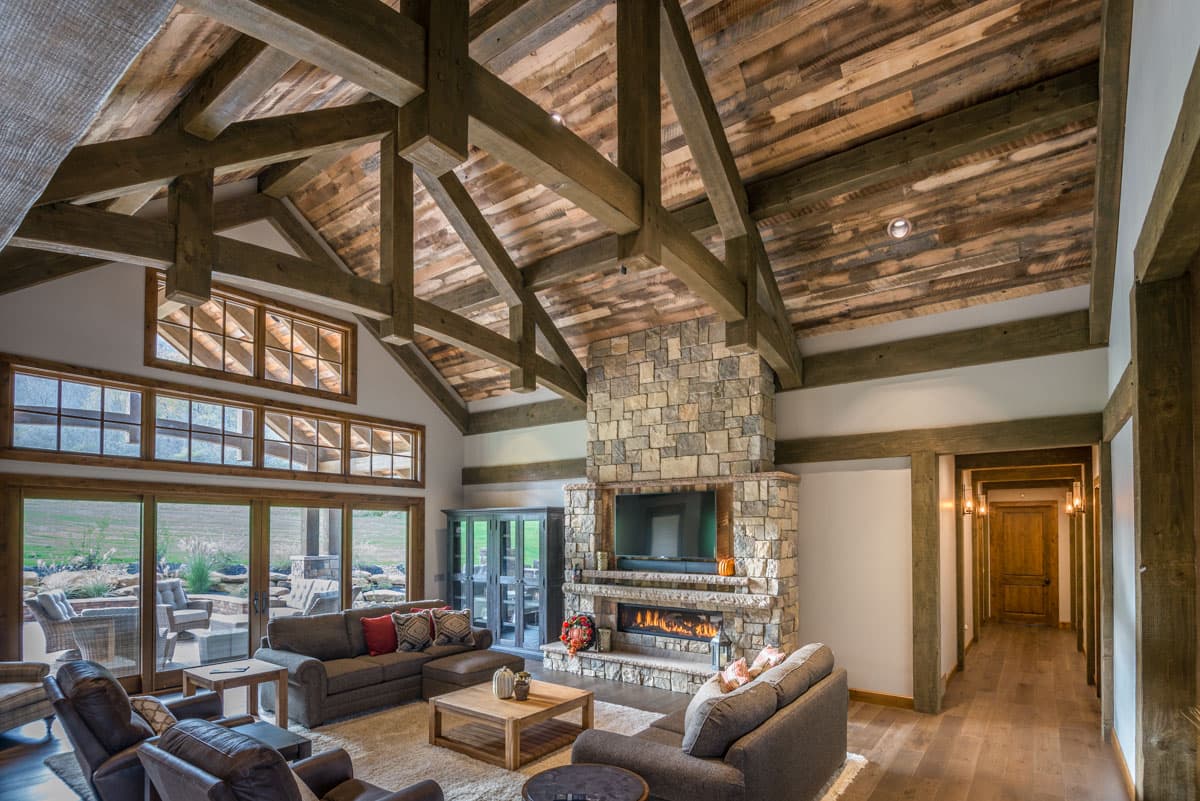

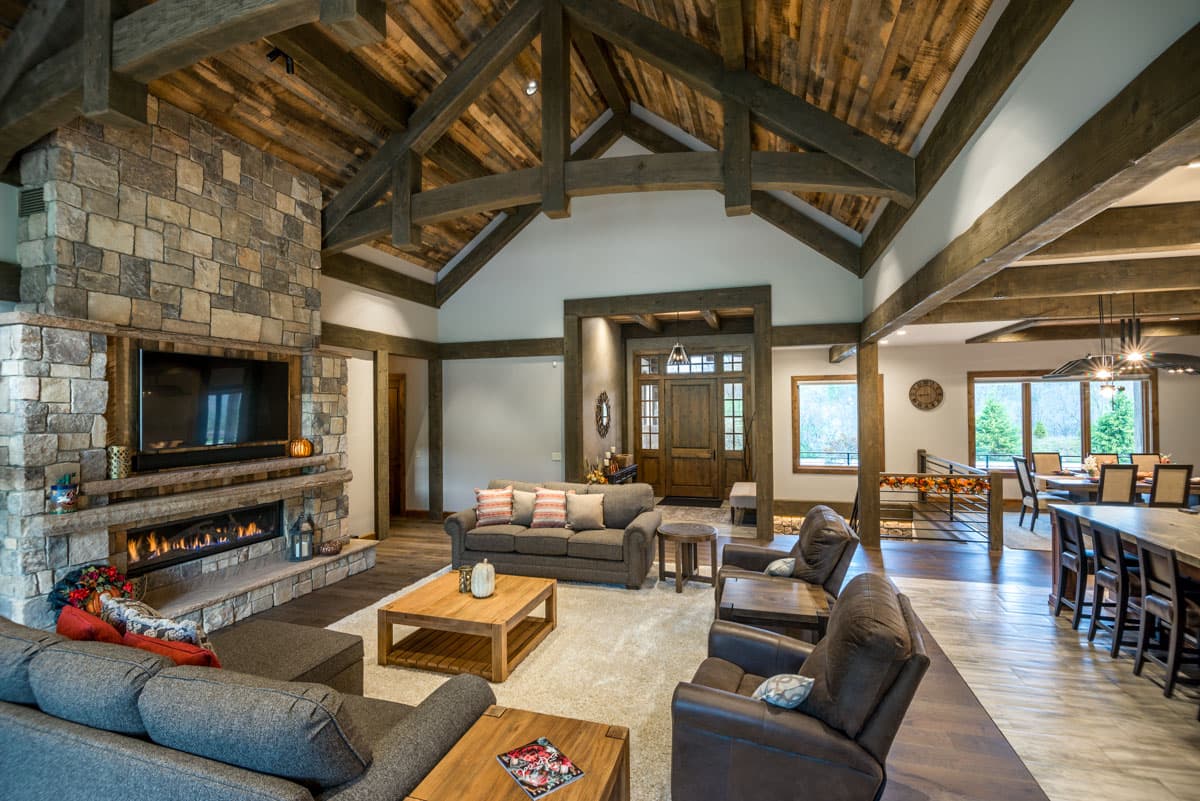

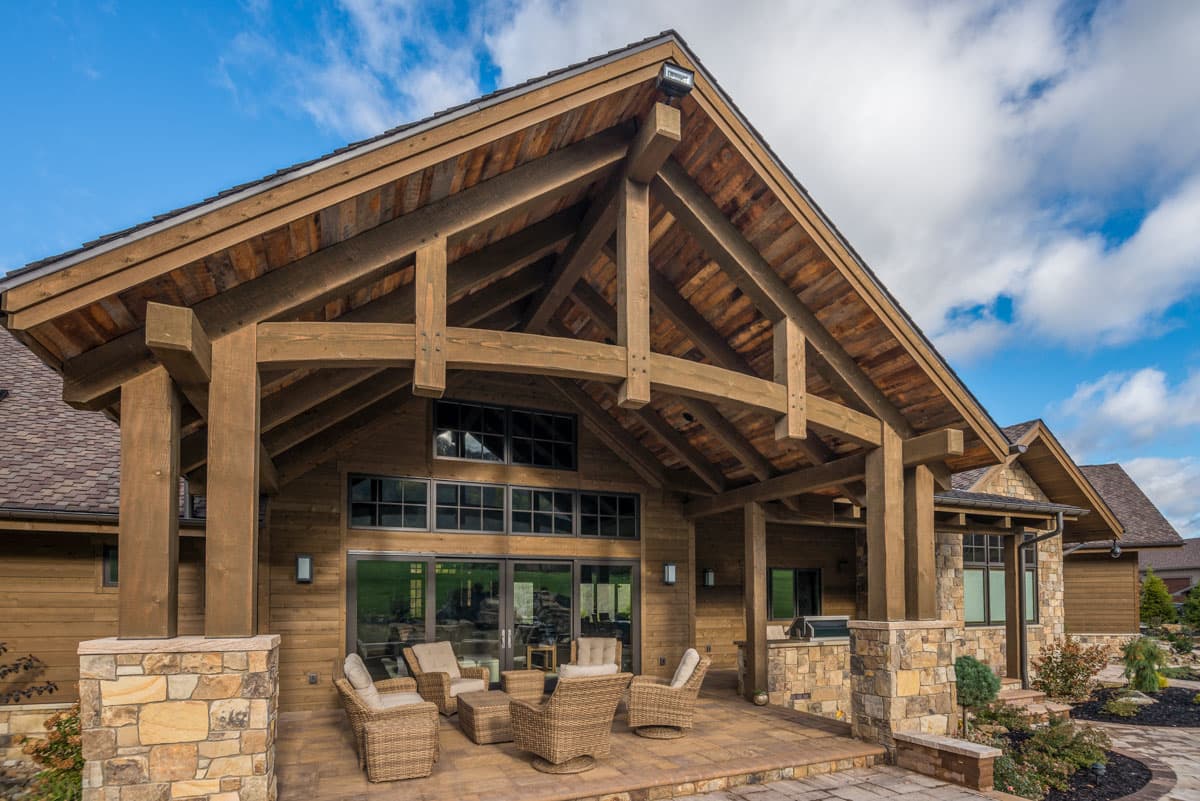

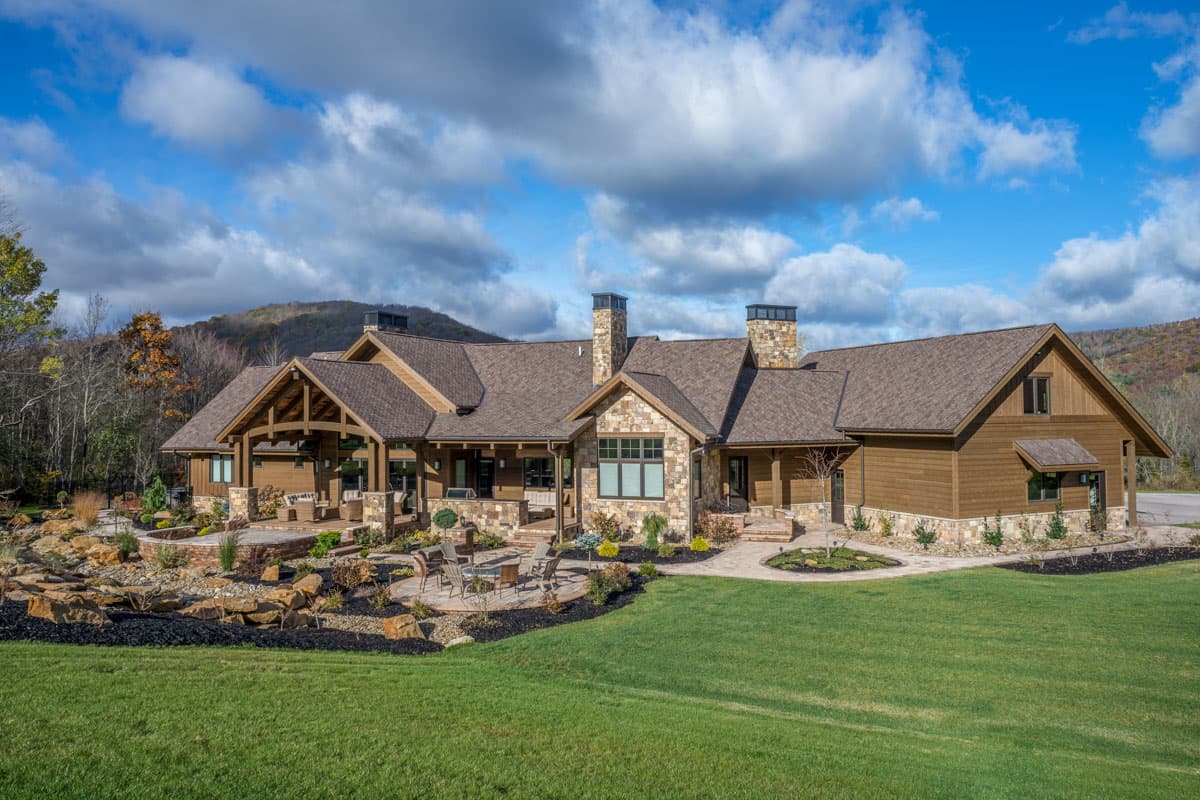

Inside, the vaulted great room takes center stage with exposed truss (non-structural), a fireplace on the right and access to the covered patio.

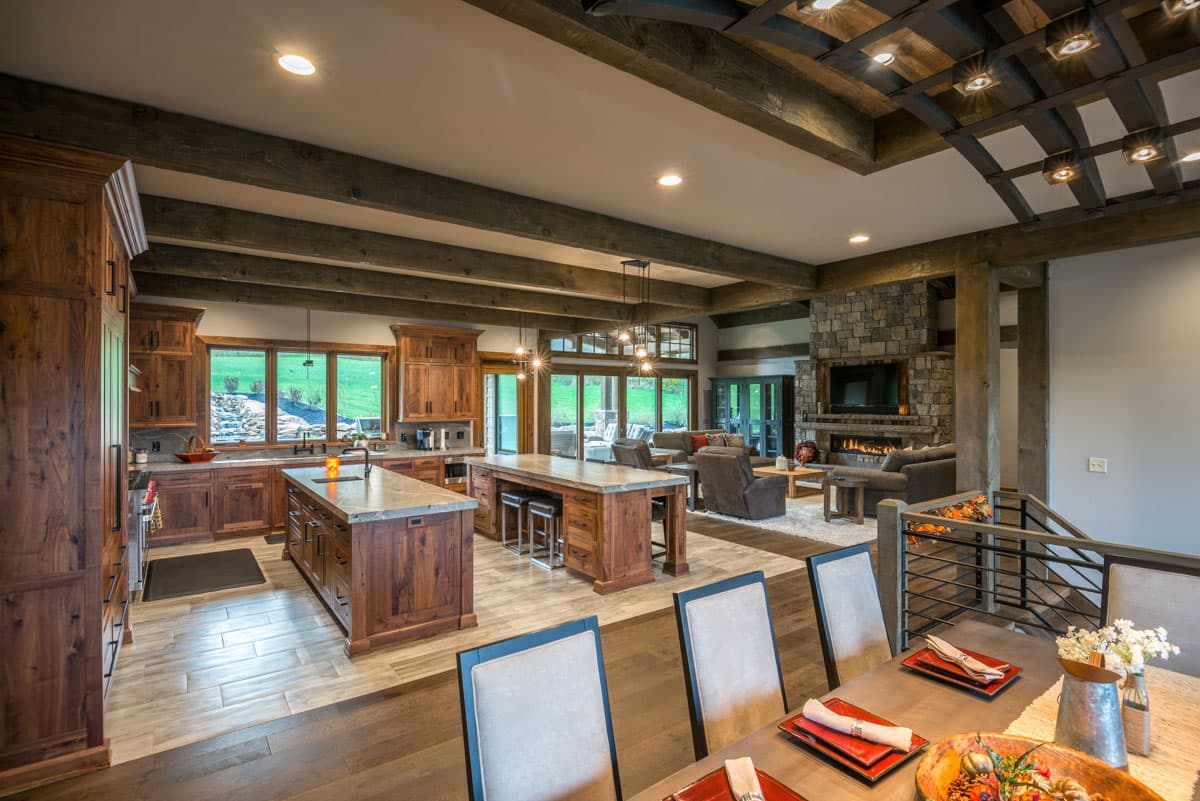

The kitchen has two islands and views to the dining room and great room. A door gives you access to the outdoors for dining al fresco.
The office and Bedroom 2 have vaulted ceilings while the master suite has a tray ceiling.
A small covered patio on the side gives you access to the home by the laundry room.
The optional finished lower level gives you a large rec room and media area as well as a bar and wine cellar. A guest bedroom and lots of storage complete the home.
Related Plan: Get an alternate version with house plan 95081RW (2,803 sq. ft.).

What's Included

Cover page

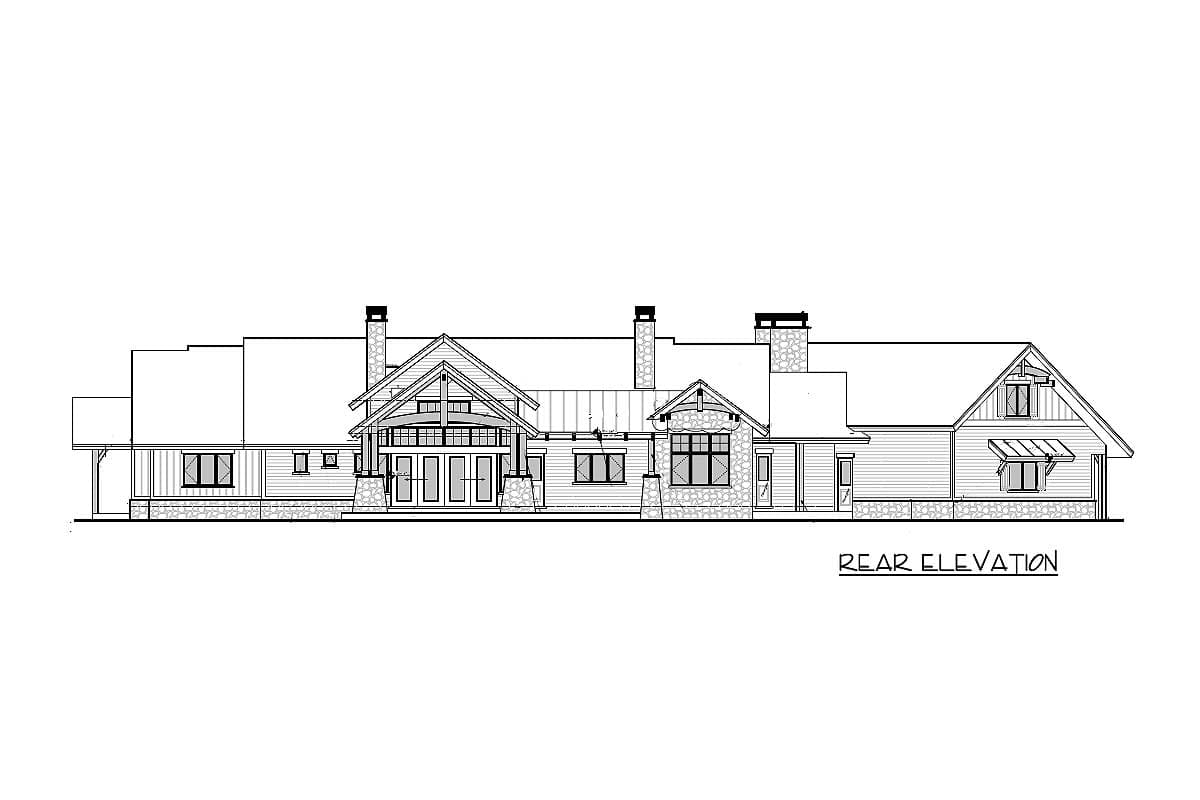

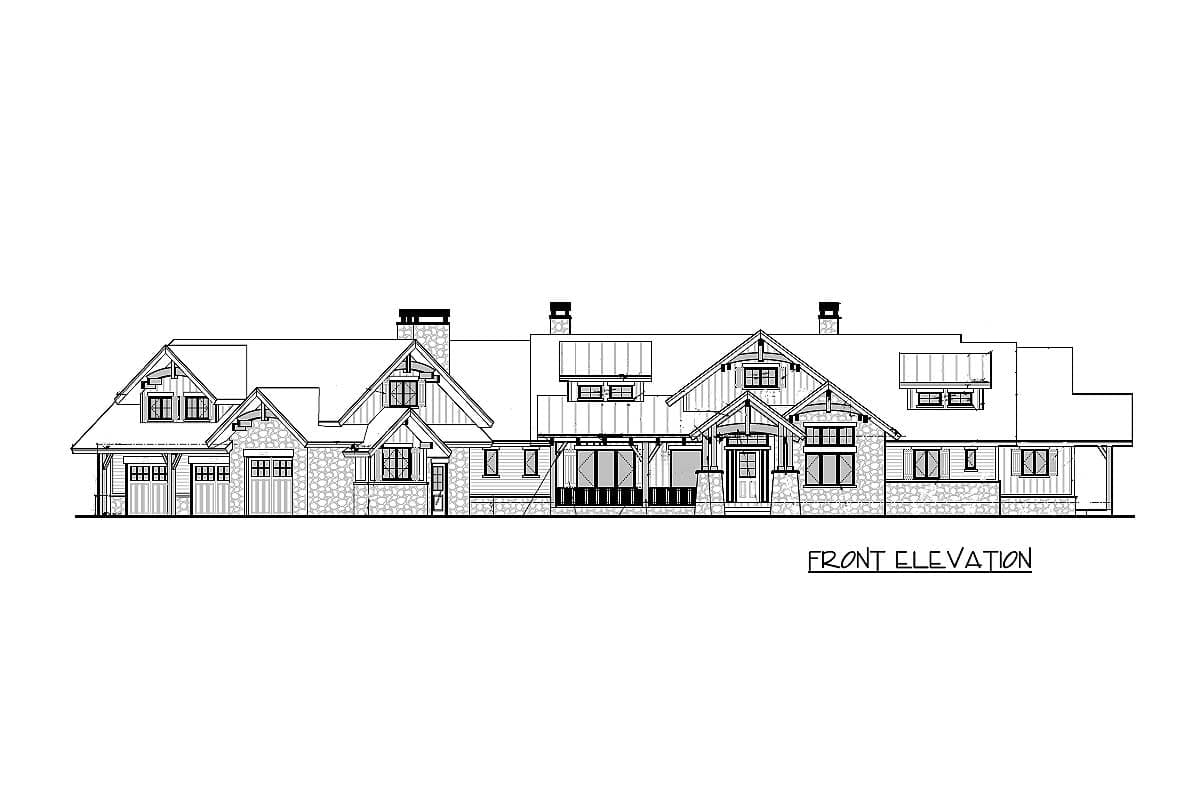

Front and back elevations

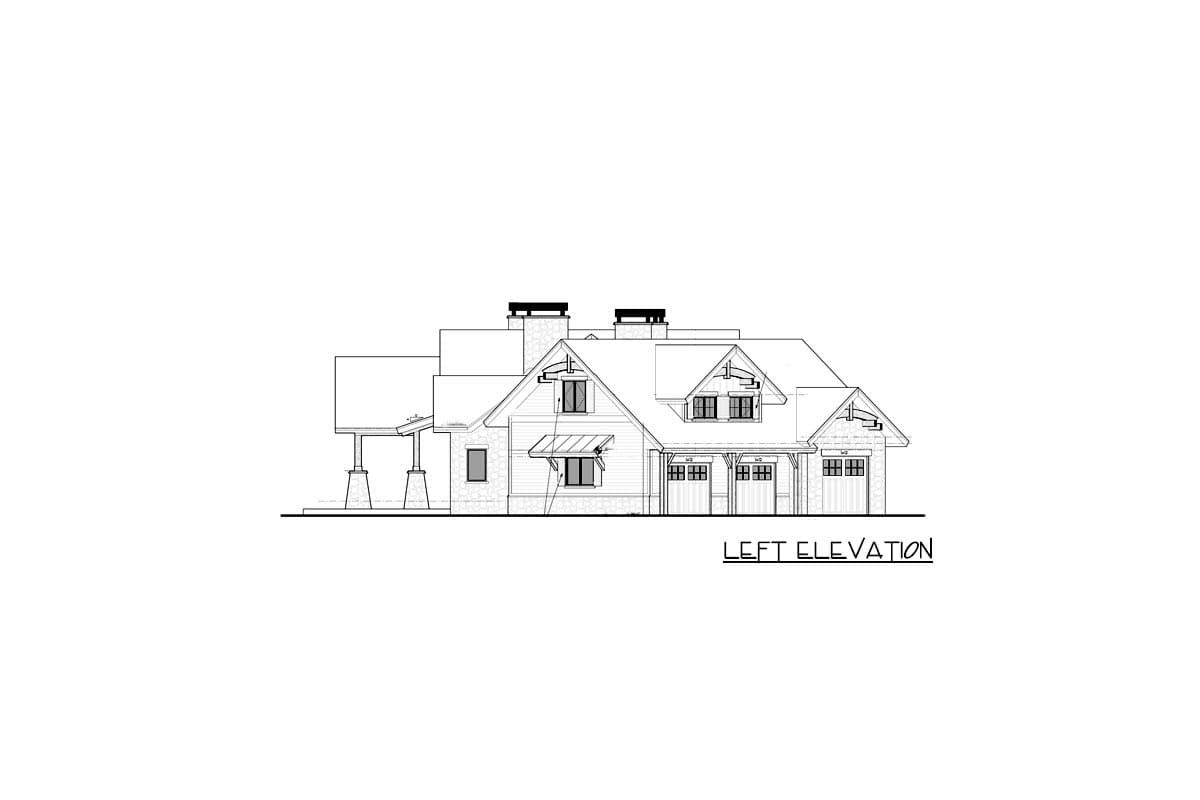

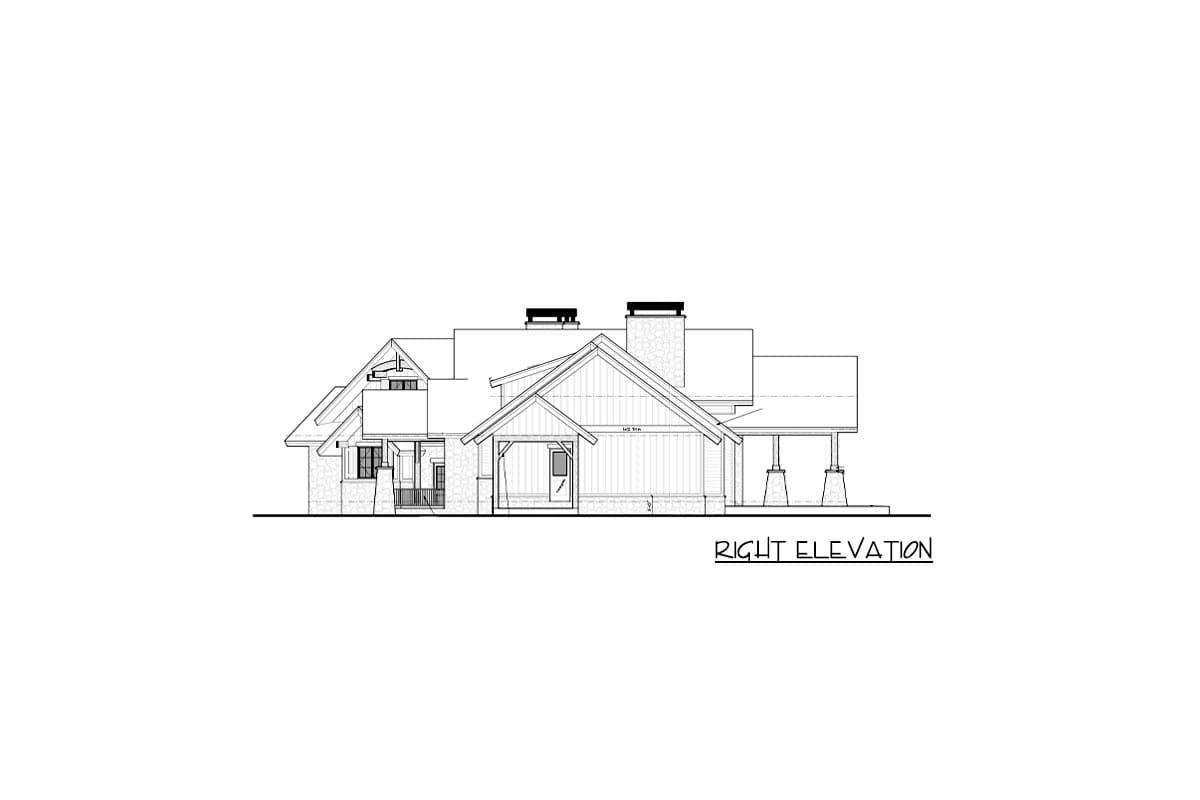

Left and right elevations
Lower floor plan
Main floor plan
Foundation plan
Roof plan
Sections and details
Electrical plans

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
REScheck or other energy related calculations are NOT included.
Wind load or seismic calculations are NOT included.
Framing plans or beam sizes are NOT included.
Other specific drawings that your local permit office may requires

Modify This Plan

Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

3,623 sq. ft.

1st Floor

3,623 sq. ft.

Basement Unfinished

1,543 sq. ft.

Optional Lower Level

2,080 sq. ft.

Bonus

825 sq. ft.

Porch, Combined

1,253 sq. ft.

Beds/Baths

Bedrooms

2 or 3

Full bathrooms

2 or 3

Half bathrooms

1 or 2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

154' 4"

Depth

81' 0"

Max Ridge Height

27' 8"

Garage

Type

Attached

Area

1478 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

Lower Level

10'

First Floor

10'

Roof Details

Primary Pitch

9 on 12

Secondary Pitch

4 on 12

Architectural Style

Special Features

Bedrooms - Clustered

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - 1st Floor

Two Kitchen Islands

Two Story Great Room
