Plan 23485JD
Luxurious Shingle-Style Home Plan
Heated S.F.
5,490
Beds
4
Baths
4
Stories
2
Cars
4
Floor Plan

Plan 23485JD

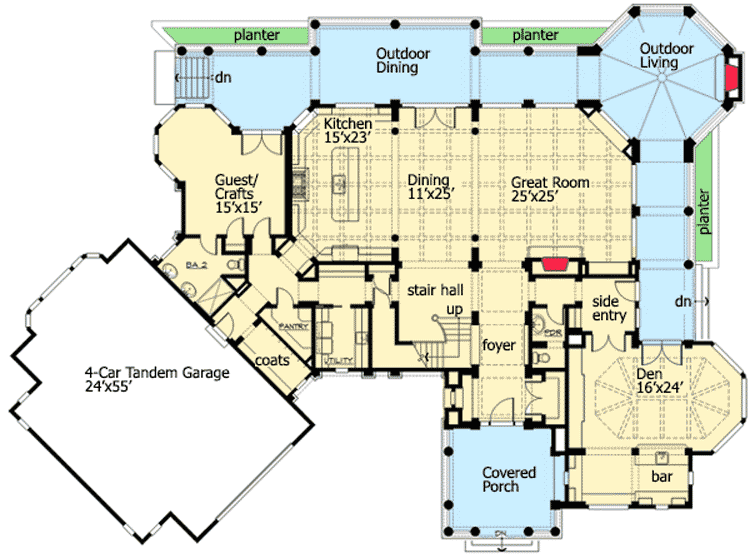

Main Level
slide image 0

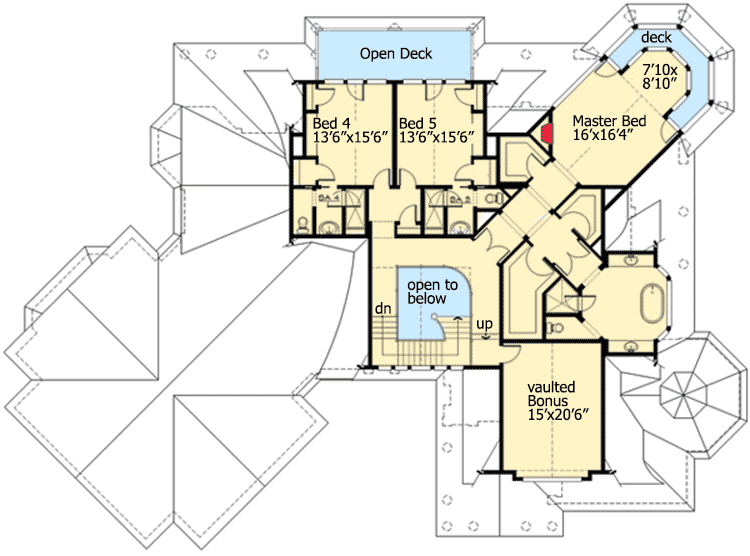

2nd Floor
slide image 1

Plan 23485JD

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
2nd Floor
floor plan image 2nd Floor
Plan Details
  • Huge, spacious rooms and a flowing open floor plan create the "Wow" factor in this Shingle-style home plan.
  • Coffered ceilings top the kitchen, dining room and great room with their fabulous views of the extensive covered porch that wraps around the side and rear of the home.
  • Planters and an outdoor fireplace enrich this outdoor space.
  • The crafts room has a bayed sitting area and with its nearby bath would service well as an extra guest room.
  • When you want to entertain, head to the huge den with its big wet bar and bayed window.
  • The second floor master suite enjoys a vaulted ceiling and its own private deck.
  • Each of the other two bedrooms on this level has a private bathroom and a vaulted bonus room awaits your finishing touches. The bonus room is factored into the total living room on this house plan.
  • NOTE: Additional fees apply when building in the State of Washington. Contact us for more information.
What's Included
  •  Cover
  •  Schedules & Details
  • General Details
  • Foundation
  • Main Framing
  • Main Floor plan
  • Second level Floor Plan
  • Additional Dimensioning Details
  • MF angled areas
  • Roof Framing

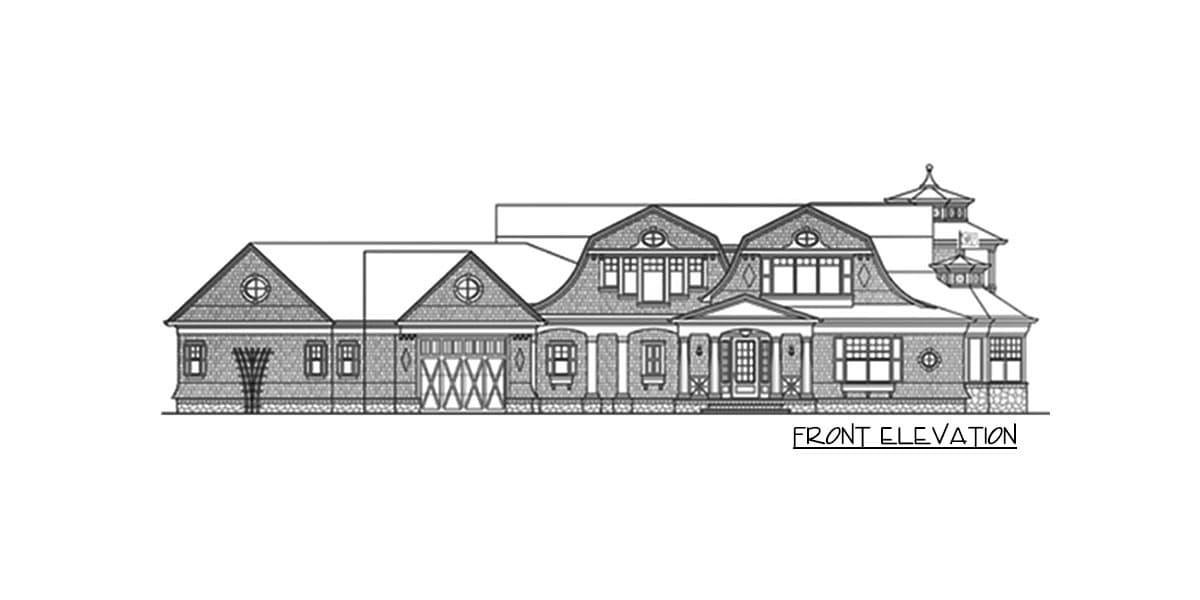

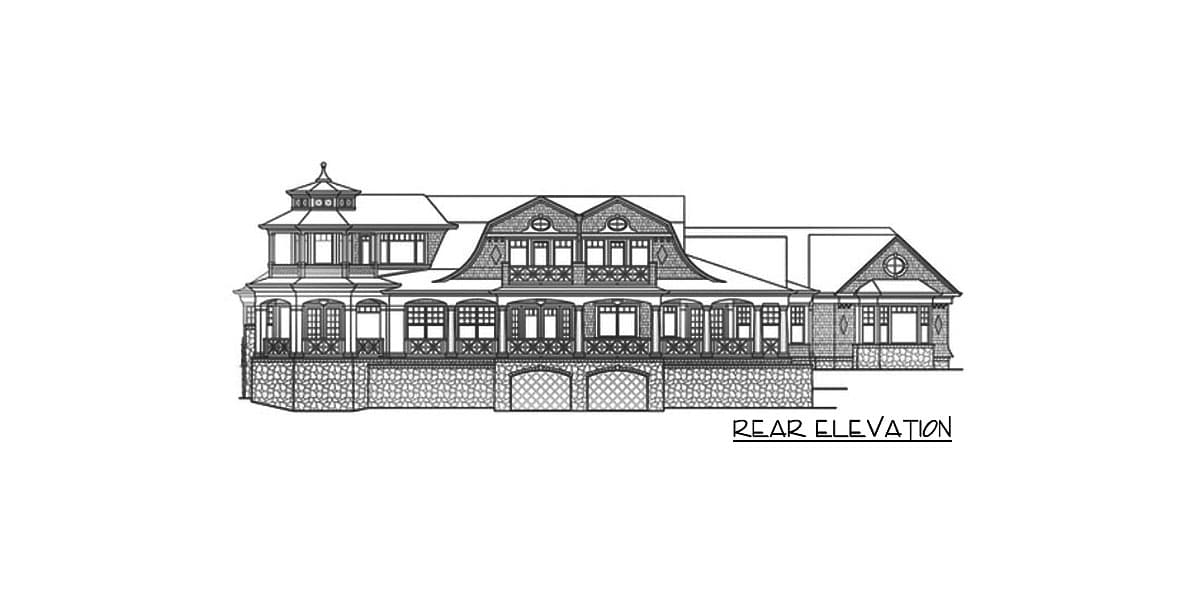

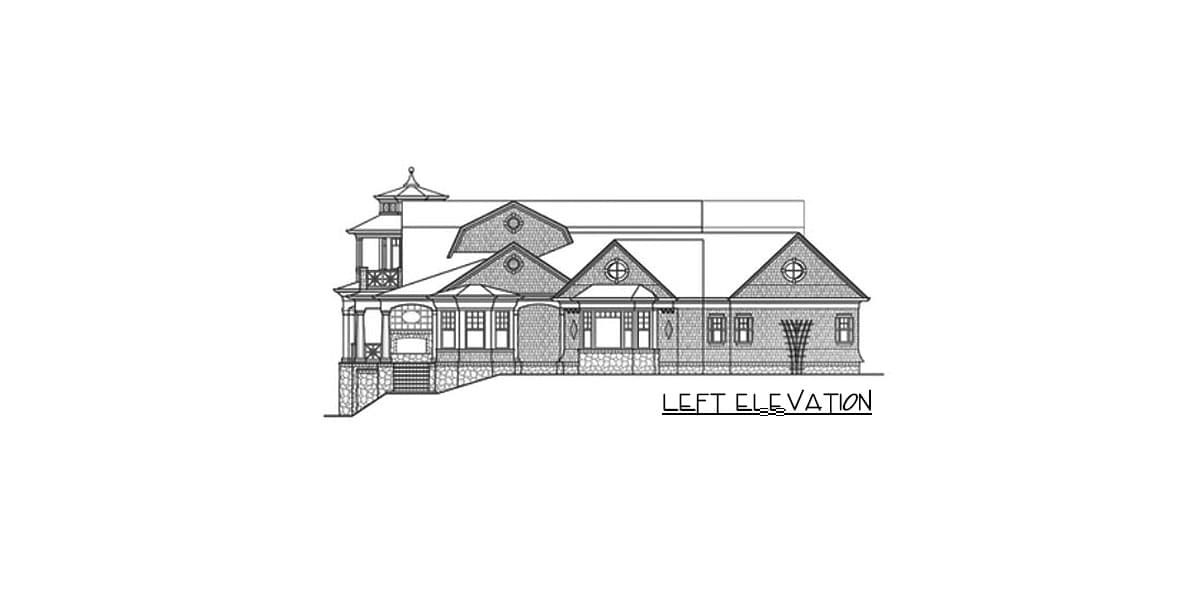

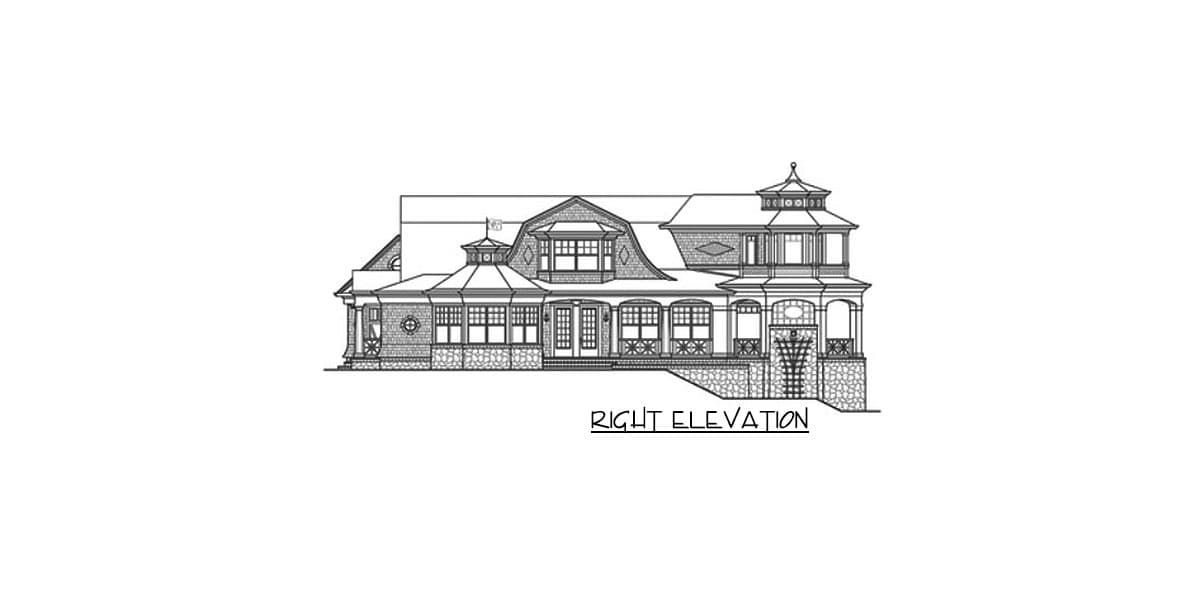

  • Elevations
  • Building Sections
What's Not Included
  • Electrical Plan - handled by your subcontractor to match your individual needs
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

5,490 sq. ft.

1st Floor

3,311 sq. ft.

2nd Floor

2,179 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

110' 6"

Depth

81' 0"

Max Ridge Height

25' 6"

Garage

Type

Attached

Area

1205 sq. ft.

Count

4 Cars

Entry Location

Front, Courtyard

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Coastal

Craftsman

Northwest

Shingle

Traditional

Special Features

Angled Garage

Bonus Room

Butler Walk-in Pantry

Den

Laundry - Main Level

Master Suite - 2nd Floor

Master Suite - Sitting Area

Outdoor Fireplace

Wet Bar

Wrap Around Porch

Plan Collections

Luxury

Square Footage Breakdown

Total Heated Area

5,490 sq. ft.

1st Floor

3,311 sq. ft.

2nd Floor

2,179 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

110' 6"

Depth

81' 0"

Max Ridge Height

25' 6"

Garage

Type

Attached

Area

1205 sq. ft.

Count

4 Cars

Entry Location

Front, Courtyard

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Coastal

Craftsman

Northwest

Shingle

Traditional

Special Features

Angled Garage

Bonus Room

Butler Walk-in Pantry

Den

Laundry - Main Level

Master Suite - 2nd Floor

Master Suite - Sitting Area

Outdoor Fireplace

Wet Bar

Wrap Around Porch

Plan Collections

Luxury
