This plan set has 12 pages as follows:

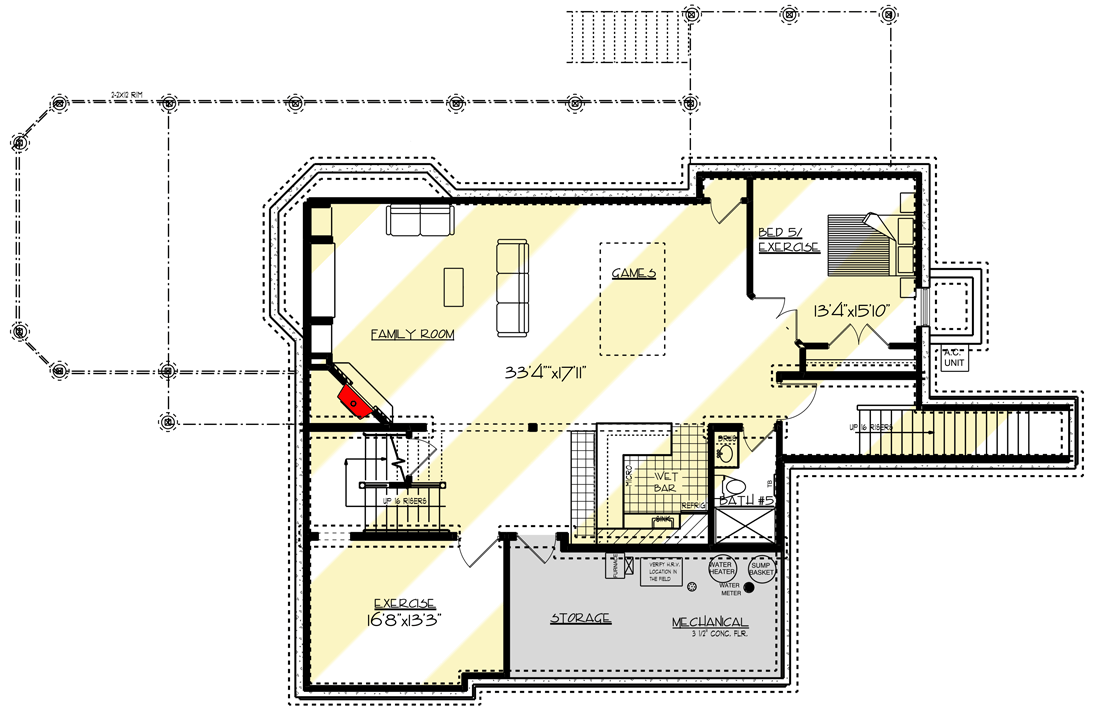

• Lower level floor plan

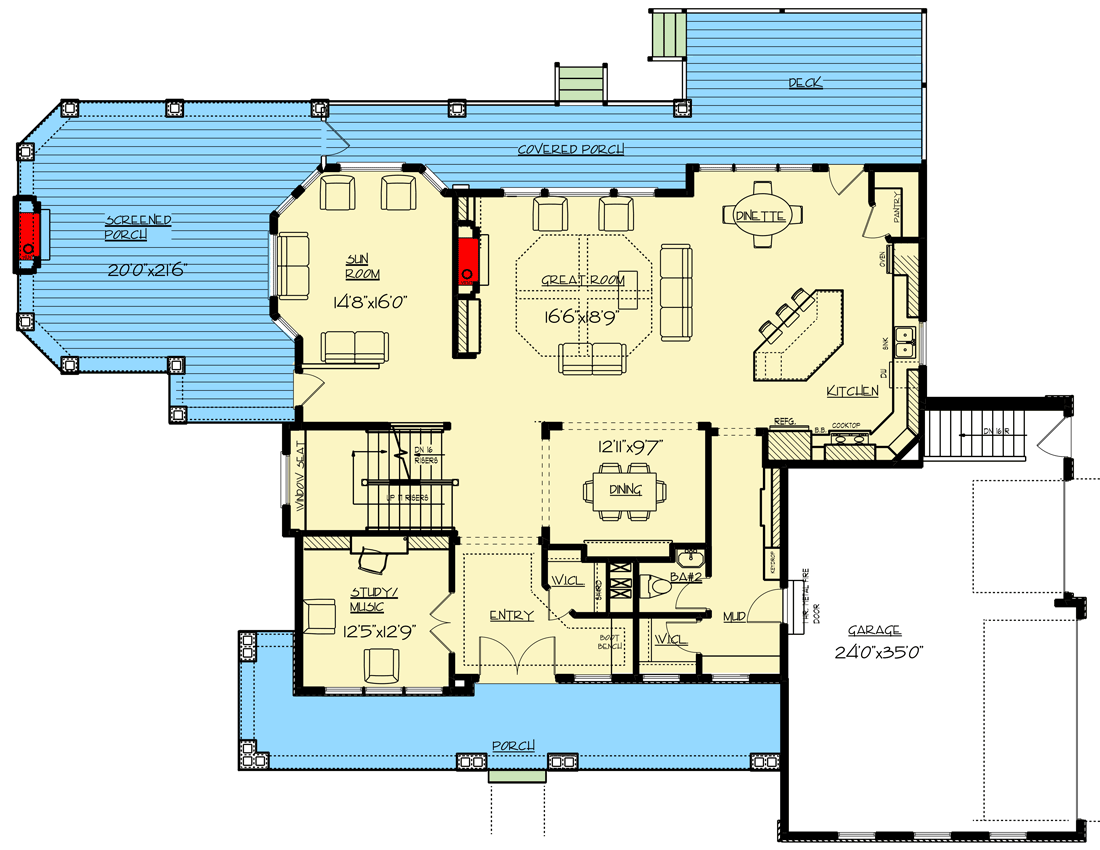

• Main level floor plan

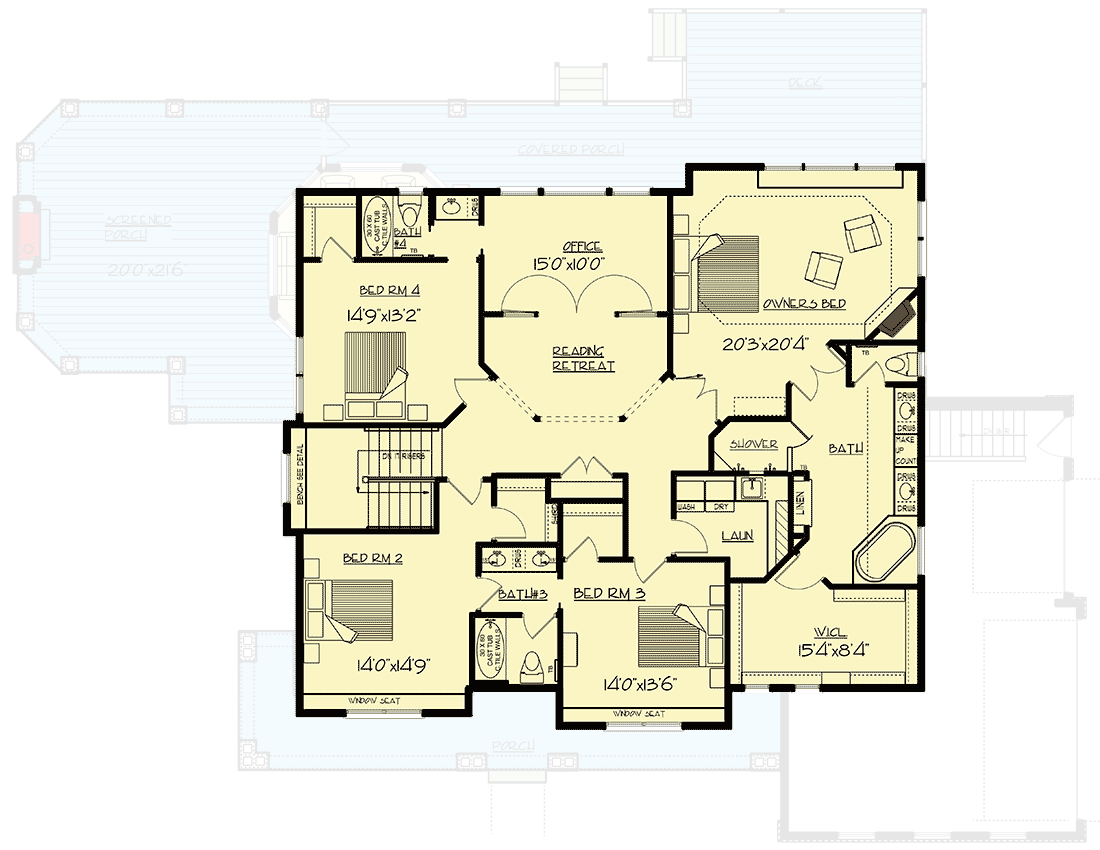

• Upper level floor plan

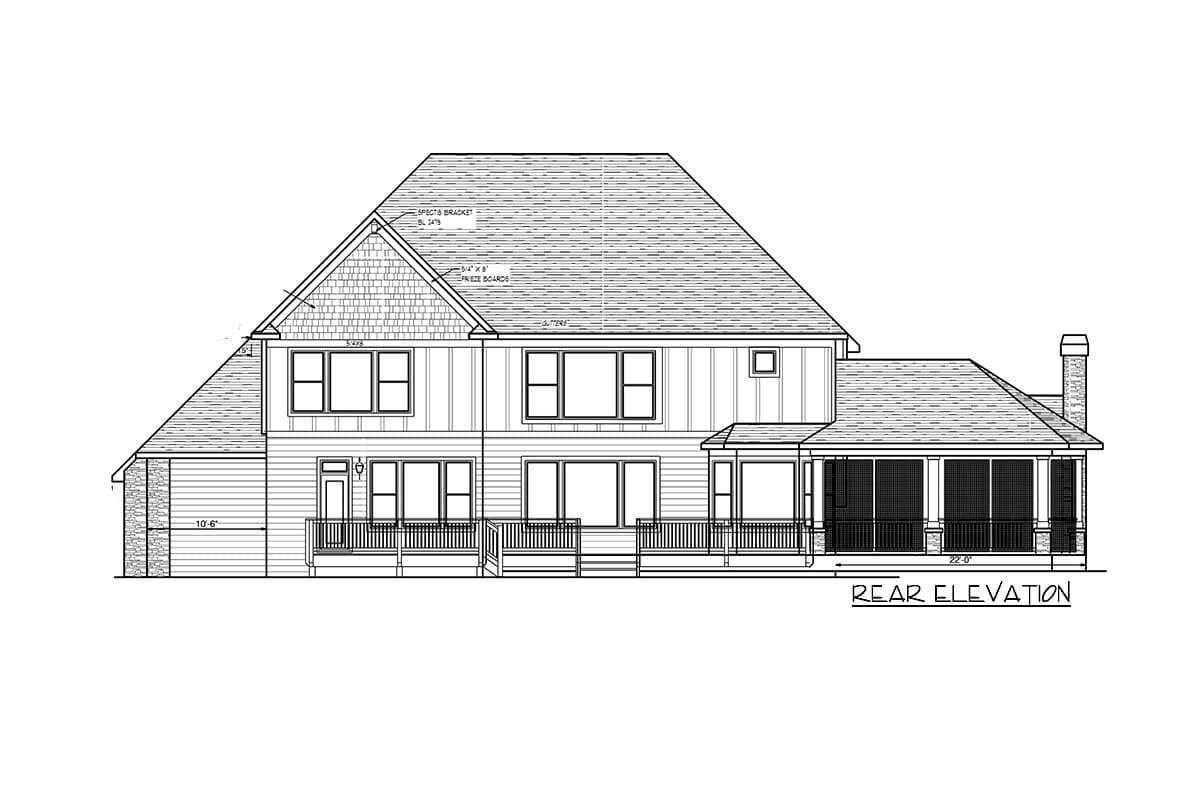

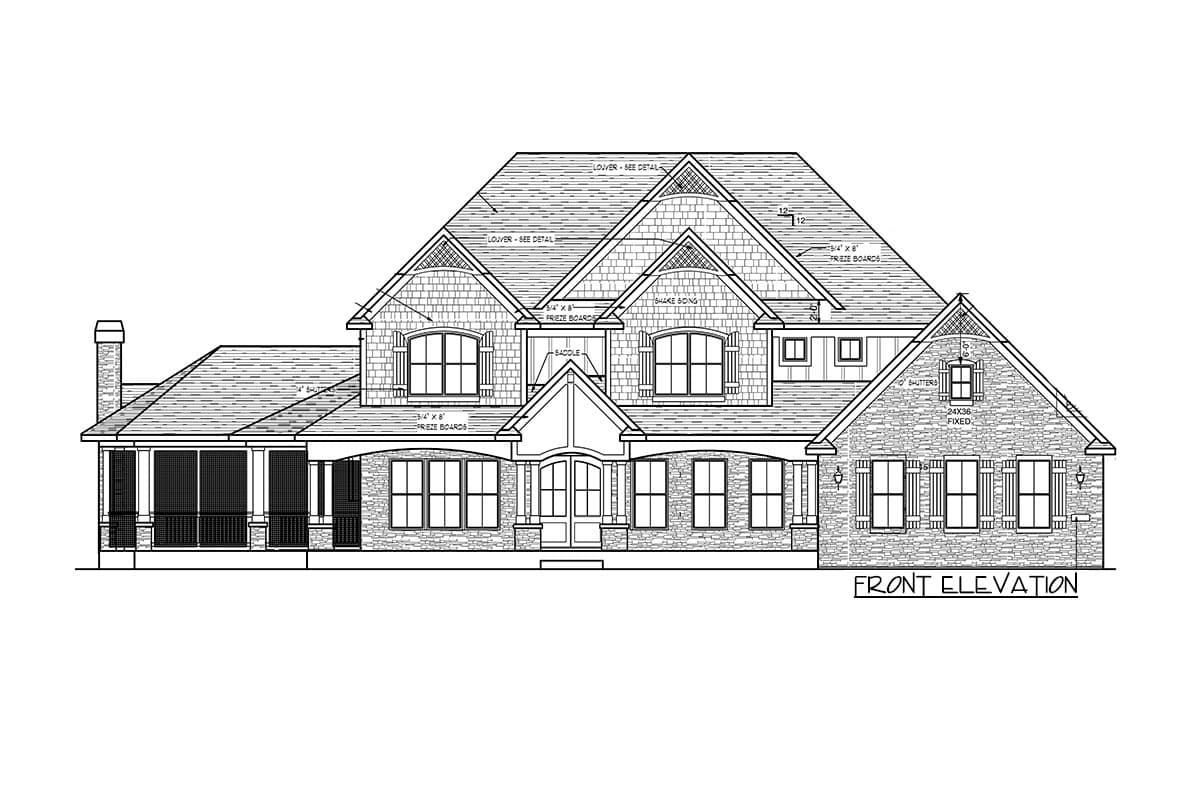

• Front and rear elevations

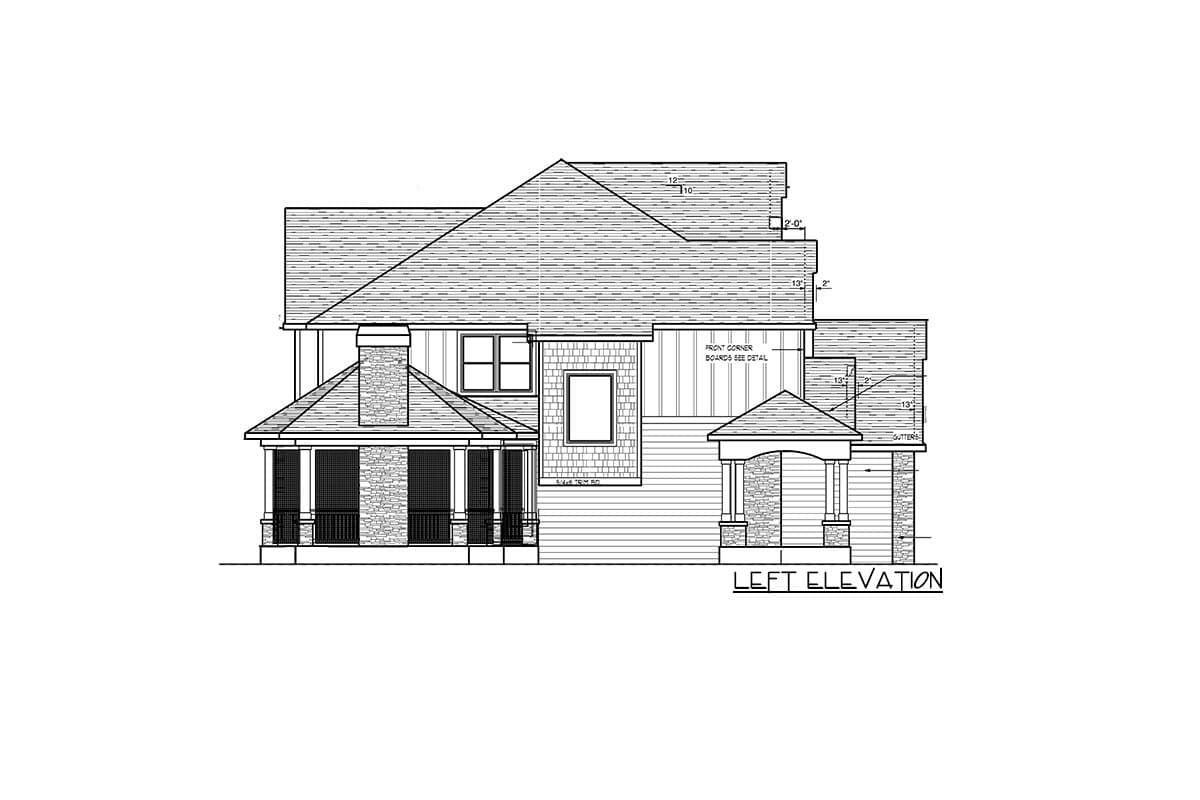

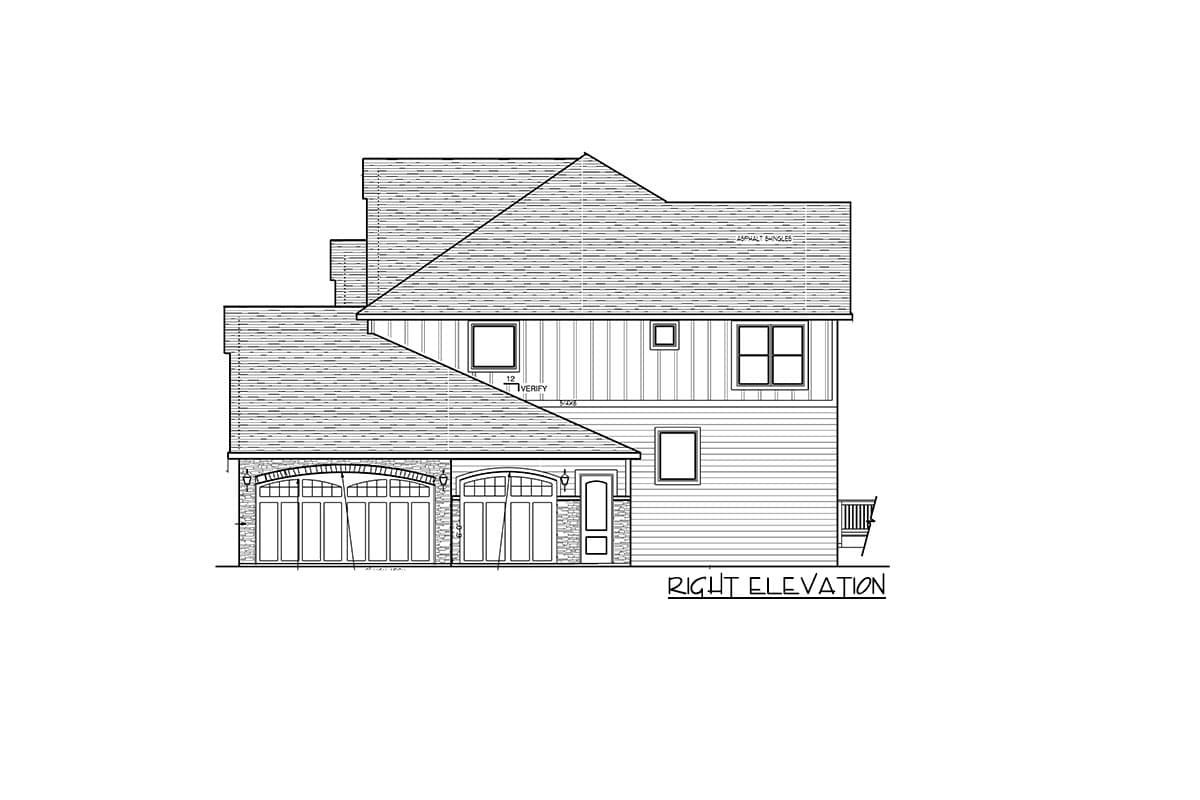

• Side elevations
• Main for electrical plan
• Lower and upper level electrical plans
• Sections (2 pages)

The roof is a truss design and your truss manufacturer will create the appropriate truss system for your local code and conditions.

• Architectural or Engineering Stamp - handled locally if required
• Site Plan - handled locally when required
• Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
• Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
• Energy calculations - handled locally when required
