Plan 890033AH
Luxury Craftsman House Plan
Heated S.F.
3,549
Beds
3 - 4
Baths
3.5 - 4.5
Stories
2
Cars
4
Floor Plan

Plan 890033AH

Main Level
slide image 0
2nd Floor
slide image 1

Plan 890033AH

1-800-854-7852

1-262-521-4596

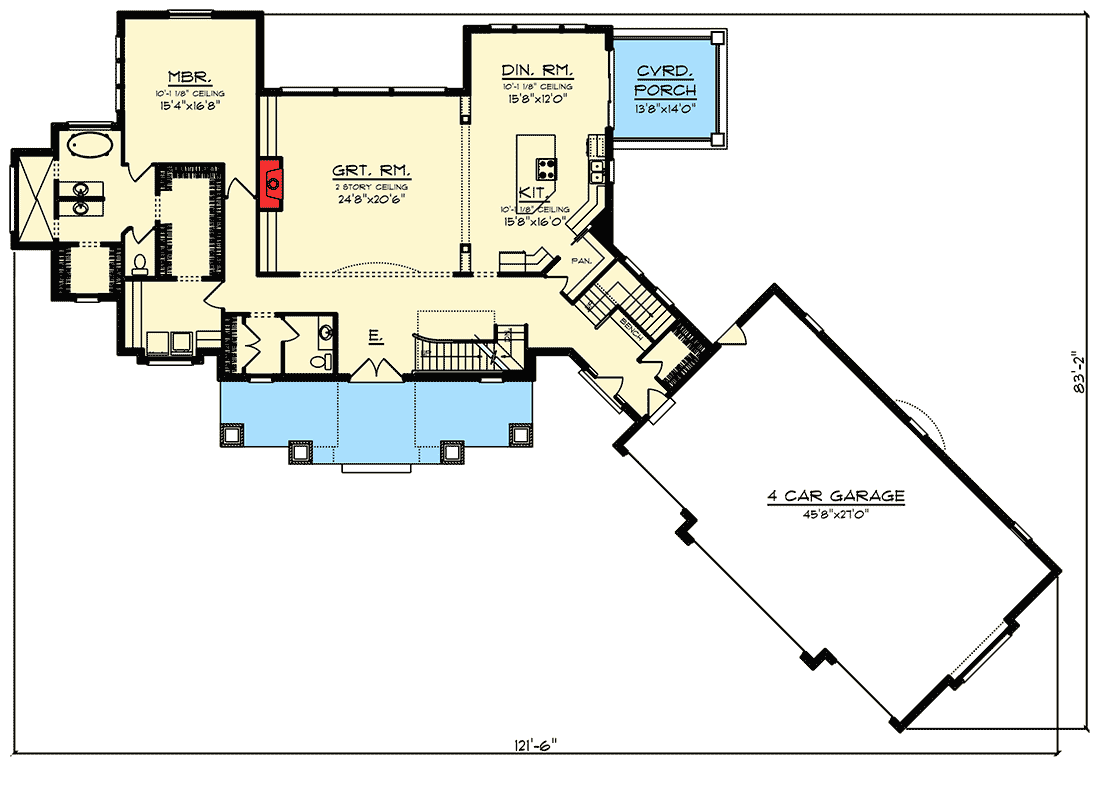

Main Level
floor plan image Main Level

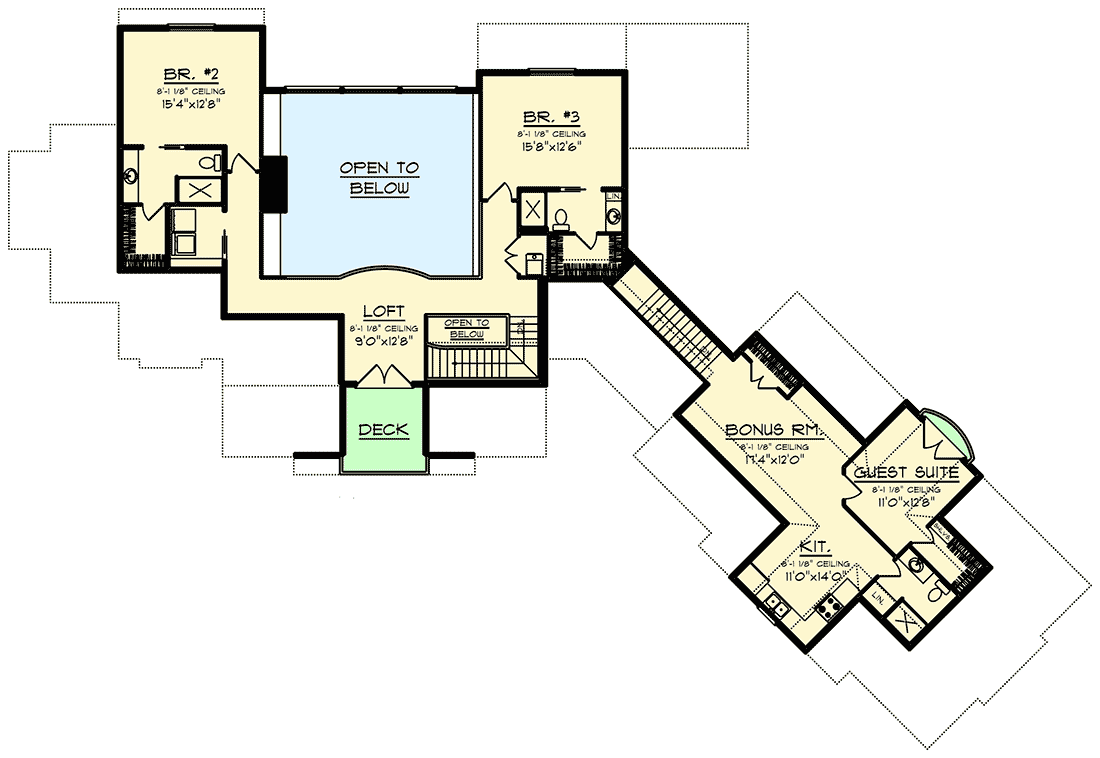

2nd Floor
floor plan image 2nd Floor
Plan Details

  •  A spacious porch is defined by massive columns and an overhead balcony on this Craftsman style luxury home.
  • Two-story ceilings welcome you into this home and draw you into the great room where a wall of windows allows plenty of natural light in to warm the area.
  • An open concept floor plan includes a center island in the kitchen that overlooks the dining and great rooms.
  • The main floor master suite includes his and hers walk-in closets, dual sinks and a Jacuzzi tub in the bathroom.
  • Two additional bedrooms, each with walk-in closet and private bath are located on the second floor.
  • Guest quarters are located upstairs above the garage and include a living area, small kitchen and private bath.
  • A loft with access to a front deck is also located on the second floor.

What's Included
  • General Notes
  • Rendering
  • Elevations
  • Fully dimensioned floor plans
  • Foundation
  • Typical wall section & stair section
  • Cross section
  • Cabinet elevations
  • Electrical Plan
  • Roof plan

What's Not Included
  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Framing layouts with beam sizes and locations
  • Energy calculations
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

3,549 sq. ft.

1st Floor

2,465 sq. ft.

2nd Floor

1,084 sq. ft.

Bonus

671 sq. ft.

Porch, Rear

182 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

3 or 4

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

121' 6"

Depth

83' 2"

Max Ridge Height

30' 6"

Garage

Type

Attached

Area

1263 sq. ft.

Count

4 Cars

Entry Location

Courtyard

Ceiling Heights

First Floor

10'

Second Floor

8'

Room

Ceiling Type

Height

Great Room

Second Story

0' 0''

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Craftsman

Northwest

Special Features

Angled Garage

Bonus Room

Butler Walk-in Pantry

In-Law Suite

Loft

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

3,549 sq. ft.

1st Floor

2,465 sq. ft.

2nd Floor

1,084 sq. ft.

Bonus

671 sq. ft.

Porch, Rear

182 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

3 or 4

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

121' 6"

Depth

83' 2"

Max Ridge Height

30' 6"

Garage

Type

Attached

Area

1263 sq. ft.

Count

4 Cars

Entry Location

Courtyard

Ceiling Heights

First Floor

10'

Second Floor

8'

Room

Ceiling Type

Height

Great Room

Second Story

0' 0''

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Craftsman

Northwest

Special Features

Angled Garage

Bonus Room

Butler Walk-in Pantry

In-Law Suite

Loft

Master Suite - 1st Floor
