Plan 55173BR
Luxury Home with Home Theater
Heated S.F.
3,096
Beds
4
Baths
4.5
Stories
2
Cars
2
Floor Plan

Plan 55173BR

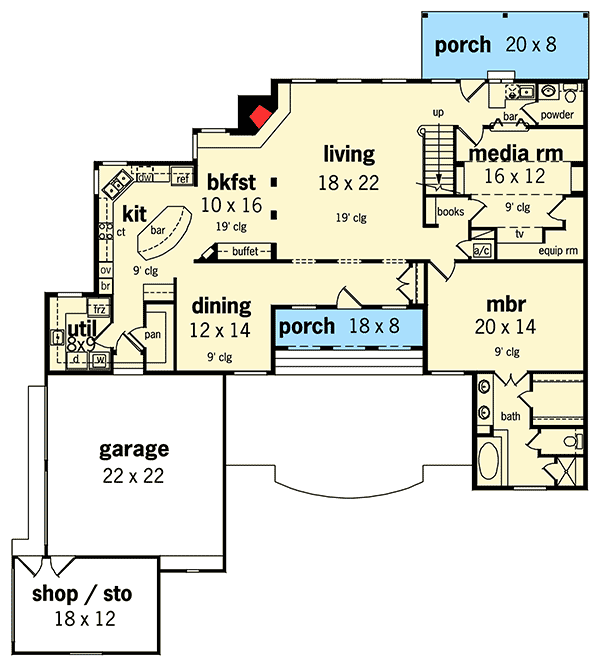

Main Level
slide image 0

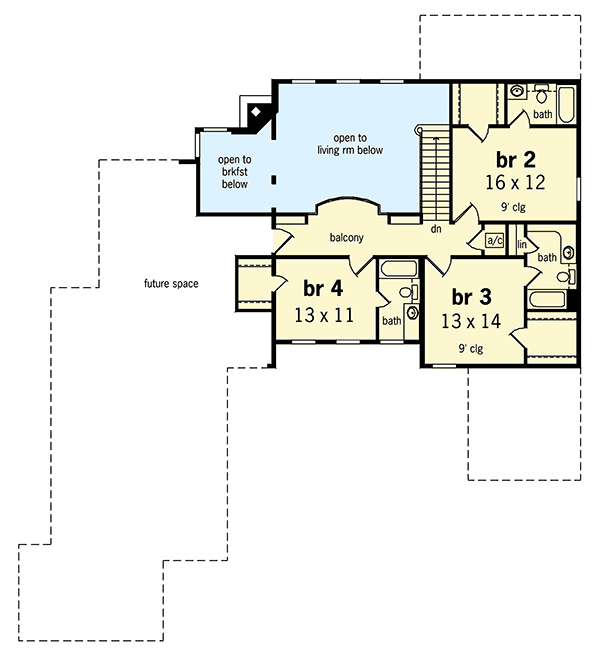

2nd Floor
slide image 1

Plan 55173BR

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
2nd Floor
floor plan image 2nd Floor
Plan Details
  • Great for watching a movie or a big game, the ultimate media room in this 4 bed luxury home will certainly please. Receding walls direct your view to the screen and bounce the sound to the viewer. An adjoining wet bar and bath serves the media room, living area or the rear covered porch.
  • The 2-story living room with massive corner fireplace and open stairwell makes a great entertaining space once the big game is over.
  • The kitchen is open and light with bountiful storage and a great view into the living area. A large butler's pantry is positioned to serve the dining and kitchen and it is also convenient for off loading from the garage. A built-in kitchen desk and huge walk-in pantry are two welcomef features deigned into the home.
  • The master suite is grand and opulent with an equally impressive adjoining bath.
  • A third bay in the garage can be used for a smaller car, golf cart or workshop.
  • The roof is stick framed with a 15:12 pitch.
  • Related Plan: Get a brick exterior with house plan 55169BR.
What's Included
  • Cover Sheet  - with general information
  • Foundation Plan drawn to 1/4" scale - if the foundation is a basement or crawlspace, a floor framing plan will be included indicating the floor joist or trusses.
  • Foundation Footing - details
  • Fully Dimensioned Floor Plan which indicates all plumbing fixture locations, cabinet locations, beam locations and sizes, door & window schedules, design load charts and general notes. Also included are tables for all dimensional lumber sizes such as ceiling joist, rafters and floor joists.
  • Elevations - which call out exterior finish materials
  • Building Sections, enlarged drawings of the cornice and wall construction at various area of the exterior
  • Interior Elevations that have built-in cabinets or areas with special wall detail such as a fireplace wall.
  • Roof Plan indicating planes of the roof and a birds eye view of the roof configuration. Electrical plan indication location of all wall outlets, lighting and switch locations along with a schedule of electrical symbols.
  • Construction Details - schedules for the interior finish, exterior finish, electrical schedule
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

3,096 sq. ft.

1st Floor

2,111 sq. ft.

2nd Floor

985 sq. ft.

Bonus

250 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

70' 0"

Depth

78' 0"

Max Ridge Height

38' 0"

Garage

Type

Attached

Area

716 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Roof Details

Framing Type

Stick

Architectural Style

European

Traditional

Special Features

Butler Walk-in Pantry

Home Theater

Master Suite - 1st Floor

Media Room

Two Story Great Room

Wet Bar

Workshop

Square Footage Breakdown

Total Heated Area

3,096 sq. ft.

1st Floor

2,111 sq. ft.

2nd Floor

985 sq. ft.

Bonus

250 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

70' 0"

Depth

78' 0"

Max Ridge Height

38' 0"

Garage

Type

Attached

Area

716 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Roof Details

Framing Type

Stick

Architectural Style

European

Traditional

Special Features

Butler Walk-in Pantry

Home Theater

Master Suite - 1st Floor

Media Room

Two Story Great Room

Wet Bar

Workshop
