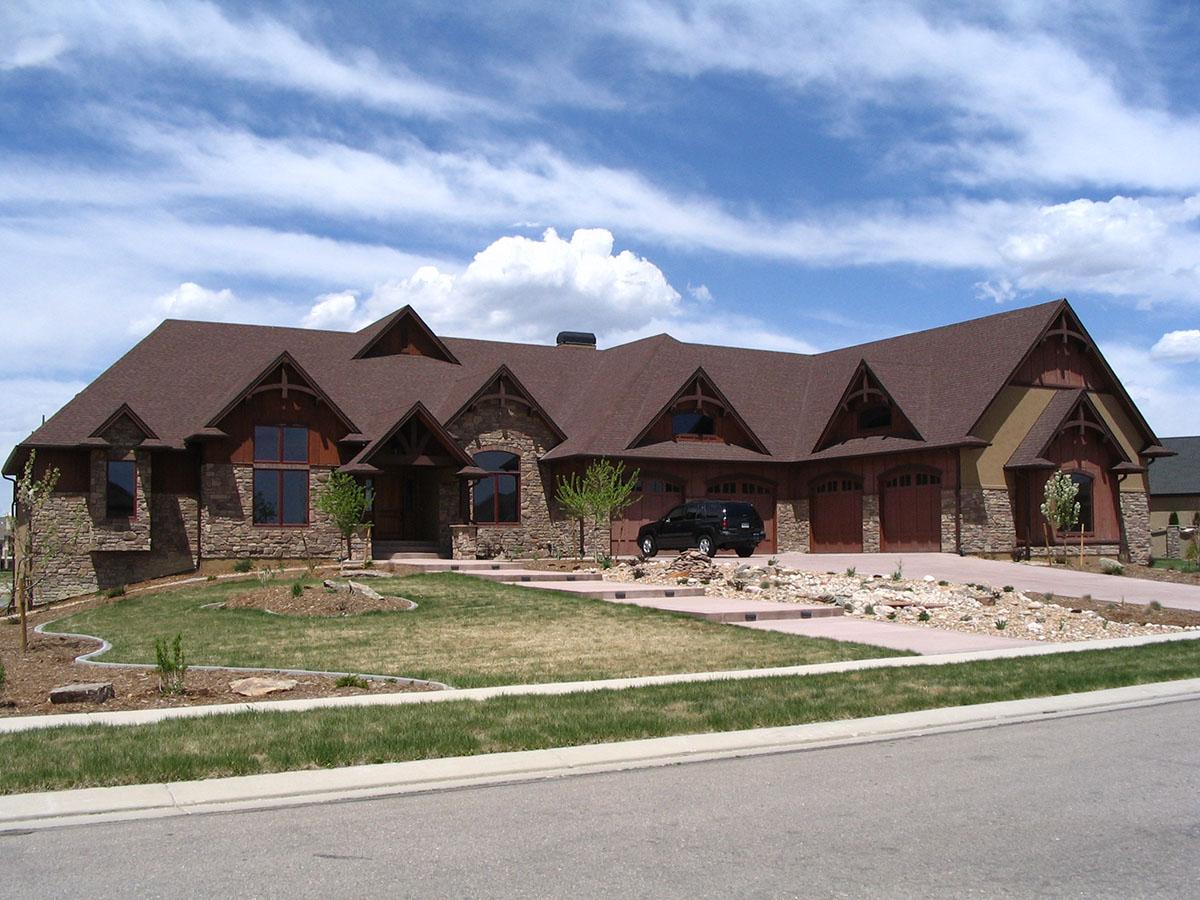

Plan 9522RW

Luxury Lower Level

Heated S.F.

6,732

Beds

4

Baths

5.5+

Stories

1

Cars

4

Floor Plan

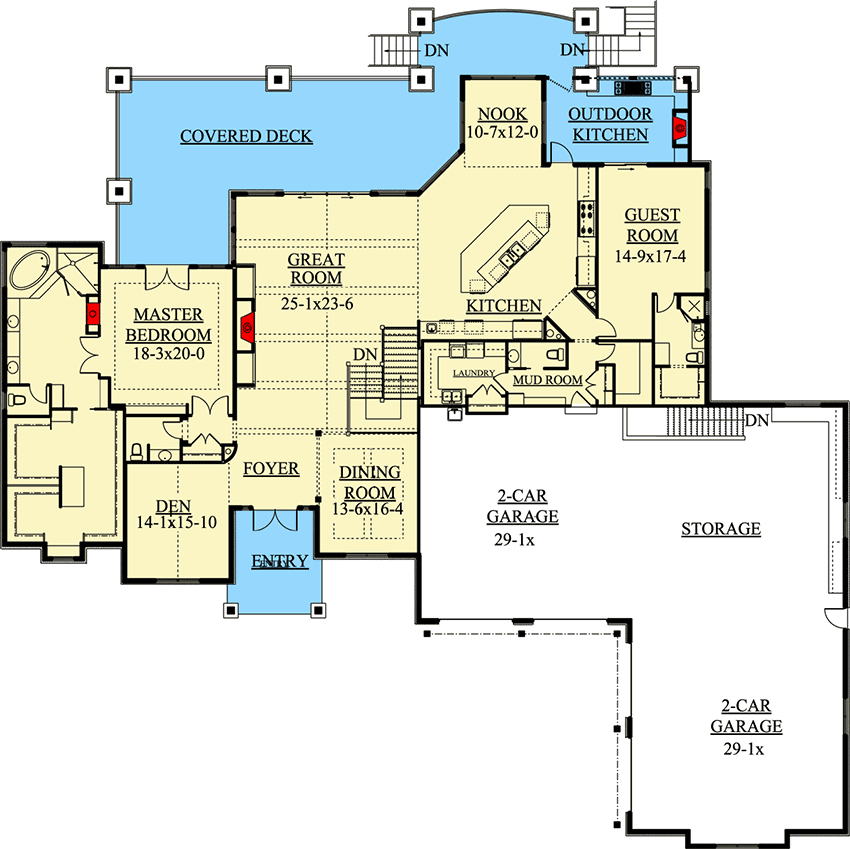

Main Level

floor plan image Main Level

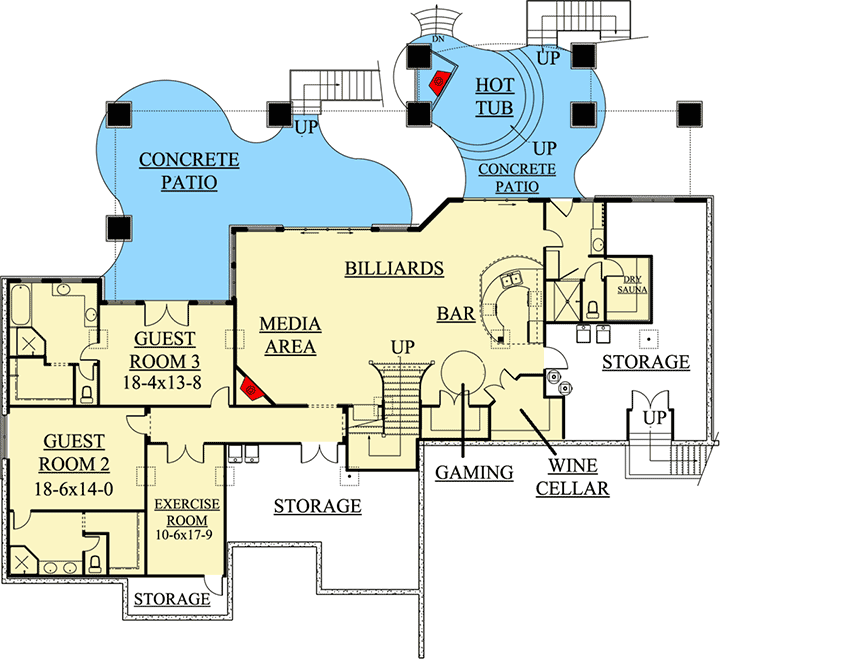

Lower Level

floor plan image Lower Level

Plan Details

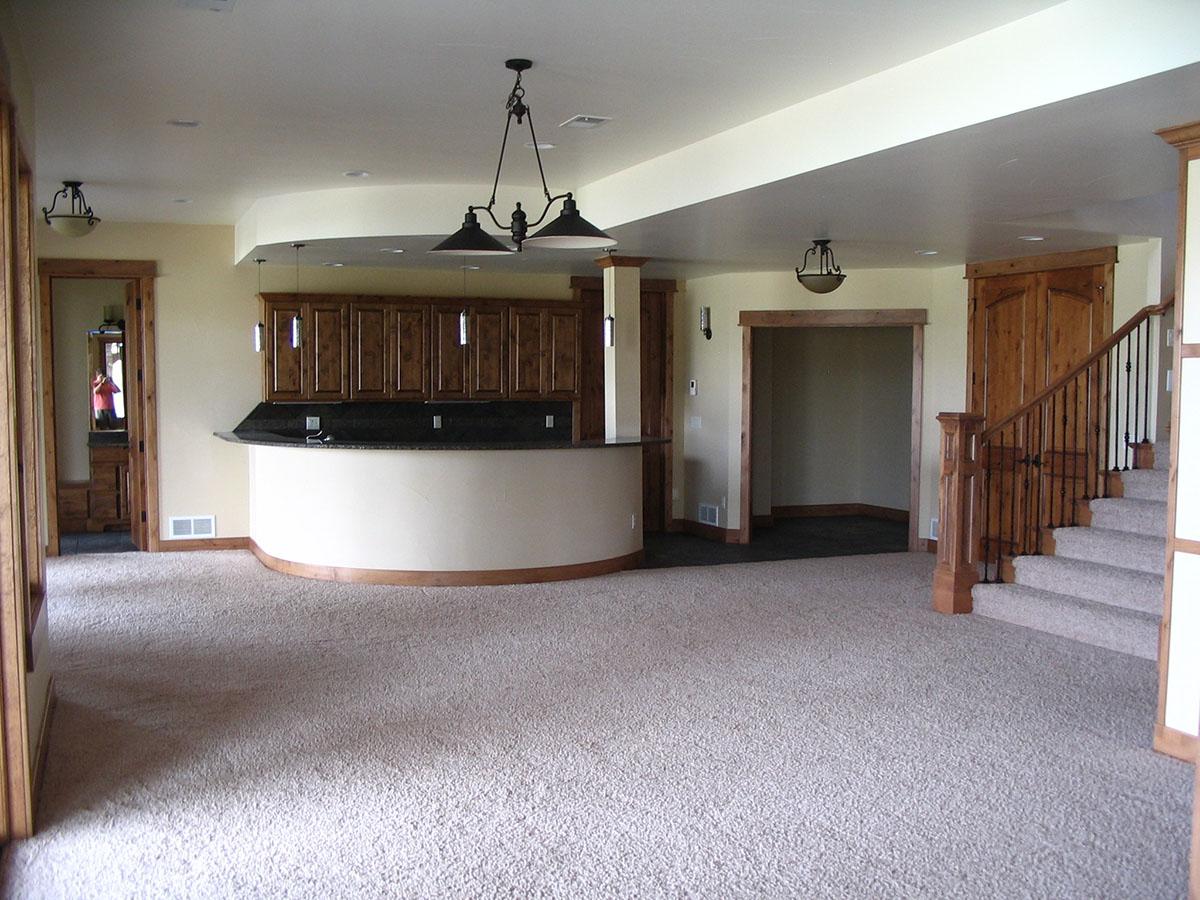

This is a house to bring all your friends and family to. The lower level will provide the perfect entertainment zone with a gaming area, media and billiards section complete with a large wet bar!

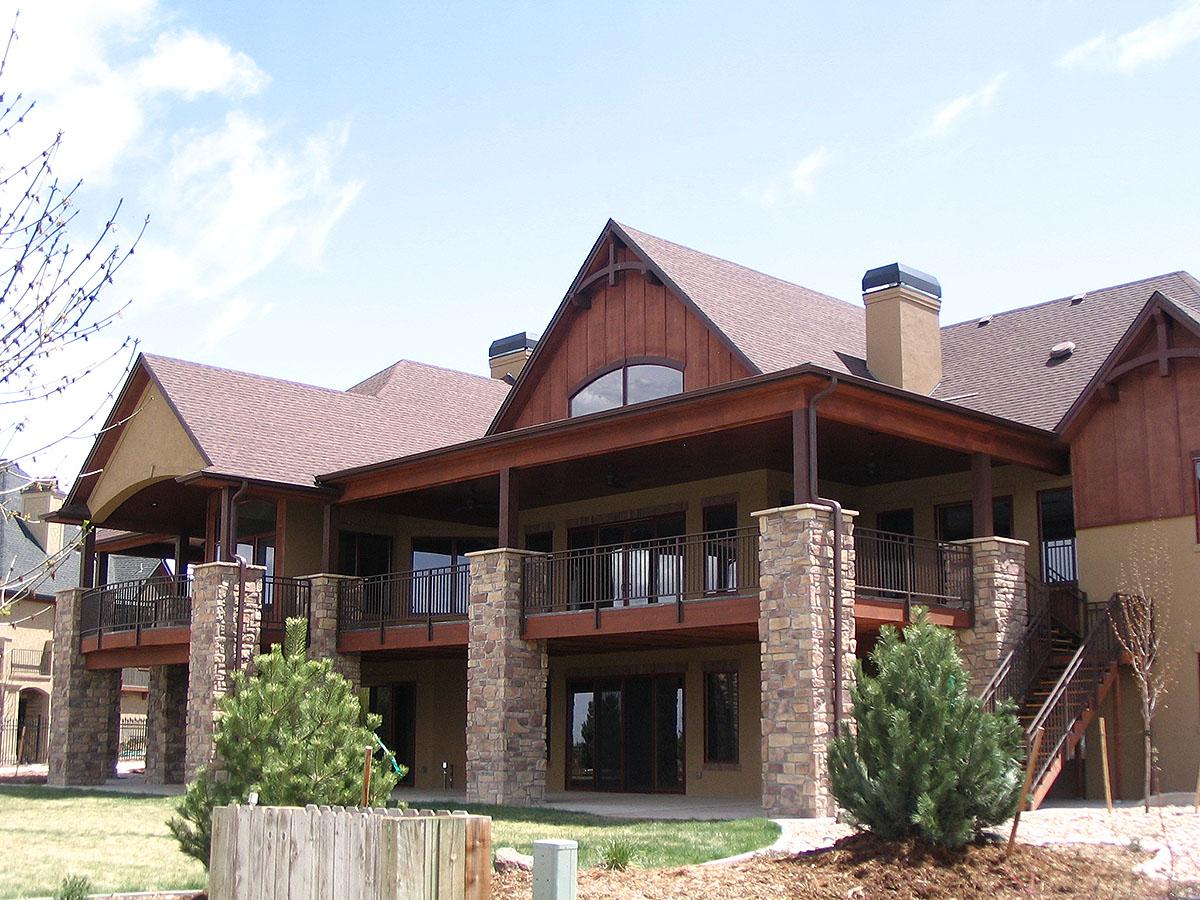

Sliding glass doors on this level open to a covered patio. Two bedroom suites will accommodate any overnight guests.

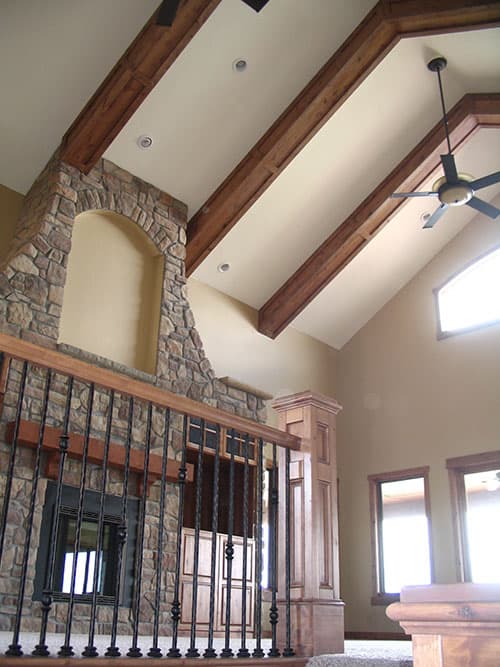

The main floor has a large foyer with views straight back through the vaulted great room to the covered deck in the rear.
A vaulted den lies to the left of the foyer near the first floor master suite.

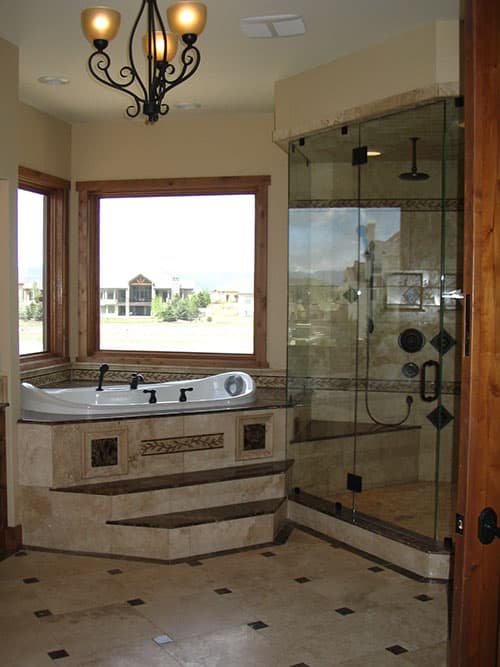

Tray ceilings and a huge walk-in closet and bath will be appreciated by the homeowners.

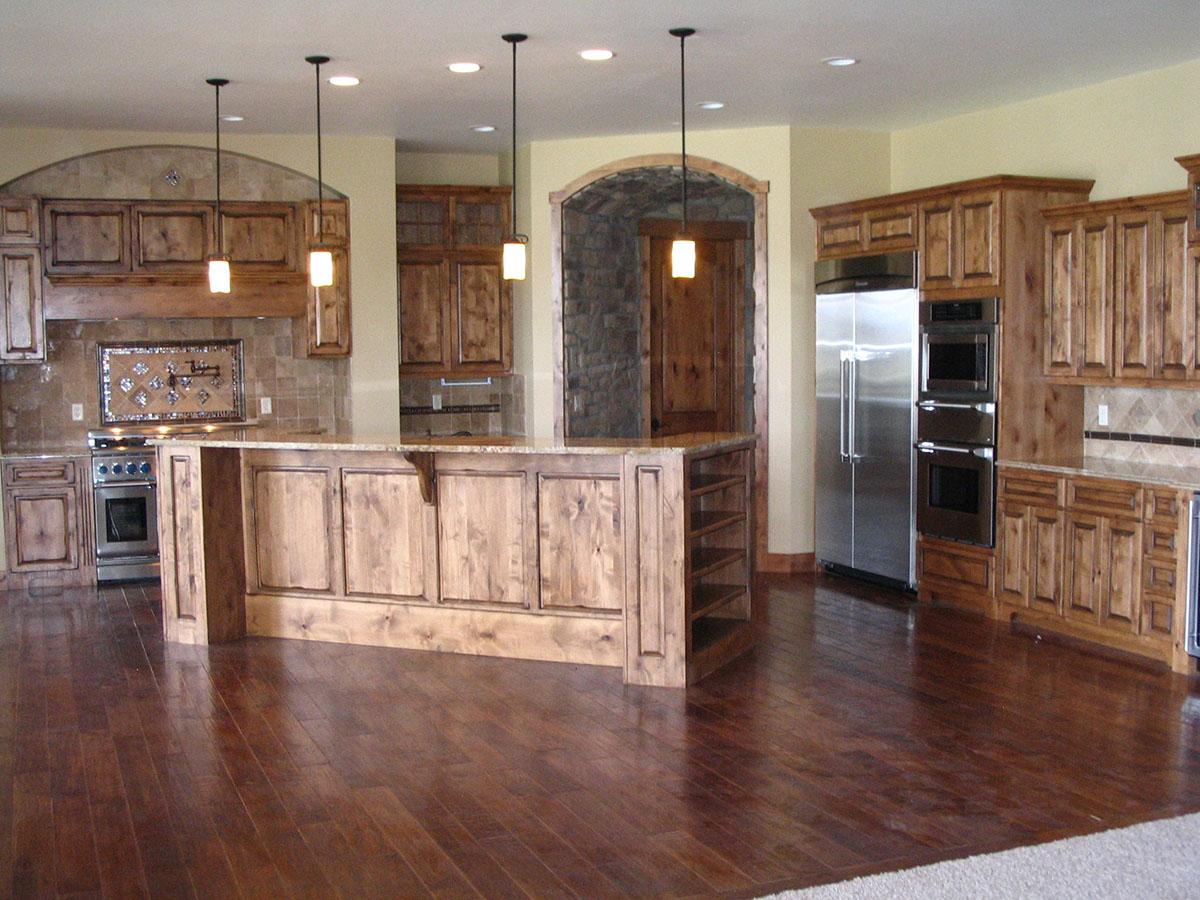

A massive island in the gourmet kitchen gives plenty of counter space to an already large kitchen.
Another guest suite can be found on this level for those who would rather skip the stairs.
Related Plan: Downsize with house plan 9526RW (5,723 sq. ft.).

What's Included

Cover Page

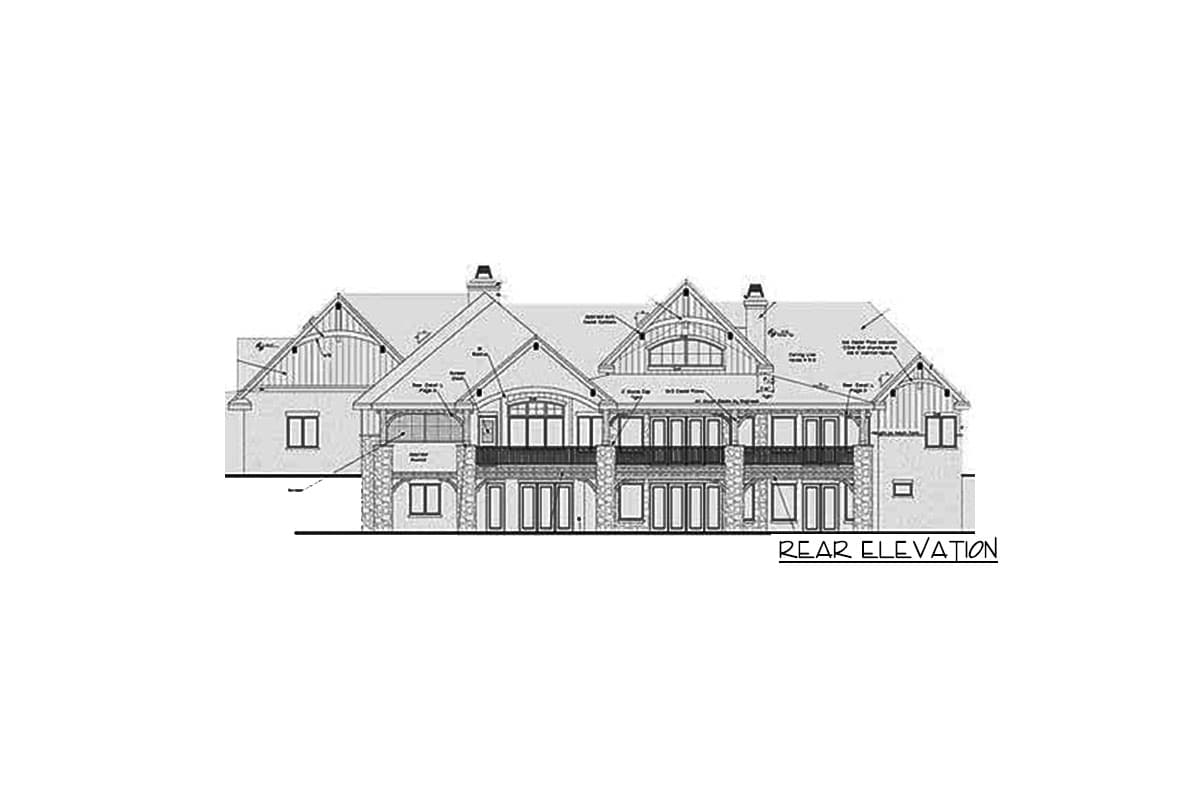

4 Elevations
Floorplans
Foundation plan (with no specifications of structural elements)
Roof plan (with no specifications of structural elements)
Typical wall sections
Electrical plan

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
REScheck or other energy related calculations are NOT included.
Wind load or seismic calculations are NOT included.
Framing plans or beam sizes are NOT included.
Other specific drawings that your local permit office may requires

Modify This Plan

Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

6,732 sq. ft.

Lower Level

2,654 sq. ft.

1st Floor

4,078 sq. ft.

Basement Unfinished

567 sq. ft.

Deck

1,316 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

5

Half bathrooms

2

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

116' 0"

Depth

115' 4"

Max Ridge Height

27' 4"

Garage

Type

Attached

Area

2666 sq. ft.

Count

4 Cars

Entry Location

Front, Courtyard

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

12 on 12

Framing Type

Truss

Architectural Style

Special Features

Bedrooms - Clustered

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - 1st Floor

Outdoor Fireplace

Outdoor Kitchen

Two Story Great Room

Plan Collections

Premium Collection

Square Footage Breakdown

Total Heated Area

6,732 sq. ft.

Lower Level

2,654 sq. ft.

1st Floor

4,078 sq. ft.

Basement Unfinished

567 sq. ft.

Deck

1,316 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

5

Half bathrooms

2

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

116' 0"

Depth

115' 4"

Max Ridge Height

27' 4"

Garage

Type

Attached

Area

2666 sq. ft.

Count

4 Cars

Entry Location

Front, Courtyard

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

12 on 12

Framing Type

Truss

Architectural Style

Special Features

Bedrooms - Clustered

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - 1st Floor

Outdoor Fireplace

Outdoor Kitchen

Two Story Great Room

Plan Collections

Premium Collection
